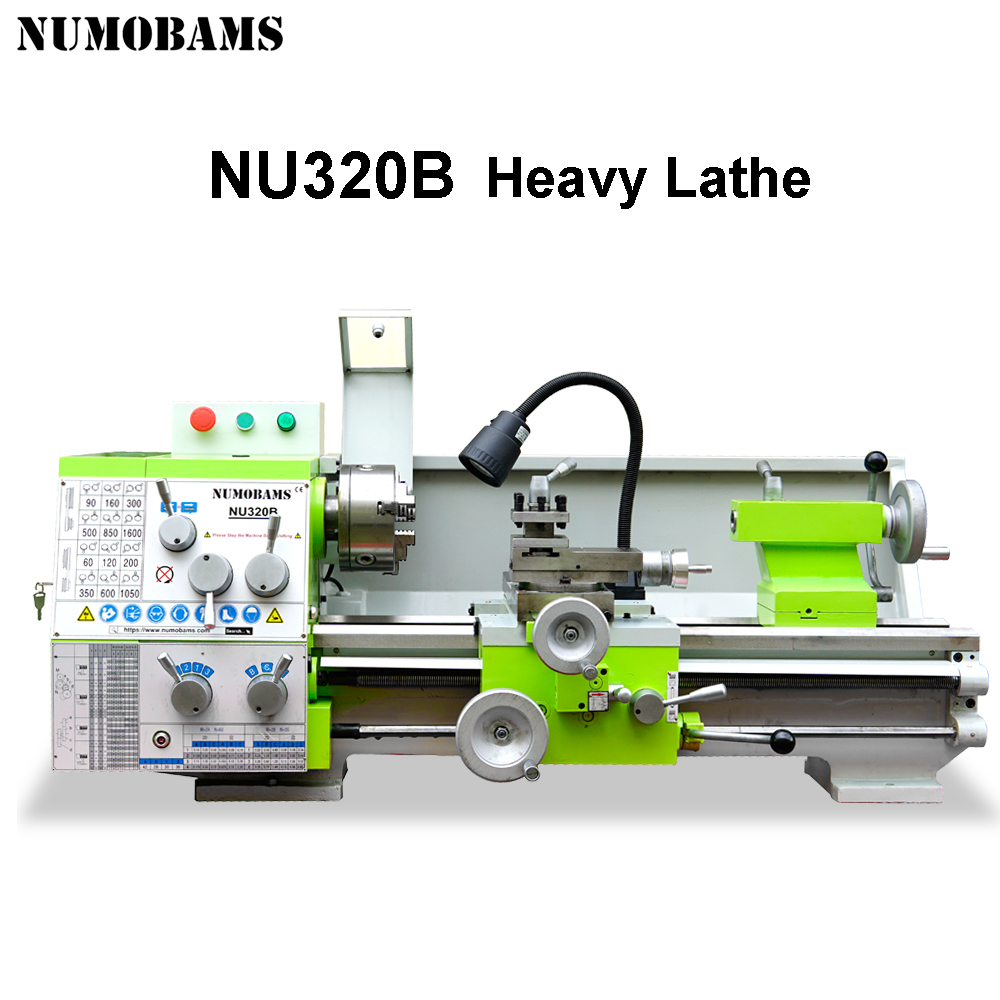

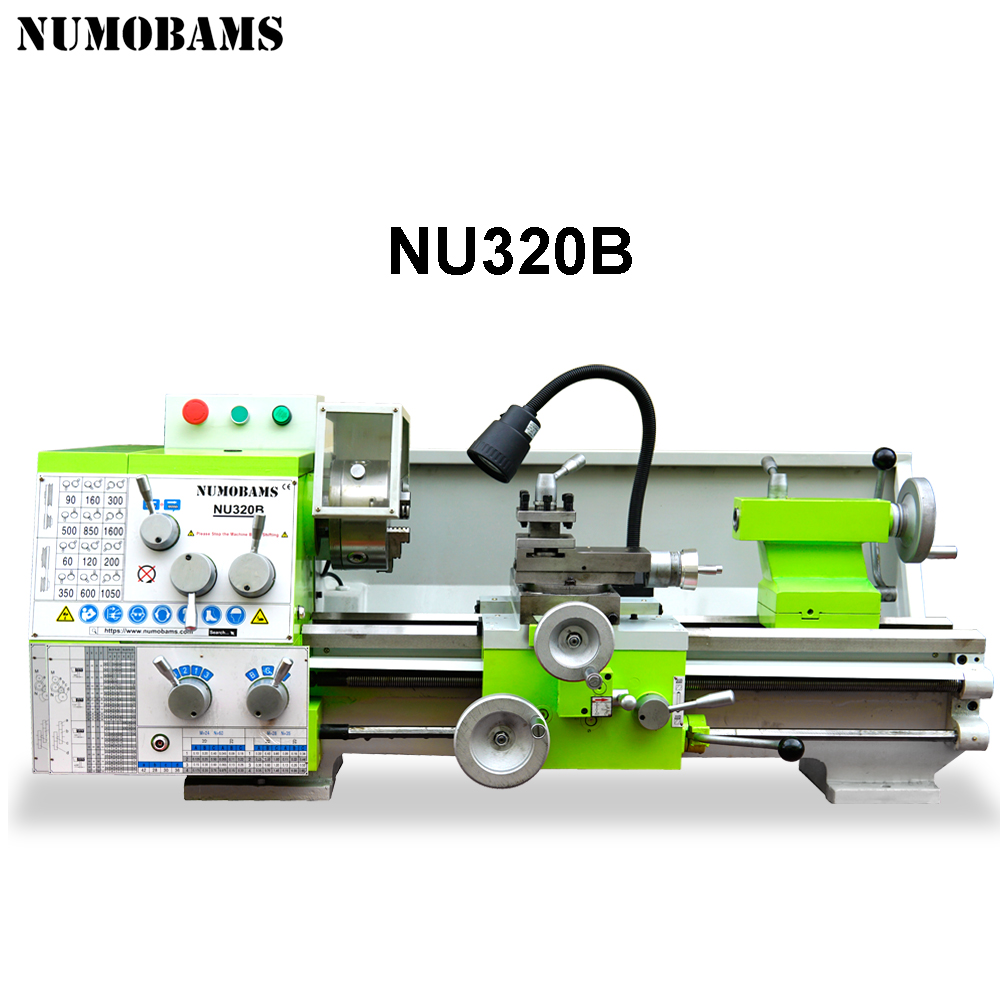

NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine

SKU:
0.0 (0)
2 Sold
$12,028.34 $12,500.00
NU320B Lathe Machine for DIY use 320*600mm working capacity.
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
  • Voltage:
    220V
    380V
  • Model:
    600mm
    750mm
  • Type:
    Without A Quick Change Tool Holder
    With A Quick Change Tool Holder
Quantity:
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
1/1
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
  • Description

Product Overview

The NU320B is a bench lathe for people who want a real machine rather than a kit: a 750 W motor, a bench-sized working envelope and an MT5 spindle taper, carried on a cast base that sits on a bench instead of bolting to a factory floor. It is a metal lathe machine that is small only in footprint — the spindle, tool post and tailstock use the standard sizes you would find on much larger machines, and that is exactly what makes it useful in a small shop.

This is a screw cutting lathe in the traditional sense: facing, straight and stepped turning, drilling from the tailstock and thread cutting are all done by hand, with handwheels, levers and a speed chart across the front of the headstock. There is no screen and no program to load: you set the tool, feel the cut and adjust. For a one-off part that would otherwise mean modelling it in CAD and programming a cnc turning lathe machine, that is often the faster route.

Three kinds of buyer end up with a machine like this. The hobby machinist moving up from something smaller and tired of flex in the cut. The repair or maintenance shop that needs a bush or a shaft today rather than in three weeks. And the training bench where students have to see and feel what a tool is doing. If your work is production turning to a drawing, all day, every day, a heavier model or a CNC machine will serve you better.

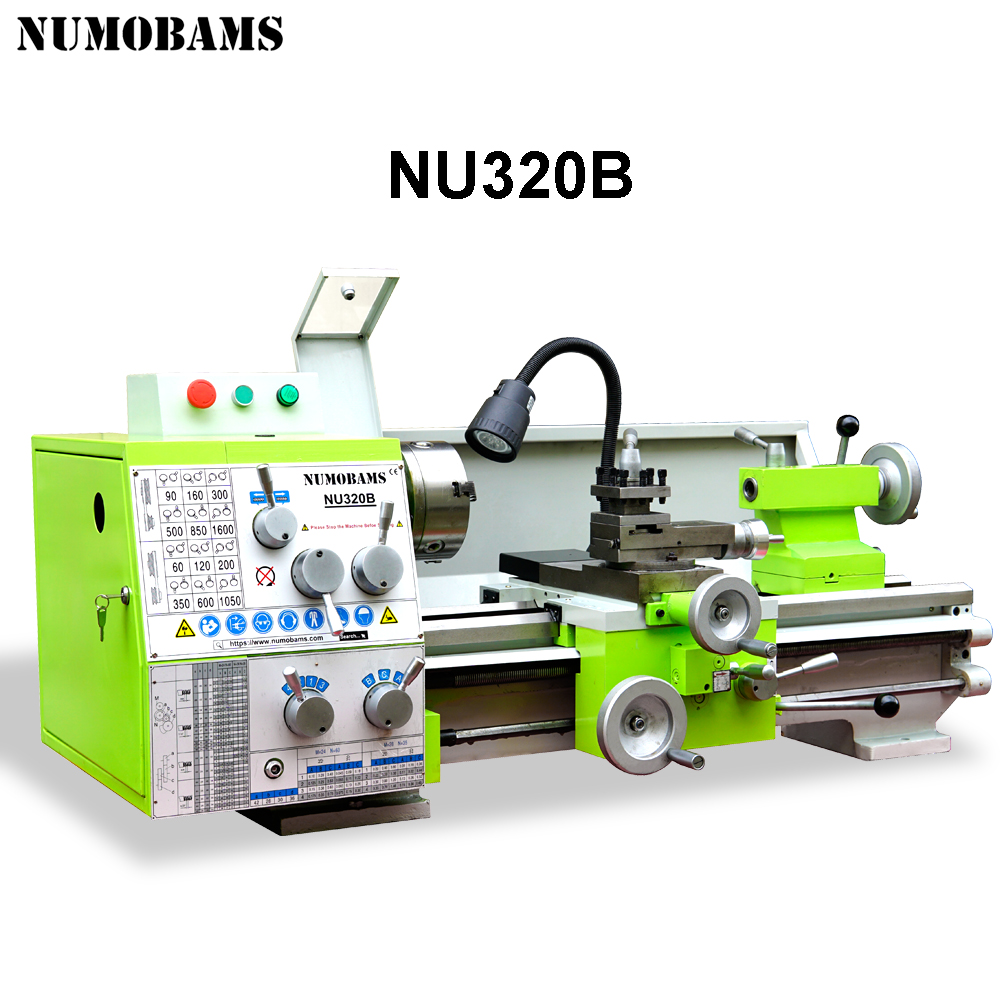

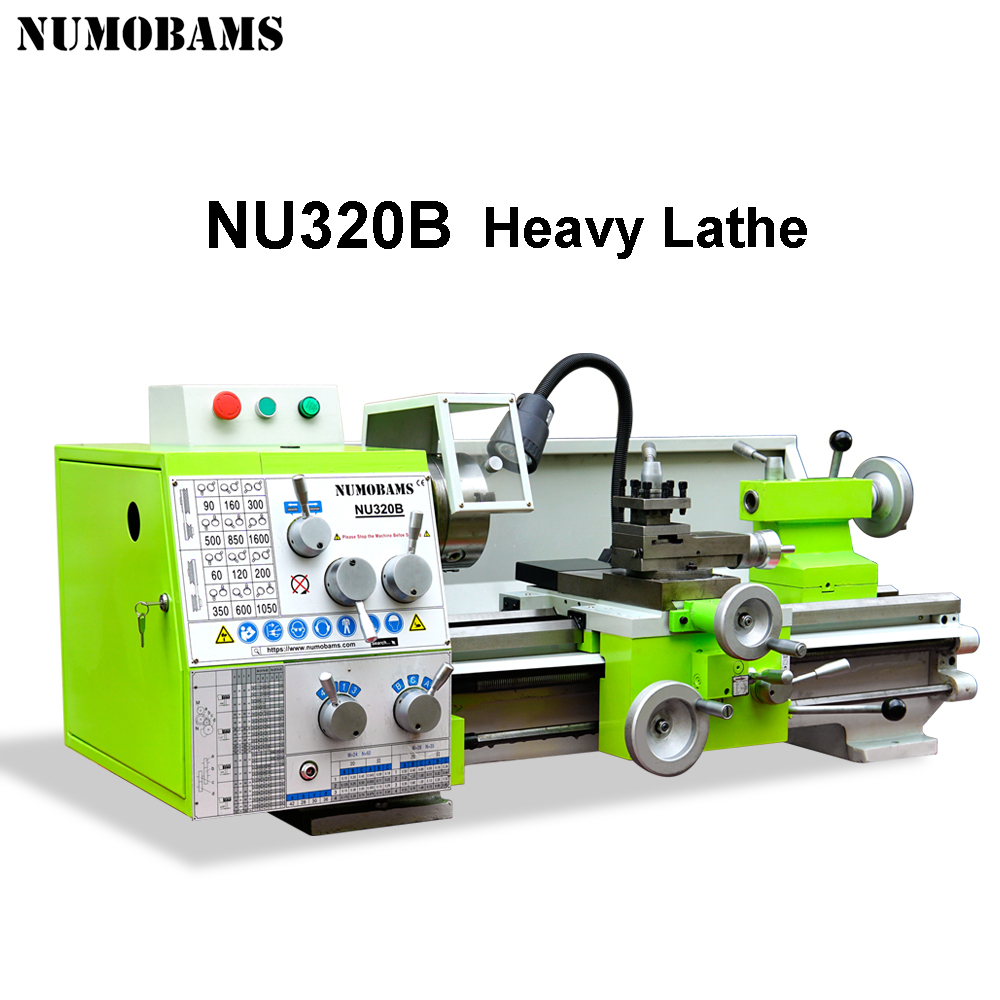

A green and silver metalworking heavy lathe shown from an angled view
NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine

Specifications

ModelNU320B
Machine typeManual lathe, bench mounted
Spindle taperMT5
Motor750 W
Working envelope320 × 600 mm
Bed length options600 mm or 750 mm
Voltage220 V or 380 V
Tool postStandard four-way or quick change
TailstockFitted, handwheel feed
MountingBench top, cast base
DocumentationEU attestation of conformity
Ships fromChina
NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine

Spindle & Tooling Compatibility

  • MT5 is the point of the machine. The spindle nose takes the MT5 taper, so centres, drill chucks, live centres and arbors made to that standard seat without an adapter. If you already run MT5 tooling, it moves onto this lathe on day one, whichever cnc lathe machine manufacturer built the lathe it came from.
  • Coming from a smaller machine means new tooling. Most mini lathes use MT3 or MT4, and those centres will not seat in an MT5 spindle. Budget for a live centre, a drill chuck on an MT5 arbor and a couple of reducing sleeves at the same time as the machine.
  • Standard or quick change tool post. The standard four-way post takes ordinary square tool bits and is the simplest thing to learn on. The quick change post holds preset holders you swap in and out, so a second and third operation can be set up without re-shimming the tool each time.
  • Tailstock work. The tailstock runs on the bed with a handwheel feed, which is what you use for drilling, reaming and supporting a long shaft on a centre. Tell us the arbor size your drill chuck needs and we will confirm it with the order.
  • Measure what you already own first. Note the taper of your centres, the shank size of your tool bits and the thread on any chuck you want to reuse. Send that list and we will tell you what fits this metal lathe machine and what needs an adapter.

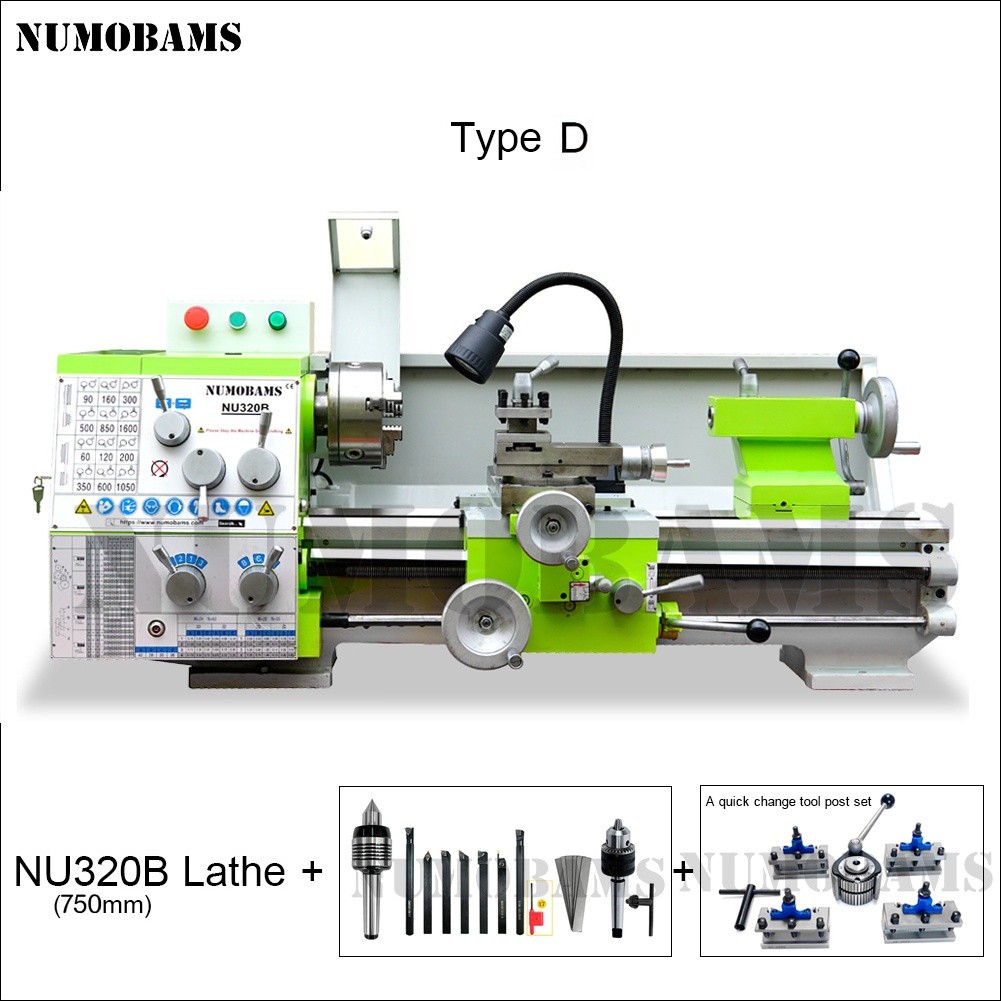

  • The quick change configuration arrives tooled. That bundle adds the quick change tool post set, a set of tool bits and the usual keys, so the machine can make a first cut without a separate shopping trip.
NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine

Build, Controls & Footprint

The machine is built around a horizontal cast bed, with the headstock at one end and the tailstock at the other. The housing is painted, the working surfaces are ground and polished, and the controls sit where your hands go looking for them: feed and lead screw levers on the apron, gear levers on the headstock, and a speed chart printed across the front so a spindle speed can be chosen without opening a manual. It is the same arrangement established cnc machine tools manufacturers still build turning platforms on, simply without the control.

A few details matter more than they look. The chuck guard and the work lamp are both fitted, so you can watch the cut and keep your hands clear at the same time, and the emergency stop sits within reach on the panel. Nothing on this metal lathe machine needs a screen to run, which is also why there is very little electrically that can let you down.

Because everything is manual, the machine tells you what it is doing: you feel a chipped tool through the handwheel and hear the motor load before a cut goes badly wrong. A small machine that sets up in minutes gets used; a large one that needs an hour of preparation often does not.

NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine
A green and white metalworking lathe with control panel, chuck, and work light

Applications & Typical Work

  • Repair and maintenance work. A worn bush, a stepped shaft or a spacer that no longer exists as a spare part can be turned, drilled and parted off in an afternoon instead of waiting on a supplier — this is the job a mini lathe earns its bench space on.
  • Prototyping and one-off parts. When a design change means a new component every week, manual turning puts a part in your hand the same day, and threads, shoulders and fits can be checked against the mating part while the work is still in the chuck.
  • Model engineering and hobby work. Boiler fittings, axle boxes, small steam components and the hundred small turned parts that go into a model — work where the part is small, the fit is tight and the pleasure is in the making.
  • Training and shared workshops. Facing, parallel turning, drilling and screw cutting are all visible and repeatable on a manual lathe, so one student can be shown a cut and the next can repeat it without resetting a program.
  • Light fabrication and small batches. Brackets, pins, spacers and adapters turned in tens rather than thousands, with the operator free to change a dimension between parts.
  • Restoration and obsolete parts. Replacing a missing spindle, collar or fastener on an old machine is often quicker by turning a new one on a screw cutting lathe than by hunting for the original.
A green and white metalworking lathe shown at an angle with control panel andA green and white heavy lathe with control panel, chuck, tailstock, and work light

Product Advantages

A published taper instead of a proprietary one. MT5 is a standard, so centres, chucks, arbors and sleeves come from more than one supplier and do not have to be bought from us; it is a taper that cnc machine tools manufacturers already make tooling for, and your tooling stays useful if you change machines later.

750 W with headroom for real cuts. The motor is sized for medium-duty work rather than light finishing passes alone — enough to keep a parting tool moving and to take a sensible depth of cut in mild steel.

Two bed lengths, two tool-post configurations. You order the machine that matches the work: the shorter bed for the bench you have, the longer one for shafts that need more room between centres, and either a standard four-way post or a quick change post with preset holders.

Manual where it counts. There is no program to write and no post-processor to debug. A one-off part that would need a cnc turning lathe machine and a programmer can be turned, checked and finished in a single setup — an advantage on repair work rather than a compromise.

Bench footprint, cast base. The machine mounts on a sturdy bench rather than a foundation, so it fits a garage, a back room or a classroom and can be moved again without a rigger.

Details that keep the work visible. A fitted work lamp, a chuck guard and an emergency stop within reach sound like small things until you are holding a shoulder to size, and then they are the difference between a relaxed session and a tense one.

Close-up of a green metal lathe control panel and metal chuck
Factory floor showing many green metal lathes arranged on workbenches

Accuracy & Calibration

  • Adjusted before it is packed. Every mini metal lathe is pre-adjusted and calibrated before it leaves the works, so your first cut should be a working cut rather than a setup exercise.
  • What the accuracy statement covers. The accuracy NUMOBAMS stands behind is the overall working accuracy of the machine, not the tolerance of every individual component — those are two different promises, and it is worth knowing which one you are buying.
  • Verify with a cut, not a strip-down. Face a disc, take a light cut along a bar and measure the diameter at both ends; a cutting test tells you what the machine does in your hands, in your workshop, with your tooling.
  • Do not dismantle it to inspect it. Taking the headstock or the saddle apart to check alignment usually puts back an error that was not there, and accuracy issues that follow unauthorised disassembly are not something we can take responsibility for.
  • Keep a record of the first cut. Note the material, the depth of cut and the measurement. If something looks wrong months later, that record is the quickest way for our technicians to tell whether the machine has moved or the setup has.
  • Warm up before a finishing pass. Like any machine tool, a lathe settles once the spindle and bed have run for a few minutes; take the roughing cuts first and leave the finish until it has.
Workshop with rows of green metal lathes under assembly or inspectionRows of green and white metalworking lathes in a factory workshop

Spare Parts & Maintenance

  • Routine care is simple, and it is what keeps a lathe accurate. Wipe the ways clean and oil them at the end of every session, clear swarf from under the saddle, and check the gibs on the cross slide and the compound when a cut starts to chatter.
  • Order the part, not the assembly. Most components on this machine can be supplied individually — the control board, the switches, the levers and the parts of the tool post — so a single failure does not mean a new machine or a long wait.
  • Parts stay available because the supplier does not change. We buy from the same cnc lathe machine manufacturer year after year, and that continuity is the reason a three-year-old machine can still be repaired rather than replaced.
  • Describe the fault with a photo or a short video. A picture of the failed part, the model and your order number is usually enough for our technicians to identify it, and it saves shipping the wrong component twice.
  • Keep a small consumables drawer. Spare tool bits, a chuck key, a centre and a can of way oil cover almost every interruption, and none of them has to be ordered in advance from us.
  • Technical help comes from people who know the model. Questions about a chatter mark, a thread that will not clean up or a lever that feels stiff get answered directly, which matters when the machine is in a garage and the nearest dealer is in another country.
Collage of workshop photos showing rows of green and white lathes and milling machines
Grid of green and white lathes, milling machines and CNC machine tools

Ordering, Delivery & Warranty

  1. Choose the bed length. The shorter bed suits a bench where space is tight and most work is short; the longer bed gives you more room between centres for longer shafts, at the cost of bench length. If you are unsure, send us the longest part you expect to turn.
  2. Choose the voltage. The machine is offered in 220 V and 380 V. Check what your workshop actually supplies — a 380 V machine will not run on a domestic single-phase supply — and tell us the plug or connection you plan to use so we can confirm the configuration.
  3. Choose the tool post. Standard four-way keeps the cost down; quick change adds a set of preset holders and speeds up repeat work. Both configurations are available as order options.
  4. Add what you need to the same order. Alongside this lathe we supply mini CNC lathes, milling and drilling machines, tooling and spare parts, so the machine, its tooling and the parts you want on the shelf can travel together.
  5. Custom builds and badging. Configuration changes for a specific job, badging for a local brand and volume orders are handled case by case. Send the specification and the quantity and we will confirm what is possible and how it affects the dispatch date.
  6. Delivery, duty and the dispatch window. Machines ship from China with tax-free, door-to-door delivery on the routes we serve, and dispatch falls within 90 days of order confirmation. That window is real: the machine is built to your configuration after you order, and a cnc lathe machine manufacturer schedules a batch rather than a single unit, so we would rather quote the true window than name a date the works cannot hit.
  7. Allow for a pallet. Large machines normally travel crated and strapped to a pallet base, so plan for a pallet delivery and somewhere to set it down rather than a parcel through the letterbox.
  8. Control-board warranty. The control board carries a 180-day warranty from the day you receive the machine. If it fails inside that period, send the board back to us and we will exchange it for a new one. The cover is on the control board rather than the whole machine, and it does not extend to faults caused by unauthorised disassembly.
  9. Wholesale and dealer enquiries. If you are buying for resale or stocking the range, ask for a quote on the quantity you have in mind — pricing and terms are quoted per order.
A collage showing NUMOBAMS metal lathe and milling machines in workshop applications
A certificate collage showing UDEM attestation of conformity for a lathe machine

Supply Chain & Delivery Assurance

NUMOBAMS is a China-based machinery trading company working from Changsha, Hunan, with a selected network of manufacturing partners built up since 2016. That position lets us consolidate a full workshop order — machines, tooling and spare parts — into one shipment, inspect and prepare each unit before dispatch, and keep spare parts available long after delivery. We ship to Europe, the US and Canada on a tax-free, door-to-door basis, and usually dispatch within 90 days of order confirmation.

NUMOBAMS NU320B MT5 Spindle 750W Motor Metal Lathe Machine

FAQ

Q1. Is this a manual lathe or a CNC lathe?

It is a manual lathe. Every movement is made with a handwheel or a lever — there is no control screen and no program to load. That is deliberate: on one-off and repair work it is usually quicker than setting up a cnc turning lathe machine, and it lets you feel the cut through the tool. If your work is repeat production from a drawing, one of our CNC models will suit you better.

Q2. Will my existing MT5 tooling fit this machine?

If it is a genuine MT5 taper, yes — centres, drill chucks on MT5 arbors, live centres and reducing sleeves all seat in the spindle without an adapter. Tool bits fit according to the tool post you order: square shank bits in the standard four-way post, preset holders in the quick change post. Send us the taper and shank sizes you work with and we will confirm before you order.

Q3. What is included with the machine?

The mini metal lathe arrives with its chuck, tool post, tailstock, work lamp and chuck guard fitted, plus the keys and the operating information for the model. The quick change configuration adds a quick change tool post set and a set of tool bits. Consumables such as way oil and extra cutting tools are bought separately — tell us what you already own and we will confirm exactly what your configuration includes.

Q4. What size of work fits the working envelope?

The working envelope listed in the specifications covers the small and mid-size parts a mini lathe is bought for — bushes, shafts, spacers, flanges and fittings. Length matters as much as diameter: if your longest part sits close to the bed length, take the longer bed option. Send a drawing with the main dimensions and we will tell you honestly whether it fits rather than let you find out after delivery.

Q5. Can it cut steel, or only aluminium and brass?

It will cut mild steel as well as aluminium, brass and plastics. The 750 W motor is sized for medium-duty work, so steel is cut in sensible passes rather than heavy ones; aluminium and brass come off quickly and leave a good finish from a sharp tool. Harder alloys and high removal rates belong on a heavier machine — tell us what you plan to run and we will say whether this model is the right choice.

Q6. Can it cut threads to match an existing part?

Yes. This is a screw cutting lathe, and the thread charts supplied with the machine cover the common pitches. Measure the pitch on the part you are replacing, set the machine to match and test on a scrap piece first. If you are chasing an unusual pitch, send us the details and we will confirm what this model can cut.

Q7. Can I add a milling attachment later?

Light milling on a lathe is done with a vertical slide or milling attachment carried on the cross slide, and fitting one depends on matching the attachment to this bed and cross slide. Ask us what we can supply for this machine before you buy an attachment elsewhere, because mounting dimensions vary a great deal between kits.
