Product Overview

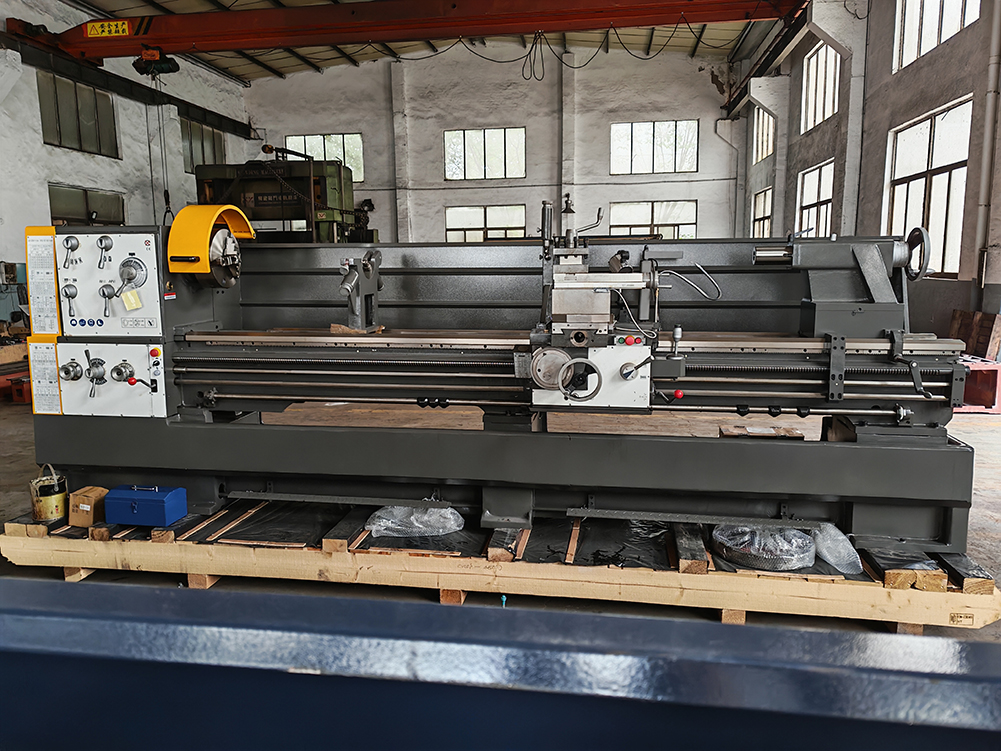

Heavy work rarely arrives in a tidy shape. Shafting, roll bodies, tie bars, hydraulic rods, gearbox shafts, worn pins pulled out of a press — the parts that justify a lathe of this size are long, heavy and usually needed in a hurry. This heavy-duty metal lathe is built around a long horizontal bed with the carriage and tailstock travelling its full length, so a part can be held, supported at the steady rest and cut in one set-up instead of being moved three times.
It is a manual machine rather than a cnc turning machine, and that is a deliberate part of the design. The operator dials the depth of cut at the carriage handwheel, sets the tool post, brings up the tailstock and feels the load through the wheel — no program to write, no trial cut on a scrap piece while a CAM file catches up with a single replacement shaft.
It comes in more than one bed length, and the longest is not automatically the right buy. Because cnc lathe suppliers all lead with bed length, the number tends to dominate the conversation, when what decides the machine is the length and weight of the parts you turn week to week, and how much floor you are prepared to give them.
Build & Structure
Center Distance Options

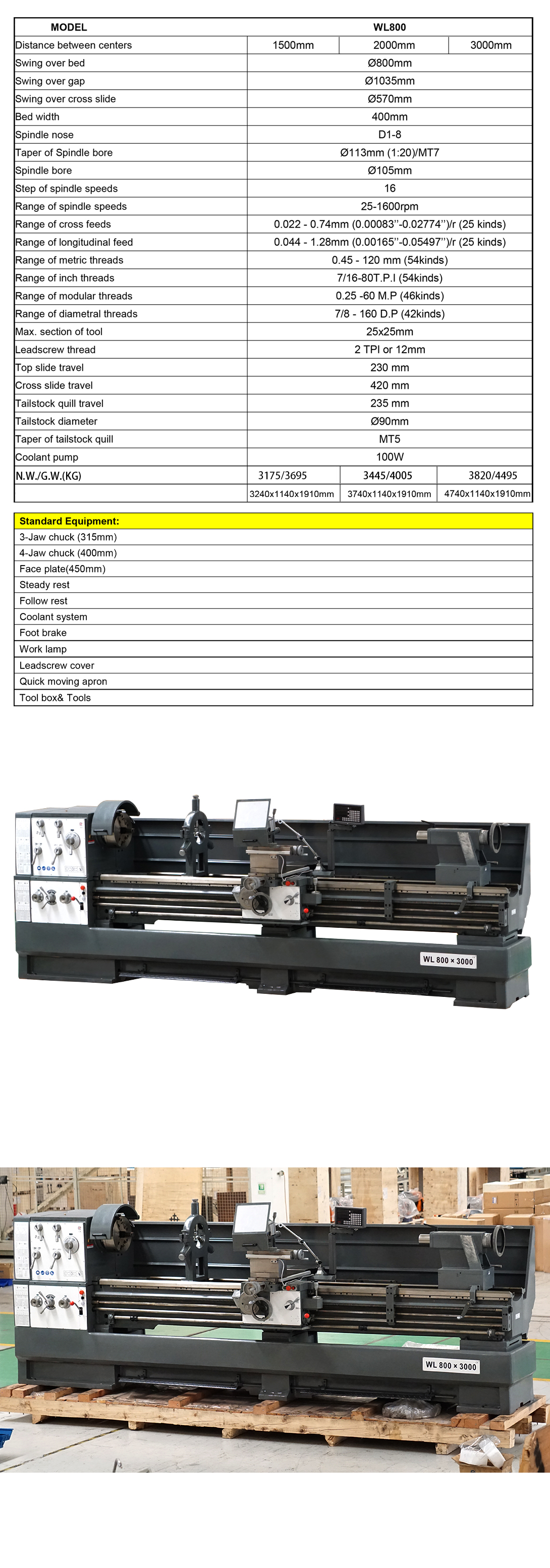

| Specification |
Detail |
| Model |
WL800 |
| Machine type |
Heavy-duty metal lathe, manual operation |
| Center distance |
Three bed lengths, chosen at order to suit your longest part |
| Bed |
Long horizontal bed with machined ways |
| Headstock |
Headstock with lathe chuck and guarded front |
| Carriage |

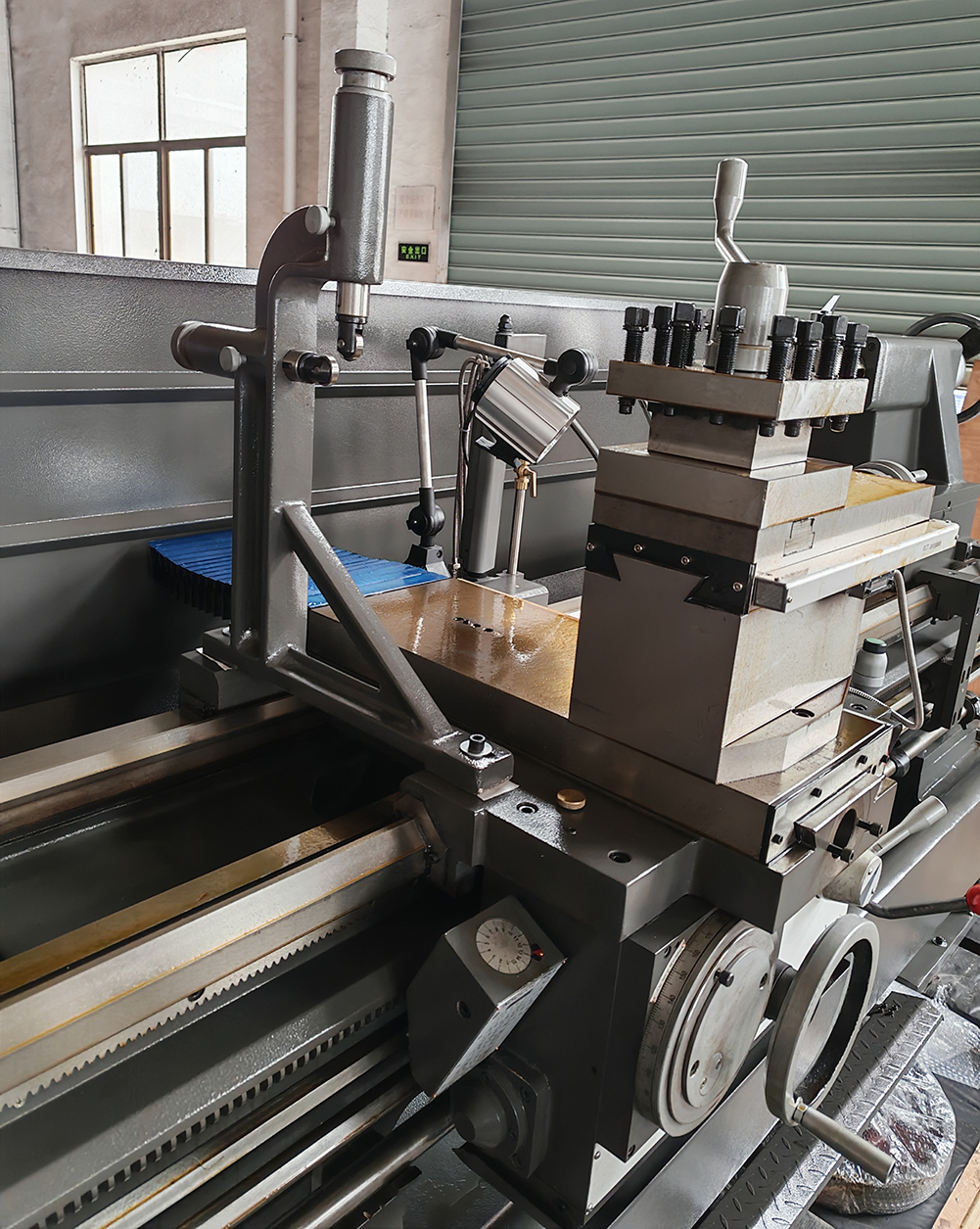

Handwheel carriage with tool post |
| Tailstock |

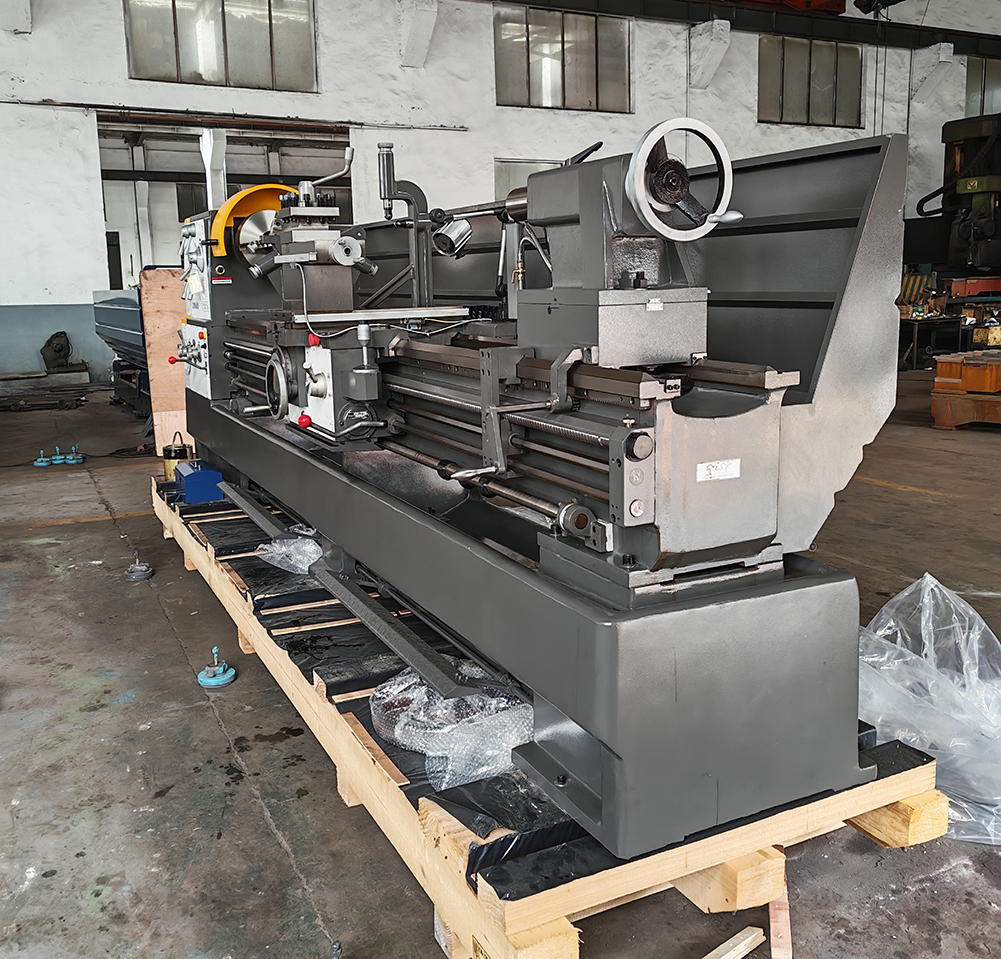

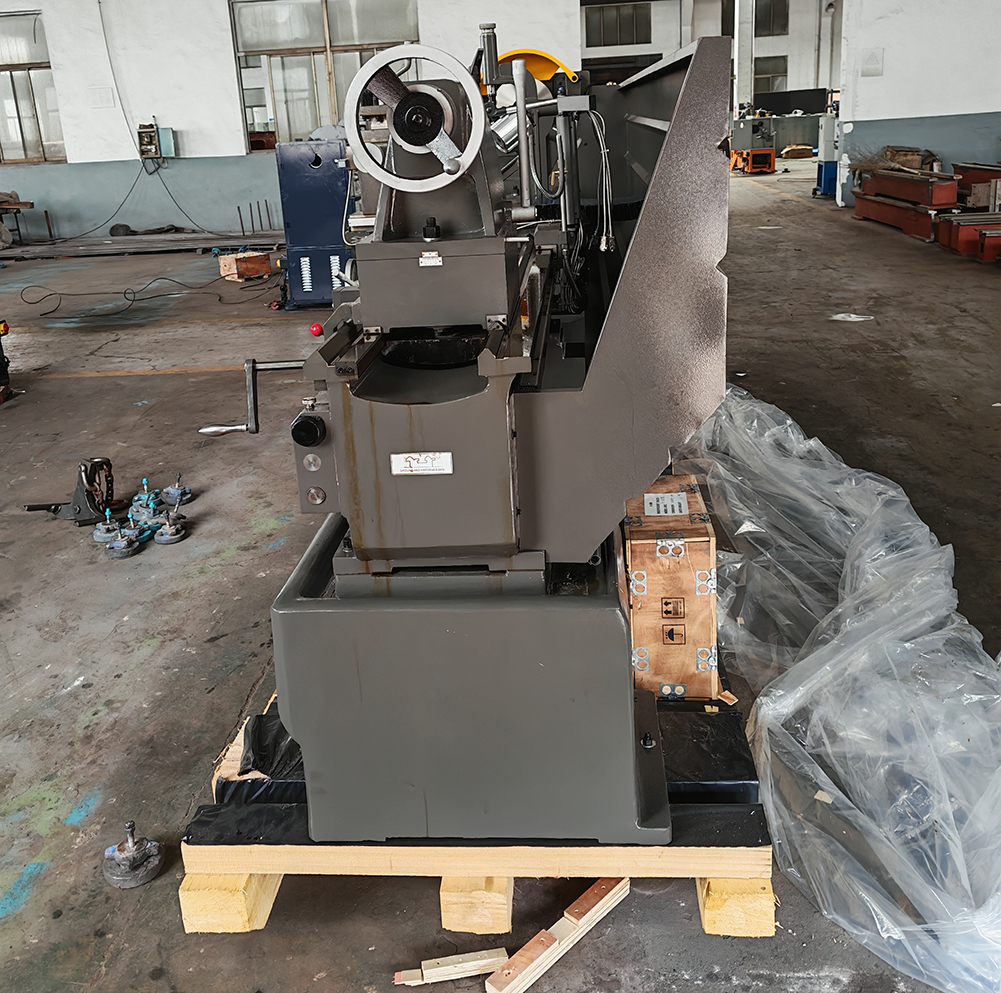

Handwheel tailstock for shaft support and end drilling |
| Feed |
Lead screw and feed rod along the bed |
| Work support |
Steady rest |
| Coolant and light |
Coolant hose and work lamp |
| Controls |

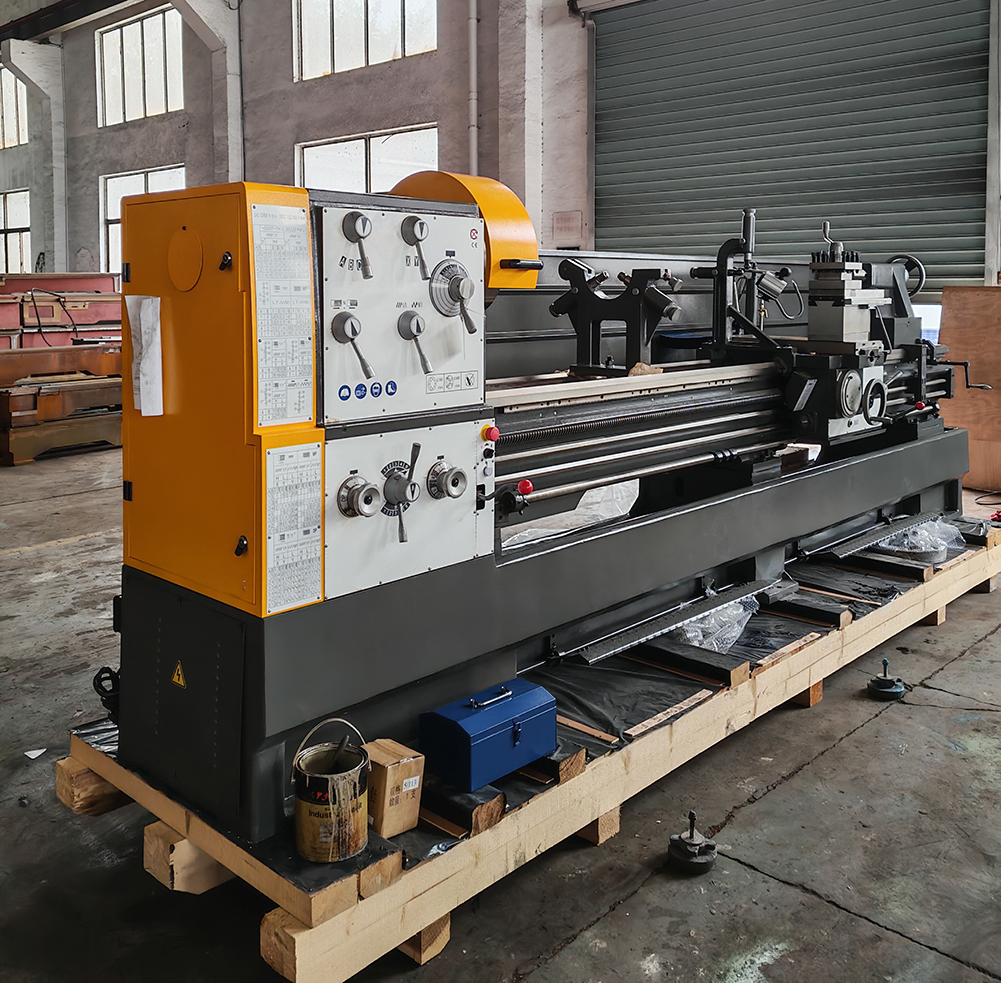

Manual control panel on the headstock |
Product Advantages
Rigidity is the first thing a heavy part tests. A large workpiece turning at speed wants to push the machine around, and the mass in the body and bed is what resists it: the tool stays where it was set, the surface comes off clean, and the operator is not chasing chatter with a file afterwards. That matters most on interrupted cuts, keyways and worn surfaces, where the tool is hitting and missing rather than cutting steadily.
Length stays usable because the carriage, tailstock and steady rest all work along the same bed. A long part can be supported in the middle and cut at both ends in a single set-up, and since every re-chuck is a chance to lose alignment, that is usually the difference between a part that runs true and one that does not.
Manual control is a cost advantage on one-off work. Setting up a repair on a cnc machine lathe means a program, a tool list and a trial cut before anything useful happens; here the operator sets the tool, dials the depth and starts cutting. On batches of one, that is normally faster, and it leaves the operator free to read the material as the cut develops.
The controls sit where an experienced turner expects them — the panel on the headstock, the carriage and tailstock handwheels within reach — so a new operator becomes productive quickly and a changeover does not turn into a training session.
Build quality is aimed at long shifts rather than occasional use. Each machine is assembled and checked before dispatch and the components are specified for continuous work, so the machine still holds its settings after a year of heavy turning instead of needing constant adjustment.
Use Scenarios
- Heavy plant and equipment maintenance. Shafts, pins, bushings and hydraulic rods come off machines scored or worn and go back on re-cut. On a cnc turning machine that is a programming job; on a manual lathe it is a set-up job measured in minutes, which is why maintenance shops keep one.
- Steel fabrication and structural work. Tie bars, anchor rods, threaded studs and long sections that need a thread on the end or a shoulder faced square — work that is awkward on a short bed because the part overhangs and springs.
- Jobbing shops taking longer work. A shop that has been turning away long shafts because its lathe cannot hold them can start quoting for them. Bed length is what solves it, and this is where cnc turning machine manufacturers put the metal: a long bed carried on a heavy body, without the programming and footprint of a production turning centre.
- Pump, motor and gearbox repair. Rotor shafts, bearing seats and coupling fits are re-turned and re-fitted, and the steady rest lets a slender rotor run without whipping away from the tool.
- Marine, port and yard maintenance. Propeller shafts, rudder fittings and deck machinery parts are long, heavy and expensive to replace, so re-cutting them in house is usually the cheaper route.
- Heritage and restoration work. Obsolete shafts and spindles with no spare part available are measured, turned from solid and fitted — the kind of one-off job a manual machine handles better than a programmed one.
Operating & Maintenance
- Level it before the first cut. Set the machine on a rigid, level floor and level the bed on its mounting pads before any heavy work. An out-of-level bed shows up as taper in the part, and no adjustment at the tool post will put it right.
- Wipe and oil the ways at the start of every shift. This is the habit cnc turning machine manufacturers and machine-tool fitters agree on, because grit on the ways wears the carriage saddle first and quietly costs accuracy.
- Oil on schedule, not when it complains. The same discipline applies whether you run a cnc machine lathe or a manual one: a dry way shows up as a scored surface long before it shows up in a dimension.
- Check the chuck and jaws. Clean the jaw scrolls, check that the jaws grip squarely, and never leave a chuck key in the jaw — the most common injury on any lathe happens at the chuck, not at the tool.
- Keep the steady rest and centres clean. A burr on a centre or swarf under a steady-rest pad transfers straight into the workpiece, so wipe both before every long-part set-up.
- Warm up before heavy cuts. Run the spindle at low speed for a few minutes when the shop is cold, so the headstock bearings settle before you load them.
- Watch the finish, not only the dimension. A sudden change in surface finish or a new vibration usually means a loose tool post, a dry way or a part that needs more support — investigate before the next cut rather than after the part is scrapped.
Ordering & Delivery
- Choose the bed length when you order. All three versions are built to order; tell us your longest part and its weight and we will confirm which length you need before anything is scheduled.
- Comparing options. If you are weighing this machine against other cnc lathe suppliers' long-bed models, send the part drawings and we will tell you honestly whether the shorter bed will do — quoting a longer bed than the work needs only adds floor space.
- Dispatch. Machines are scheduled for dispatch within 90 days of order confirmation.
- Delivery. We ship on a tax-free, door-to-door service, so the machine arrives at your address rather than at a port for you to clear.
- Delivery lines. We run direct delivery lines into Tokyo, Melbourne, Madrid, Warsaw and Los Angeles, and quote door-to-door terms for other destinations on request.

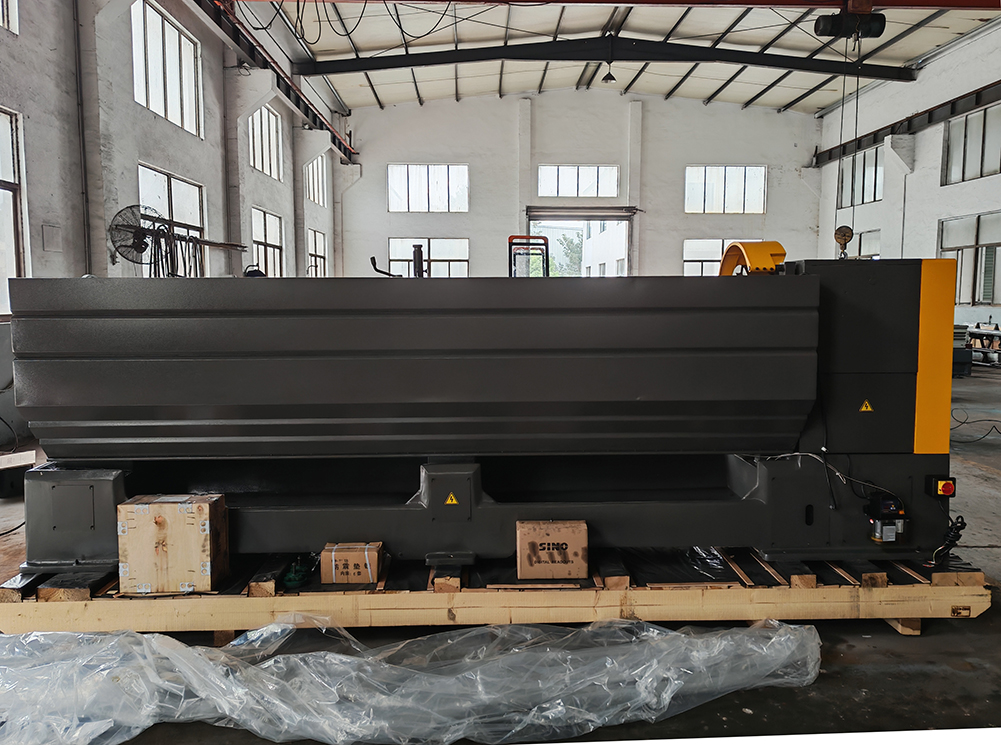

- Plan the unloading. The machine travels on a wooden pallet under protective wrapping; a lathe cnc machine of this size needs a forklift or overhead lift at your end and a clear route from the door to its final position.
- Installation. Our team can advise on siting, levelling and the first cuts before the machine arrives, so the floor is ready when it lands.
- Payment. We accept T/T bank transfer and credit card.
- After delivery. Our service team handles maintenance questions and parts requests; ask us for the current terms in writing with your quotation.
Supply Chain & Delivery Assurance
NUMOBAMS is a China-based machinery trading company working from Changsha, Hunan, with a selected network of manufacturing partners built up since 2016. That position lets us consolidate a full workshop order — machines, tooling and spare parts — into one shipment, inspect and prepare each unit before dispatch, and keep spare parts available long after delivery. We ship to Europe, the US and Canada on a tax-free, door-to-door basis, and usually dispatch within 90 days of order confirmation.
FAQ
Q1. What materials can this heavy-duty lathe process?
Steel and iron are the everyday work: shafting, housings, pins, bushings and threaded components in mild and medium-carbon steels, plus cast and forged parts that need re-cutting — the sort of heavy turning a lathe cnc machine of this size is bought for. In practice the limiting factor is the shape and weight of the part rather than the metal itself, because a heavy, unbalanced casting needs more support and a lighter cut than a clean shaft. Tell us the material and the largest diameter you plan to turn and we will confirm the set-up.
Q2. Can the machine be configured to fit specific machining requirements?
The three center distances are the main variable, and they cover most of the difference between one buyer's work and another's. Beyond that the base machine is fixed rather than built to a drawing, so the practical approach is to match the bed to your longest regular part and handle the rest with the steady rest, chuck jaws and tooling. Send us your part sizes and we will recommend a configuration instead of simply quoting the longest bed.
Q3. Is this a manual lathe or a cnc turning machine?

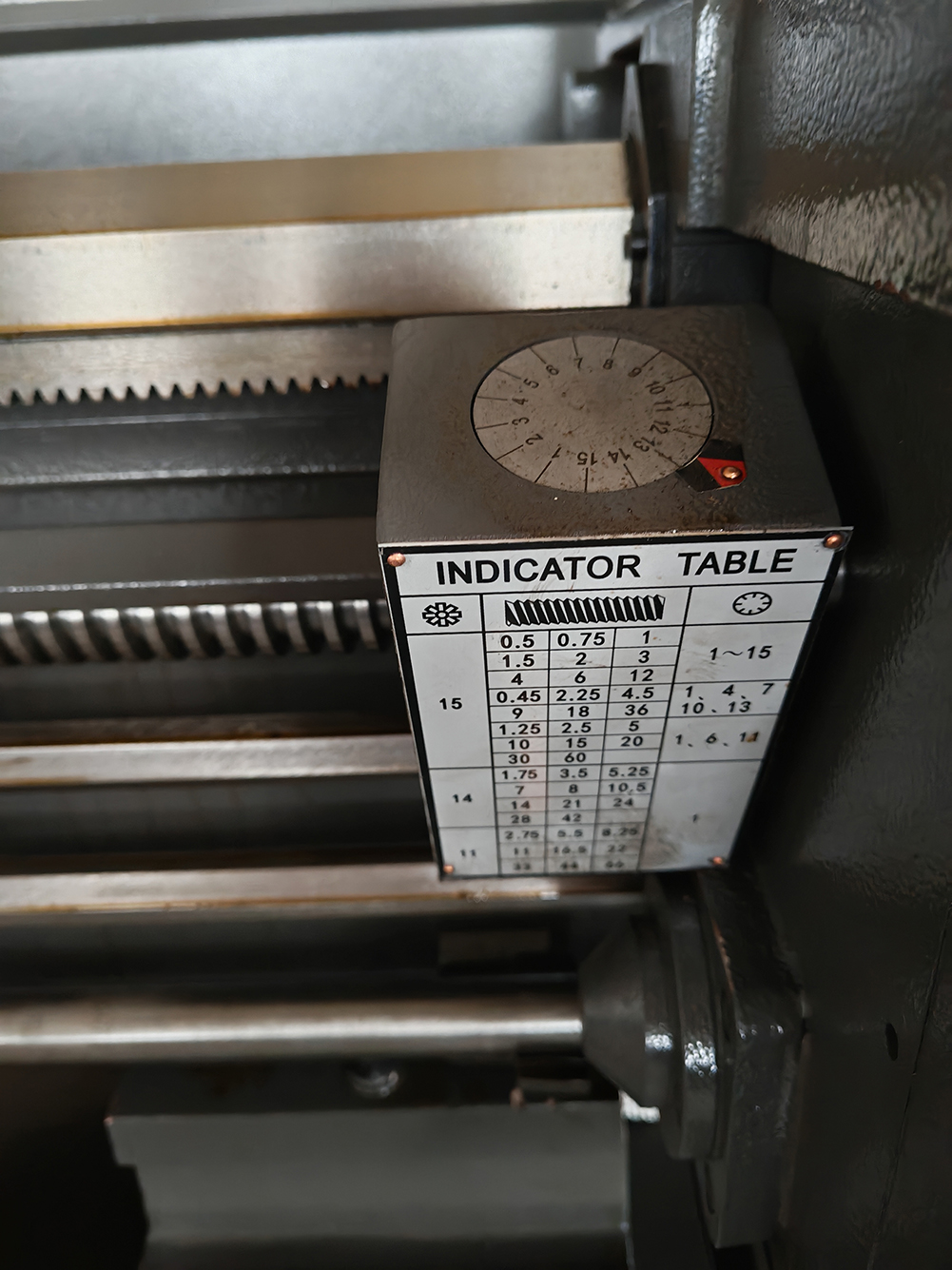

It is a manual lathe. Carriage, cross slide, compound and tailstock all run on handwheels, and threading is taken from the lead screw. That suits repair, maintenance and one-off work, where setting up a cnc turning machine would take longer than the job itself. If you need the same part programmed and repeated all day, this is the wrong class of machine; if you need to take on whatever comes through the door, it is the right one.
Q4. What workholding and support comes with the machine?
The headstock carries the lathe chuck, the carriage has a tool post on the ways, and a steady rest is supplied for slender parts that would otherwise deflect away from the tool. A coolant hose and work lamp are fitted at the cutting area. Tell us the diameter range you work in most often and we will confirm the chuck and jaw set for your order.
Q5. How much floor space and foundation does the machine need?
Footprint follows bed length, so the longest version needs a considerably longer floor than the shortest one. What matters just as much is the floor itself: it has to be rigid and level, because a lathe that settles out of level turns taper. This is not a bench machine — a cnc machine lathe of this size is set on a solid floor, levelled on its pads and checked again after the first week of work. Tell us which bed length you are ordering and we will confirm the dimensions to plan around.
