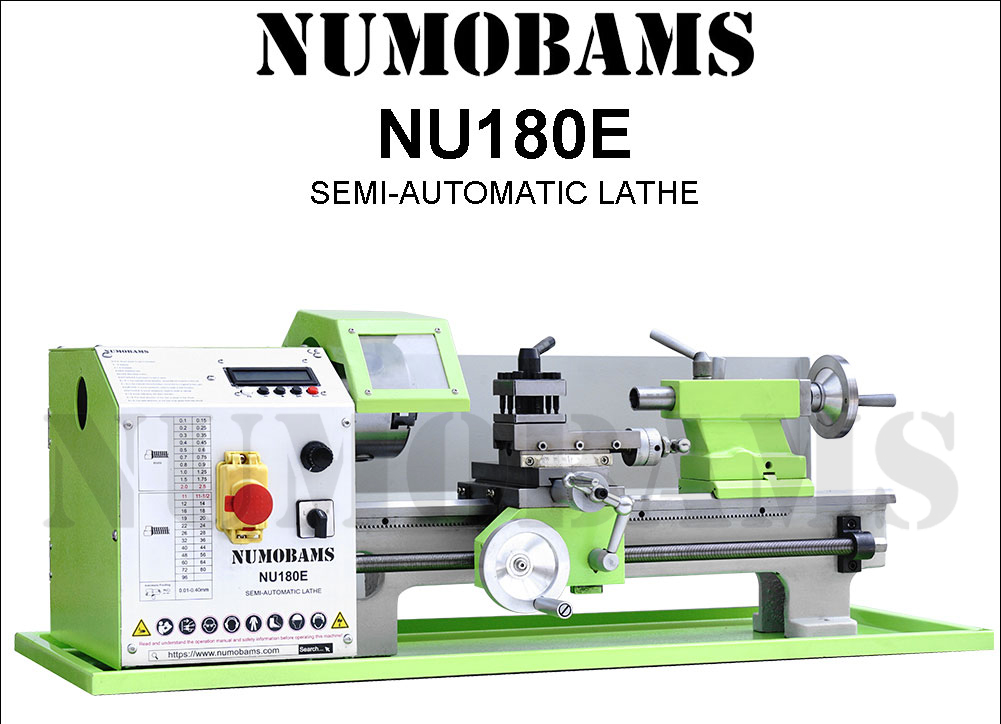

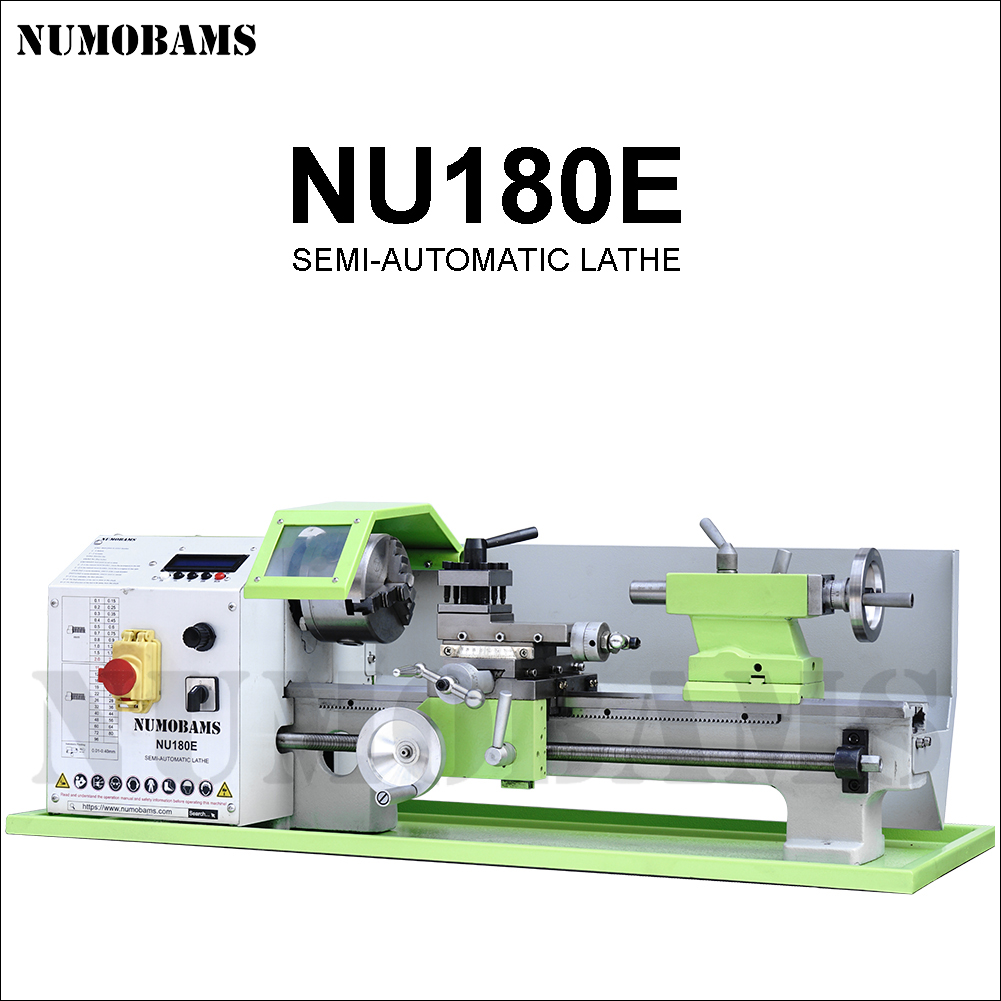

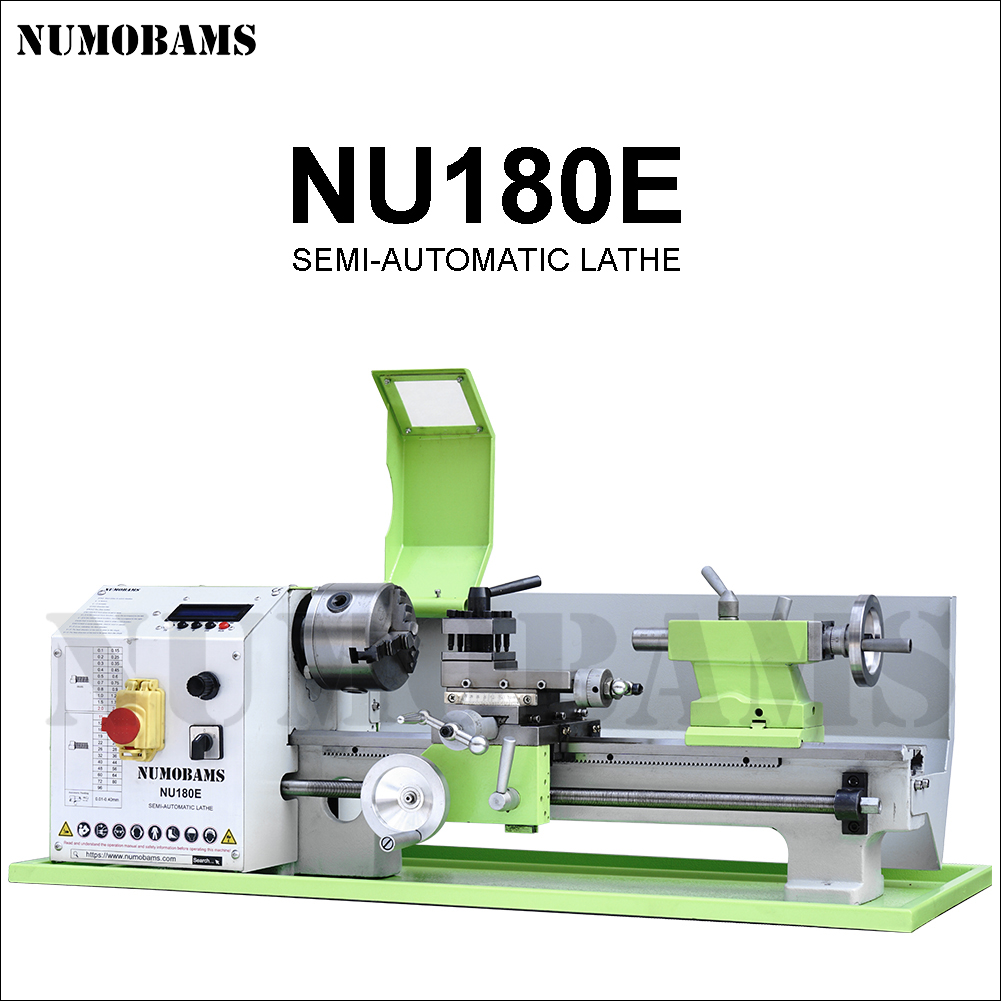

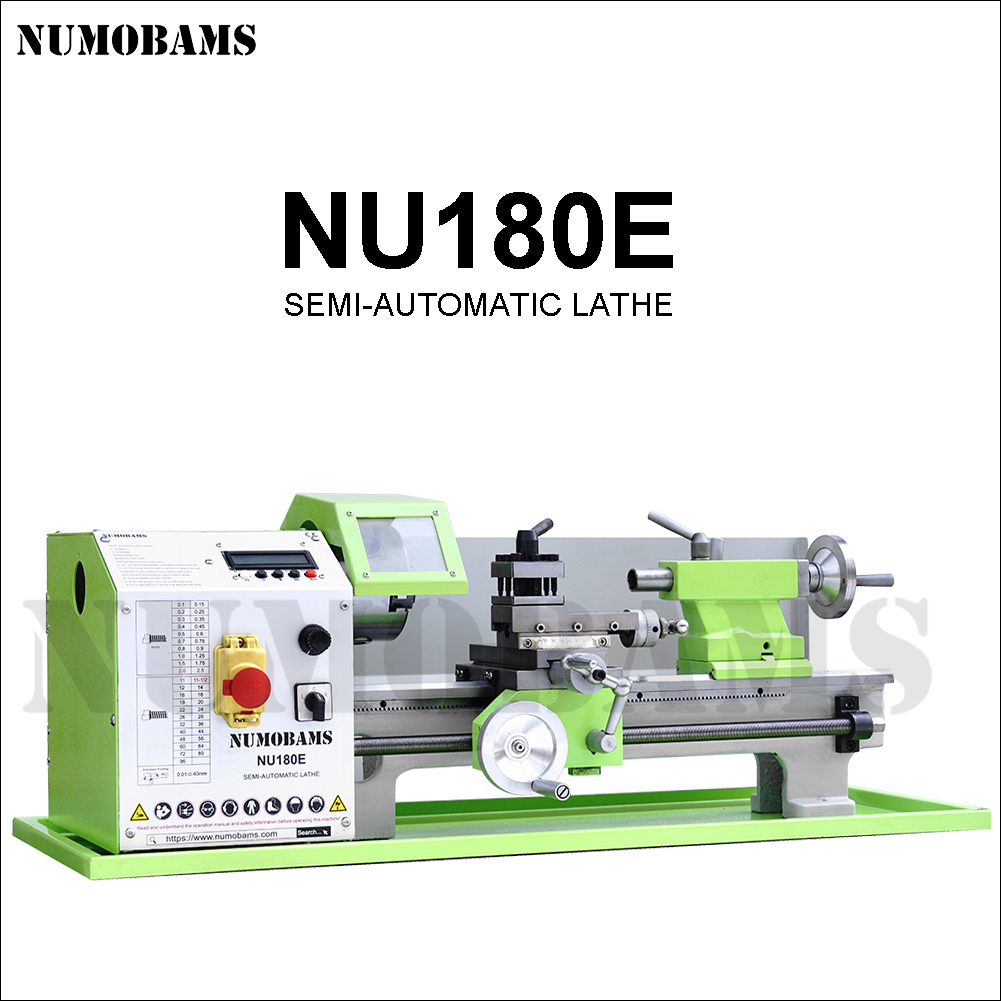

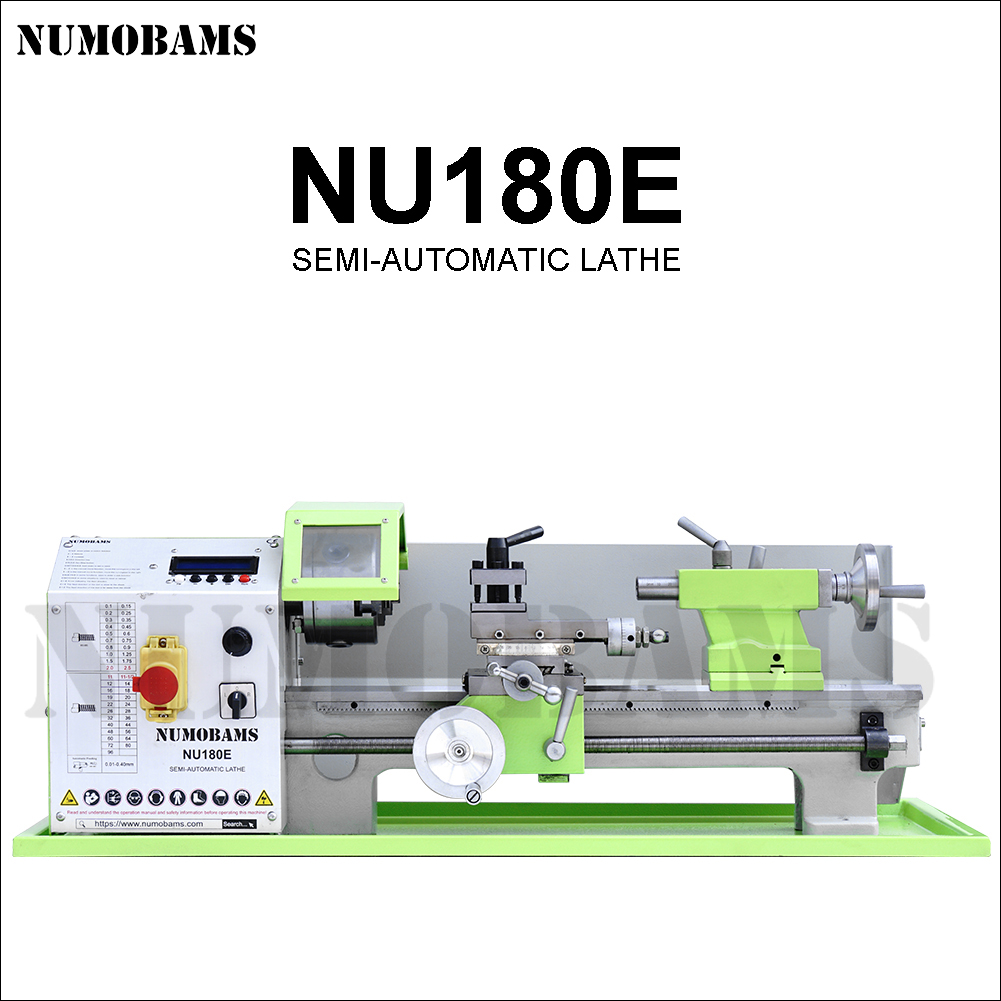

NUMOBAMS NU180E 180*350mm Capacity 32mm Spindle Hole 750W Brushless Motor Mini Metal Lathe Machine

Product Overview

The NU180E is a benchtop metal lathe for work that is too small for a full-size machine and too precise for hand tools. It runs a 750 W brushless motor, passes bar stock straight through the spindle and holds a 180 × 350 mm working area — 180 mm of swing over the bed and 350 mm between centres — so it fits on a workbench in a garage, a back room or a repair shop without taking over the space.

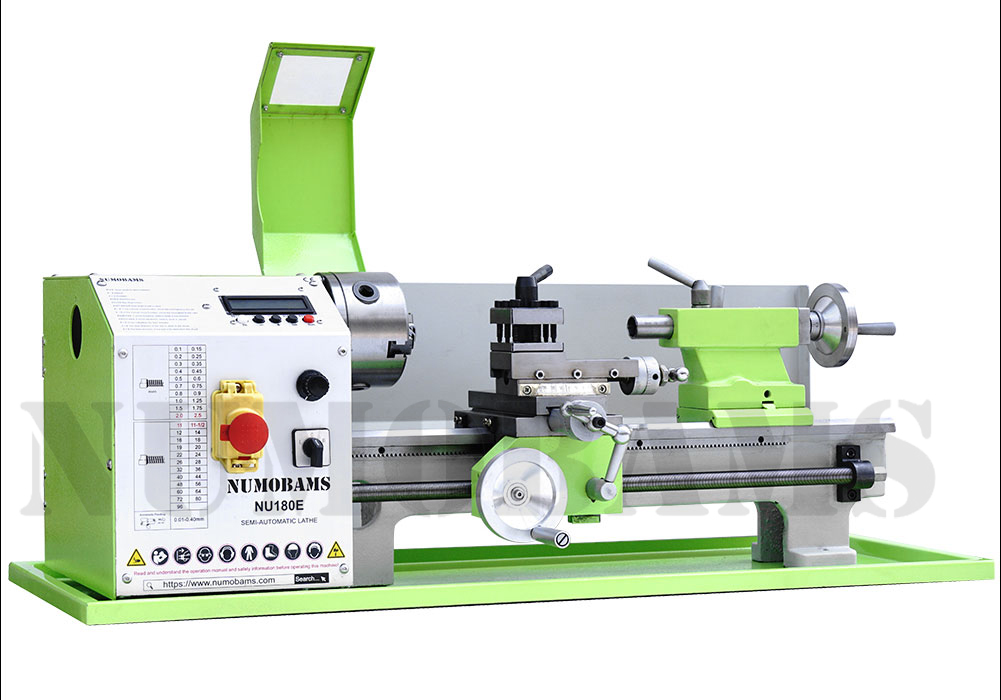

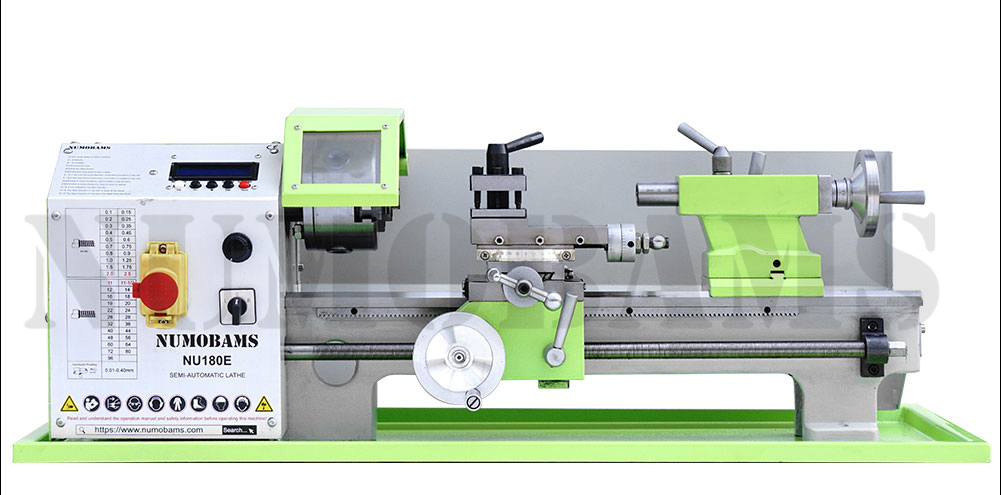

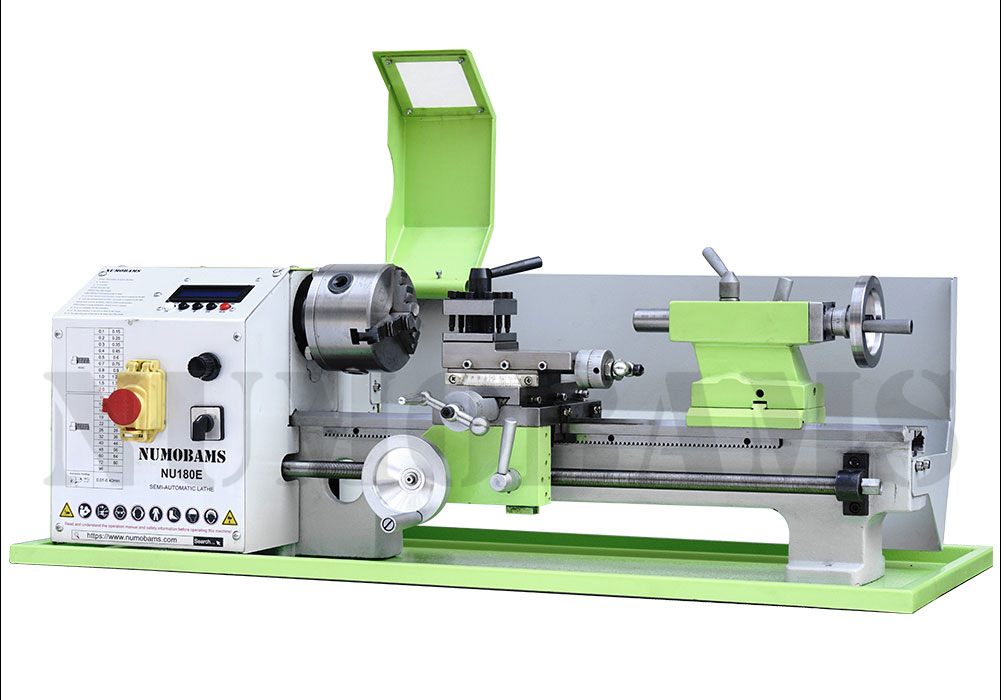

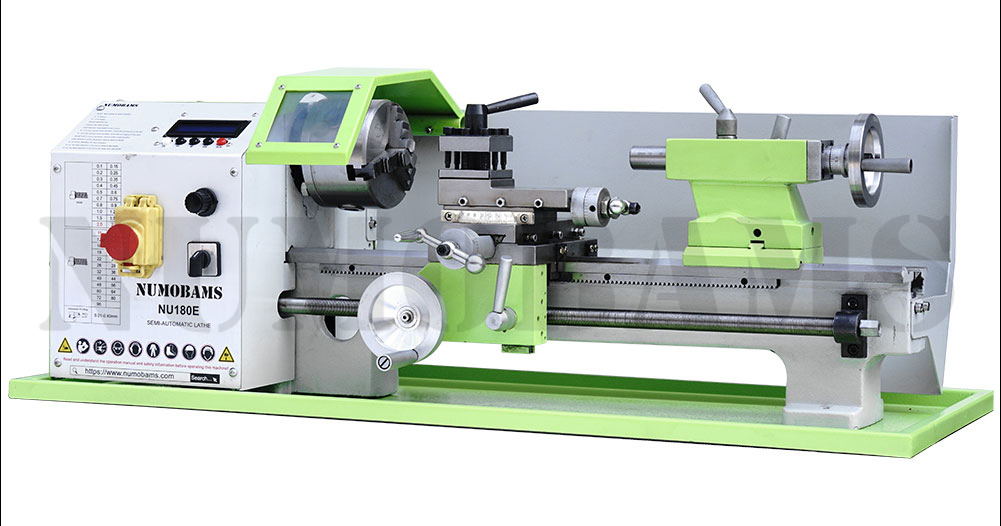

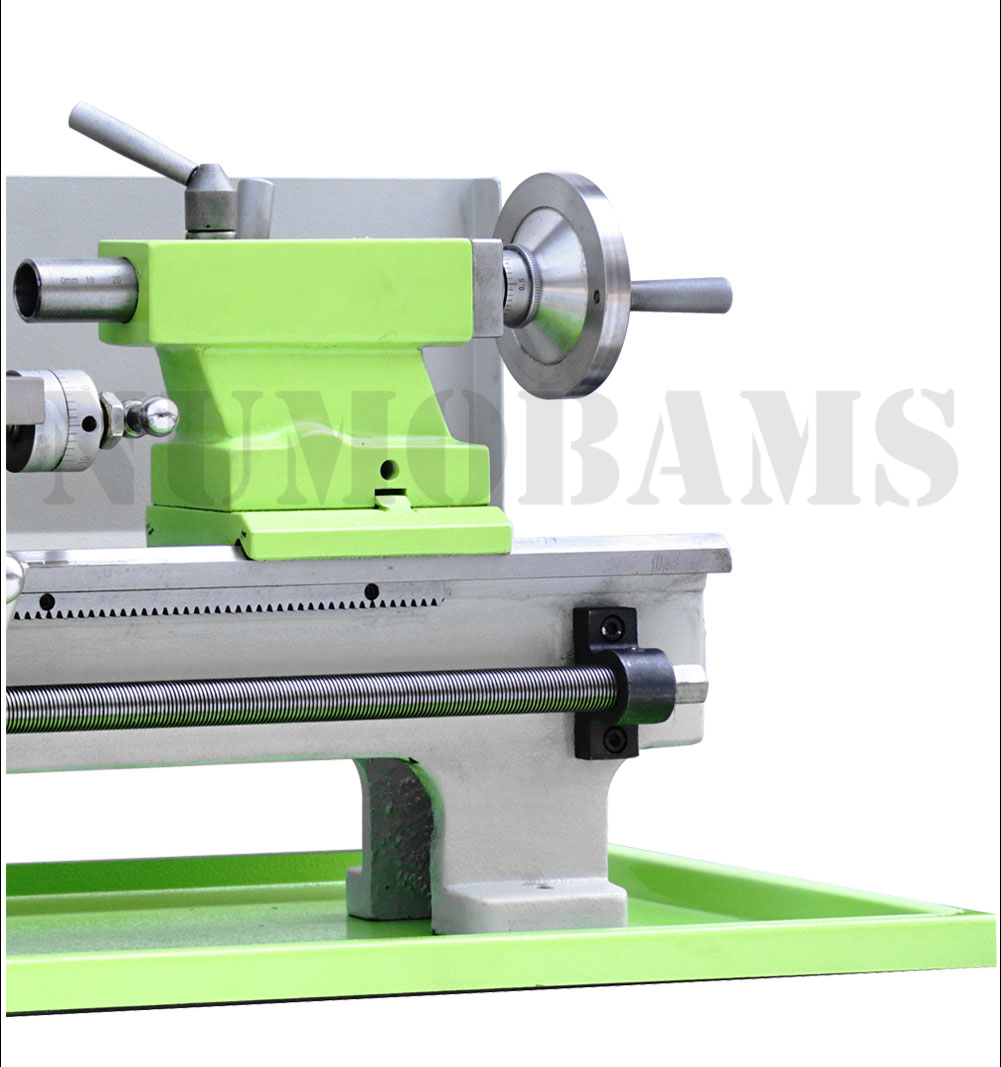

The layout is deliberately conventional: chuck at the headstock, tool post on the carriage, tailstock at the far end, handwheels where your hands expect them, and a panel with a full-size emergency stop and a forward/off/reverse selector. The carriage feeds under power for straight turning, which is what makes this a semi-automatic lathe rather than a plain hand lathe — you set the depth, engage the feed and watch the cut instead of winding the handle for the length of the part.

That combination suits a first lathe very well. There is no programming, no controller to learn and no code to debug, so what you learn is turning rather than software. It also suits a second lathe: a compact cnc turning machine that makes the small pins, spacers, bushes and threaded parts that would otherwise interrupt a larger machine or wait a week for a supplier.

Key Features

• Current-generation control board — This model carries the newer board, built for a longer working life than the earlier design. It is a replaceable module, so a fault is a part swap rather than a scrapped machine.
• 32 mm spindle bore — Bar stock passes straight through the headstock, so this compact cnc machine lathe can turn a long piece in one setting instead of sawing it into short blanks, and the bore takes a range of chucks.
• 750 W brushless motor — No carbon brushes to wear out, and a smoother, quieter drive than a brushed motor of the same size. Torque holds steady through the cut — the first specification worth comparing when you look at compact machines from different cnc lathe suppliers.

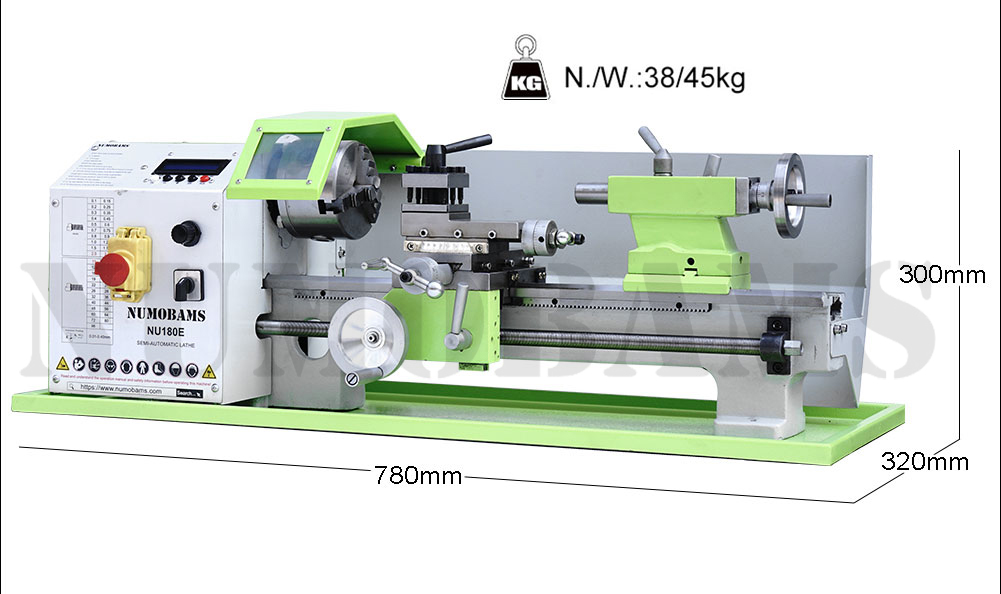

• Compact, light frame — A mini metal lathe machine sized to sit on a bench and light enough for two people to move when the workshop is rearranged. Nothing about the footprint forces you into a dedicated machine room.

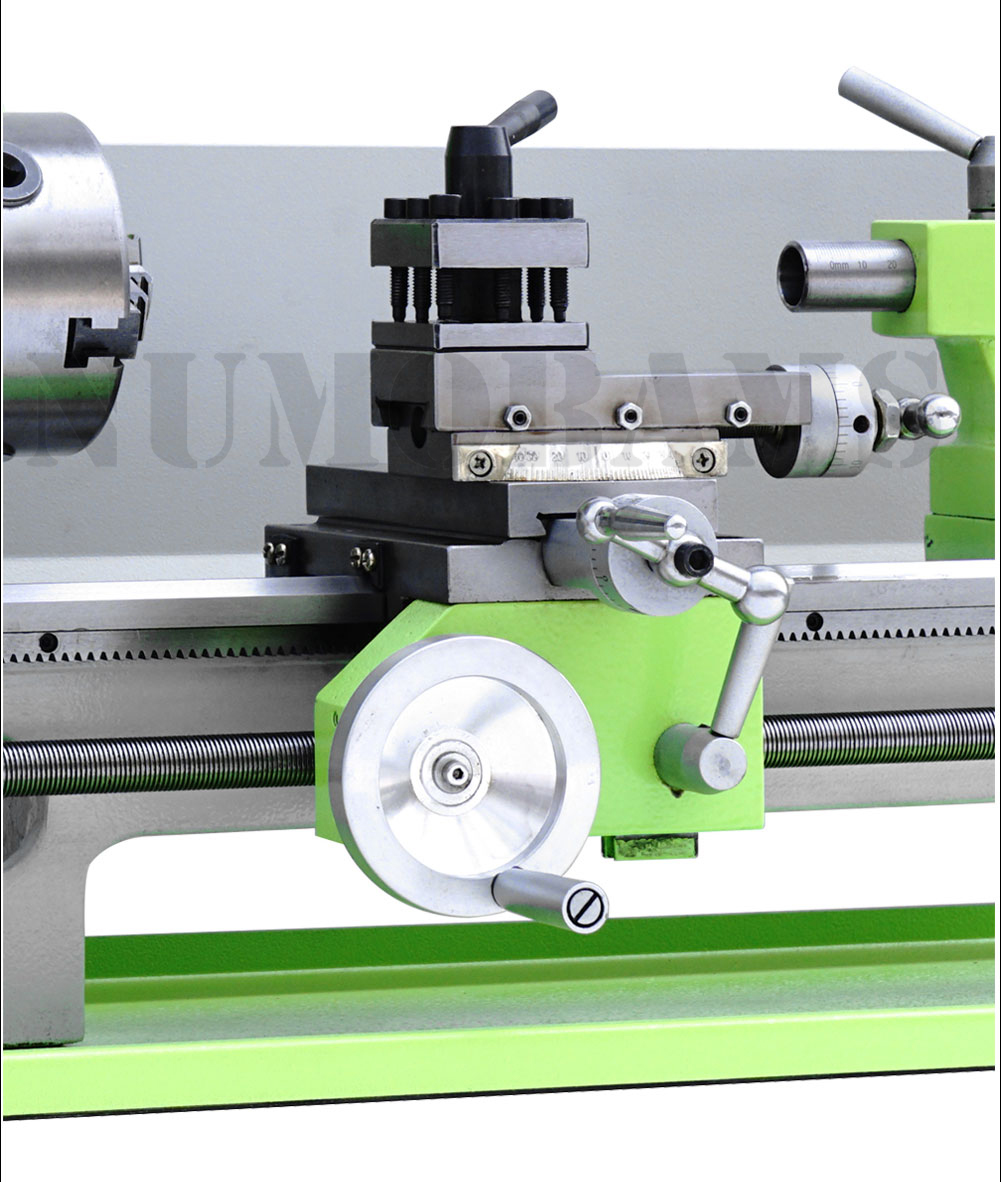

• Powered carriage feed — Semi-automatic working: engage the feed for straight turning and keep both hands free to watch the tool, the chips and the dial.

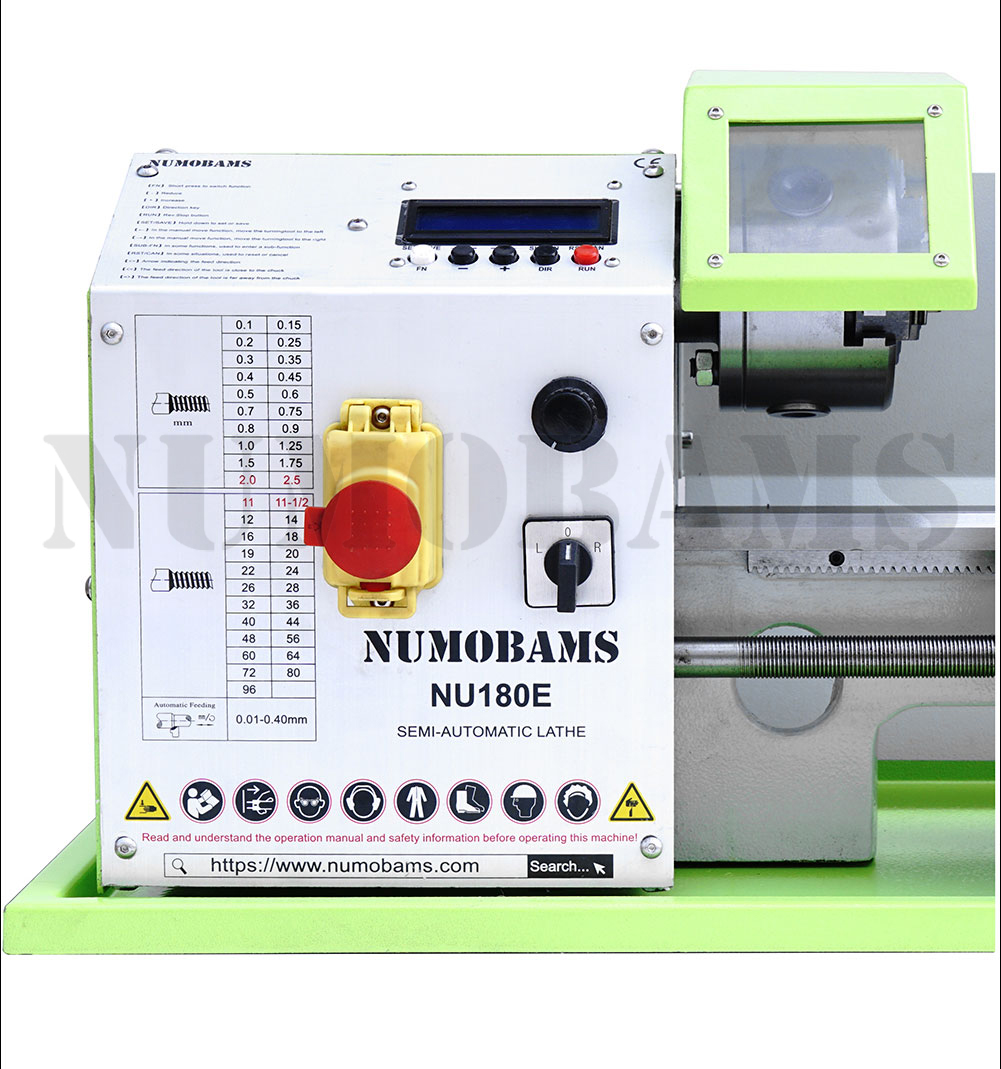

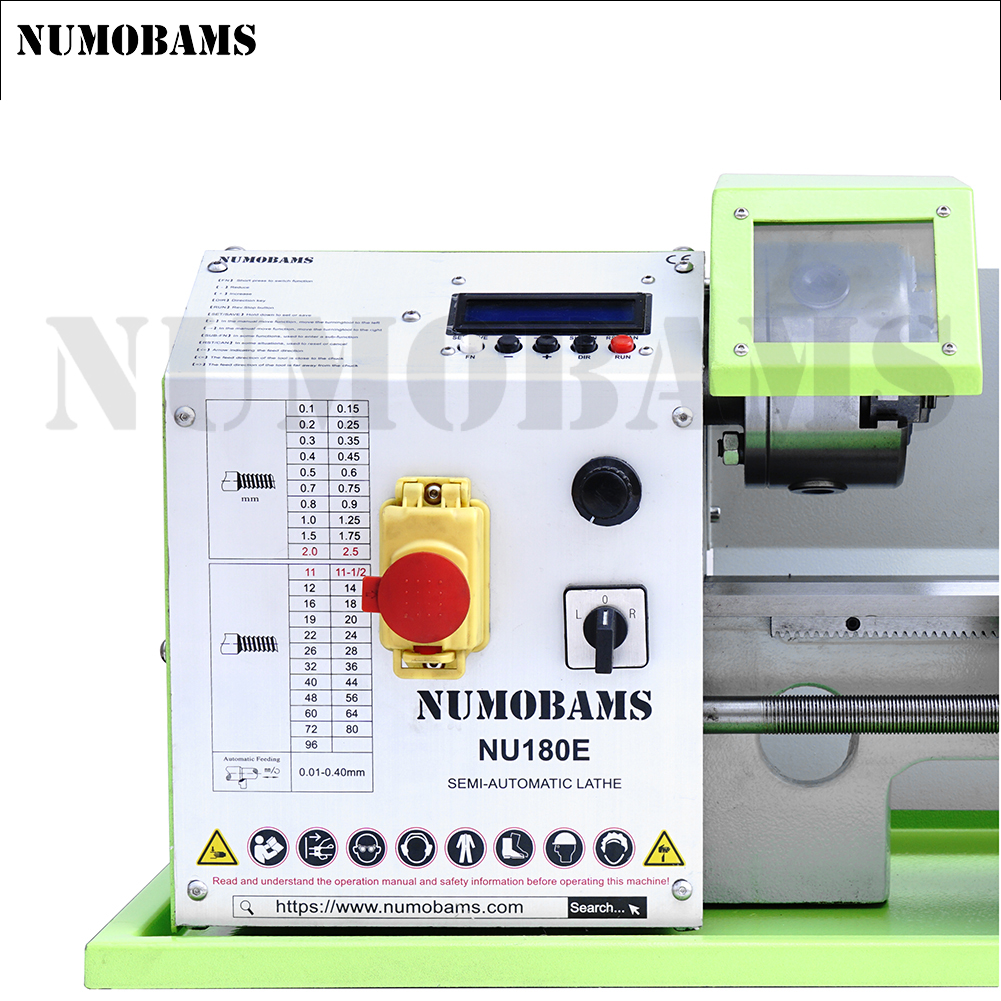

• Control panel with emergency stop — A full-size red stop button, a rotary direction selector and the feed charts marked on the machine, so the settings you need are in front of you rather than buried in a manual.

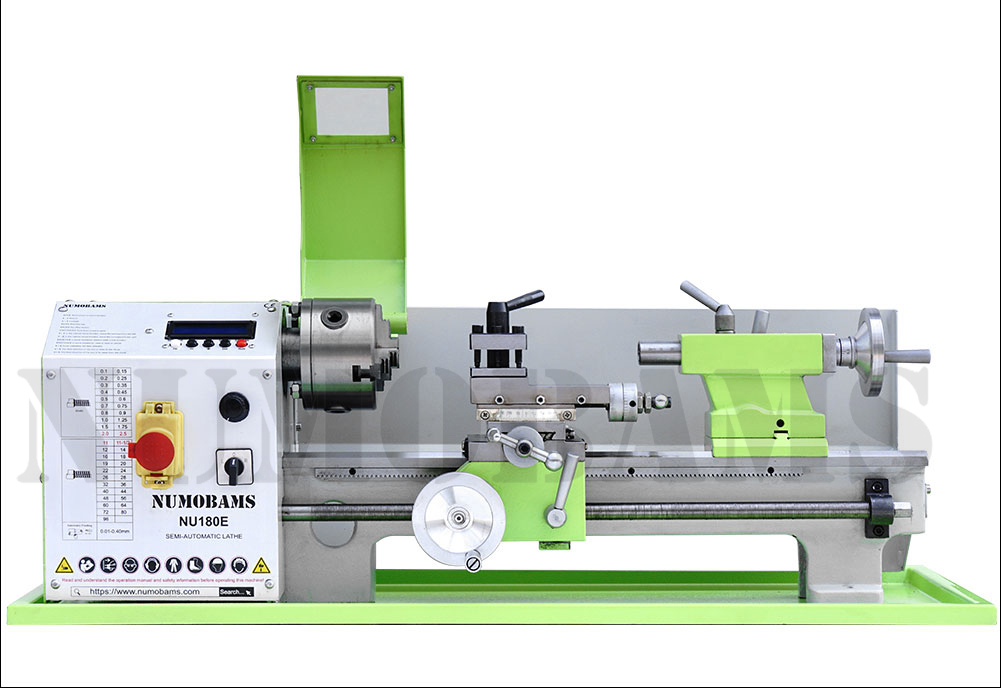

• Clear chuck guard — Lifts for chuck changes and stays down while cutting. Keep it in place; it is there for a reason.

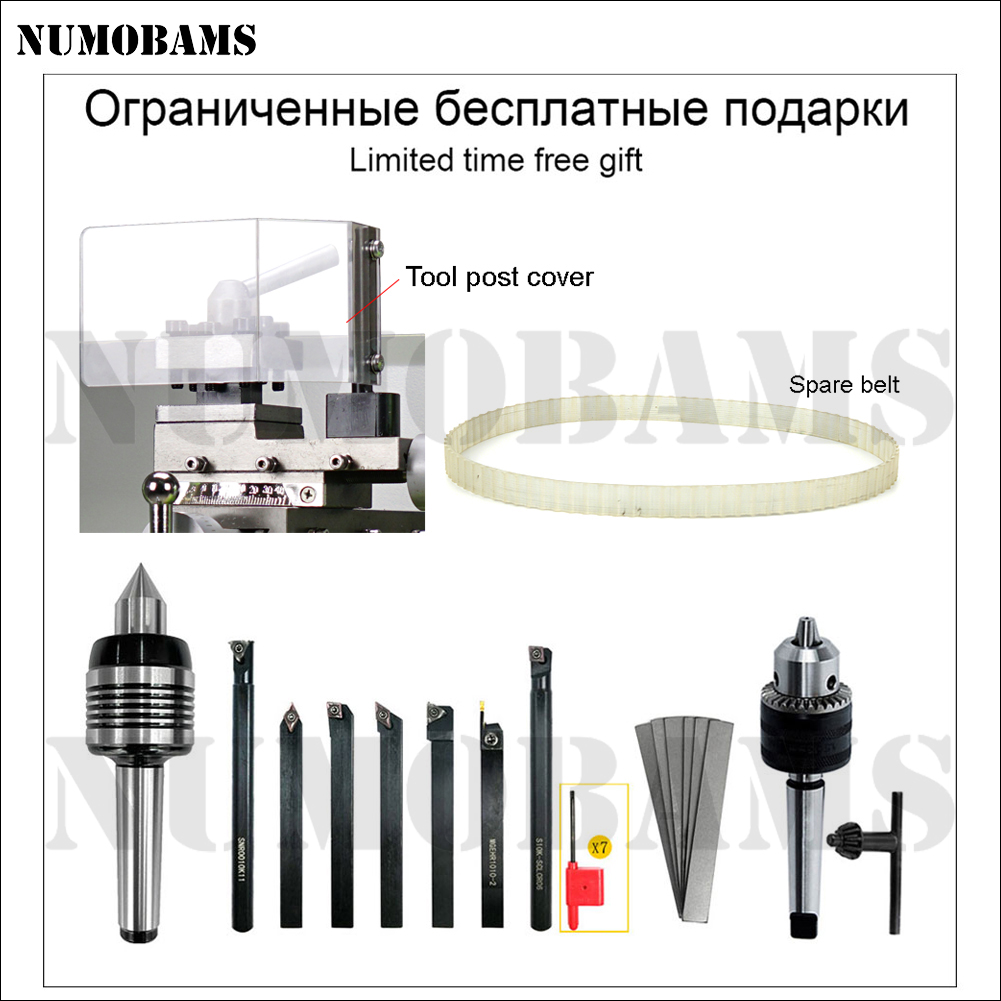

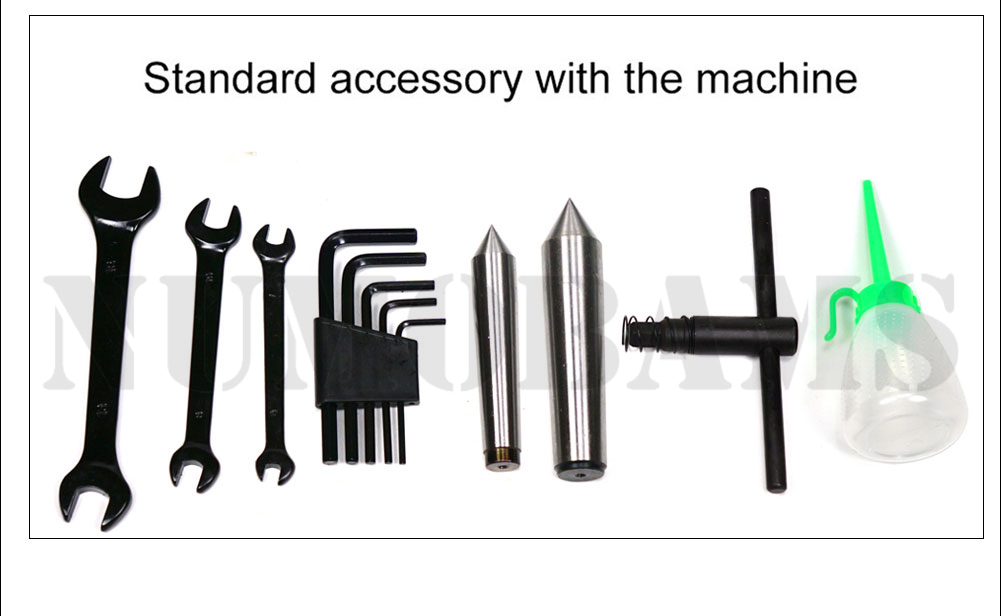

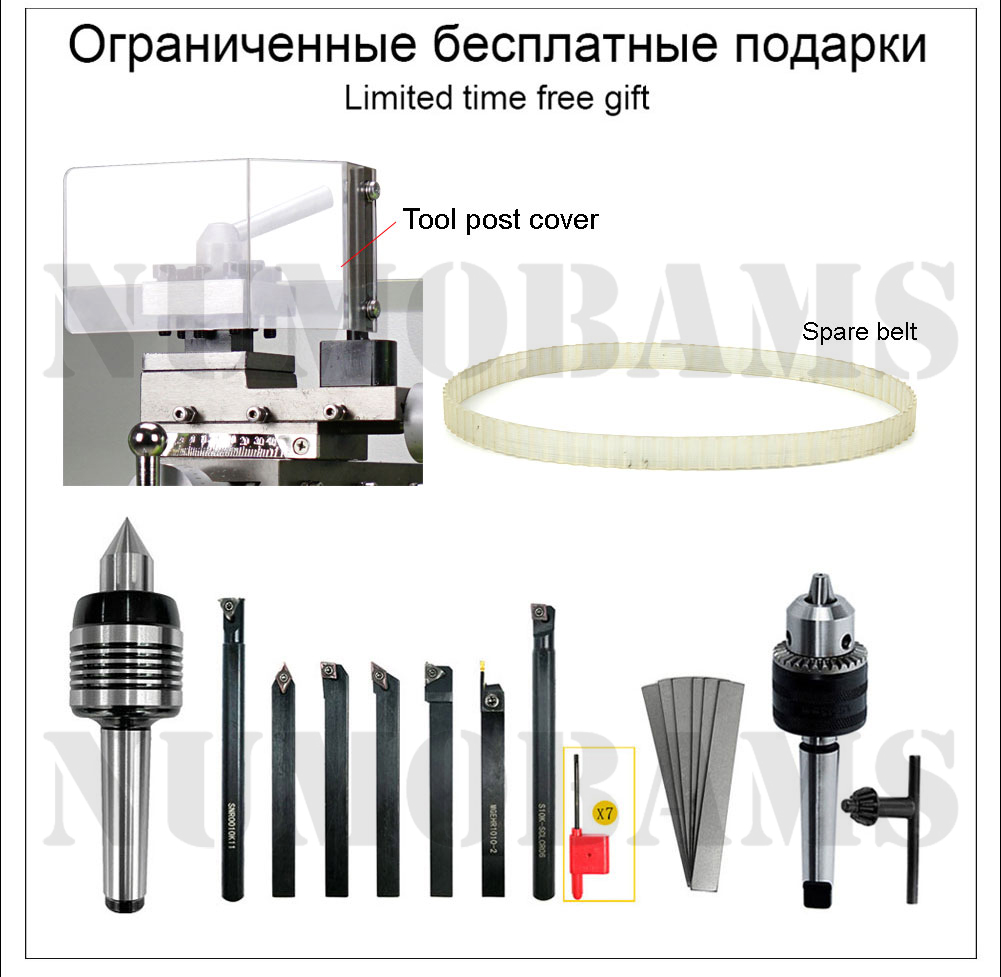

• Accessory set for the first cut — Machines ship with a working set that typically covers a live centre, a drill chuck and key, turning tool bars, a spare belt and a tool post cover. Confirm the exact list for your order, since the kit can change.

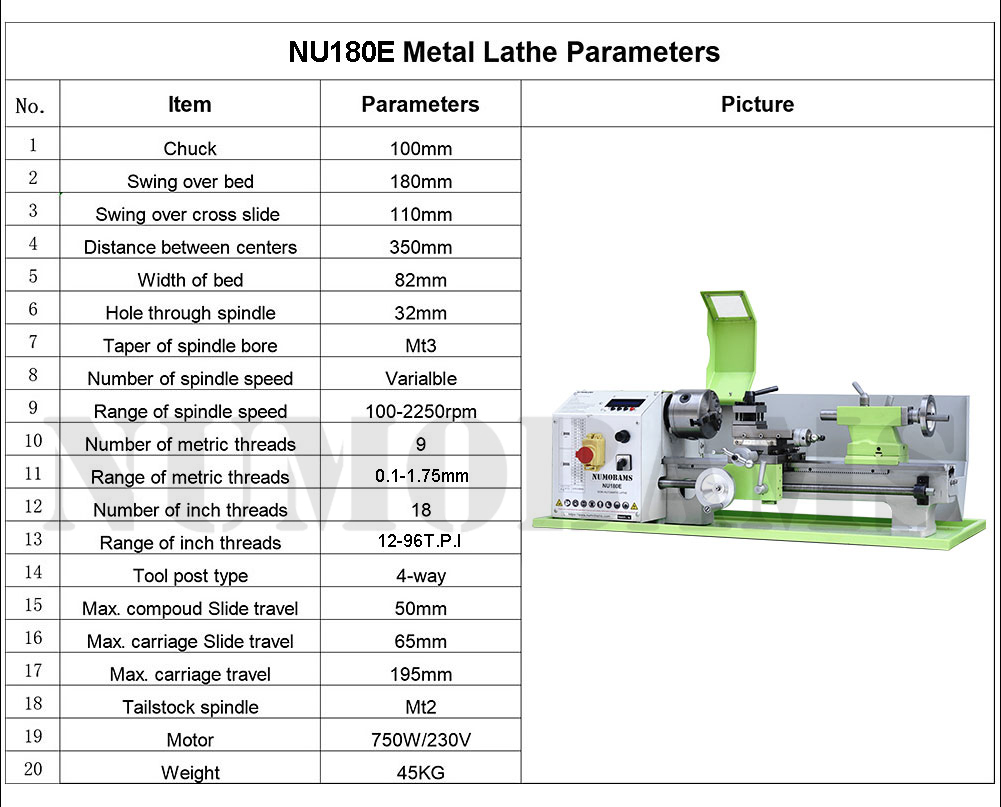

Specifications

Product Advantages

A lathe that earns its bench space. Most mini metal lathe machines are bought for one of two reasons: there is no room for anything larger, or the work is small enough that a big machine is wasted. This one is sized for both cases. It takes the corner of a bench, it does not need a dedicated room, and it is light enough that it does not have to stay where it first lands.

Set-up is a cutting test, not a rebuild. Every machine is adjusted and checked before it is packed, so the first job is to confirm it arrived sound and take a test cut — not to shim the bed or align the headstock. That saves the most frustrating day in a new lathe owner's life, and it is usually where budget machines fall down.

A fault costs a part, not the machine. The control board is a serviceable module, the belt is replaceable and the consumables are standard rather than sealed assemblies. When something does fail, the conversation is about one component. That design decision says more about a compact lathe than a page of specification, and it is exactly what to check when you weigh cnc turning machine manufacturers against each other.

Simple enough to teach on. With physical controls and the charts on the machine, a beginner can be shown facing and straight turning in an afternoon. Nothing hides behind a screen, so mistakes show up early and corrections are immediate.

It works alongside a bigger lathe. Shops with a large machine use a compact one for the small, quick jobs that would otherwise break a set-up on the main lathe. Shops without one use it as the only lathe they need.

Workshop Applications

Work Capacity & Materials

• What fits — Bushes, spacers, pins, small shafts, threaded studs and turned fittings sit comfortably inside this working envelope. Long shafts and large-diameter work do not: this is a small-parts lathe, and it is honest about it.
• Bar work through the spindle — With the bore running through the headstock, a length of bar can be fed in and finished pieces parted off one after another. That is far quicker than chucking individual blanks, and a good reason to choose a lathe cnc machine with a generous bore rather than a smaller one.
• Aluminium — The easiest place to start and the most common material for this class of machine: brackets, spacers, model parts and housings cut freely and take a good finish.
• Brass and bronze — Bushes, fittings and small decorative parts machine cleanly and hold fine detail.
• Mild steel — Shafts, pins and repair parts are well within reach; take lighter cuts, keep the tool sharp and let the machine work at its own pace.
• Where the limits are — Hardened steel, interrupted cuts on heavy stock and long slender work that needs a steadies are jobs for a bigger, heavier lathe. Knowing that before you buy saves disappointment: this cnc machine lathe is at its most capable on small parts made to a good standard, and if most of your work sits above that, a heavier model in the range will serve you better.
• Thread cutting — Metric and imperial threads are charted on the machine, so studs, fittings and repair threads can be made rather than bought in.
• What to send us — If you are unsure whether a part fits, send a sketch with the diameter, the length and the material. We would rather answer that question before the machine ships than after.

Setup & Accuracy Checks

1. Check the crate before you sign for it. Photograph any visible damage and note it on the delivery paperwork — that is far easier to resolve before the machine is indoors.
2. Move it with two people and set it on a solid, level bench. A rigid top matters more than a large one; a bench that flexes will show in the finish.
3. Unpack, remove the transport protection and wipe off the protective oil. Check that the chuck turns freely, the carriage travels the full bed and the guard lifts and closes cleanly.
4. Test the emergency stop and the forward/off/reverse selector before you cut anything. Confirm the spindle starts in the direction you selected and stops when the button is pressed.
5. Take a cutting test rather than a measurement. Chuck a short piece of aluminium or mild steel, take a light facing cut and a short straight cut, then measure the result with a caliper or micrometer. That tells you how this cnc turning machine actually cuts, which is what matters.
6. Leave the headstock and carriage assembled. Every unit is adjusted and checked before packing, and the accuracy we stand behind is the machine's overall working result rather than the tolerance of every individual component on its own. Accuracy issues that follow a strip-down are outside what we can support — send us a photo or a short video of the test cut instead, and we will work through it with you.
7. Note the settings you used. Feed, depth of cut and spindle speed for a material you work often are worth writing down; repeat work then starts from a known point instead of from scratch.

Care & Maintenance

Five minutes after each session keeps a small lathe accurate for years. Brush the chips off the bed, the cross slide and the tool post before they harden — a brush is better than an air line, which drives swarf into places you cannot see. Wipe the machined surfaces dry, then put a thin film of machine oil on the bed ways, the lead screw and the sliding surfaces.

Oil is the part most owners skip. A few drops on the ways and the lead screw before each session, and on the handwheel bearings and the change points at the back of the machine every so often, will do more for surface finish and screw wear than any accessory you can buy. Keep the chuck guard working and never cut with it propped open; the same goes for the emergency stop, which is worth testing now and then rather than simply trusting.

Check the drive belt for tension and fraying from time to time — replacing one is a short job rather than a strip-down. If the workshop is damp, leave a light oil film on the bed between jobs and run the machine briefly every few weeks instead of letting it sit idle for months. Keep tooling off the bed rather than on it, and keep the control panel dry and free of dust.

Ordering & Delivery

• Dispatch — We normally dispatch within 90 days of order confirmation, and we confirm the date for your lathe cnc machine as soon as the order is scheduled.
• Delivery — Shipping is arranged as a tax-free, door-to-door service to the address you give us. Send the full delivery address and the name of whoever will receive the pallet, and check access before the day.
• Control board warranty — The control board is covered for 180 days from the day you receive the machine. If it fails inside that period, send the board back to us and we replace it.
• Before you order — Confirm your supply voltage, your socket type and the tooling you plan to run, so the machine arrives configured for your workshop rather than needing an adapter and a workaround.
• Spares and tooling — Add chucks, tool bars and belts to the same order where you can. We work with the same cnc turning machine manufacturers on spare parts, which keeps part numbers and fit consistent over the life of the machine.
• Payment and paperwork — Confirm the payment method, the currency and any documents you need for import with your sales contact before you transfer; it is quicker to settle those details up front.

Tooling & Workshop Fit

Matching the chucks and tools you already own

The 32 mm spindle bore is the first number to check, because it sets what passes through the headstock and what can be bolted to the spindle nose. A chuck has to do two things at once: seat correctly on the spindle mounting, and still sit inside the 180 mm swing once it is on. Measure the thread or register on the back plate of the chuck you own — that is the figure that decides whether it fits — and send it to us before the machine is packed. The tool post takes standard turning tools, so indexable holders, brazed bars and boring bars go straight in as long as the shank sits inside the holder's range; if your largest tool is a heavy one, check its shank size first. The tailstock takes a drill chuck, so a part can be centre-drilled and then turned without being taken out and re-chucked. Moving up from a smaller lathe, your centres, drill chucks and hand tools usually follow you across; the chuck is the piece that most often needs replacing.

Living with it in a shared building

The brushless motor is the quiet part of this mini metal lathe machine — no carbon brushes, no arcing, and a smoother drive than a brushed motor of the same rating. Most of what you actually hear comes from the cut and from the bench underneath it, so mount the machine on a solid, level top and keep loose tooling off the same surface. A hollow or springy bench turns a small lathe into a drum; a rigid one lets it run at the slower spindle speeds you will use for roughing and for a late-evening finishing pass. Keep the chuck guard closed while cutting and the swarf stays where it belongs instead of travelling across the room. In a block of flats or a shared workshop, vibration reaches the neighbours through the bench and the floor far more than through the air, which is why the mounting surface matters more than any soundproofing. It is also worth knowing what this benchtop metal lathe is not: a heavier machine with a larger chuck brings a deeper cut and a deeper note into the same room, so if quiet evening work is the priority, this size is the right starting point rather than the biggest machine that will fit.

Supply Chain & Delivery Assurance

NUMOBAMS is a China-based machinery trading company working from Changsha, Hunan, with a selected network of manufacturing partners built up since 2016. That position lets us consolidate a full workshop order — machines, tooling and spare parts — into one shipment, inspect and prepare each unit before dispatch, and keep spare parts available long after delivery. We ship to Europe, the US and Canada on a tax-free, door-to-door basis, and usually dispatch within 90 days of order confirmation.
