Z6000MZG 24W 6 in 1 Bow Arm Mini Metal Lathe Machine Kit

Z6000MZG 24W 6 in 1 Bow Arm Mini Metal Lathe Machine Kit

A.Wood-turning Lathe:

Feature:

1.Softwood,hardwood can be processed.

2.Workpieces can be clamped by three-jaw chuck or collets(1-6mm),center height-25mm, distance between center-135mm.

Motor and gear are made of metal

Technical parameters:

1.Motor speed:20,000rpm

2.Input voltage/current/power:12VDC/2A/24W

3.Maximum working material diameter:45mm

4.Working material length:135mm

5.Working material:wood,engineering plastic,soft metal(copper,aluminum etc.)

6.The transformer has over-current protection,over-voltage protection,over heating protection.

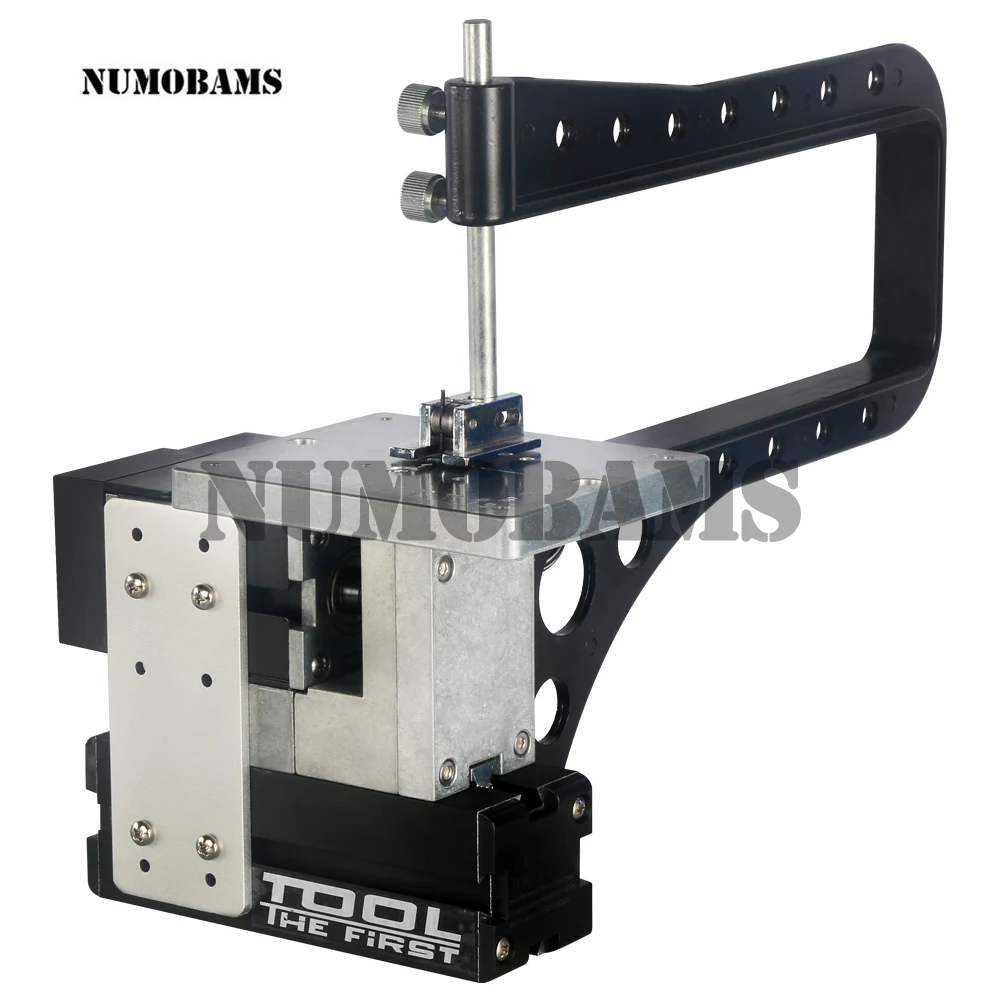

B.Metal Bow-Arm Jigsaw:

Features:

1. Motor case and headstock are jointed.

2. Main parts include headstock, central block, jigsaw base, jig-saw casing, motor blade, gear, jigsaw table, connection piece , drive belt cover etc.

3.With special design, the reciprocating blade is touch safe in case of finger contact -it just causes slight vibration without cuts when skin contact.

4. Allow straight-line cutting and curve cutting.

 All of the parts are made of metal except drive belt cover.

Technical parameters:

1.Motor speed :12,000rpm/min

2.Input voltage/current/power:12VDC/2A/24W

3.Working table size:90mm*90mm

4.Maximum working material thickness: solid wood-4mm, plywood-7mm, soft wood-18mm, aluminium-0.5mm, acrylic-2mm.

5.The transformer has over-current protection, over-voltage protection, over heating protection.

6. With bow-shaped arm. The material of bow-shaped arm with its accessories is metal which increases its durability.

7.Motor power :144W.

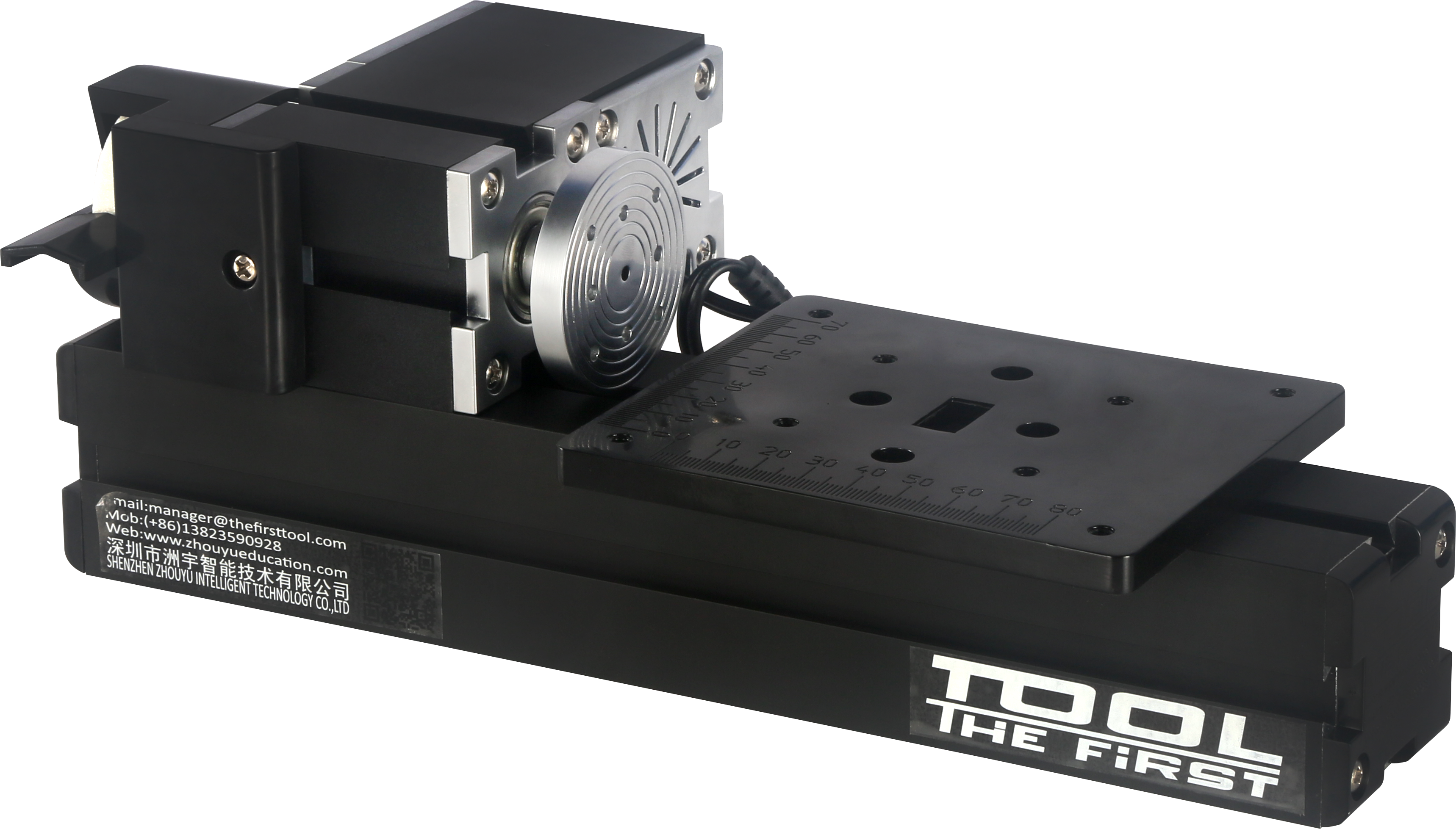

C.Sanding Machine:

Feature:

1.The left side of the machine has a small grinding wheel with a wheel guard.

2.The machine can be used to polish,grin.If needed,we use the machine by hand to grind under any angle.

3.Center height 25mm,sanding paper:100#(optional)choose different sanding paper according different work pieces and workpieces surface.

4.Machine color is made up of red and black.

Motor and gear are made of metal

Technical parameters:

1.Motor speed:20,000rpm/min

2.Input voltage/current/power:12VDC/2A/24W

3.Working table size:123*100mm

4.Working material:wood,engineer plastic,soft metal(aluminum ,copper etc.)

5.The transformer has over-current protection,over-voltage protection,over heating protection.

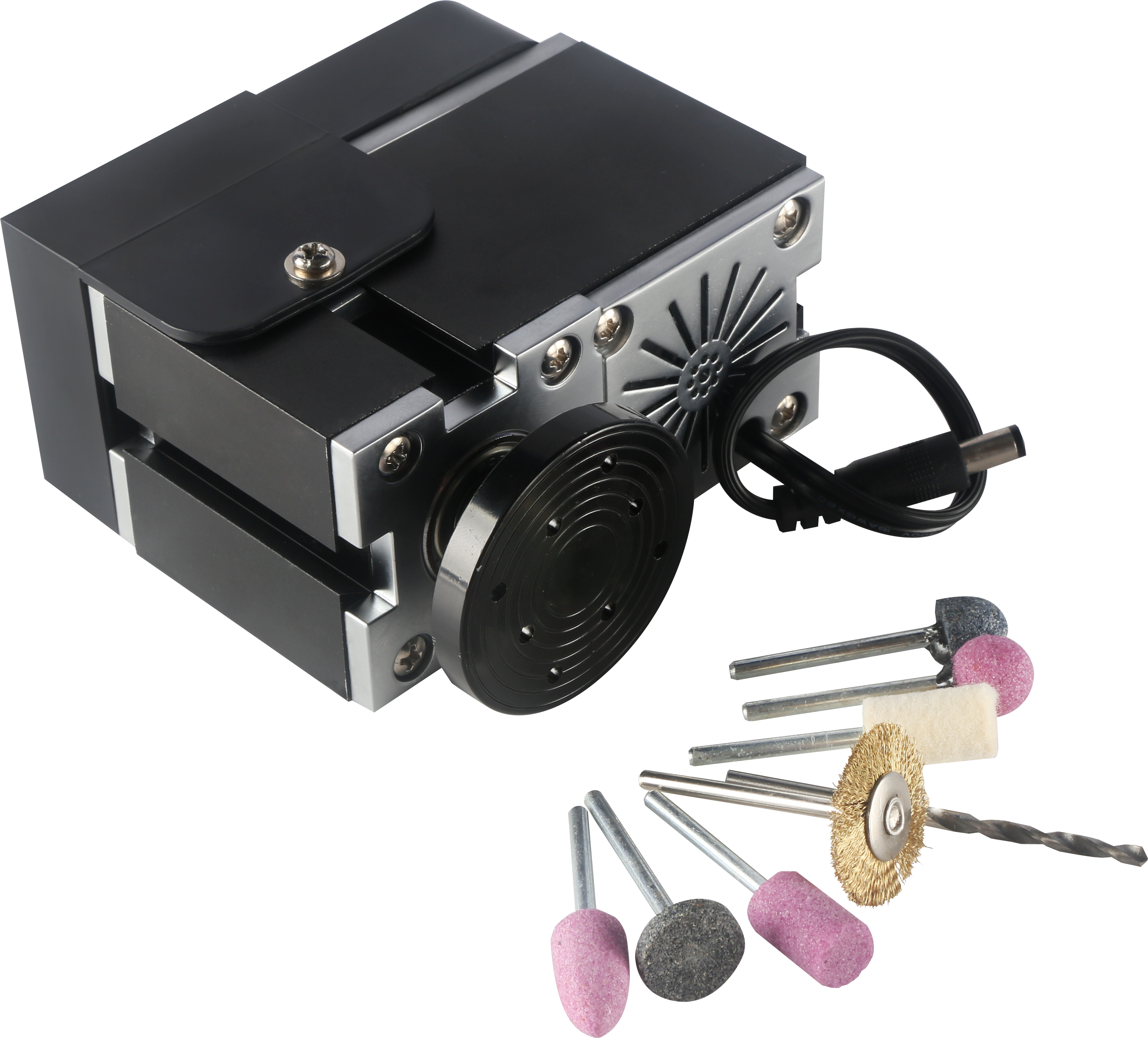

D.Hand-Held Machine

Feature:

1.Equipped with 7 standard grinding tools, widely used,variously used, easily used. With drilling bit, grinding wheel, milling cutter, it can respectively turn into hand-held driller, grinder, miller.

2.Machine color is made up of red and black.

Motor and gear are made of metal

Technical parameters:

1.Motor speed :20,000rpm

2.Input voltage/current/power:12VDC/2A/24W

3.Working material: wood, engineer plastic, soft metal(aluminum ,copper etc.)

4.The transformer has over-current protection, over-voltage protection, over heating protection.

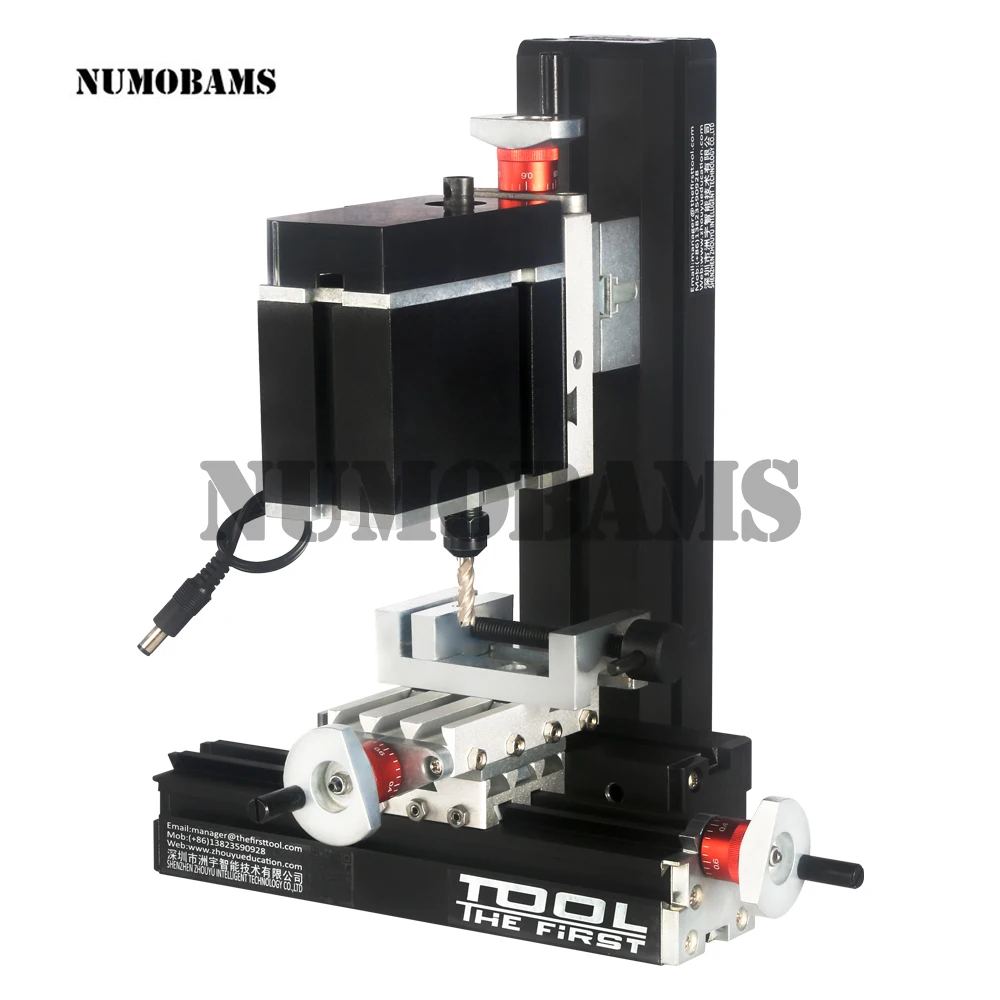

E.Metal Milling Machine:

Feature:

1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor.

2. Milling cutter, with two edges, is dangerous, so people should be guided by experts when using it.

3.Main parts:headstock, long machine bed, short machine bed, big slider, small slider, motor blade, connection piece, gear etc.

All of the parts are made of metal.

Technical parameters:

1.Motor speed:12,000rpm/min(optional choice 20,000rpm/min)

2.Input voltage/current/power:12VDC/2A/24W

3.Axis Y,Z travel:32mm   Axis X travel:145mm

4.Collets:1-6mm

5.Maximum working material size clamped by machine vice:50mm

6.With 0.02mm scale line,the hand wheel increases the precision when processing.

7. Working material: lignin plastic, soft metal (gold, silver, copper, aluminum etc.), acrylic, plastic etc.

8. Motor power :144W

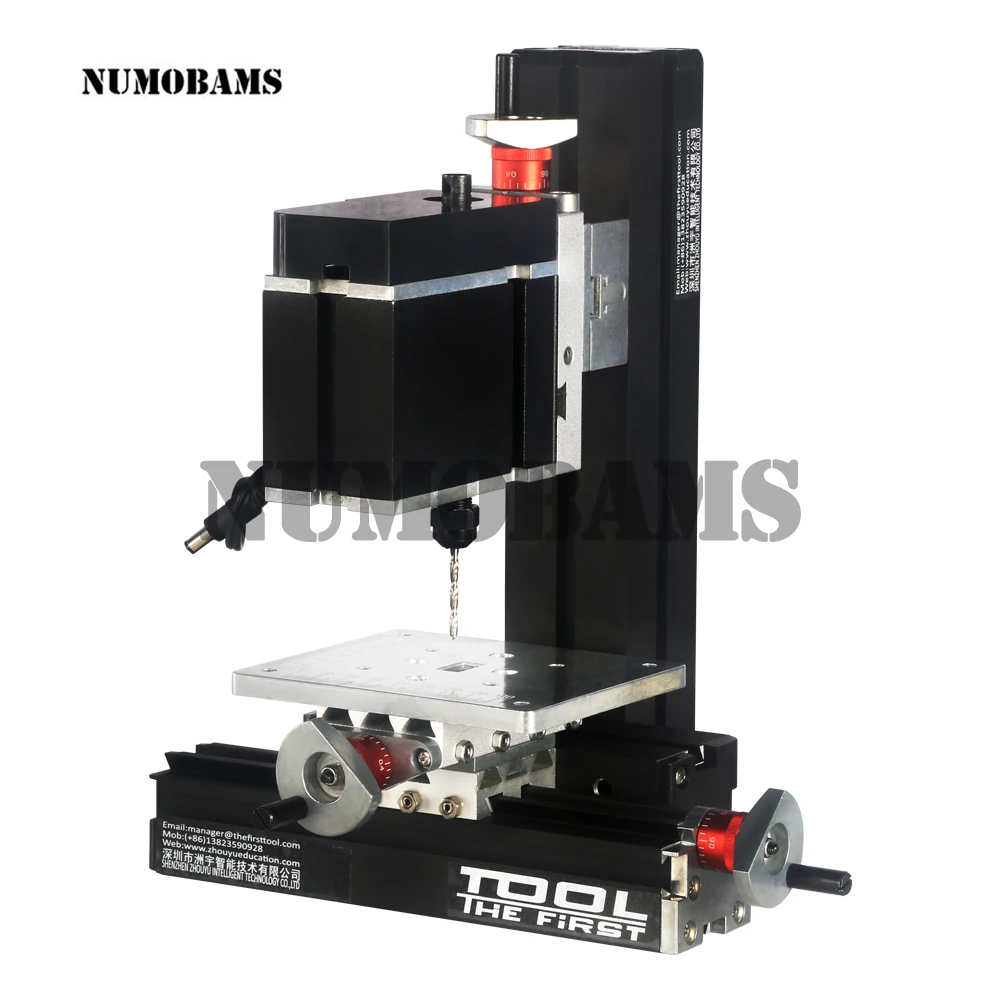

F.Metal Drilling Machine:

Features:

1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor.

2. Main parts:headstock, long machine bed, short machine bed, big slider, small slider, motor blades, connection piece, radial arm, drilling table, gear etc.

3. Working material:wood, soft metal(copper, aluminum etc.),acrylic, plastic etc.

All of the parts are made of metal.

Technical parameters:

1.Motor speed:12,000rpm/min(optional choice 20,000rpm/min)

2.Input voltage/current/power:12VDC/2A/24W

3.Axis Y /Z travel:32mm

Axis X travel:145mm

4.Collects:1-6mm

5.Working table size:123*100mm

6.Working material:lignin plastic,soft metal(gold, silver, copper, aluminum etc.)

7.With 0.02mm scale line,the hand wheel increases the precision when processing.

8.Motor power :144W

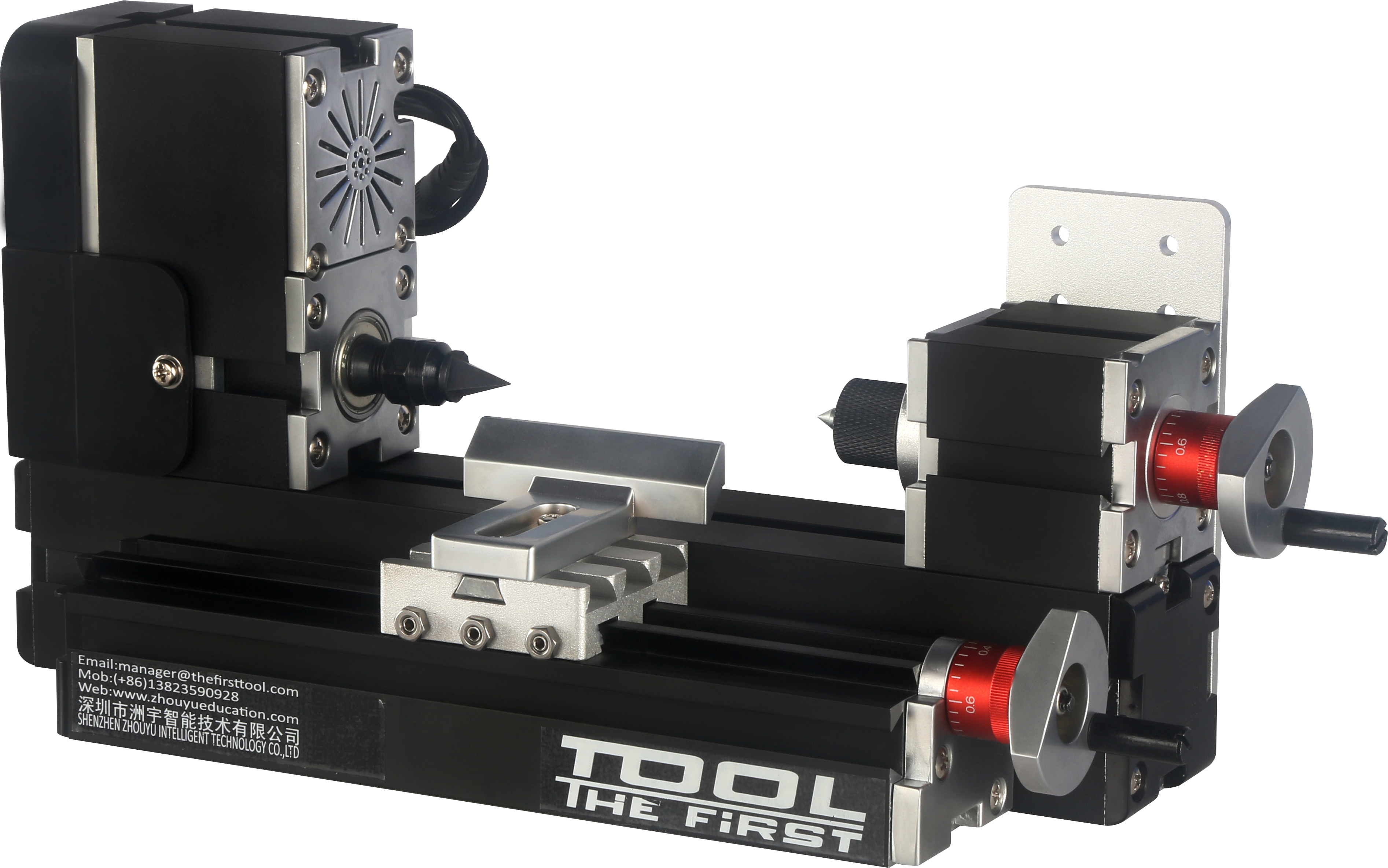

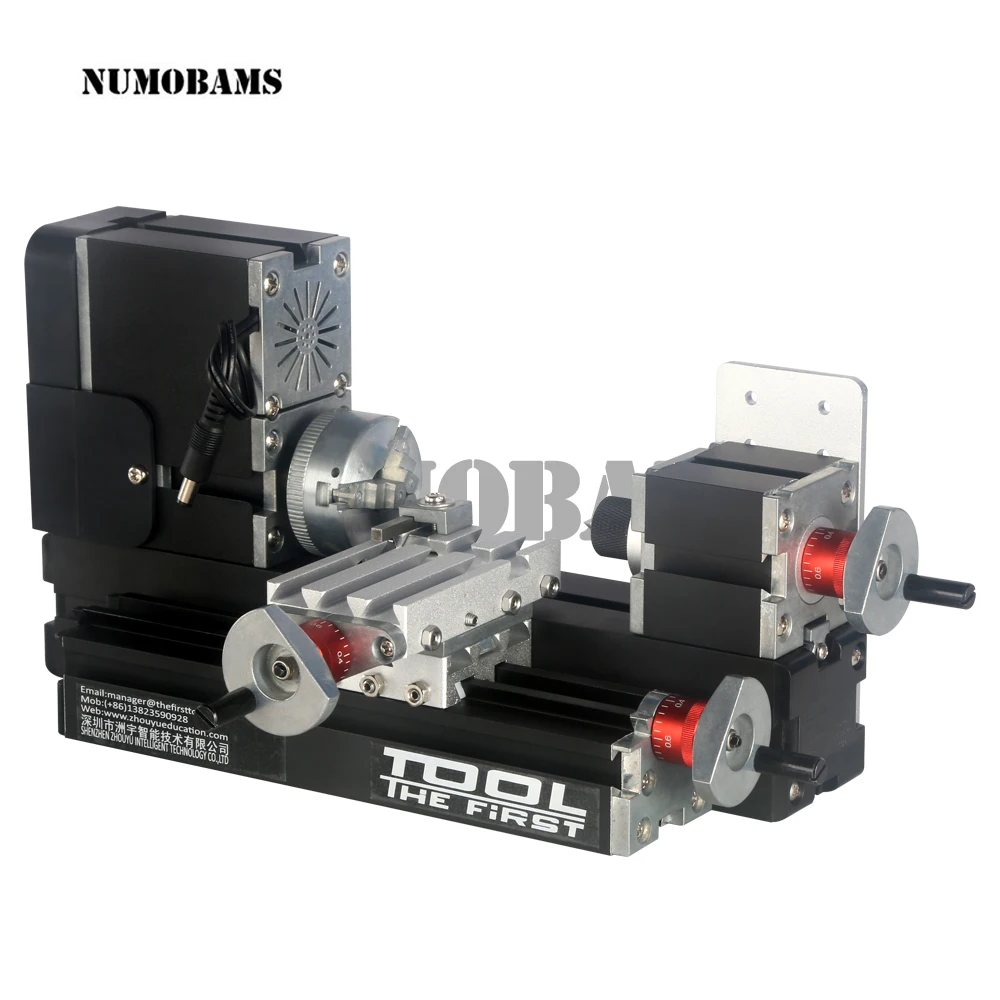

G.Metal Mini Lathe

Features:

1. Motor case and headstock are jointed.

2. Main parts: headstock, tailstock, long machine bed, slider, motor blade, gear, connection piece, drive belt cover etc.

3.Center height-25mm, distance between center-135mm, motor speed normally will drop to 2000rpm/min when it machines metal.

4. Lathe tool is made of high speed steel quality material and it can process soft metal, nonferrous metal and precious metal. By using central block, diameter can be expanded to 100mm.

All of the parts are made of metal except drive belt cover.

Technical parameters:

1.Motor speed:12,000rpm/min(optional choice 20,000rpm/min)

2.Input voltage/current/power:12VDC/2A/24W

3.Maximum working material diameter:20mm

4.Working material length:135mm

5. Axis Z slider travel:32mm

Axis X slider travel:145mm

6. Working material: lignin plastic, soft metal (gold, silver, copper, aluminum etc.), acrylic, plastic etc.

7. With 0.02mm scale line ,the hand wheel increases the precision when processing.

8.Motor power :144W

What we can do:

Contains:


About Us

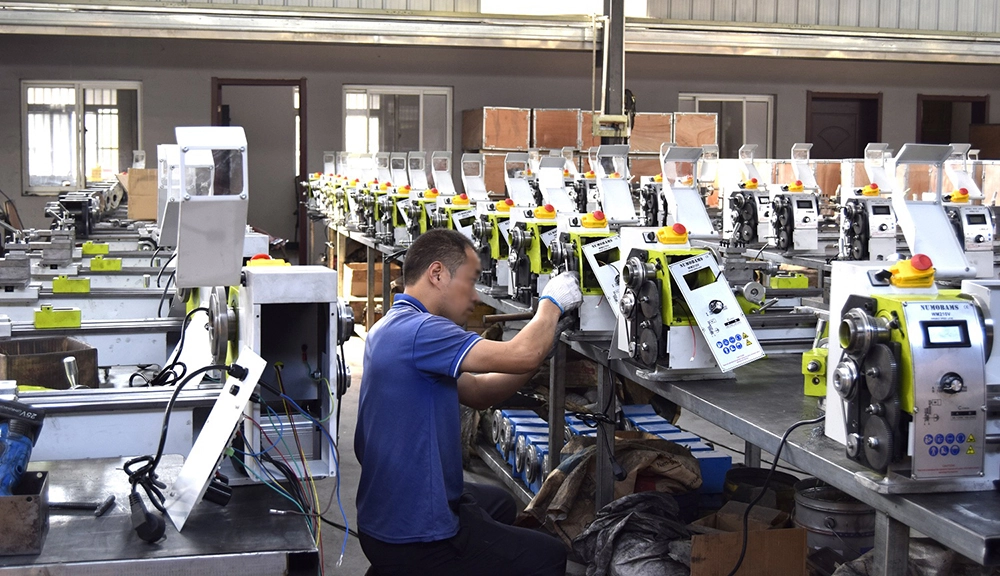

Numobams is a pioneering leader in the field of miniature manufacturing equipment and STEM education solutions. With a heritage rooted in the acclaimed "Zhouyu" and "The First Tool" product series, we have dedicated over a decade to bridging the gap between industrial capability and desktop accessibility. We operate state-of-the-art manufacturing facilities where we produce high-precision modular machine tools, including our versatile 6-in-1 kits and advanced benchtop metal lathe systems. Our mission is to empower the next generation of engineers and support the creativity of makers worldwide by providing tools that are safe, durable, and educationally valuable.
As a specialized lathe machine manufacturer, we prioritize quality and innovation. Our "M" series products feature upgraded metal components to ensure professional-grade rigidity and performance, setting us apart from toy-grade competitors. We serve a diverse global client base, ranging from vocational schools and universities to professional model makers and DIY enthusiasts. At Numobams, we believe in "learning by doing," and our modular systems are designed to foster technical skills and mechanical understanding. We provide comprehensive after-sales support and a steady supply of spare parts, ensuring that your investment in our technology yields years of creative productivity.
Contact our sales team today to equip your classroom or workshop!

FAQ

What are the 6 functions of this kit?

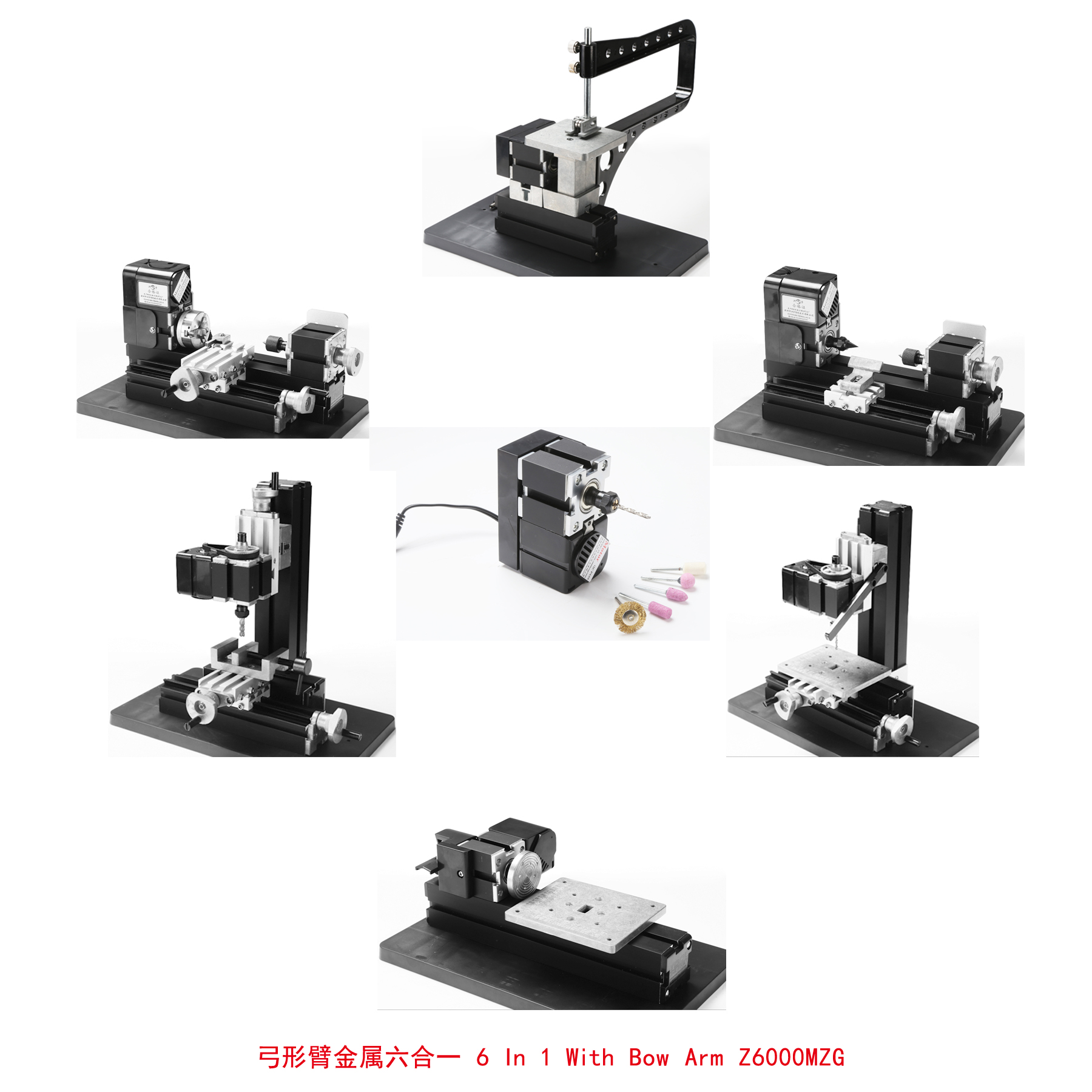

The Z6000MZG kit can be assembled into six different machines: a bow-arm jigsaw, a metal lathe machine, a wood-turning lathe, a drilling machine, a milling machine, and a sanding machine. You can build one tool configuration at a time.

What is the advantage of the "Bow Arm" saw?
The bow arm design provides a larger throat depth compared to standard straight arms. This allows you to cut larger sheets of plywood or plastic without the arm obstructing the material, making it ideal for cutting curves in bigger model parts.

Can this machine cut steel?
The machine is designed for soft metals like aluminum, brass, and copper, as well as wood and plastics. While the metal components add rigidity, the 24W motor is best suited for non-ferrous metals. Cutting hardened steel is not recommended for this class of diy metal lathe.

Is the jigsaw blade safe for students?
Yes, the jigsaw uses a reciprocating action with a short stroke. While it cuts rigid materials effectively, the vibration is generally harmless if it accidentally touches soft skin, making it a popular choice for STEM education safety.

Do you provide power adapters for different countries?
Yes, the kit includes a power supply that converts 100V-240V AC to 12V DC. We provide the appropriate plug standard (US, EU, UK, AU) based on your shipping location or request, ensuring compatibility for international lathe machine manufacturers and users.
