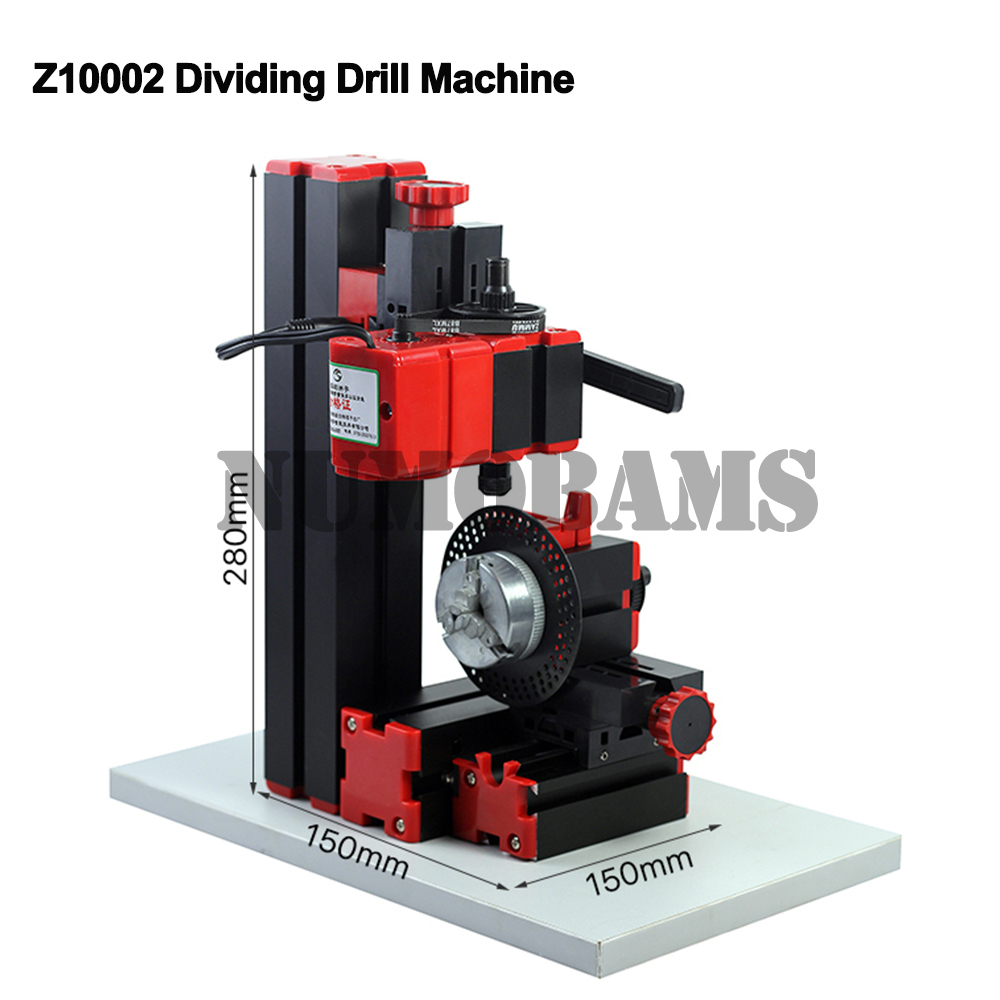

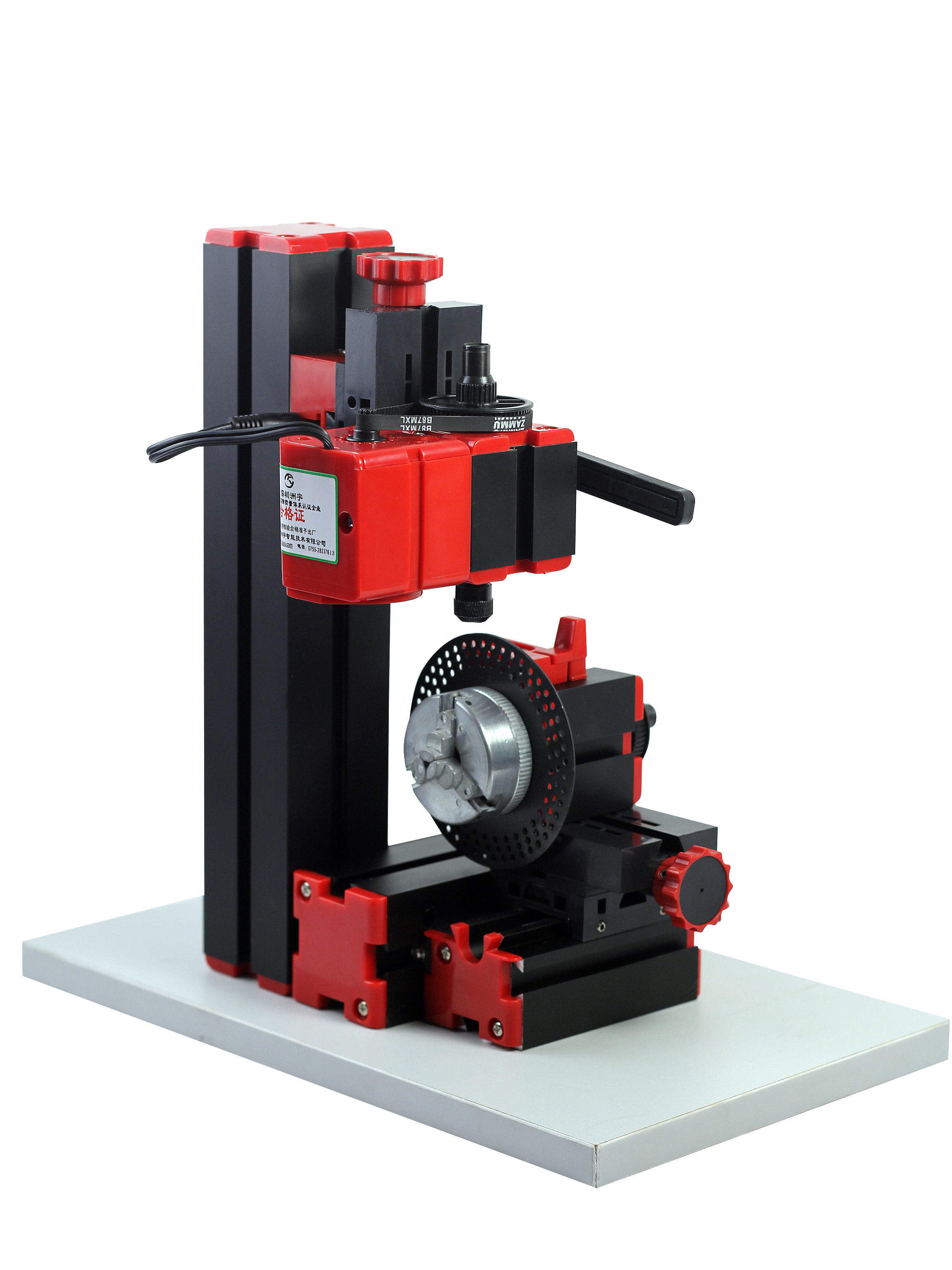

Z10002 24W Normal Dividing Drilling Machine
Feature:
1.Main parts: headstock, radial arm, long machine bed, short machine bed, small slider, big slider, motor blade, connection piece, dividing positioned, gear etc.
2. By using dividing plate, we can drill the round workpiece equally.
3. There are three circles of the holes on the dividing plate and the number of the holes respectively is 36,40,48. We can choose them as needed.
Technical parameters:
1.Motor speed :20,000rpm/min(optional choice 12,000rpm/min)
2. Input voltage/current/power:12VDC/2A/24W
3. Working material: wood, engineering plastic, soft metal (gold, silver, copper, aluminum etc.)
4. Maximum workpiece diameter clamped by three-jaw chuck:50mm
5. The transformer has over-current protection , over-voltage protection, over-heating protection.
6. With 0.02mm scale line, the hand wheel increases the precision when processing.
