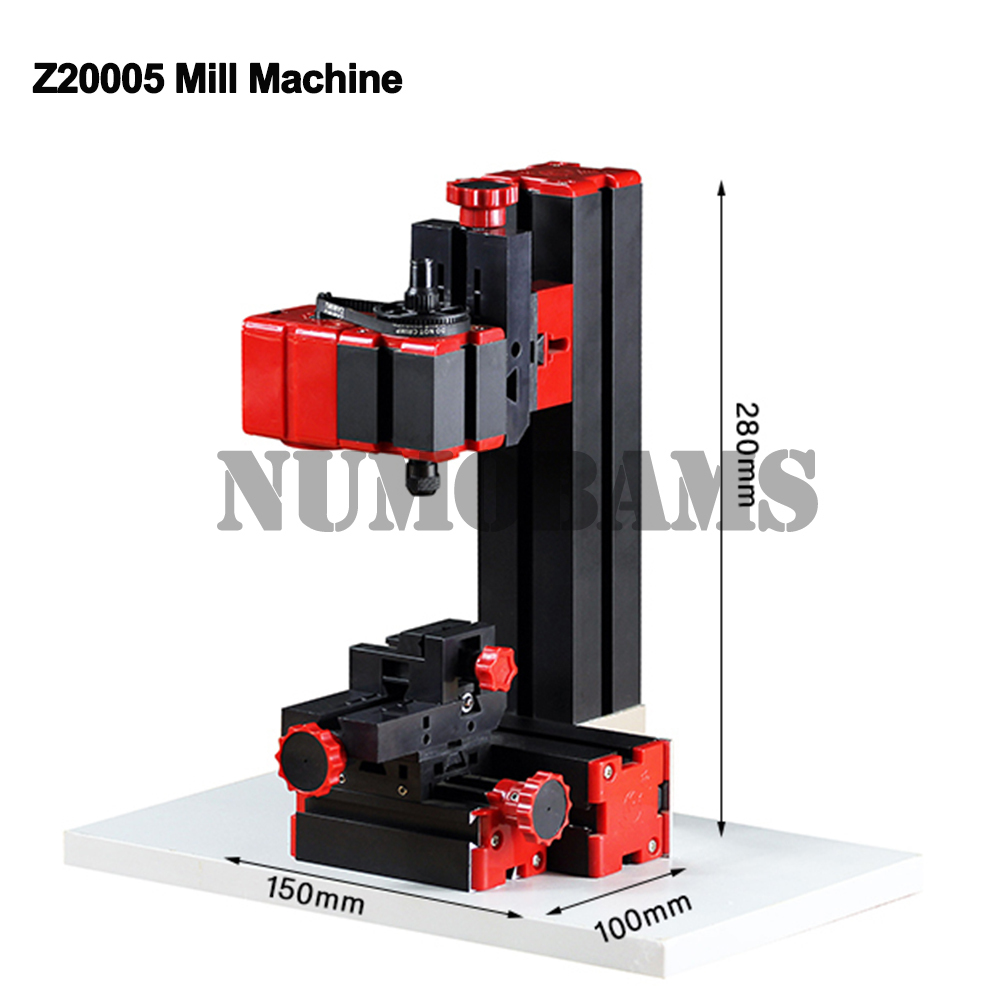

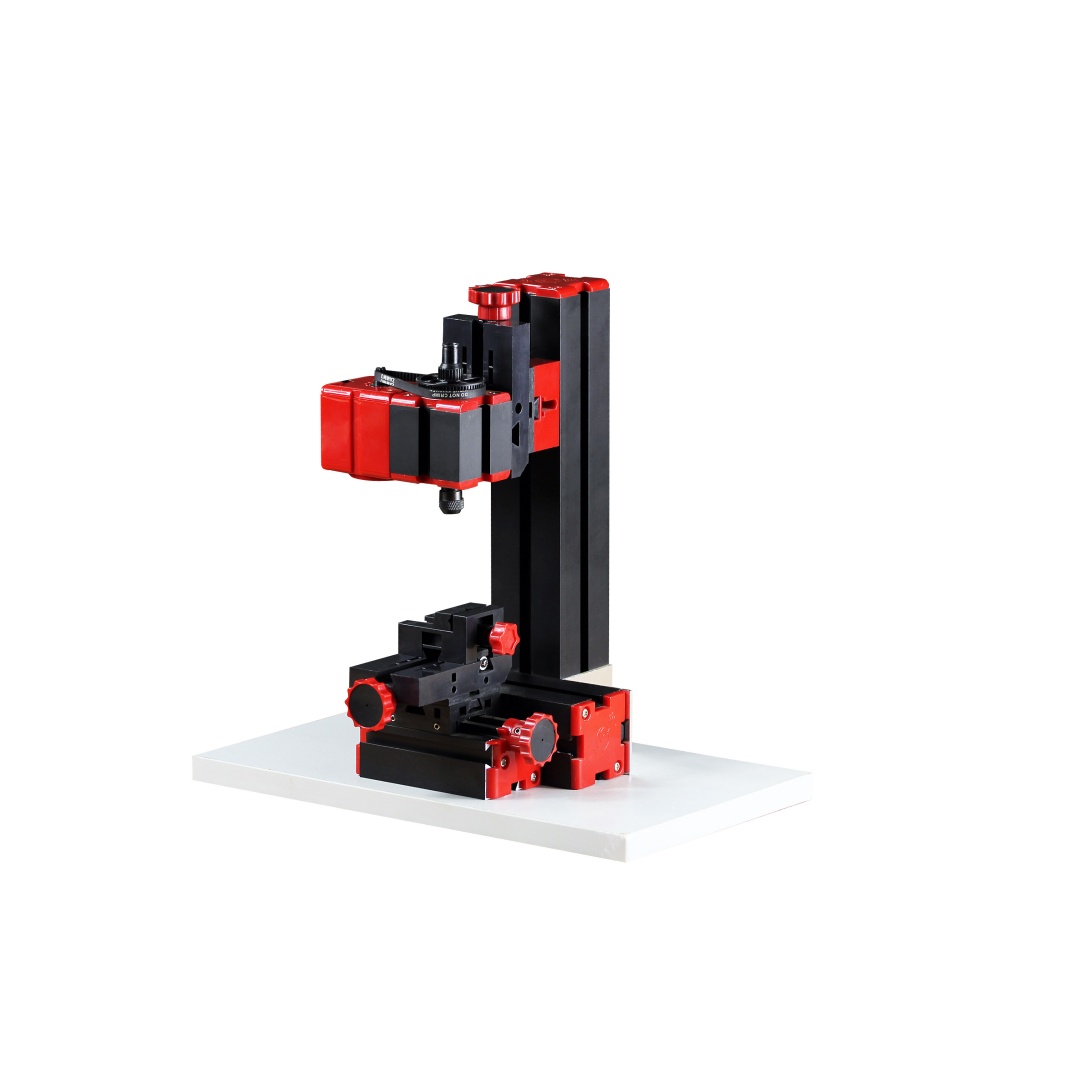

Z20005 24W Normal Mini Vertical Milling Machine
Feature:
1. Milling cutter, with two edges, is dangerous, so people should be guided by experts when using it.
2. Main parts: headstock, long machine bed, short machine bed, big slider, small slider, motor blade, connection piece, gear etc.
Technical parameters:
1. Motor speed :20,000rpm/min(optional choice 12,000rpm/min)
2. Input voltage/current/power:12VDC/2A/24W
3. Axis Y,Z travel :30mm
4.Axis X travel:160mm
5. Collets: 1-6mm(The standard collet for this machine is two φ6 size,if need other size collet,please contact us when purchase)
6. Maximum working material size clamped by machine vice:50mm
7. With 0.02mm scale line ,the hand wheel increases the precision when processing.
8. Working material: wood, plastic, soft metal (gold, silver,copper, aluminum etc.), acrylic, plastic etc.
