Product Overview

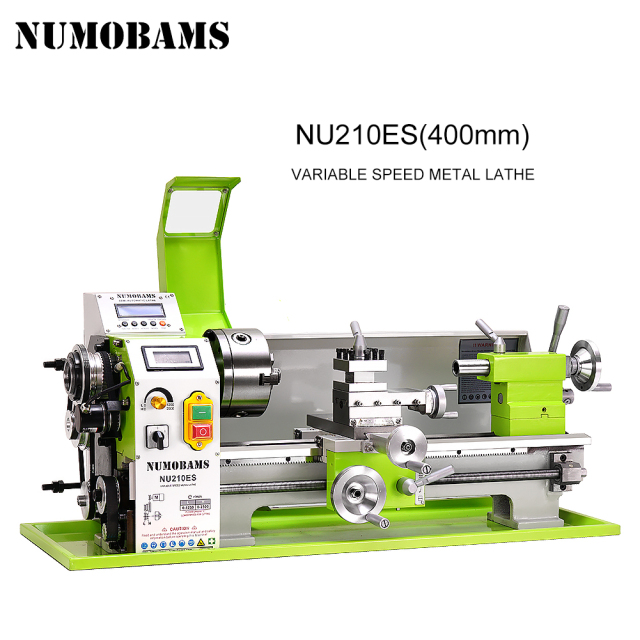

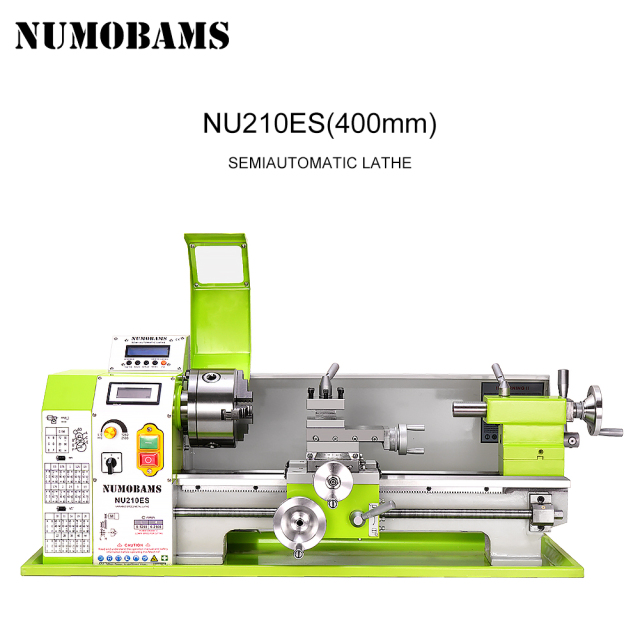

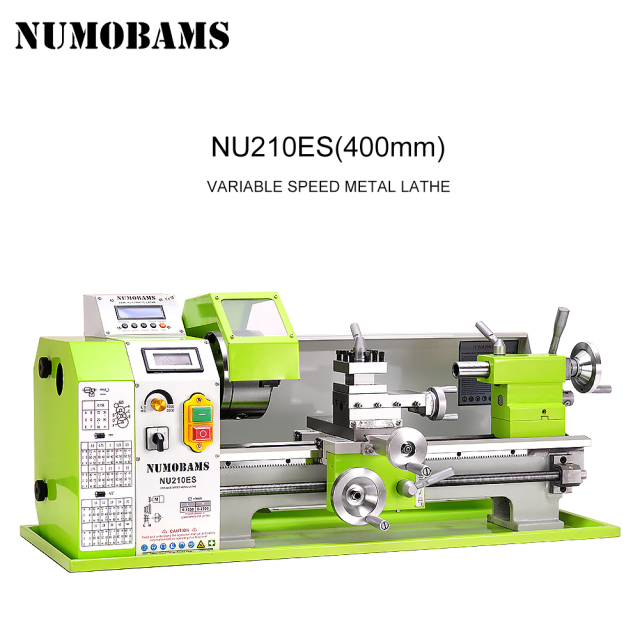

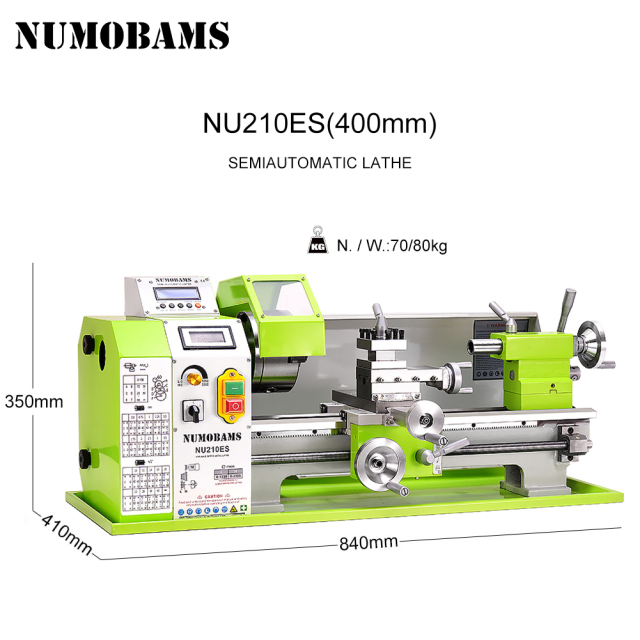

The NU210X400ES is a bench-top semi-CNC lathe built around one job: cutting threads without stopping to rebuild the gear train. Its swing and centre distance let shafts, bushes, threaded studs, adaptors and repair parts sit comfortably between centres, while the generous spindle bore lets longer bar stock pass through the headstock instead of hanging out of the chuck.
Semi-CNC means the electronics handle spindle speed and the threading cycle while the carriage and tailstock stay manual — you still feel the cut through the handwheel. Set against a full cnc lathe machine, there is no programming language to learn, no CAM post-processor to buy and no enclosure to work around. Set against a plain manual lathe, you get repeatable pitch and consistent feeds, which is where most of the time goes on threaded work.
We bring this model in from a small group of cnc lathe manufacturers in China and supply it to repair shops, small production workshops and resellers. Machines arrive as complete, adjusted units rather than as kits that still need setting up.
If your week is mostly plain turning with the occasional thread, a manual lathe will do the job. If threads are a regular part of the week — repairs, fittings, studs, lead screws — the automatic threading cycle, with left and right direction set on the panel, is what you are buying here, and it is worth reading the next section before you compare capacities.
Automatic Threading Control
- Automatic threading from the panel. Pitch selection runs through the electrical change gear set rather than through physically swapping wheels on the banjo. You pick the pitch, the machine takes it, and the gear train is left alone between jobs.
- Left and right threads from one setup. Thread direction is set on the control instead of by reversing the leadscrew by hand. On a full cnc lathe this is a line of program; on a semi-CNC lathe it is a switch, so a left-hand thread follows a right-hand thread without stripping and rebuilding anything.
- Metric and inch pitches. Both standards run from the same control, with the change gear set included in the tool kit for the pitches beyond the standard chart.
- Repeatable on repair work. Re-cutting a damaged thread on a shaft is where this thread cutting lathe earns its money: match the existing pitch, pick the direction, and take light passes until the nut runs clean by hand.
- Manual where you want it. Feed and depth of cut stay under your hand. Nothing about the threading cycle takes the carriage away from you, so you can stop mid-pass, check the fit with a gauge or a nut, and continue.
- Fewer setups per batch. Because direction and pitch change at the panel, a run of right-hand studs followed by a run of left-hand fittings does not cost you a teardown in between — the changeover is a few seconds, not half a morning.
Specifications
| Brand | NUMOBAMS |
| Machine type | Bench-top semi-CNC metal lathe |
| Swing over bed | 210 mm |

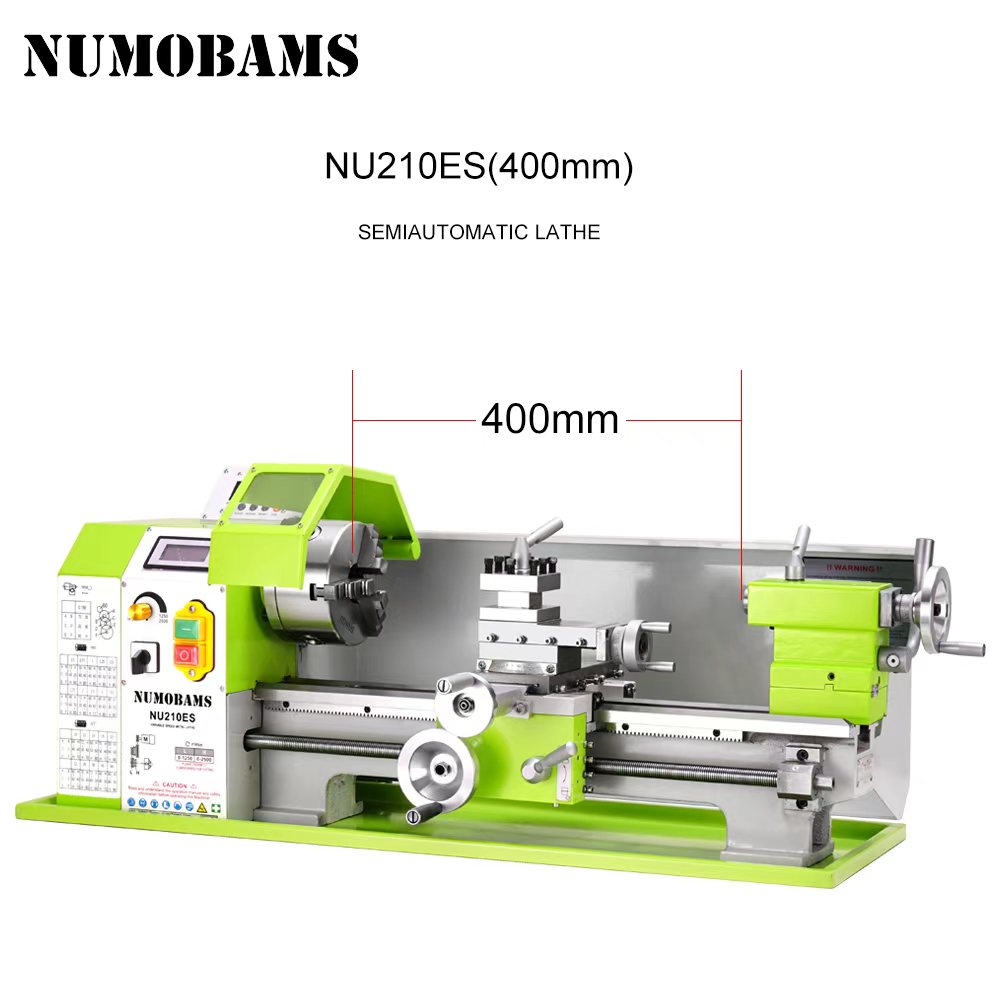

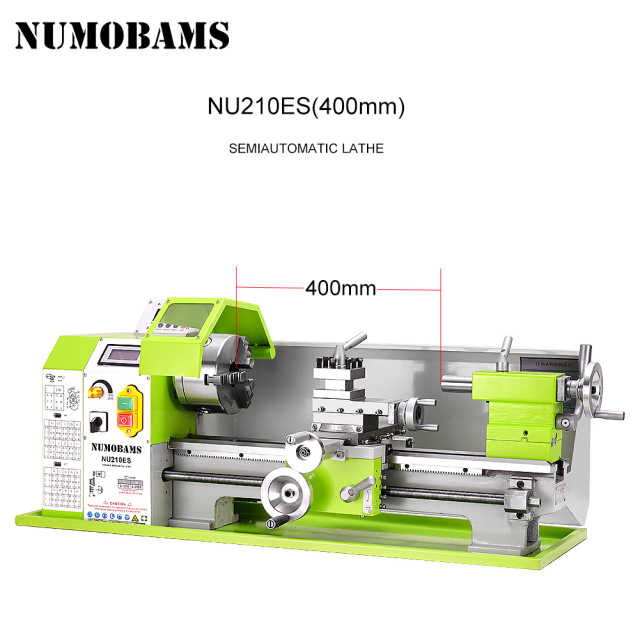

| Distance between centres | 400 mm |

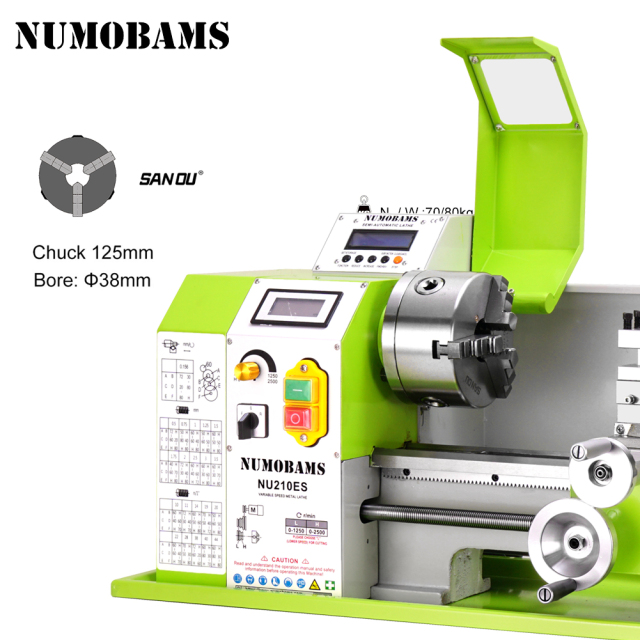

| Spindle bore | 38 mm |
| Chuck diameter | 125 mm |
| Chuck options | 3-jaw or 4-jaw |
| Bed guide way | Quenched |
| Threading | Automatic left and right, electrical change gear set |
| Thread standards | Metric and inch |
| Spindle speed | Variable speed control |
| Voltage options | 110 V or 220 V |
| Control | Electronic control panel with display |
Build and Rigidity
Three things decide how a lathe of this size behaves under load: the bed, the spindle and the chuck. We choose the metal lathe manufacturers we work with on how the bed is machined and how the spindle is set, because those are the parts a buyer cannot put right later.
The guide ways are quenched, so the carriage travels on hardened surfaces that hold their geometry far longer than a soft bed. That matters on a cnc lathe machine of this class: the control can call for a consistent depth of cut, but only the bed can deliver it without chatter creeping into the finish.
The chuck is a size up from what most lathes in this class carry, and more jaw contact means less chance of a shaft walking during a threading pass. Behind it sits a wide spindle bore, large enough for bar stock to feed through the headstock. This is a bench-top thread cutting lathe rather than an industrial metal lathe for heavy stock removal — the frame is built for accurate light and medium cuts, and it performs to specification when used that way.
Mount it on a rigid bench that is bolted down or well weighted, keep the ways oiled, and clear swarf off the bed between jobs. A wobbly table shows up in the surface finish long before the lathe runs out of capability.

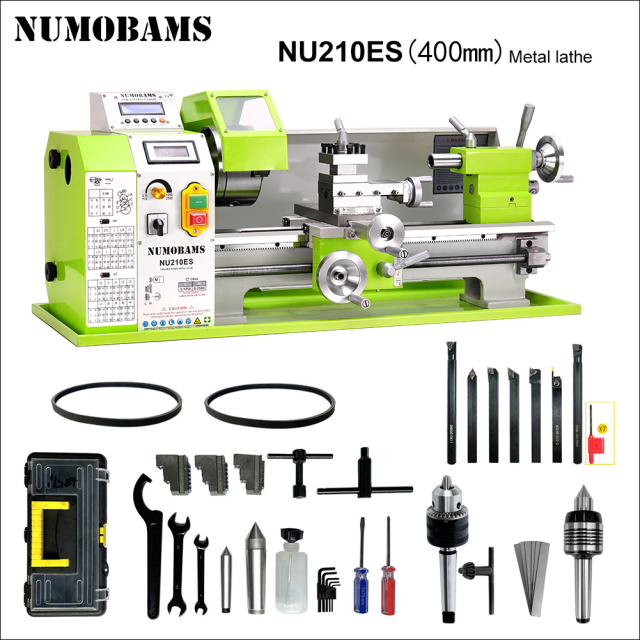

Included Tool Kit
| Tool kit item | Supplied | Typical use |
| Drill chuck | Included | Mounts in the tailstock for drilling, reaming and centre work after a part has been turned |
| Live center | Included | Rotating point that supports longer work at normal turning speeds without rubbing the end |
| Dead center | Included | Fixed point for short, low-speed work and for checking that a centre sits true |
| 7-piece CNC turning tool set | Included | Turning, facing and boring tools so the first cuts can be taken without shopping for tooling first |
| Anti-jaw set | Included | Jaw protection for re-chucking finished or thin-wall parts |
| Change gear set | Included | Loose wheels for the machine's gearing setup, kept with the machine rather than sourced later |
| Tool box | Included | Holds the loose kit together between jobs and moves with the machine when it is relocated |
| Operation manual and safety instructions | Included | Setup, lubrication points and the safety notes to read through before the first cut |
NUMOBAMS Warranty
Every machine we sell carries a 2 Years warranty on the control board, counted from the day you receive it. If the board fails inside that window, send it back to us and we will exchange it for a new one.
The warranty covers the board. It does not cover the precision of every individual component, because a lathe is an assembly and small differences between parts are normal. What we stand behind is the overall working accuracy of the machine as it left us — which is the number that decides whether your parts come out to size.
That is why every unit is adjusted and calibrated before it is crated. Many cnc lathe manufacturers expect the buyer to align the machine on site; on this cnc lathe machine the geometry is already set when you open the crate. The right way to check it is to mount the machine, run a cutting test on a piece of scrap and measure the result against your own tolerance.
Please do not strip the machine down to inspect alignment. Accuracy problems that appear after unauthorised disassembly fall outside the cover, and we cannot take responsibility for them. If a test cut does not come out as expected, send us the measurement with a photo or a short video and we will work through it with you.
Ordering and Delivery
- State your voltage. The lathe is built in 110 V and 220 V versions, and the version you need depends on the supply at the socket you will actually use. Confirm it at the quotation stage so the machine arrives ready to connect.
- Choose the chuck. A 3-jaw scroll chuck suits round and hex bar and fast self-centring setups; a 4-jaw independent chuck is the better choice for square stock, castings and work that has to be dialled in off-centre.
- Choose where it ships from. Machines are dispatched from China or from our Poland warehouse, depending on stock and destination. Tell us which you prefer and we will confirm availability for your order.
- Confirm the delivery address. We arrange tax-free, door-to-door delivery service. Give us the full delivery address and we will confirm the service that covers it before you commit to the order.
- Plan around the dispatch window. Machines are dispatched within 90 days of order confirmation. If your project has a fixed installation date, tell us when you request the quotation and we will confirm what is achievable.
- Ask about multiple units. Wholesale terms apply to multi-unit and reseller orders on the cnc lathe machine and on the tooling that goes with it. Request a quotation with the quantities, voltages and chuck types you need.
- After delivery. Technical support, setup guidance and spare parts stay with you once the machine lands. For any problem during use, send a photo or a short video with your order number and we will work through it with you.
About NUMOBAMS
NUMOBAMS is a machine-tool supplier with a range that runs from compact bench lathes to long-bed machines, plus milling and drilling equipment, cutter grinders and the tooling that supports them. This model sits in the middle of that range: an industrial metal lathe in the semi-CNC class, aimed at workshops that thread regularly but do not want to run a programming department.
What you can buy from us is closer to a whole workshop than a single machine — the lathe, a mill, the drill chuck and centres that go with it, and the change gears and jaws you will want in the drawer. Most buyers start with one machine and come back for the next, which is why we keep the range consistent rather than chasing whatever is cheapest in a given season.
Quality here is a set of checks rather than a phrase. Every unit is run and inspected before it is packed, and the lathes are adjusted and calibrated so the machine is already set when it arrives. We keep the cnc lathe manufacturers we work with to a short list we know well, and we would rather decline an order than ship from a partner we have not tested ourselves.
Why buy from us instead of another supplier? Because the same team answers before and after the sale. Questions about thread pitch, chuck choice or voltage go to people who know the machine, spare parts stay available after a model changes, and when something goes wrong you get a named contact rather than a ticket number. We also choose the metal lathe manufacturers we work with on their ability to hold a delivery date, so a promise we make is based on one they have already made to us.
Routine Care & Accuracy
- Oil the ways before the first cut of the day. Wipe the bed down, then run a thin film of way oil along both guide ways and work it in by traversing the carriage and cross slide over their full travel. The guide ways are quenched, but hardened steel still wears once grit sits on them dry — and a bed that has gone tight or scored shows up as taper in the part, not as a warning light.
- Clear swarf before it packs under the carriage. Cast iron and aluminium fines that work their way between the saddle and the bed act like lapping paste. Brush the bed, the cross slide and the compound down after each session rather than at the end of the week, and never use compressed air around the ways — it drives chips further in instead of off.
- Keep the change gear set clean and dry. Store the loose wheels in the tool box, wipe them before fitting, and check that no chip is sitting between two teeth. A single trapped chip changes the pitch the threading cycle delivers, and it is the kind of error that only shows when the nut will not run on.
- Wipe the spindle taper and chuck jaws before every chuck or centre change. A chip on the taper or between the jaws registers as runout that no amount of careful turning will remove. Clean faces, then seat the chuck or centre with a firm push before clamping.
- Take up the gibs as they slacken. Carriage and cross slide gibs settle with use; adjust them until there is a light, even drag along the full travel while the handwheel still turns freely. Over-tightening to chase a finish problem wears the feed screw and makes the machine hard to control on light threading passes.
- Check the bench, not just the lathe. Re-check that all feet carry load and that the bench has not rocked or settled, especially after the machine has been moved. A semi-CNC lathe cutting on an unsteady base will produce a taper that looks like a machine fault and disappears the moment the base is put right.
- Follow the lubrication points in the supplied manual. The operation manual lists the oil points beyond the bed ways, including the feed screw and the headstock. Work through them at the interval given rather than only when something starts to feel stiff.
- Store it properly if it will stand idle. Coat the exposed machined surfaces with a light film of oil, cover the machine with a breathable sheet rather than plastic, and turn the spindle by hand every few weeks. Before returning it to work, oil everything again and take a light test cut on scrap before committing to a finished part.
- Do not strip the machine to check its accuracy. Alignment is set before the lathe is crated; the reliable check is a cutting test on a piece of scrap, measured against your own tolerance. Dismantling the headstock or saddle to inspect alignment is the most common way buyers introduce the error they were looking for, and accuracy problems that follow unauthorised disassembly are not covered.
Supply Chain & Delivery Assurance
NUMOBAMS is a China-based machinery trading company working from Changsha, Hunan, with a selected network of manufacturing partners built up since 2016. That position lets us consolidate a full workshop order — machines, tooling and spare parts — into one shipment, inspect and prepare each unit before dispatch, and keep spare parts available long after delivery. We ship to Europe, the US and Canada on a tax-free, door-to-door basis, and usually dispatch within 90 days of order confirmation.
FAQ
Q1. Is this a full CNC lathe or a semi-CNC machine?
It is semi-CNC. Spindle speed and the threading cycle run from the control panel, but you move the carriage and tailstock by hand, so there is no G-code to write and no CAM software to buy. If your work is one-off or low-volume threading with plenty of checking between passes, that is an advantage rather than a compromise — a full cnc lathe only pays for itself once the same part runs hundreds of times.
Q2. How does the automatic left and right threading work in practice?
You select the pitch and the thread direction on the panel and the electrical change gear set does the rest, so the gear train is not touched between a right-hand and a left-hand thread. On a repair job that means you can match an existing thread, cut it in the correct direction and test the fit without dismantling the headstock or hunting for a change wheel.
Q3. What size bar will pass through the spindle, and which chuck should I choose?
The spindle bore is sized so bar stock can be fed through the headstock instead of being held out of the chuck; the specifications give the exact bore. Take the 3-jaw for round and hex bar and for fast repetitive setups, and the 4-jaw when the work is square, irregular or has to be dialled in off-centre before threading.
Q4. Can it cut the thread pitches I need?
Metric and inch pitches are both covered, and the change gear set supplied with the machine extends the standard range. Tell us the pitch and the thread standard before you order and we will check it against the machine's chart — unusual or very coarse pitches are worth confirming rather than assuming.
Q5. Which voltage version should I order?
The lathe is available in 110 V and 220 V versions. Check what your workshop actually supplies at the socket you will use, including whether it is single-phase and what plug or outlet it uses, then order that version. Running a 220 V machine through a step-up transformer is workable but adds a failure point you do not need in a machine tool.
Q6. Is it rigid enough to cut steel, or is it only for light work?
It will cut steel, and the quenched guide ways are what let it do so without chatter coming into the finish. Many metal lathe manufacturers quote a swing figure and leave bed hardness off the datasheet, yet that is the detail that decides the depth of cut you can take. What it will not do is heavy stock removal on large billets — this is a bench-top machine, and it is most suitable for parts that fit inside its swing with light and medium passes.
Q7. What maintenance does it need day to day?
Keep the bed and guide ways oiled, clear swarf after every session, wipe the chuck jaws and the spindle taper clean before fitting a centre, and check that the machine is still sitting flat on its bench. None of that takes long, and it is the difference between a lathe that holds its accuracy for years and one that starts cutting taper.
