Machine Overview

This is a 2-in-1 bench machine: a mini lathe and a drilling and milling head sharing one base. Turning, facing, drilling and threading all happen at the same work position, and the whole thing is small enough to sit on the bench where the work is rather than in a corner of the shop.

It is deliberately small. The parts it is built around are the ones a watch making lathe exists for — a staff, a bezel blank, a bush, a short axle, a housing with two holes that have to line up. Work that needs a centre steady, a coolant flow or a four-jaw chuck is not this machine's job.

Each unit is assembled in partner workshops that are established CNC machine tools manufacturers and then checked against its specification before it is packed. That is why it arrives set up rather than as a kit of parts: slides, gibs and spindle are already in adjustment, and it should not need fettling before its first job.

The controls are handwheels, levers and change gears. Nothing is programmed and there is no screen to learn. That is a limitation if you want repeat cycles and an advantage if you want to know what the machine is doing — the feel for depth of cut and tool pressure you build here carries over the day you step up to a CNC turning lathe machine.

Product Advantages

  • Two operations, one bench. A mini lathe and a drilling head share one base, so the space a separate drill press would take stays clear for tools and assembly. On a watch or instrument bench that is usually the difference between fitting the machine and not fitting it.
  • A head that swings clear. The drilling and milling head rotates through 360 degrees, so it can approach from the side or be swung away when you want the lathe on its own.
  • Threads in both systems. Eight metric pitches from 0.4 to 1.5 mm and eight inch pitches from 0.0208 to 0.0625 in, cut through the change gear train — enough for the fixings, fittings and threaded axles that turn up on small work.
  • A feed you can repeat. Longitudinal feed runs from 0.07 to 0.13 mm, a finishing range rather than a hogging range: fine enough to leave a clean shoulder on a small diameter.
  • Light enough to handle, heavy enough to stay put. Two people can lift it onto a bench, and once it is there it sits still while you work.
  • Ordinary workshop conditions. No foundation, no coolant system and no compressor to plumb in — it sits where you put it and runs from a workshop supply.
  • A machine you can learn on. Training benches choose machines like this because the link between the handwheel, the tool and the cut stays visible. If you are new to turning, that visibility is worth more than a specification number.
  • A step on the way, not a dead end. Setting a tool on centre, judging a finishing cut and working to a shoulder are the same habits that transfer the day the work moves to a CNC turning lathe machine.

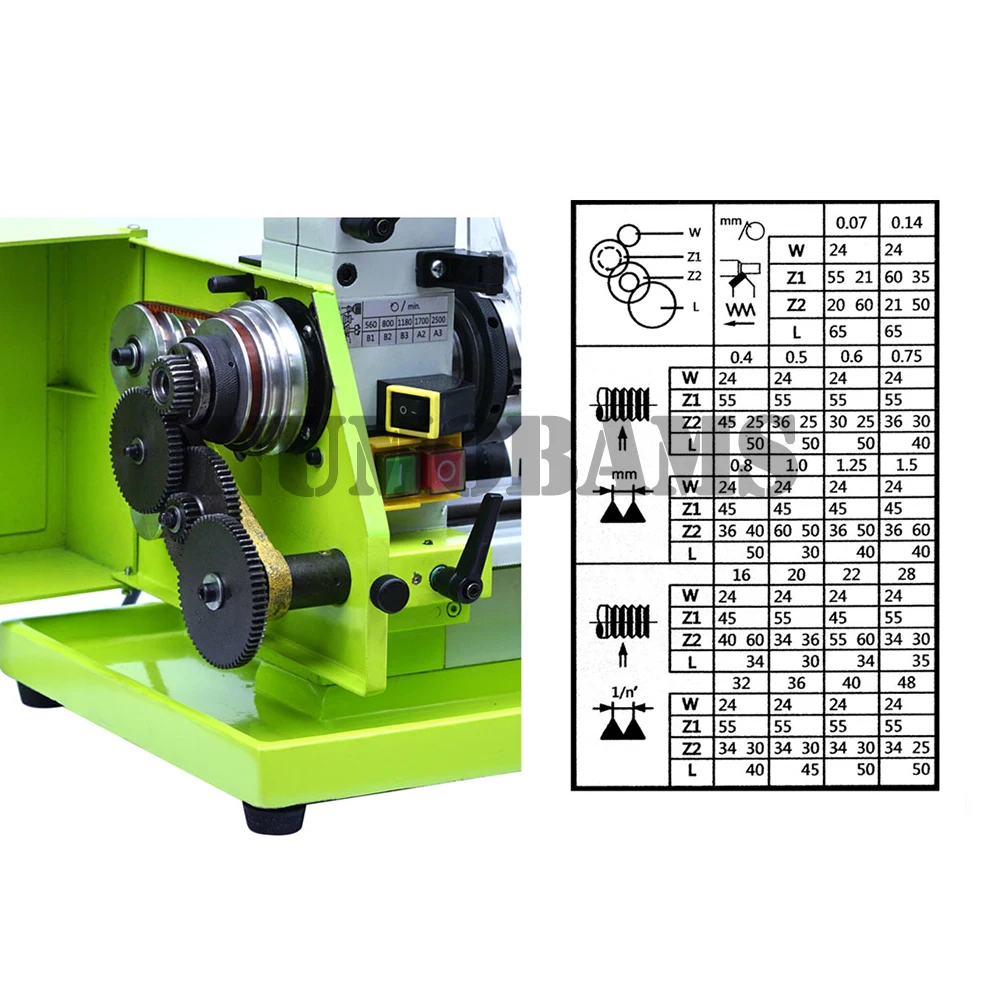

Lathe gear train beside threading and gear-change chart

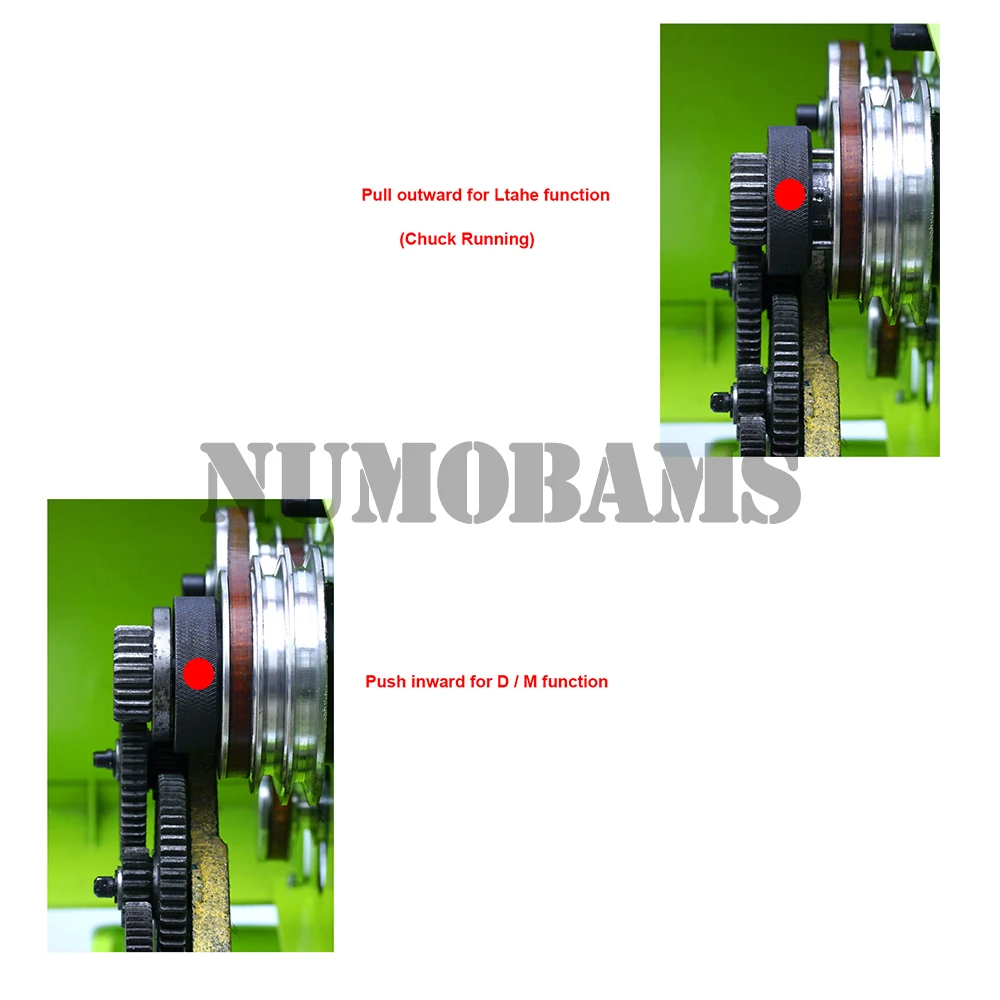

Lathe spindle control showing pull and push functions

Specifications

Model NUM125
Swing over bed 125 mm
Swing over tool post 60 mm
Length of workpiece 180 mm
Spindle bore 9 mm
Spindle taper MT1
Tailstock taper MT1
Lathe spindle speed 5 grades, 560-2500 rpm
Longitudinal feed 0.07-0.13 mm
Maximum drilling capacity 6 mm
Drill-mill spindle speed 10 grades, 500-2500 rpm
Drill-mill head swivel 360 degrees
Table (length x width) 85 x 65 mm
Net / gross weight 25 kg / 30 kg

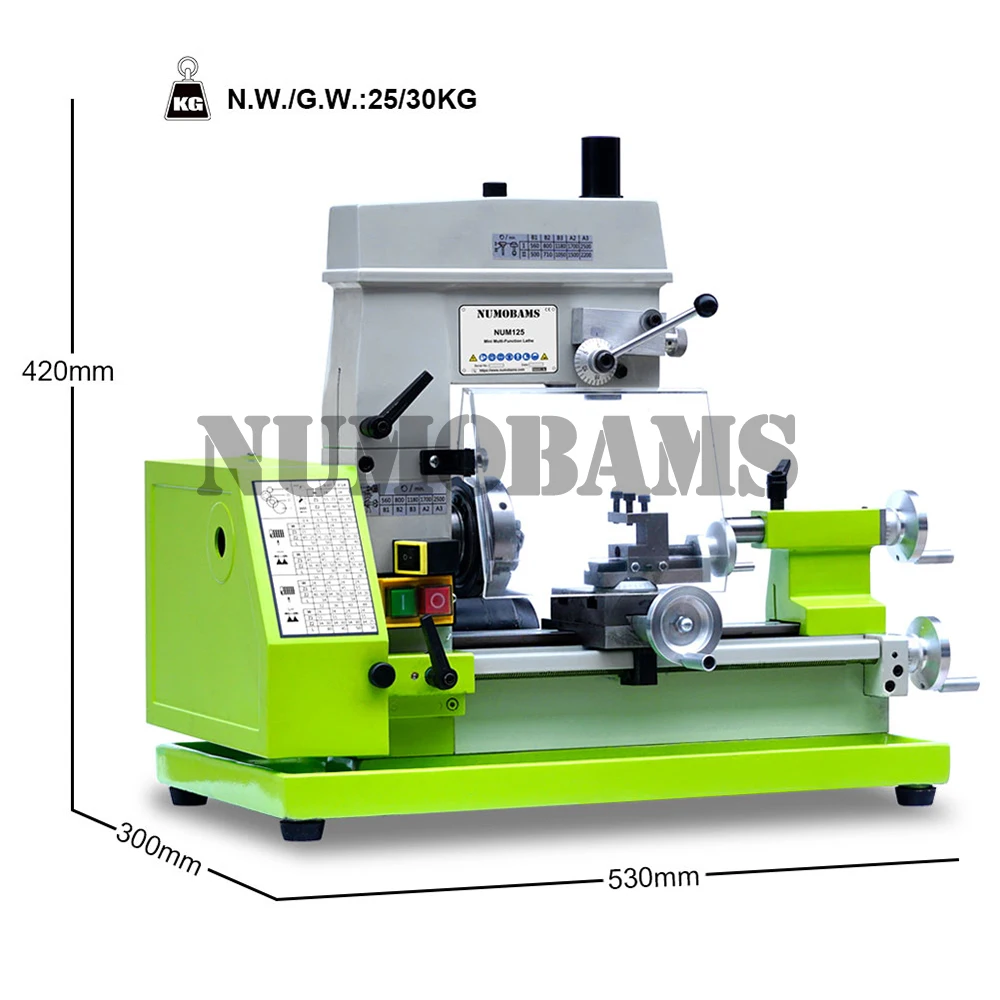

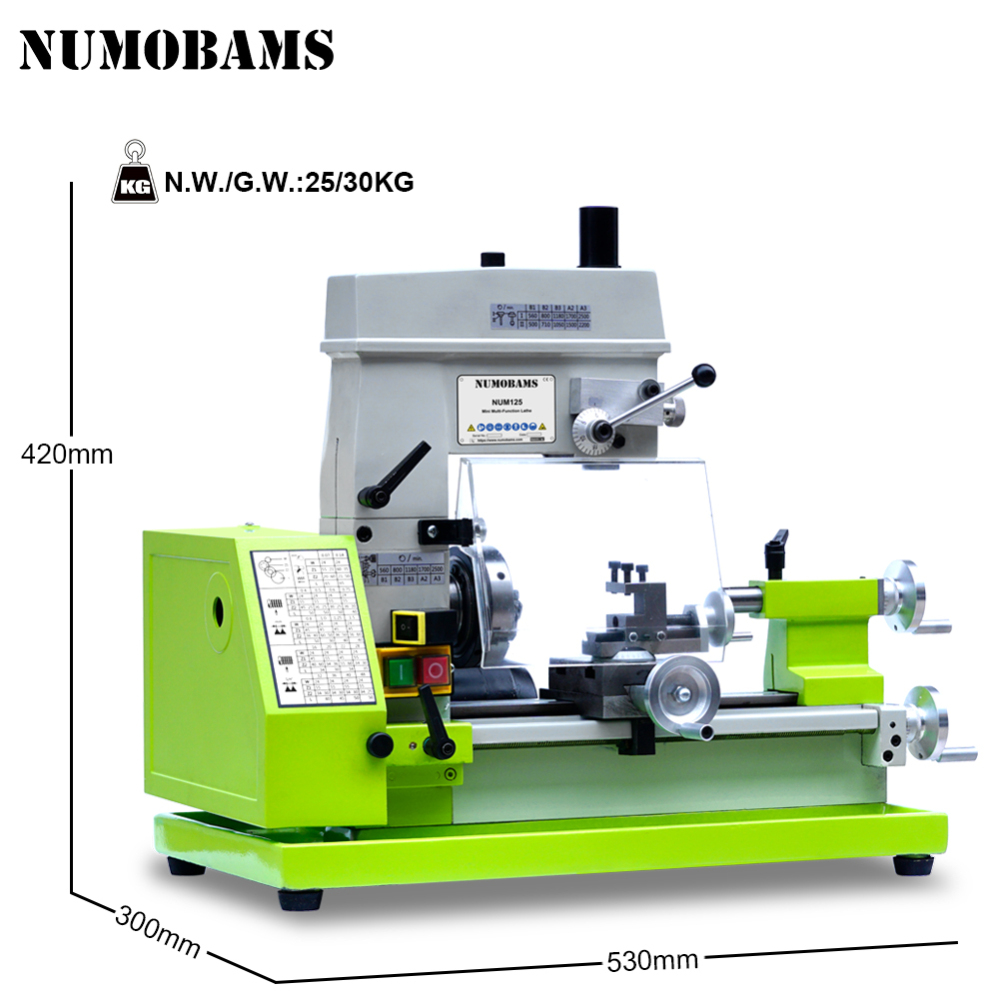

Dimensioned NUM125 lathe photo with weight and size

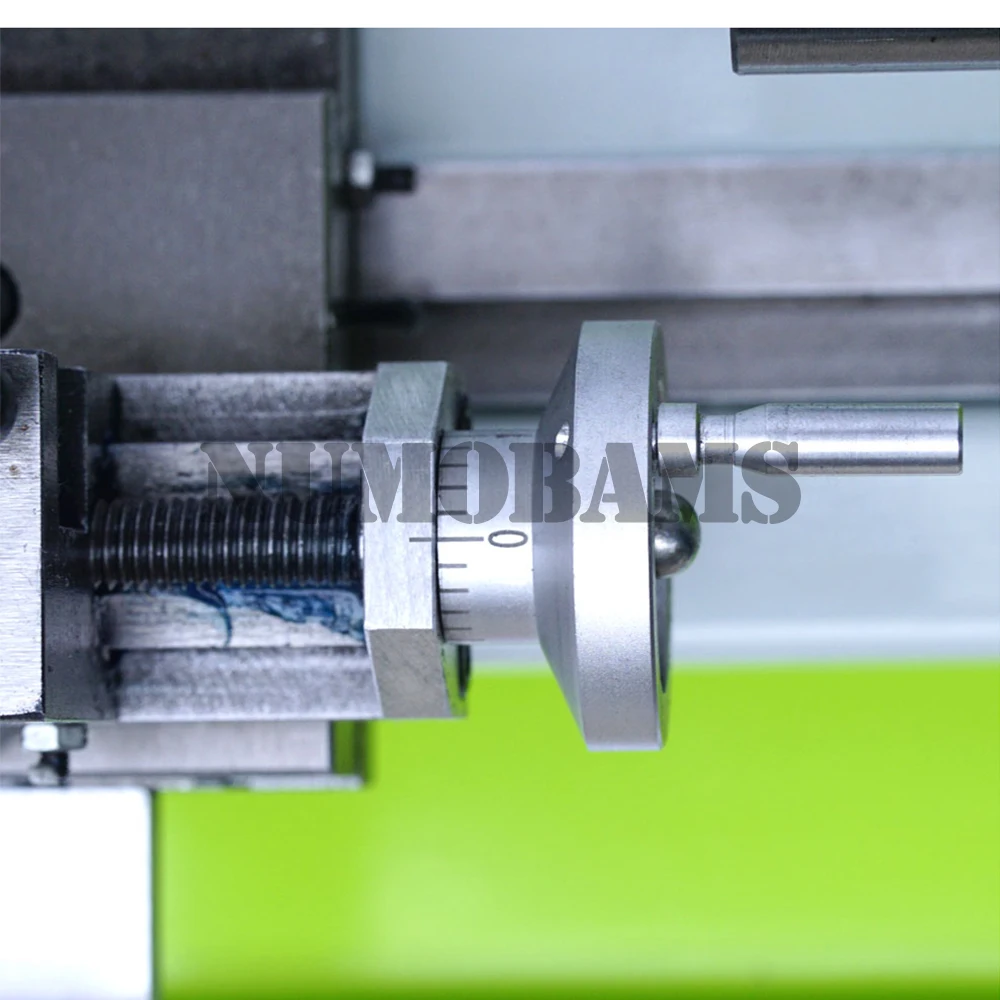

Cross-slide feed screw and graduated handwheel dial

Typical Work

  • Watch and clock benches. Turning a staff or a pivot, boring a bush to fit a worn arbor, drilling a movement holder, or cutting a short thread on a winding component — the work a watch making lathe is bought for, where the part is measured in millimetres.
  • Jewellery and silver work. Bezels, collets, mandrels and setting tools turned from bar, then drilled or milled on the same setting — the small tooling a bench makes for itself, which is exactly the sort of work a mini metal lathe of this size takes on.
  • Instrument and prototype shops. Sensor housings, spacers, small shafts and one-off fittings where the drawing changes between parts and setting up a big lathe would take longer than the job.
  • Model engineering. Axles, wheel centres, small gear housings and the fittings around them, where a lathe and a drill need to be within arm's reach of each other.
  • Repair and maintenance benches. Making the bush, pin or spacer that is holding a repair up instead of waiting on a supplier.
  • Training and shared workshops. One machine that covers facing, turning, drilling and threading without a second bench or a second budget line.

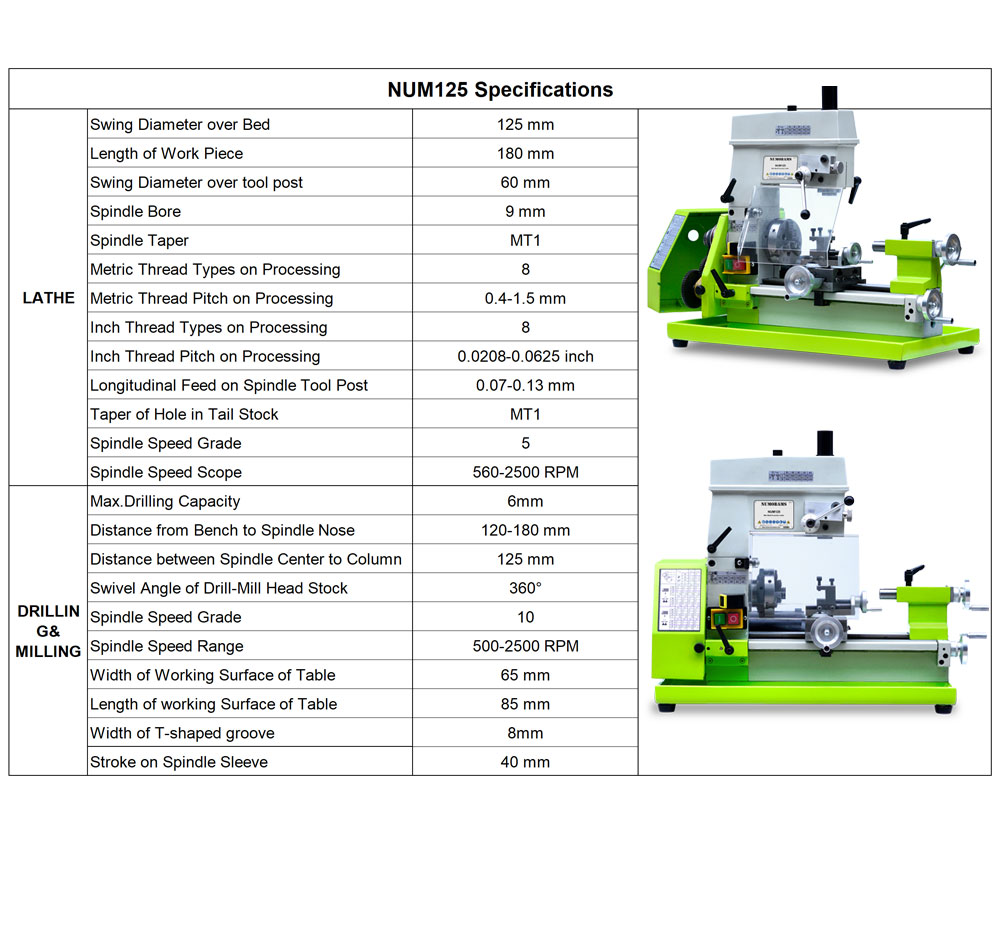

NUM125 lathe specification table with product images
Lathe chuck with speed-setting diagram above

Setting Up and First Cuts

  1. Give it a solid bench. The machine is a bench-top unit with a small footprint, but it needs a top that does not flex; a kitchen table will not do.
  2. Measure the space first. Overall dimensions are around 530 x 420 x 300 mm, so check the bench top and the walkway before you lift it into place.
  3. Clean off the shipping oil. Machined surfaces arrive coated; wipe them down with a solvent-dampened cloth and re-oil the ways straight away.
  4. Oil before you run. Bed ways, leadscrew and the change gear train want a light machine oil, and the slides should move freely through their full travel.
  5. Check the chuck and the guard. The chuck should seat properly on the spindle, the jaws should run freely through their range, and the transparent guard should be in place before anything spins.
  6. Run the spindle through its grades with no load. Listen for anything rough; if something sounds wrong, stop and send us a short video before you cut metal.

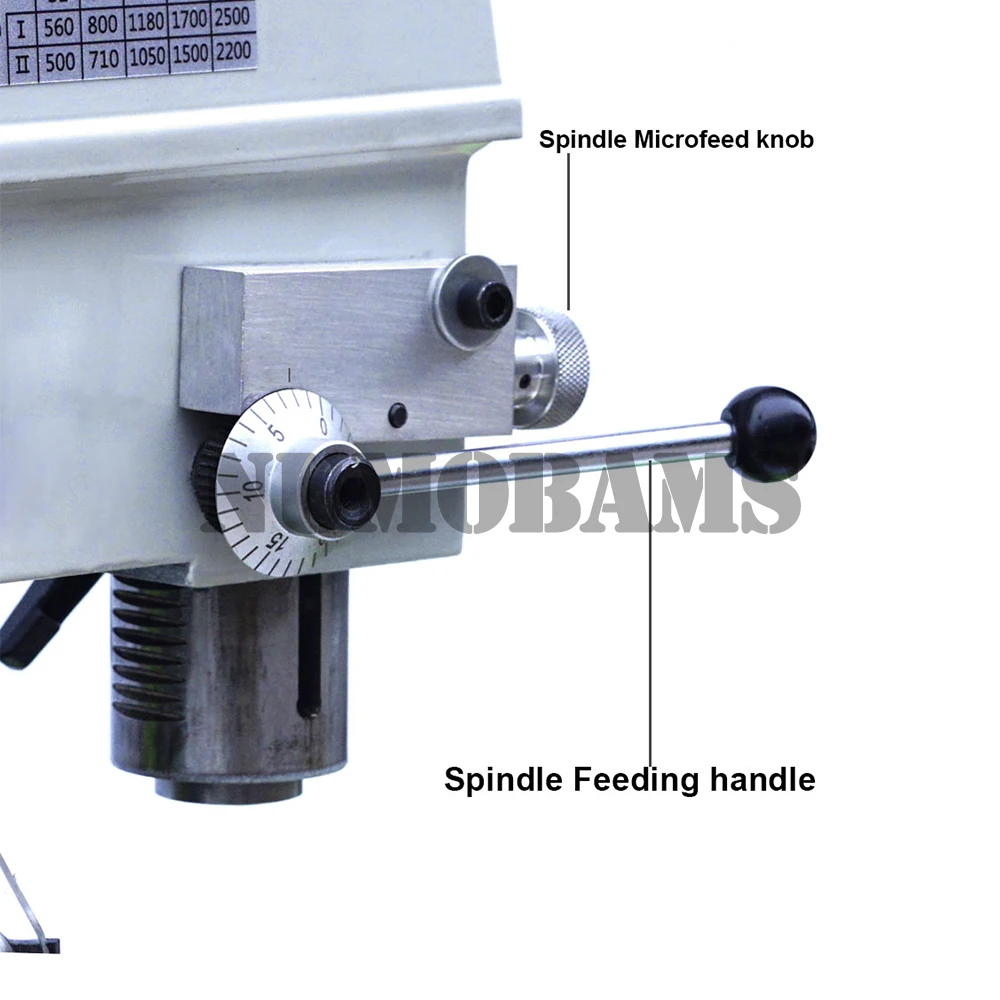

Spindle head with microfeed knob and feeding handle

Tooling and Workholding

  • MT1 at both ends. The spindle and the tailstock share the same small taper, so centres, chucks and adaptors can be moved between them — and MT1 is common enough that accessories from many CNC machine tools manufacturers fit straight in.
  • 9 mm through the spindle. Enough bore for the small bar and rod this machine is meant to hold, and enough to pass a long thin part through when you need to work on its end.
  • Standard square tool bits. The tool post takes the small square bits used on other mini lathes, so nothing here is proprietary and a used set of bits is a legitimate way to start.
  • A small T-slotted table. The drilling table carries an 8 mm T-slot for clamping a vice or a light fixture when you mill.
  • A jaw chuck for general work. Small parts are held in the chuck and set true with a dial indicator when concentricity matters; mark the jaw position on repeat parts so they go back the same way.
  • Tooling can ship with the machine. Order bits, centres and a chuck with the machine and everything arrives together, so the first week is not spent waiting for a parcel.

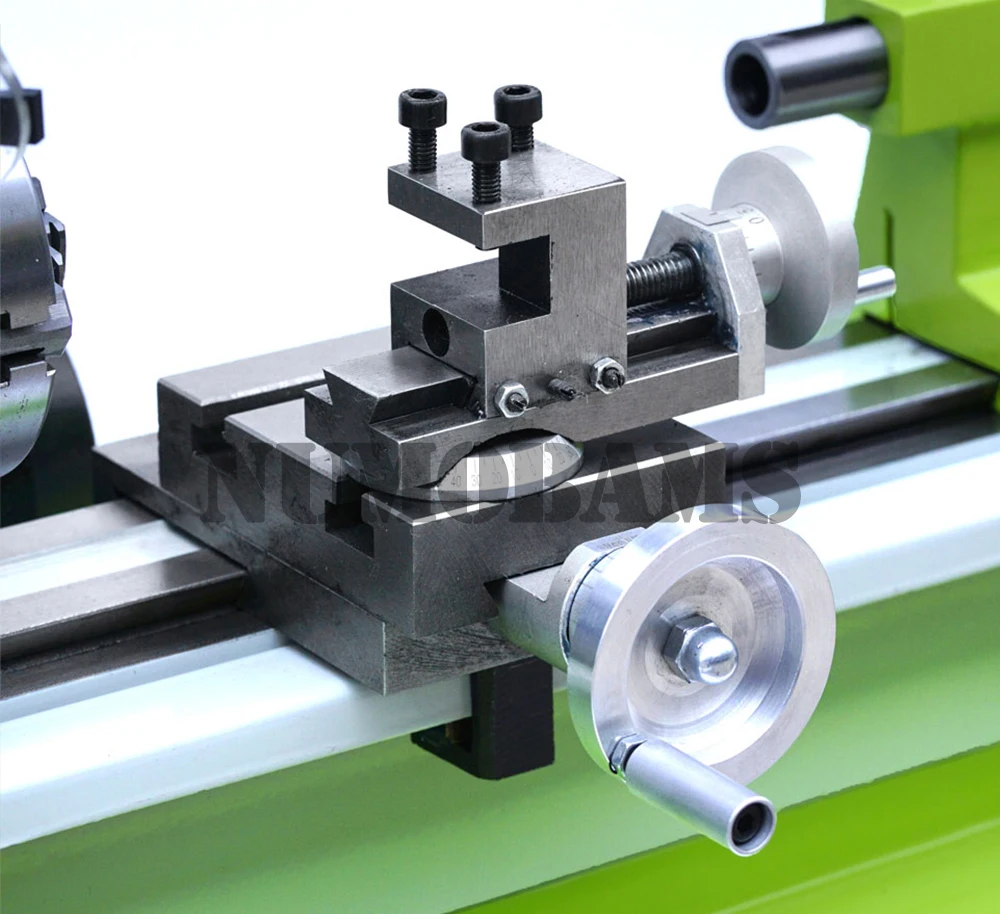

Compound rest angle scale and graduated micrometer dials

Limits and Alternatives

Being clear about the limits saves a return. This is a small manual bench machine and it performs most effectively on small parts. It is not a production lathe: several hundred identical parts, or a cycle that repeats without an operator, is a CNC turning lathe machine's job, and buying this one instead will cost you more in the end.

It is also not a substitute for a 210 mm or 320 mm swing lathe. Work that needs a steady, a large chuck, a bore wide enough for bar stock, or heavy material removal belongs on one of the larger machines in the range, and we will say so if your drawing points that way.

Where it earns its place is the gap in between: the small part holding up a bigger job, the one-off fitting nobody wants to set up a large lathe for, and the bench with room for one machine rather than two. If you are not sure which side of that line your work falls on, send the drawing or a photo of the part with its main dimensions and we will check it against the machine before you commit.

Bench-top metal lathe with gear cover open

Care and Maintenance

  • Clear the swarf every session. A brush and a cloth rather than compressed air — air drives chips into the ways and the leadscrew.
  • Oil the ways and the leadscrew. A light machine oil before and after use; a mini metal lathe this light will show slide wear quickly if it runs dry.
  • Keep the gear train clean. Old grease and dust in the change gears change the thread you get, so wipe and re-grease when you swap gears.
  • Look after the chuck. Clean the scroll and the jaw faces, and do not overtighten small work — jaw marks on a 5 mm brass part are permanent.
  • Leave nothing on the bed. Tooling and chuck keys stored on the ways mark them, and a chuck key left in the chuck is the oldest accident in the trade.
  • Cover it between sessions. A cloth over the bed keeps dust out of the oil film if the bench is shared or the workshop is gritty.
  • Check the guard and the cable. The transparent guard should be in place whenever the spindle runs, and the cable and plug are worth a glance once a year.

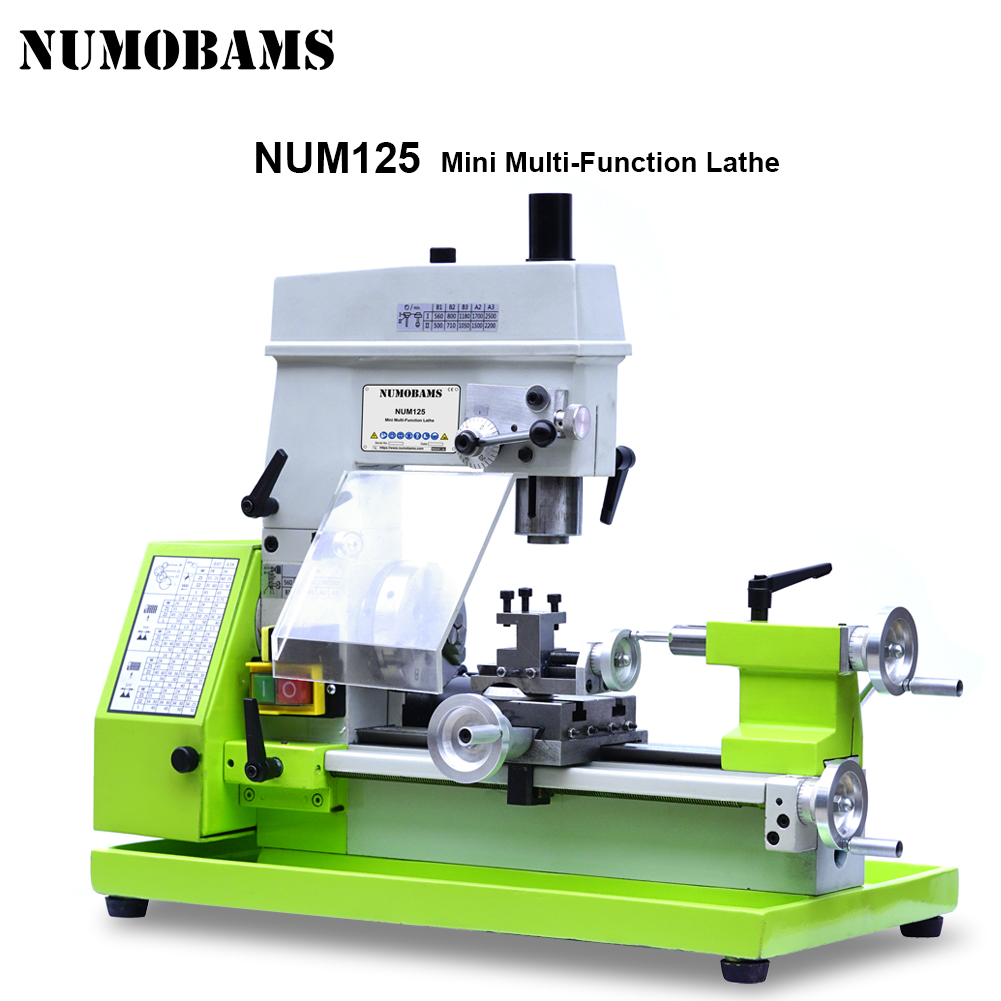

NUM125 lathe with drill-mill head and labeled controls

Warranty and After-Sales

All our machines are pre-adjusted and calibrated for accurate operation before they leave the partner workshop, and we stand behind the machine's overall working accuracy rather than the tolerance of every individual component. The written warranty runs for 180 days on the control board, counted from the day you receive the machine: if the board fails inside that window, send it back and we replace it. Be clear about the scope — that is a control board warranty, not a whole-machine guarantee, and it does not cover a machine that has been taken apart to look for a fault.

Parts are sold individually, so a worn gear, a belt or a board does not write off a machine that is otherwise sound — there is still a route back to the CNC lathe machine manufacturer partners behind the range, which is not true of everything bought through a marketplace listing. Ask with a photo and the part name and we will identify it.

If something goes wrong, describe it with photos and a short video rather than guessing at a fix. A fault gets diagnosed in one exchange that way instead of five.

NUMOBAMS NUM125 Mini Watch Making Machine 2 in1 Multi Function Lathe & Drill Machine
NUMOBAMS NUM125 Mini Watch Making Machine 2 in1 Multi Function Lathe & Drill Machine

Ordering and Delivery

  • Who you are buying from. NUMOBAMS has supplied bench-top lathes, mills and their spares from Changsha, China since 2016, working with a small group of long-standing partners, each a CNC lathe machine manufacturer we have known for years. Beyond this machine the range runs from 210 mm and 320 mm swing lathes to milling and drilling machines, with tooling and spare parts alongside.
  • Lead time. Machines are usually dispatched within 90 days of order confirmation. We confirm the date for your model when the order is placed, and we would rather give you a realistic date than a fast one.
  • Delivery. Shipping is tax-free and door-to-door, so the machine is delivered to your address rather than to a port or a depot for you to collect. Send a full delivery address with the order so the route can be confirmed.
  • Payment. Credit card or T/T bank transfer; confirm the current options with our team when you place the order.
  • Advice before you order. Send the part drawing, the material and the diameters you need to hold, and we will tell you whether this machine will do it — including when the answer is no.
  • Batch orders, dealers and rebadging. For schools, dealers and brand owners we quote batch quantities and dealer pricing, and because the machines come from established CNC machine tools manufacturers the specification stays the same from one order to the next.
  • Customisation. Badge and nameplate changes, manual language and accessory sets can be discussed as part of a batch order for a brand; changes to the machine's own work envelope are not something we offer on a single unit.
  • Manual and specification sheet. Both are available to download if you want them in front of you before ordering.
NUMOBAMS NUM125 Mini Watch Making Machine 2 in1 Multi Function Lathe & Drill Machine
NUMOBAMS NUM125 Mini Watch Making Machine 2 in1 Multi Function Lathe & Drill Machine

Electrical Supply & Connection

The machine is set up for the country it ships to, and we confirm the voltage and plug type against your delivery address before dispatch — so tell us the supply at your bench when you place the order, not after the crate has landed. Plan the bench within reach of a socket. The cable fitted to the machine is short by design, and an extension lead trailed across a walkway is the wrong answer; if the socket is further away, use a properly rated lead rather than a light domestic one.

There is nothing else to plumb in. No coolant pump, no compressor and no air line, which is part of why this machine can sit on a watch bench instead of in a corner with services run to it. Run it from an earthed socket on a circuit that is not shared with a welder or a large compressor, and switch it off at the wall between sessions — the control board is the one electronic part carrying its own 180-day warranty, and clean power is cost-effective insurance.

Before the first cut, plug in and step the spindle through its five grades and the drill-mill head through its ten with no load, checking that rotation is correct and that nothing sounds rough. If the supply at your bench is unusual — a shop transformer, a generator, a 110/220 V changeover — say so at the order stage so the machine is configured for what it will actually meet rather than what the destination normally uses.

NUMOBAMS NUM125 Mini Watch Making Machine 2 in1 Multi Function Lathe & Drill Machine
NUMOBAMS NUM125 Mini Watch Making Machine 2 in1 Multi Function Lathe & Drill Machine

Supply Chain & Delivery Assurance

NUMOBAMS is a China-based machinery trading company working from Changsha, Hunan, with a selected network of manufacturing partners built up since 2016. That position lets us consolidate a full workshop order — machines, tooling and spare parts — into one shipment, inspect and prepare each unit before dispatch, and keep spare parts available long after delivery. We ship to Europe, the US and Canada on a tax-free, door-to-door basis, and usually dispatch within 90 days of order confirmation.

NUMOBAMS NUM125 Mini Watch Making Machine 2 in1 Multi Function Lathe & Drill Machine

FAQ

Q1. Is this a CNC lathe?

No — every cut is set by hand. A CNC lathe machine manufacturer programmes a tool path and the machine repeats it; here you feed with the handwheels, engage the longitudinal feed and cut threads through the change gears. If you need programmed cycles, tell us and we will point you at the CNC model in the range.

Q2. Can I drill and turn the same part without taking it out of the chuck?

Yes — that is what the second head is for. Turn the diameter, leave the part in the jaws and bring the drilling or milling head to it, so the hole stays concentric with the turned surface instead of being re-set by eye. The head swivels, so you can also approach from an angle, or swing it clear when you only want to turn.

Q3. What should I have on hand when the machine arrives?

A few small square tool bits, an MT1 drill chuck with a set of drill bits, a dead centre for the tailstock, a chuck key and a dial indicator cover the first week. Nothing on the machine is proprietary, which keeps the tooling bill low on a mini metal lathe of this size — tell us what you plan to make and we will list the extras worth adding.

Q4. How do I check the machine is accurate when it arrives?

Make a light facing and turning cut on a scrap bar and measure the result; that is the check that matters. Do not strip the machine down to look for problems — it is adjusted and calibrated before it is packed, and taking it apart is the quickest way to lose that. If a cut comes out wrong, photograph the setup and the measurement, send a short video, and let us work through it with you before you change anything.

Q5. What power supply does it need?

Voltage and plug type are confirmed against your destination before the machine is dispatched, so tell us the supply at your workshop when you order. A two-minute question at that stage saves a week later, and it is the one detail buyers most often leave until the machine has already shipped.

Q6. Can I drill from the tailstock as well as from the second head?

Yes. The tailstock takes MT1 tooling — centres, and an MT1 drill chuck for centre drilling and small holes — and it is fed by handwheel. Use the drilling head instead when the hole has to relate to a milled face or an angle, because that is the setting where its swivel earns its keep.
