  • Description

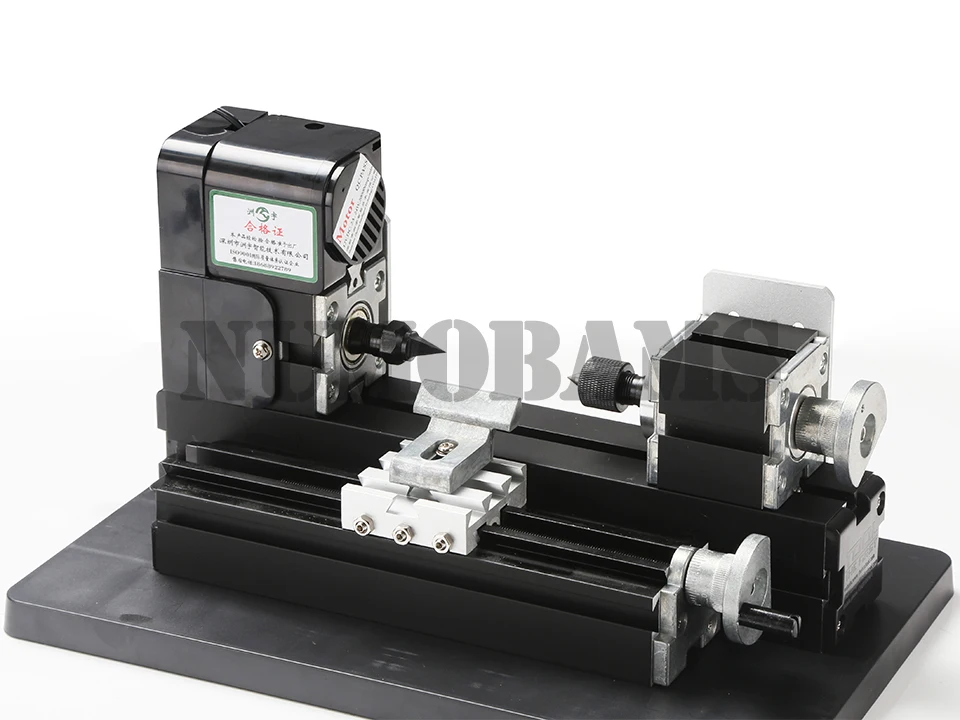

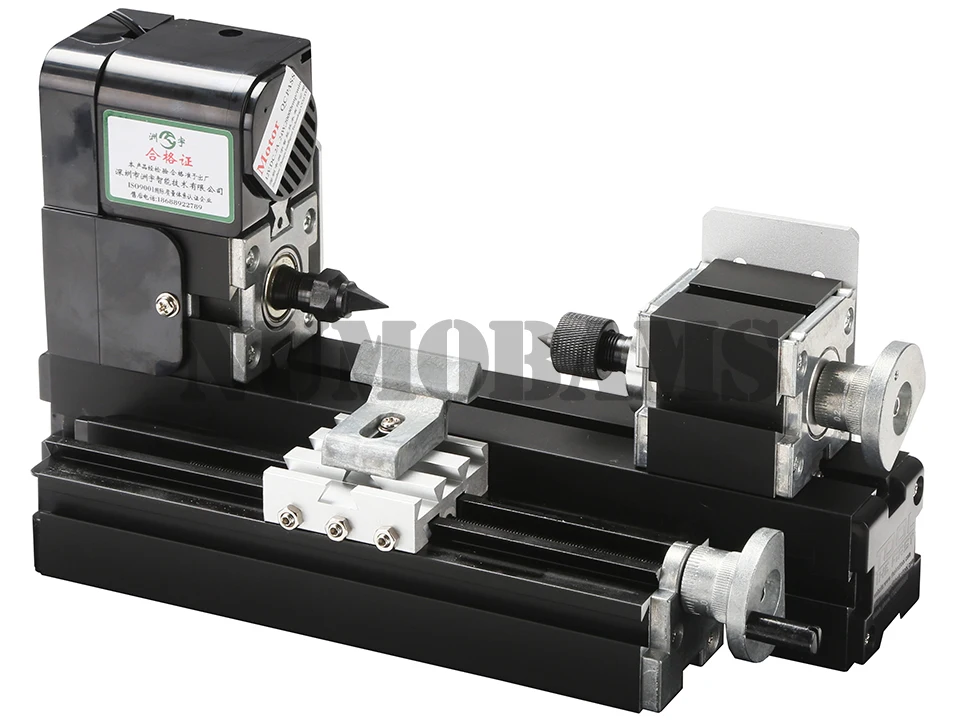

Z20003M 24W Metal Wood-turning Lathe



Features:

1. Main parts: headstock, tailstock, long machine bed, big slider, motor blade, gear, connection piece, drive belt cover etc.

2. Softwood, hardwood can be processed.

3. Workpieces can be clamped by three-jaw chuck or collets(1-6mm),center height-25mm, distance between center-135mm.



All of the parts are made of metal except drive belt cover.



Technical parameters:

1.Motor speed:20,000rpm/min(optional choice 12,000rpm/min)

2. Input voltage/current/power:12VDC/2A/24W

3. Maximum working material diameter:45mm

4. Working material length:135mm

5. Working material: wood, engineering plastic, soft metal( gold, silver, copper, aluminum etc.).

6. The transformer has over-current protection, over-voltage protection, over heating protection.

7.  With 0.02mm scale line ,the hand wheel increases the precision when processing.



Z20003M 3



Z20003M 4





What is different compare to the ordinary one:



Z20003M 5
