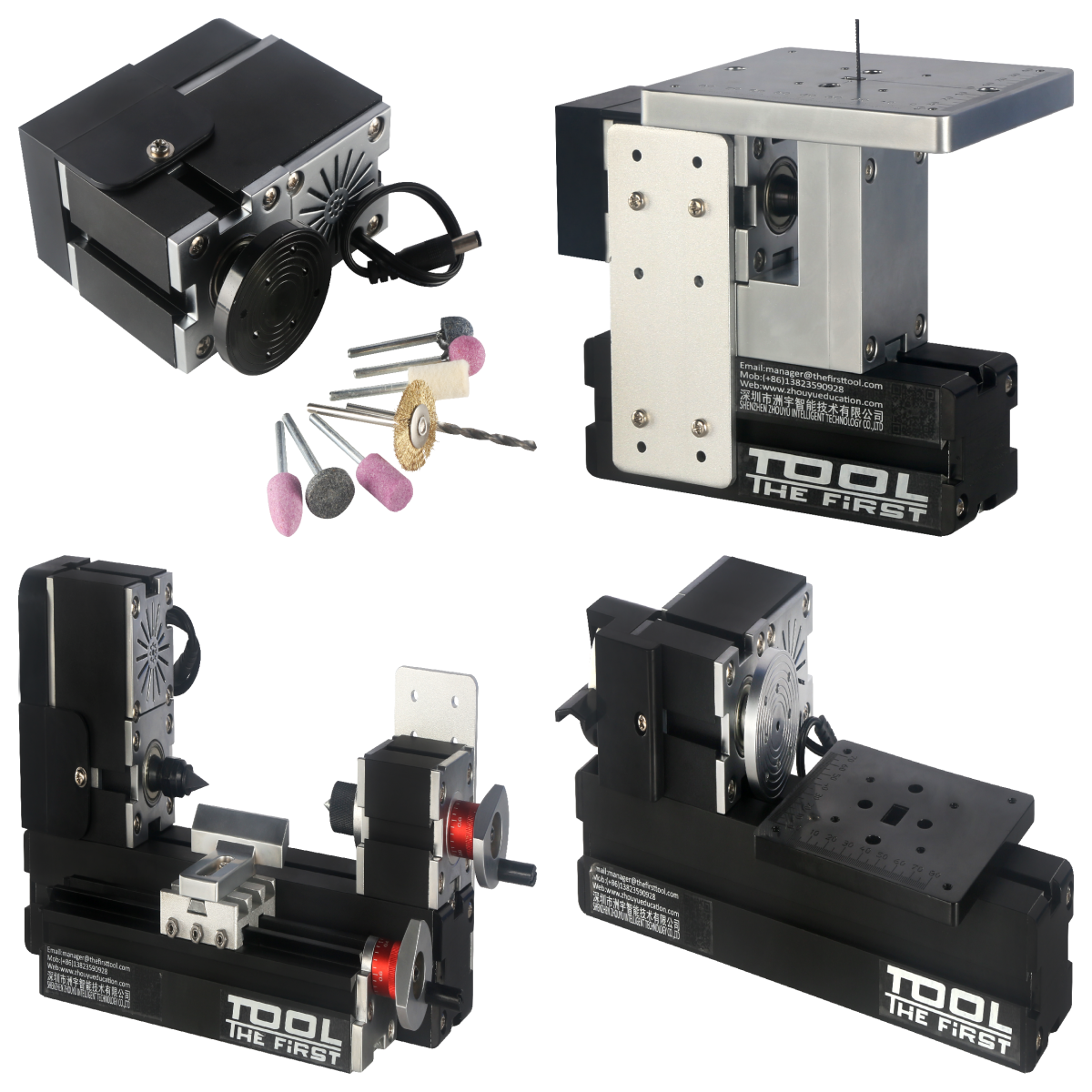

Z4000M 36W 20000rpm 4 in 1 Mini Metal Lathe Machine Kit

Z4000M 36W 4 in 1 Mini Lathe Machine Kit

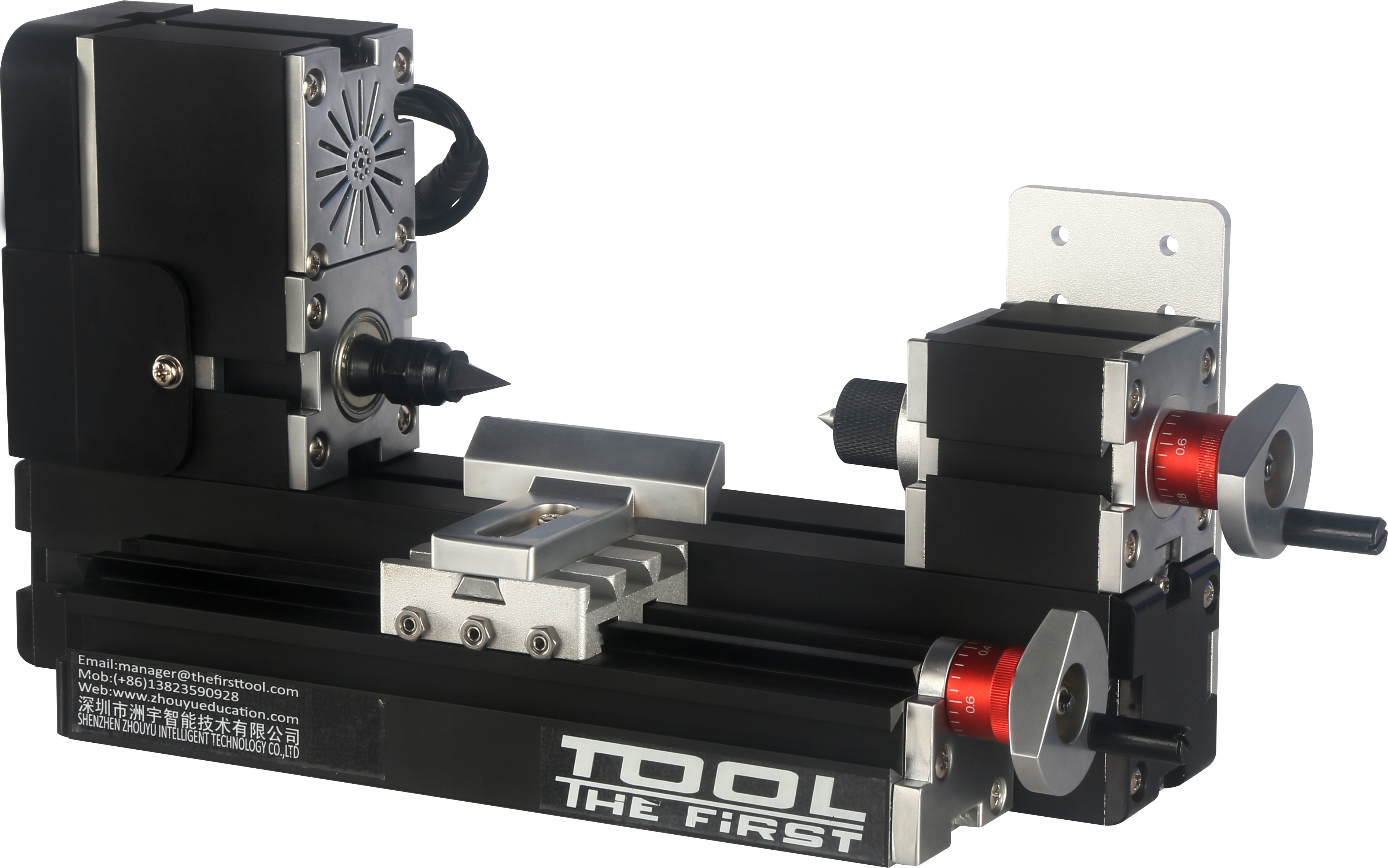

A.Wood-turning Lathe:

Feature:

1.Softwood,hardwood can be processed.

2.Workpieces can be clamped by three-jaw chuck or collets(1-6mm),center height-25mm, distance between center-135mm.

Motor and gear are made of metal

Technical parameters:

1.Motor speed:20,000rpm

2.Input voltage/current/power:12VDC/2A/36W

3.Maximum working material diameter:45mm

4.Working material length:135mm

5.Working material:wood,engineering plastic,soft metal(copper,aluminum etc.)

6.The transformer has over-current protection,over-voltage protection,over heating protection.

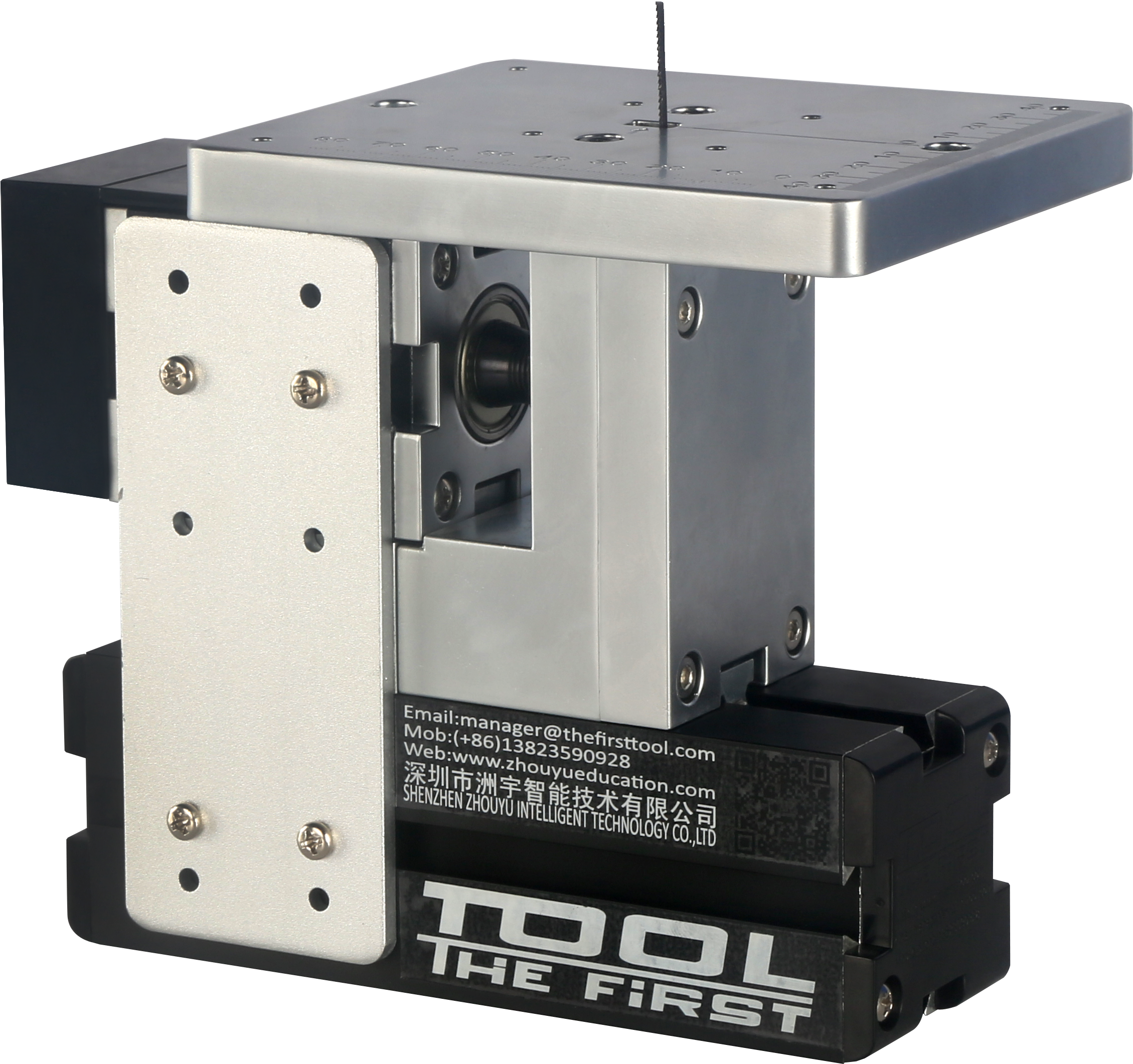

B.Jig Saw:

Feature:

1.With special design, the reciprocating blade is touch safe in case of finger contact-it just causes slight vibration without cuts when skin contacts.

2.Allow straight-line cutting and curve cutting.

3.Machine color is made up of red and black.

Motor blade and gear are made of metal.

Technical parameters:

1.Motor speed:20,000rpm/min

2.Input voltage/current/power:12VDC/2A/36W

3.Working table size:90mm*90mm

4.Maximum working material thickness:solid wood-4mm,plywood-7mm,soft wood-18mm,aluminium-0.5mm, acrylic-2mm.

5.The transformer has over-current protection,over-voltage protection,over heating protection.

Certificate Transformer passed:CE,UL

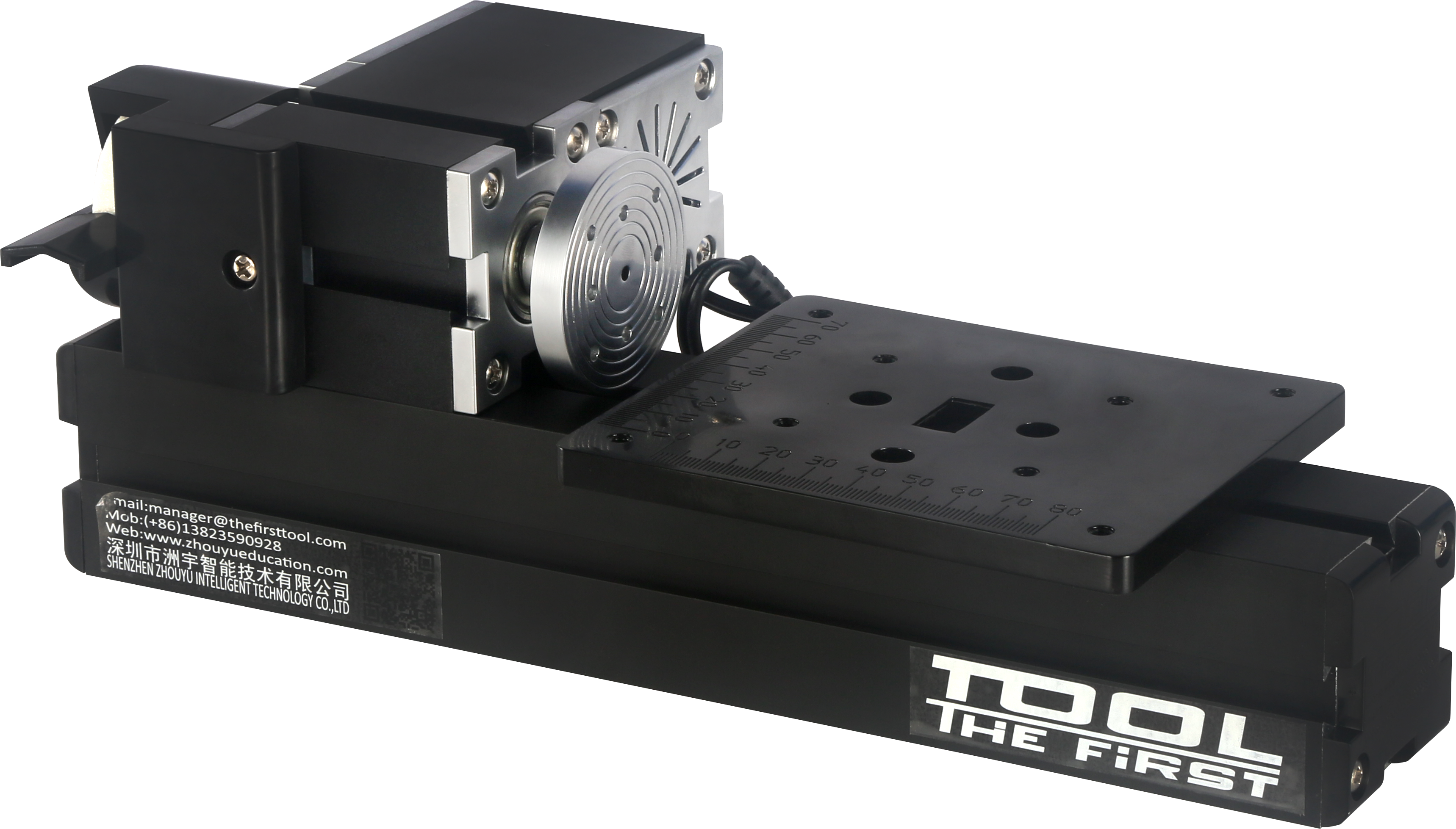

C.Sanding Machine:

Feature:

1.The left side of the machine has a small grinding wheel with a wheel guard.

2.The machine can be used to polish,grin.If needed,we use the machine by hand to grind under any angle.

3.Center height 25mm,sanding paper:100#(optional)choose different sanding paper according different work pieces and workpieces surface.

4.Machine color is made up of red and black.

Motor and gear are made of metal

Technical parameters:

1.Motor speed:20,000rpm/min

2.Input voltage/current/power:12VDC/2A/36W

3.Working table size:123*100mm

4.Working material:wood,engineer plastic,soft metal(aluminum ,copper etc.)

5.The transformer has over-current protection,over-voltage protection,over heating protection.

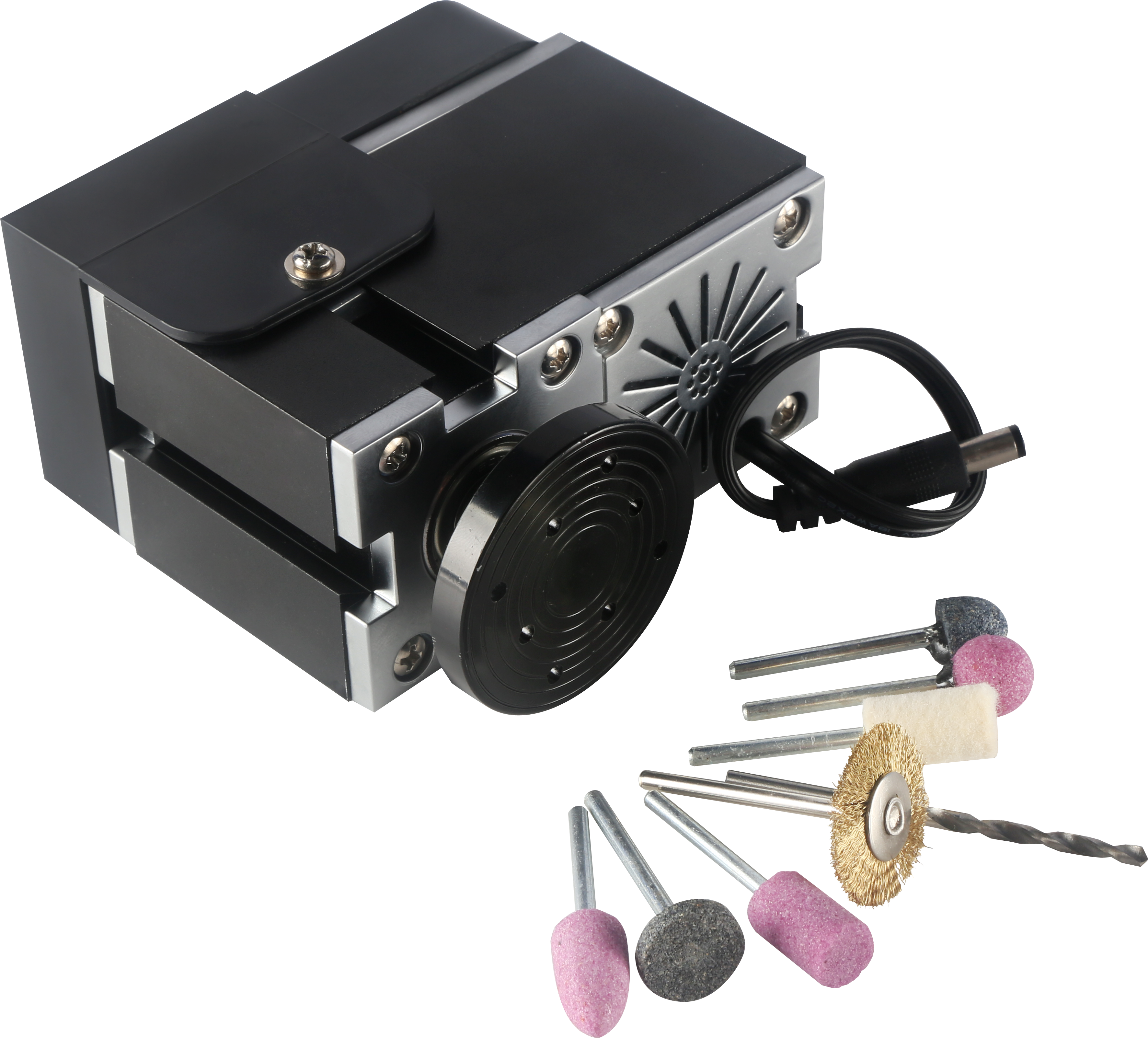

D.Hand-Held Machine

Feature:

1.Equipped with 7 standard grinding tools, widely used,variously used, easily used. With drilling bit, grinding wheel, milling cutter, it can respectively turn into hand-held driller, grinder, miller.

2.Machine color is made up of red and black.

Motor and gear are made of metal

Technical parameters:

1.Motor speed :20,000rpm

2.Input voltage/current/power:12VDC/2A/36W

3.Working material: wood, engineer plastic, soft metal(aluminum ,copper etc.)

4.The transformer has over-current protection, over-voltage protection, over heating protection.

What we can do:

 About Us

Numobams is a premier provider of miniature machine tools and STEM education solutions, dedicated to bridging the gap between industrial manufacturing and desktop creativity. Originating from the renowned "Zhouyu" and "The First Tool" product lines, we have established a global reputation for quality and innovation. Our mission is to democratize access to precision engineering tools, enabling everyone from young students to seasoned engineers to explore the world of subtractive manufacturing. We specialize in producing versatile, modular kits that can be configured into lathes, mills, and saws, catering to the diverse needs of the maker movement.
As a specialized lathe machine manufacturer, we adhere to strict quality control standards. Our "M" series, including the Z4000M, features high-grade metal components to ensure durability and precision. We understand that a benchtop metal lathe must be reliable, which is why we invest in robust motor technologies and safe power systems. Our products are used in thousands of schools and workshops worldwide, fostering a new generation of innovators. At Numobams, we are not just selling machines; we are providing the foundational tools for creativity, problem-solving, and technical skill development.
Contact our sales team today to secure your wholesale order!

FAQ

What are the 4 functions included in this kit?
The Z4000M kit allows you to assemble four different machines: a jigsaw (sawing machine), a wood-turning lathe, a sanding machine, and a handheld machine (which can be used for drilling or sanding). You can build one configuration at a time.

Can the Z4000M really cut metal?
Yes, thanks to its metal headstock, motor case, and 36W motor, it can process soft metals like aluminum, brass, and copper when configured as a lathe. It acts as a miniature metal lathe machine, though it is primarily designed for smaller, precision work rather than heavy industrial cuts.

Is this kit safe for children to use?
Absolutely. The Z4000M is designed with safety as a priority. It runs on a low-voltage 12V DC power supply. The jigsaw blade uses a reciprocating design that cuts hard materials but is safe to touch, making it ideal for STEM education under supervision.

How does the "M" version differ from the standard Z4000?
The "M" stands for Metal. Key structural components like the motor box, headstock, and connection blocks are made of metal in the Z4000M, whereas the standard version uses plastic. This makes the Z4000M a much more rigid and durable diy metal lathe option.

Do you offer spare parts if something breaks?
Yes, as a responsible lathe machine manufacturer, Numobams stocks a full range of replacement parts, including drive belts, saw blades, and sanding paper. We ensure that your machine remains operational for years of projects.
