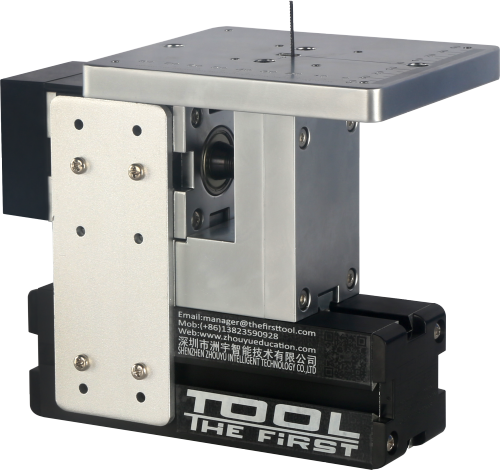

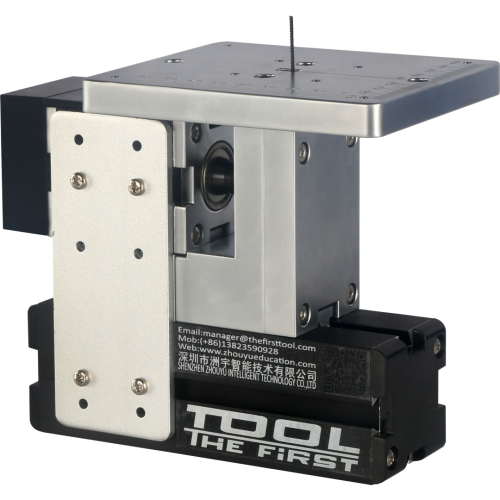

Features:
1. Motor case and headstock are jointed.
2. Main parts include headstock, central block, jigsaw base, jig-saw casing, motor blade, gear, jigsaw table, connection piece , drive belt cover etc.
3.With special design, the reciprocating blade is touch safe in case of finger contact -it just causes slight vibration without cuts when skin contact.
4. Allow straight-line cutting and curve cutting.
All of the parts are made of metal except drive belt cover.
Technical parameters:
1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
2.Input voltage/current/power:12VDC/5A/36W
3.Working table size:90mm*90mm
4.Maximum working material thickness: solid wood-4mm, plywood-7mm, soft wood-18mm, aluminium-0.5mm, acrylic-2mm.
5.The transformer has over-current protection, over-voltage protection, over heating protection.
6. With bow-shaped arm. The material of bow-shaped arm with its accessories is metal which increases its durability.
7.Motor power :144W.
