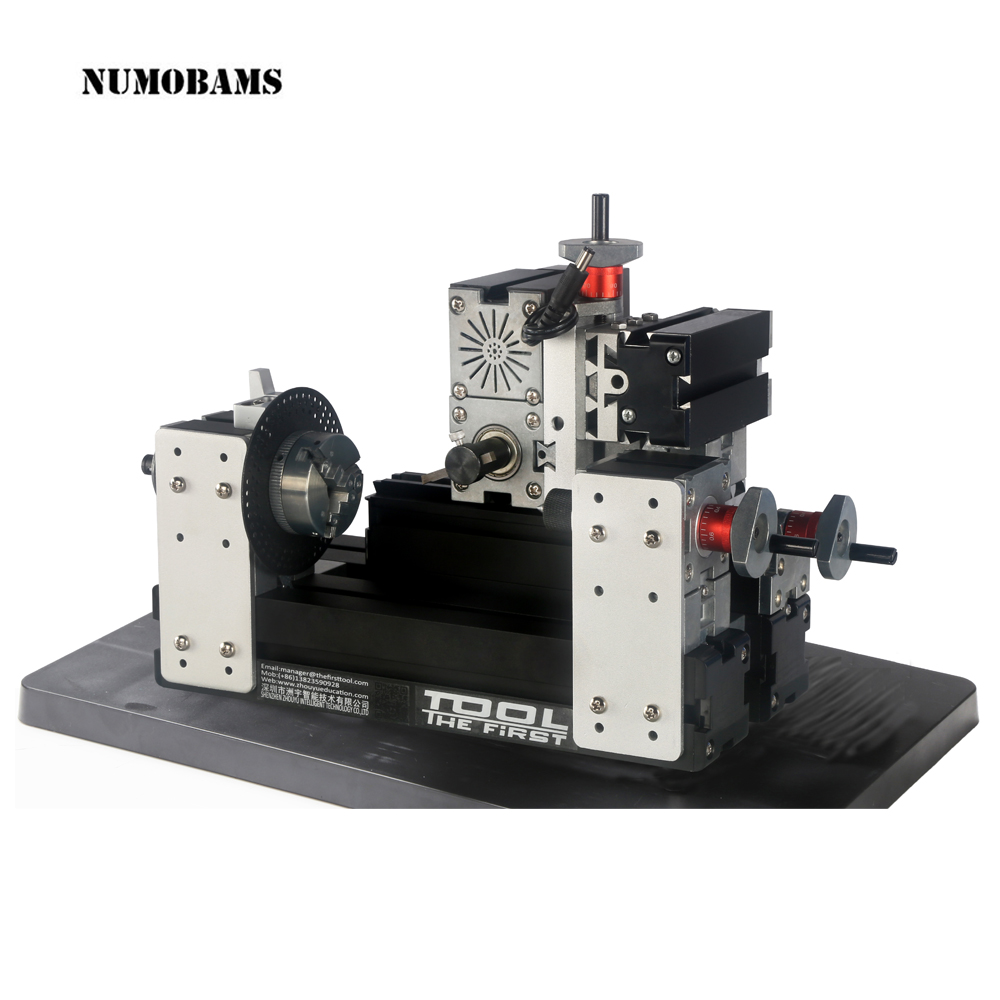

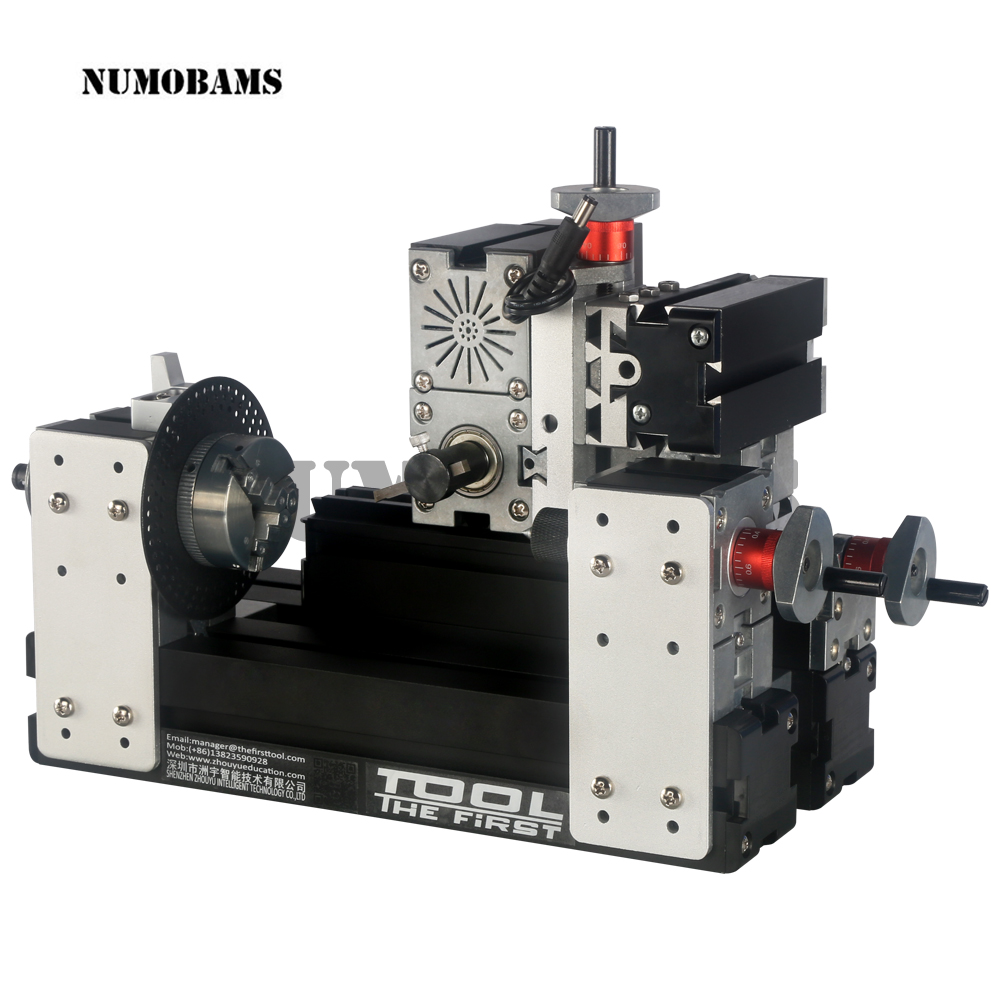

2.Main parts: headstock, long machine bed, short machine bed ,big slider, small slider, motor blade, connection piece, dividing positioner ,gear etc. All of the parts above are made of metal.
3.By using dividing plate, we can drill the round workpiece equally.
4. There are three circles of holes on the dividing plate and each circle with the same ratio holes. The number of the holes on each circle is respectively 36,40,48. We can choose them as needed.1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
2.Input voltage/current/power:12VDC/5A/60W
3.Working material: wood, engineering plastic, soft metal( gold, silver, copper, aluminum etc.)
4.Maximum working material diameter clamped by three-jaw chuck:50mm
5.The transformer has over-current protection , over-voltage protection, over-heating protection .
6.With 0.02mm scale line ,the handwheel increases the precision when processing.
7.Motor power :144W
8.Module :0.5, accuracy:0.03-0.05mm, formula : diameter D=module0.5*number of teeth+1
9.Center height :50mm
