NUMOBAMS NU240E Semi-CNC Lathe Machine

Product Overview

The NU240E is a semi-CNC metal lathe built around a conventional layout — headstock, tailstock, carriage handwheel, compound rest — with a control panel that takes over spindle speed and feed. You still touch off, change tools and feel the finishing pass; the electronics handle the part that wears an operator down on a long run. It is the configuration small workshops ask cnc lathe suppliers for when they want repeatability without hiring a programmer.

Where it earns its keep is the mixed day. A repair job comes in and you work it by hand like any manual lathe. A batch of thirty bushes follows, and you set the feed once, cut the first part, measure it, and run the rest to the same setting. That is the move most small shops are actually making — not from lathe to production cell, but from all-manual to mostly-repeatable, which is the gap this lathe CNC machine is built for.

Machine Build & Components

Semi-CNC Control & Operation

What the panel takes over. Spindle speed and feed are set on the control and held for the rest of the run, so part twenty matches part one without an operator watching a dial. On a manual machine that consistency lives in the operator's hand; here it lives in the setting. That is the practical difference that turns a hand lathe into a cnc turning machine for anything you make more than once.

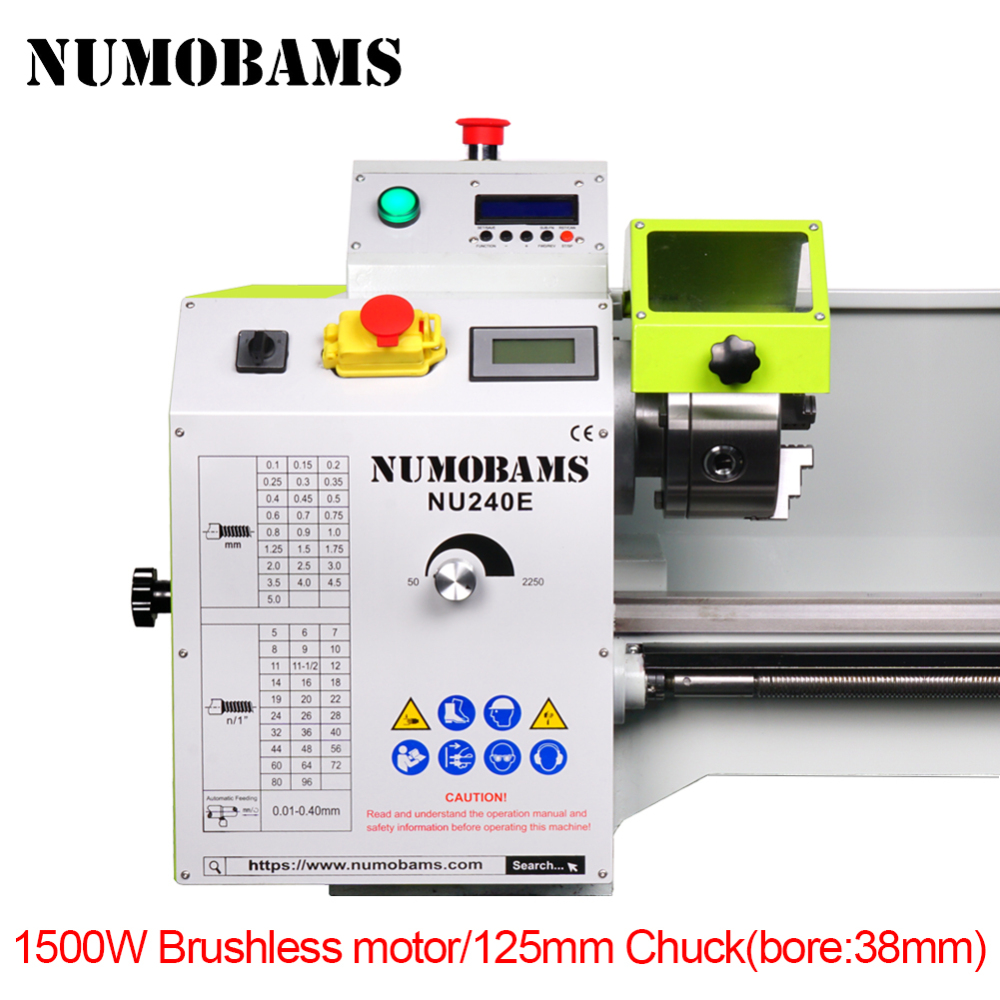

What stays in your hands. Tool changes, touch-off, chuck work and the finishing pass stay manual. The panel is deliberately simple — digital displays for spindle and feed values, clear start and stop buttons, an emergency stop within reach, and a chuck guard that lifts for loading. Nothing on it needs a CAM package, a post-processor or a program to debug before the first cut.

How the change feels. A machinist coming from manual turning usually needs a handful of short runs before the new habits settle: set the feed, cut one part, measure it, adjust once, then let the machine repeat. The handwheels are still there for the operations where feel matters more than repeatability, so nobody has to relearn turning from scratch.

Product Advantages

1. Precision engineering for superior output — speed and feed settings hold across a run, so the deviation between the first part and the last stays small. What a customer measures is the batch, not the sample.
2. Durability that stands the test of time — a machined bed, a guarded belt drive and a control system with fewer electronics than a full CNC all cut down the number of things that can fail. A semi-CNC lathe of this layout is also easier to keep alive: when something does wear, it is usually a mechanical part you can see and reach.
3. Panel-controlled feed for enhanced efficiency — the panel removes the repetitive hand work that slows a manual operator: no cranking the carriage through the same pass fifty times, no re-datuming after every cut. The setup stays the same and the cycle time drops.
4. Eco-friendly operation for sustainable growth — one lathe covering both one-offs and batches keeps a second spindle out of the shop, and a setting that holds means fewer parts scrapped for being oversize. Less scrap and less idling are where a small workshop actually saves energy.
5. Scalable solutions for growing businesses — start with hand work and lean on the powered feed as volume grows; when a full CNC eventually joins the shop, this lathe stays useful for second operations and repairs instead of being sold on.

Applications & Materials

• Repair and maintenance benches — worn shafts, bushes, pins and one-off replacements; hand feed while you are fitting, panel feed when the same bush is needed six times over.
• Small job shops and short runs — batches in the tens and low hundreds, where setting a cnc turning machine up for the run would take longer than the run itself.
• Prototype and product development — a design change means a new tool position, not a new program; the first article is cut in the same session it is drawn.
• Mixed material work — metals, engineering plastics and composites run on the same machine; changing material usually means changing speed and feed at the panel, not changing machine.
• Working next to a full CNC — a lathe cnc machine like this one absorbs the odd jobs, so the production machine stays on scheduled work instead of being broken down for a single part.
• Shops moving up from hand turning — a semi-CNC lathe lets the operator keep the skills they already have and gain repeatability; nothing about the daily routine is thrown away.

Specifications

Setup, First Cuts & Daily Care

1. Level it before anything else. Bolt the lathe to a rigid bench or stand and level it in both directions; a machine that rocks will cut taper however carefully you set the feed.
2. Confirm the supply. Check your workshop voltage against the version you ordered and give it its own circuit protection. If the supply is unusual, send us the details before wiring it in.
3. Strip the transport protection. Remove the protective coating from the ways and machined surfaces, then oil them before the carriage moves a single millimetre.
4. Oil every sliding surface. Ways, cross slide, compound rest and tailstock quill — before the first powered movement, not after it.
5. Seat the chuck and check it runs true. Mount the 3-jaw or 4-jaw chuck properly and indicate it before cutting; a chuck that is not seated shows up as runout on every part.
6. Dry-run the spindle. Run through the speed range with nothing in the chuck, listen for anything unusual, and test the guard and the emergency stop while the machine is still empty.
7. Verify with a cut. A lathe CNC machine is proven by the part it turns. Take a light cut on scrap, measure it, adjust once, and judge the machine on that result — not by taking the headstock apart.
8. Then keep the routine. Clear chips and oil the ways after every session, check belt tension and chuck jaws weekly, and keep the panel clear of swarf.

Ordering, Service & Delivery

• Choose the version you need — 110 V or 220 V, and a 3-jaw or 4-jaw chuck. Tell us at order so the machine is prepared to your specification instead of being reworked afterwards.
• Customisation for your business — if your work calls for a particular chuck, tooling set or accessory, describe the parts you turn and we will tell you what can be arranged.
• Dispatch — machines are dispatched within 90 days of order confirmation.
• Delivery — tax-free door-to-door service to Europe, the US and Canada; send your delivery address so the freight is booked on the right route.
• Control board warranty — the control board is covered for 180 days from the day the machine reaches you; send a faulty board back within that period and it is replaced.
• What we supply — lathes, milling and drilling machines, cutters and workshop accessories; if you want tooling to travel with the machine, say so and we will confirm what can ship together.
• Who you are buying from — Numobams is a machinery supplier based in Changsha, China, working with a screened group of cnc turning machine manufacturers rather than acting as a factory.
• Why buy from us — we work as cnc lathe suppliers to small workshops and repair benches rather than as a catalogue drop-shipper: the machine is adjusted before dispatch, spare parts stay available, and support continues after delivery.
• Support and service — send photos or a short video of any problem and our team will work through it with you; we also advise on maintenance and on which accessories are worth adding.

Workshop Safety & Guarding

• Guarding as supplied. This semi-CNC lathe is loaded by hand, so it carries a lifting chuck guard with a safety shield over the work area rather than a full enclosure — you need to reach the chuck to change work between cuts. The guard goes down whenever the spindle turns and comes up only for loading, checking or measuring. Make that a rule rather than a habit.
• Keep the operator position clear. Bolt the lathe to a rigid bench or stand and leave room at the headstock end for chuck work and behind the bed for clearing chips. In a shared workshop, keep the front of the machine out of the through-route so nobody walks behind you mid-cut.
• Powered feed needs a hands-clear rule. Once the feed is engaged the carriage travels on its own, which is exactly the point of the control but also the part that catches people out. Know which control stops the feed before you start the pass, keep hands off the carriage and cross slide while it moves, and never reach across the work to adjust something with the feed running. The emergency stop sits at the operator position — find it on the first day, not the first problem.
• Chuck discipline. Take the chuck key out before the spindle starts, every time, and never leave it resting in the jaw. Check that jaws sit flush and do not project further than the work needs; a proud jaw at speed is the most common cause of a damaged machine and a bad afternoon.
• What to wear at the machine. Safety glasses for the whole session, no rings, watches or bracelets, sleeves rolled back and long hair tied. Gloves come off before the spindle runs — they belong to loading and handling bar stock, not to turning.
• Stop before you measure. Spindle stopped and run down before you measure a diameter, change a tool or clear swarf. Use a brush or a hook for chips rather than fingers; the stringy swarf off steel and aluminium is sharp and hot.
• Speed and workholding judgment. The variable-speed headstock lets you bring rpm down for large-diameter, heavy or out-of-balance work, and that is the setting that matters most with a 4-jaw chuck holding an off-centre casting. High spindle speed belongs to small-diameter bar in good workholding, not to everything.
• Training and sign-off. In a shared or teaching workshop, restrict the lathe to operators who have been walked through the guard, the emergency stop and the feed stop, and give each one a short supervised run before their first solo job. If your site or insurer asks for extra screening, local risk assessment or a guard arrangement beyond what ships, tell us the environment when you order and we will confirm what can be arranged.

Advanced Technology for Enhanced Performance

At the heart of the Numobams NU240E is a control system built to make everyday turning work simpler and more efficient. It lets the operator program and run complex machining tasks with less setup time and fewer chances for error, and the interface is laid out so that someone new to CNC technology can become productive quickly, while experienced machinists still get the full range of control they expect. The precision-engineered components inside the machine come from established suppliers in the machine tool trade, which is why the NU240E runs smoothly and holds its accuracy over long production runs. If you have specific tolerances or programming requirements for your parts, send them over and we will confirm how the NU240E can be configured for your work.

Supply Chain & Delivery Assurance

NUMOBAMS is a China-based machinery trading company working from Changsha, Hunan, with a selected network of manufacturing partners built up since 2016. That position lets us consolidate a full workshop order — machines, tooling and spare parts — into one shipment, inspect and prepare each unit before dispatch, and keep spare parts available long after delivery. We ship to Europe, the US and Canada on a tax-free, door-to-door basis, and usually dispatch within 90 days of order confirmation.
