New Arrival!/Multi Spindle Drill Heads/PRMS-3(32-100)Adjustable 3 Spindle Heads/three spindle drilling heads/can be customized

Multi Spindle Heads are well designed for almost all types of drilling andtpping machines.Multi Spindle Heads will increase your production as many spindle you increase and components in one fixture and the type of operation done like drilling,tapping,countersink,reaming and burnishing.Multi Spindle Heads are the best method to do drilling and tapping when holds are close.

Ajustable Multi-spindle Drilling Heads can beused in many components,where you can change the center distance to some range.It will increase your drilling capacity in single special purpose machine.

Our Multiple Spindle Head are high quality and priced to be affordable.The spindle and gears are hard and ground for its best performance.Ajustable Multiple Spindle Heads for drilling and tapping can be supplied immediately but Fixed distance or special purpose has to be designed and manufactured.This can take three to four weeks of time with suitable adapters.They are machined in about two weeks.

Specification:

Product Name:Multi Spindle Drill Heads

Item No.:PRMS-3(32-100)

Type :Ajustable

Drilling Capacity:dia2-7.5

Tapping Capacity:M2-M8

Minimum Range:dia32mm

Maximum Range:dia100mm

N.W/G.W:5kgs/6.5kgs

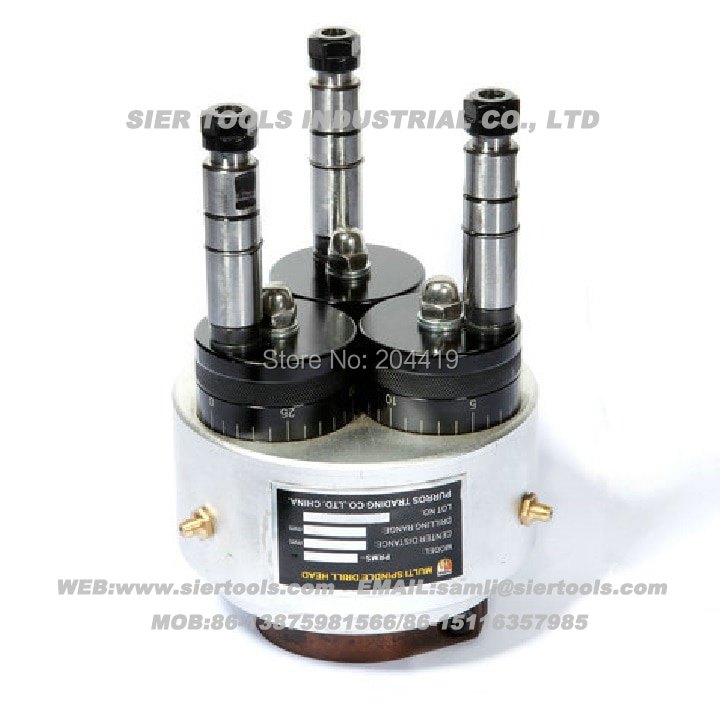

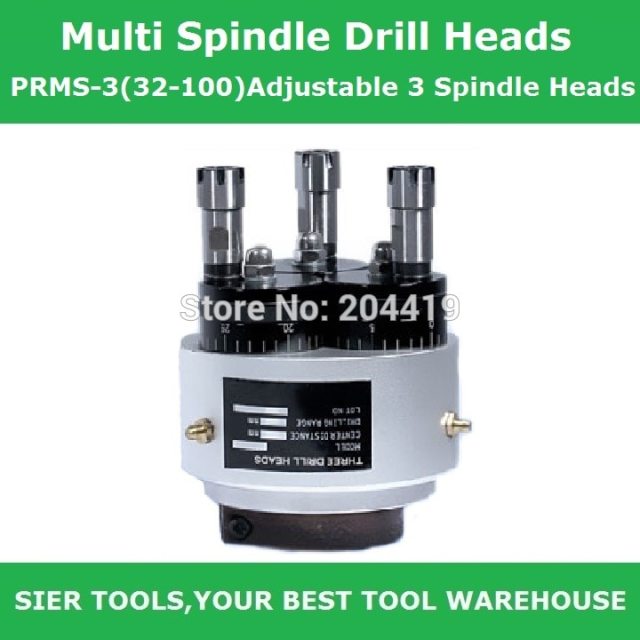

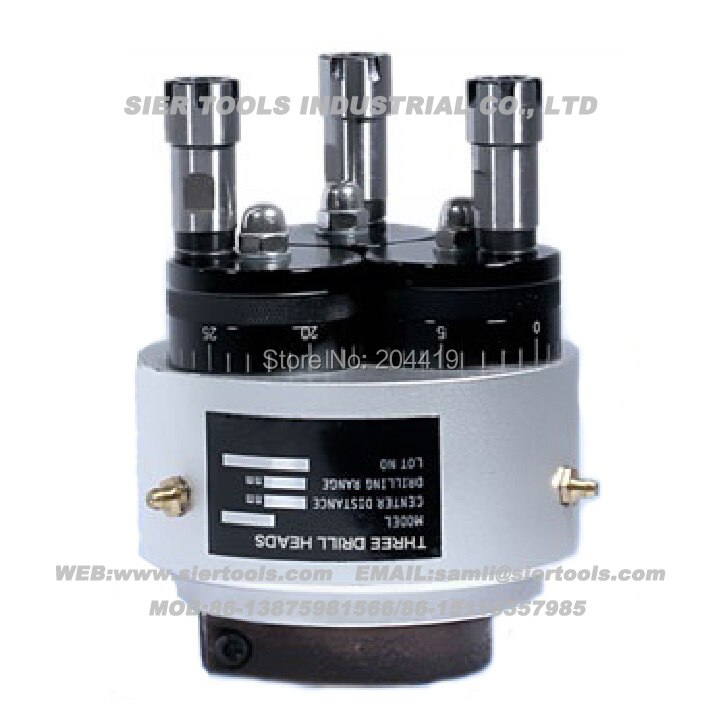

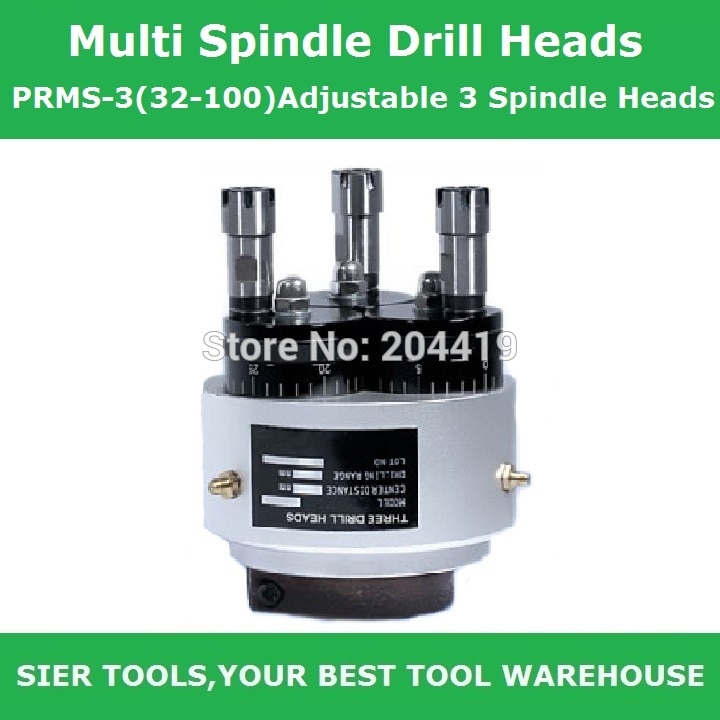

Product Show:

Mutilple Spindle Heads are sometimes referred to as:cluster drills,tandem drills,or gang drills.Multi Spindle Drill Heads is made up of aluminum casting which is precisely machined.All rotating parts are hardened and ground.Change over of PCD of the spindle can be set easily and accurately by jigs.Spindle run on needle and thrust bearings.Drill revolution is usually identical with machine rpm,it may also vary according to drilling requirement.

Multi-Spindle Heads can almost immediately double or triple your drilling operations by simultaneously drilling countesinking,reaming or tapping two or more holes in one operation.Multi-spindle Heads have proved to be the most versatile method to drill and/or tap close spaced holes.

Ajustable Multi-spindle Heads are suitable for equally spaced hole patterns only.They are best suited for low volume work where the requirements change from time to time.They may be adapted to almost any machine.All the spindles operate in the same rotation that is also reversible.
