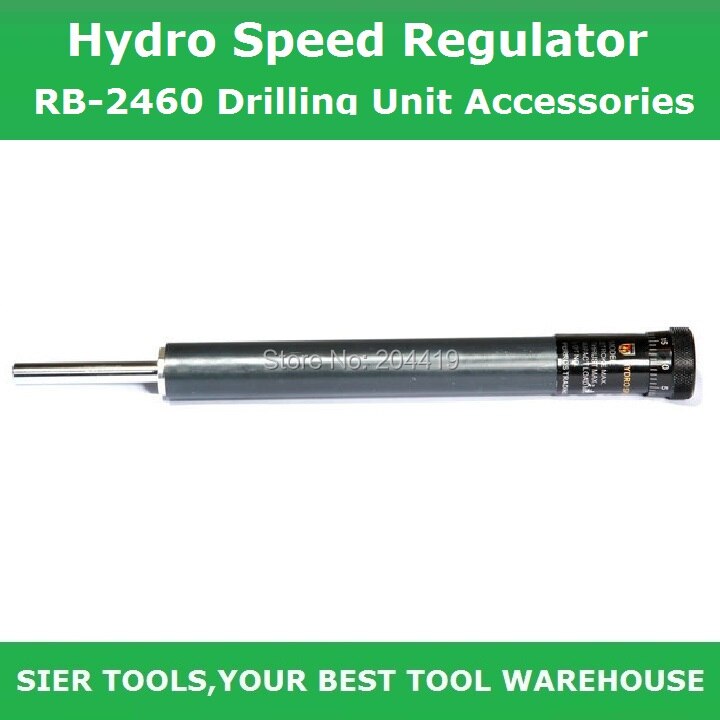

HOT SALE!/60mm Hydro Speed Regulators /RB-2460 Drilling Unit Accessories

Precision Hydro Speed Regulator is a kind of hydraulic type control device of feed speed that can ajust freely feed speed of air cylinder from low speed t high speed within the range of expectation.Ways of control include Spring Return type(RB) and Air Return type(R-A),you can make a choice according to your requirements.

Specification:

Product Name:Hydro Speed Regulator

Item No.:RB-2460

Type :Spring Return

Max. Stroke:60mm

Load Range:120-1500N

Withstand Impact Energy:2.3j

Max. Thrust:150kgf

Max. Impact Load:0.25kgf.m

N.W/G.W:0.56kgs/1kgs

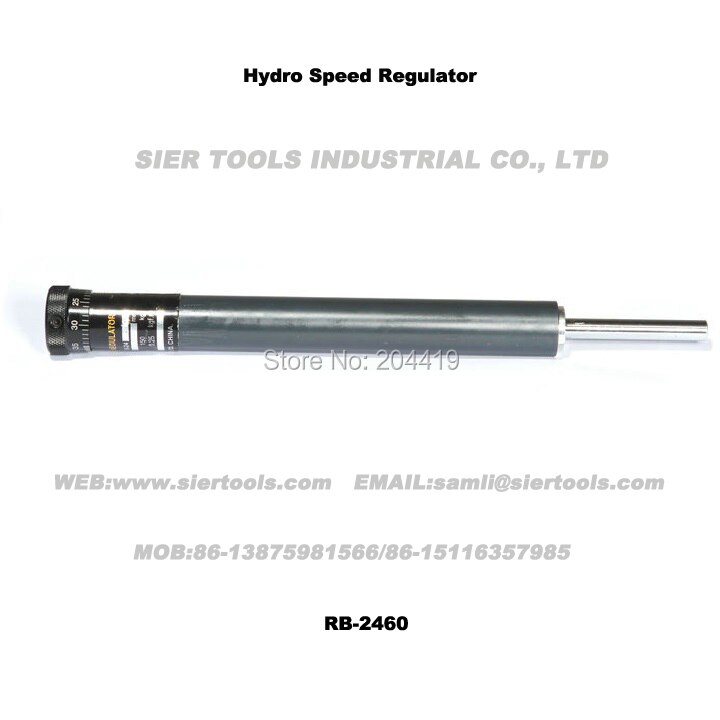

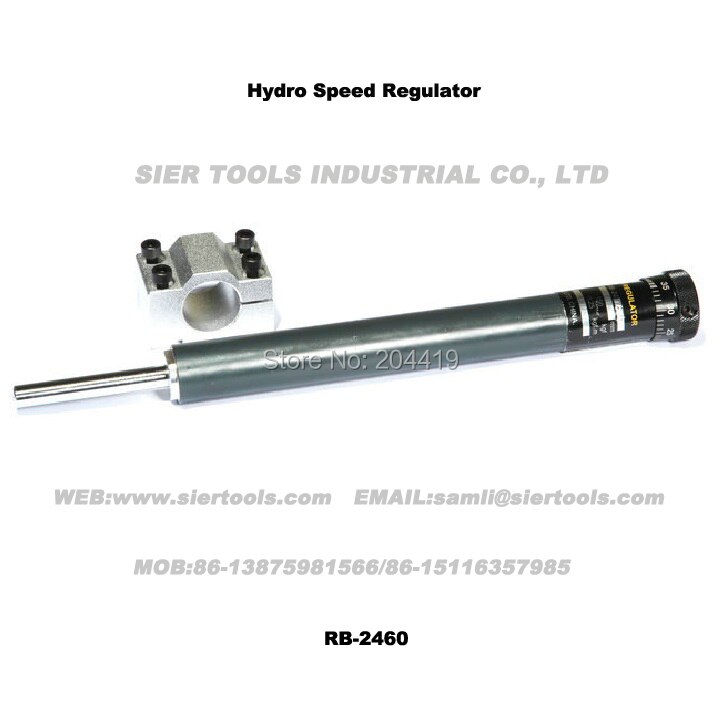

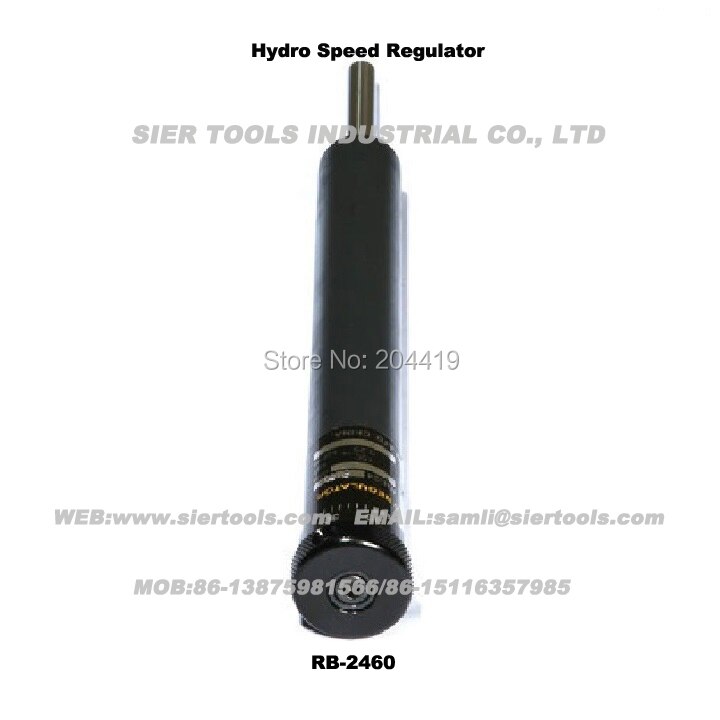

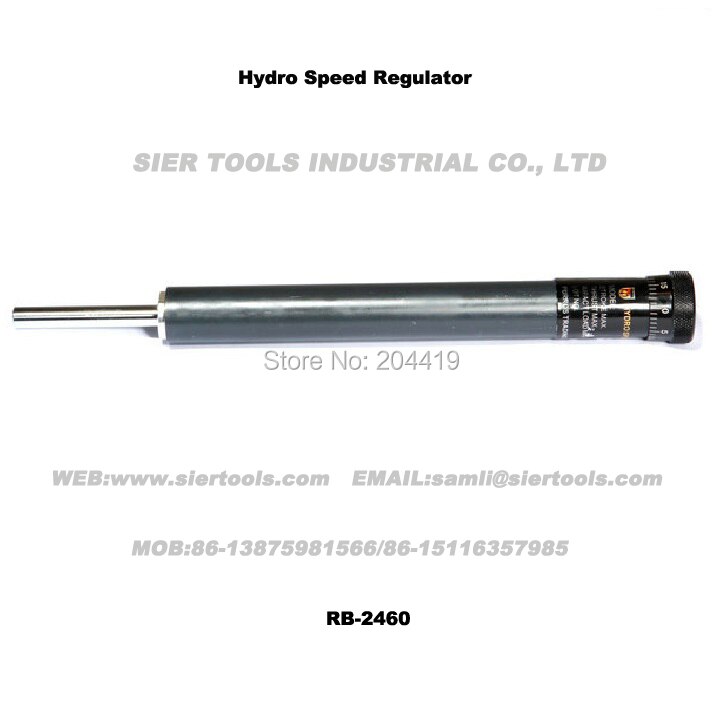

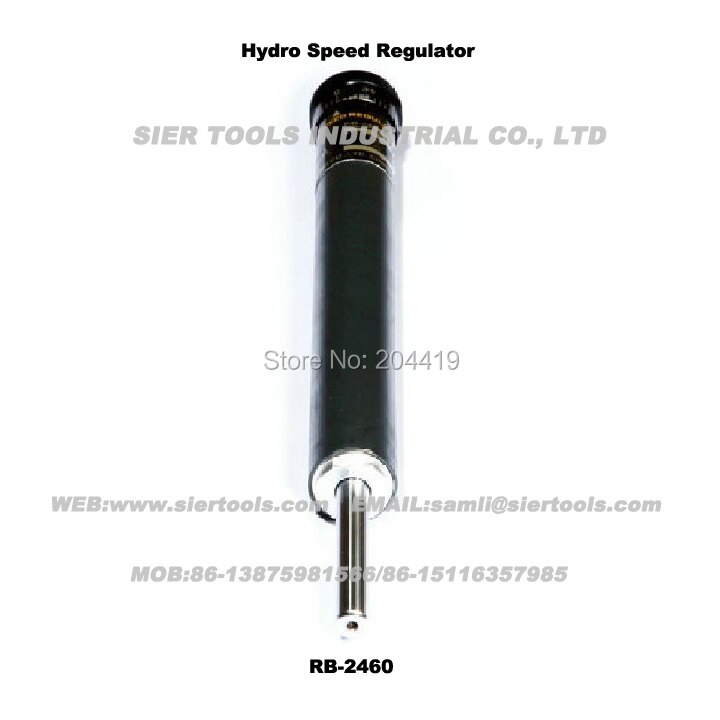

Product Show:

The piston rod will return to an original position autormatically when discharge the load of piston rod of hydraulic damper Model RB.

Features:

1.Compact structure,direction of installation is free.

2.Adop full-sealed structure that isn't required to fil with work oil,it can keep long-time and stable control function.

3.Quick load chage only causes little change of control speed,it can get stable feed speed.

4.Feeding speed can be easily adjusted  by speed control.
