AIR DRILL!/Steel Hole Drilling Machine/PR3P-1314L with 1400-1700 No-loading Rotation Speed

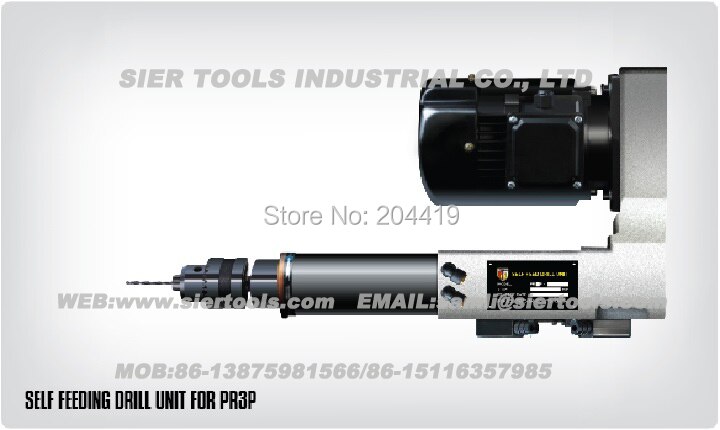

Self Feeding Drilling Unit is a pneumatic feed drilling unit that lines up electric motor type with outpu power of 0.5KW,0.75KW and 1.1KW aimed to enhance the low speed rotation range.Multi-spindle had can be used.

Specification:

Product Name:Steel Hole Drilling Machine

Item No.:PR3P-1314L

No-load Rotation Speed:1400r/min(50Hz),1700r/min(60Hz)

Chucking Capacity:13mm

Drilling Capacity:Aluminium(ADC)-10mm,Cast Iron(FC200)-6.5mm,Steel(S45C)-6mm

Total Stroke:120mm

Cutting Feed Stroke Output:0~60mm

Motor Output Power:0.55KW

Pole Number:4P

Thrust:1200N

N.W/G.W:25kgs/30kgs

Charcteristics:

1.High-precision

Core technology of Electro Pneumatic Drilling Units is played very well,which completely strengthened the verstility of the product and made the high precision of Drilling Units reflected extremely.

2.High-rigidity

Axial rail structure is used,which greatly improved the overall rigidity and fully guaranteed the stability of the hole machining.

3.High-performance

A unique dual sealing structure and round body that is easy and convenient to be installed are available at the end of spindl,which can meet variety of holes mchining requirement.

Products can be equipped with Electro Pneumatic Drilling Units

1.Hydraulic Damper

Speed can be ajusted arbitrarily from lower to higher by a hydraulic feeding speed control device.

2.Multi-axis Machining Head

Multi-axis machinin head can be amounted,which an achieve high efficiency drilling and meet different requirements of machining axes and axis spacing.Extensive mult-axis machining head sizes are available.

3.Desktop Support

Such desktop suport is suitable for any machining directions,which can fix the drilling units angle freely.

4.Combination Machine

Automatic drilling can be realized as it can be installed to the non-standard combination machine.

5.Single Desktop Automatic Bench Drill

High-efficiency automatic drillign equipment can be formed if equippd with Electro Pneumatic Drilling Units,,desktop support and circuitry system together.Only one button can finish the whole drilling work.
