TC10002MZ1 4-shafts CNC drilling and milling machine with dividing plate/Mach3 CNC Drill & Milling Machine

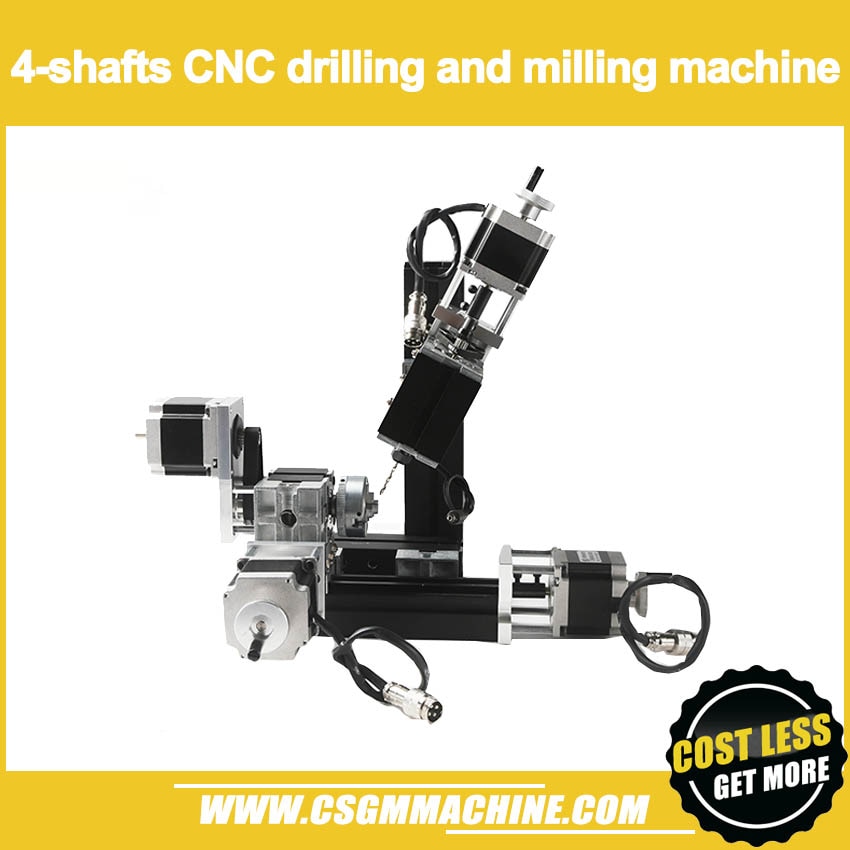

4-shafts CNC drilling and milling machine with dividing plate

Feature:

Motor case and headstock are jointed. Motor power reaches 144W by using a powerful motor. It can machine gears with different specifications.

1.System: Mach 3(Optional Zhouyu Industrial system)

2. Machine parts: headstock, central block, motor blade, gear, cross slider, big slider, connection piece, long machine bed, short machine bed etc.

Technical parameters:

1.Motor speed: 12,000rpm/min

2.Input voltage/current/power:12VDC/5A/60W

3. Axis Y,Z slider travel 50mm, Axis X 145mm

Axis A=360°/200/8=0.225°

5. X.Y. Z. A stepping motor:1.5Nm, current 2A,1.8°

6.Accuracy: 0.07mm

7.4 axes work at the same time, can process 3D surface

8 .Maximum diameter of chuck:50mm

9. Working material: lignin plastic, soft metal (gold, silver, copper, aluminum etc.)

10.Computer port: parallel interface

11.Power of controller and adaptor: Input AC110-240V, output DC12V,5A

 Processing Product:

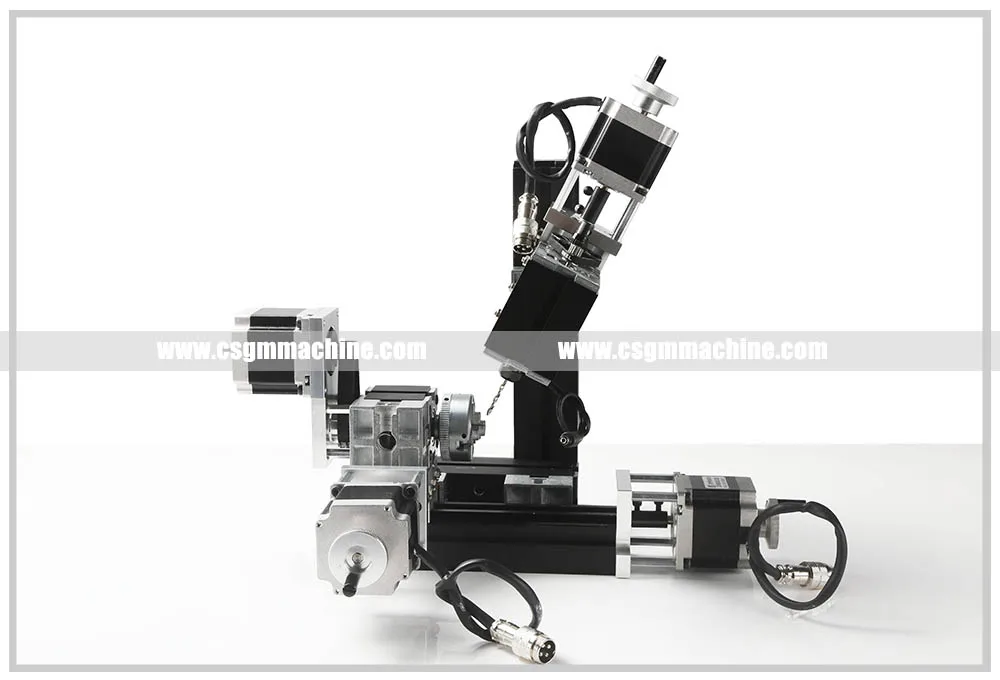

Display Picture:

 Operation Picture:
