TZ6000MZGP 60W Electroplated Metal 6 in 1 Mini lathe with bow arm/60W,12000rpm Bow-arm 6 in1 Metal Lathe/Lathe kit
(0 Reviews)
$65.60

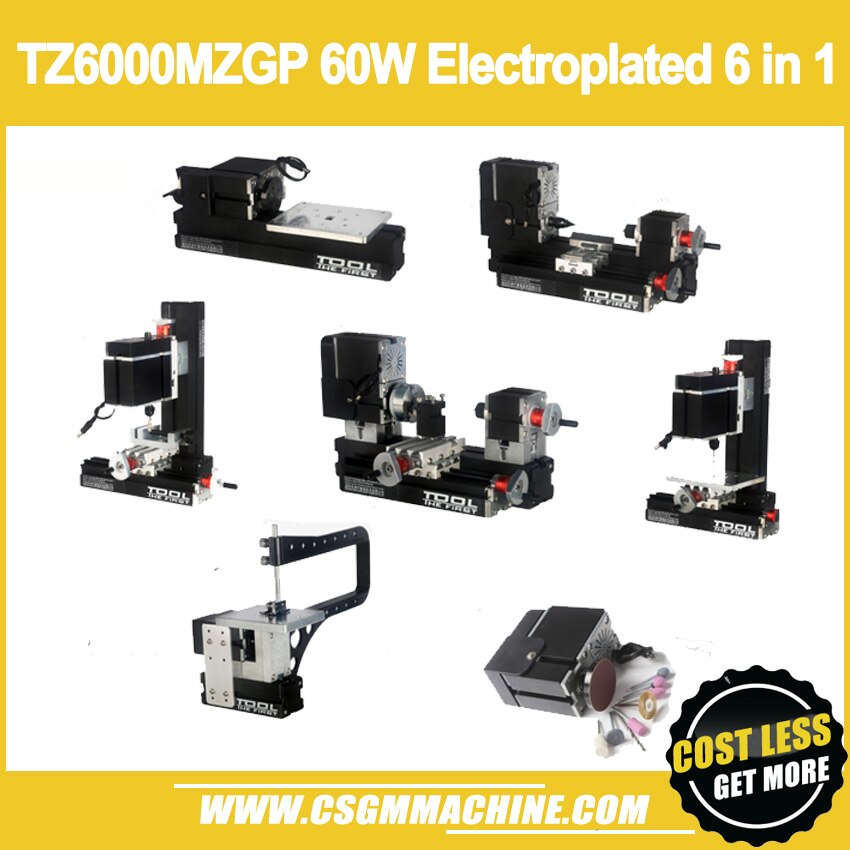

1.Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor. Some parts are electroplated to make the machine more beautiful and practical. The parts in the kit can be assembled into 6 kinds of machines with different function- jigsaw, wood-turning lathe, metal lathe, milling machine, drilling machine, sanding machine, only one kind of machine can be assembled each time.
2.Main parts: headstock, central block, jigsaw base, jigsaw casing, motor blade, gear, woodturning chisel base, cross slider, big slider, drilling lever, drilling table, jigsaw table, connection piece, tailstock, sanding paper panel, dividing positioner, vice(all of the parts above are made of metal), drive belt cover, grinding wheel, wheel guard.
Technical parameters:
1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
2.Input voltage/current/power:12VDC/5A/60W ,
Switching power input:AC110V-240V
3.Jigsaw working table size:90mm*90mm
4.Maximum working material diameter of metal lathe and woodturning lathe:50mm,
5.Maximum working material length of metal lathe and woodturning lathe:135mm
5.Center height of metal lathe:75mm
7. Slider travel: axis X 145, axis Y 32, axis Z 32
8.Collets:1-6mm
9. Drilling working table size:123*100mm
10. Maximum workpiece size clamped by machine vice:50mm 11. Maximum workpiece diameter clamped by three-jaw chuck:50mm
12. All of the machines are safe touch except milling machines. It requests to be used under parents or teachers instruction when the milling machine is being used by the kids. Working material thickness of jigsaw: hardwood 4mm, plywood 7mm, soft wood 18mm, aluminum 0.5mm, acrylic 2mm. It is a good tool for families and schools to do model airplane and other wood model crafts.
13. The outer package, called as storage box, is made of plastic , not foam. Inside of the storage box, there are 3 transparent food-grade plastic box containing machine parts and other 2 transparent food-grade plastic box containing screws. With the good package, it is much easier for the students to store the machine parts and it also increases the machines service life.
Remark: to put the certain parts in a certain place, we designed 6 locating slots in the storage box and each locating slots is completely covered by the locating block . Therefore, the machine parts will be well packed and easily taken out.

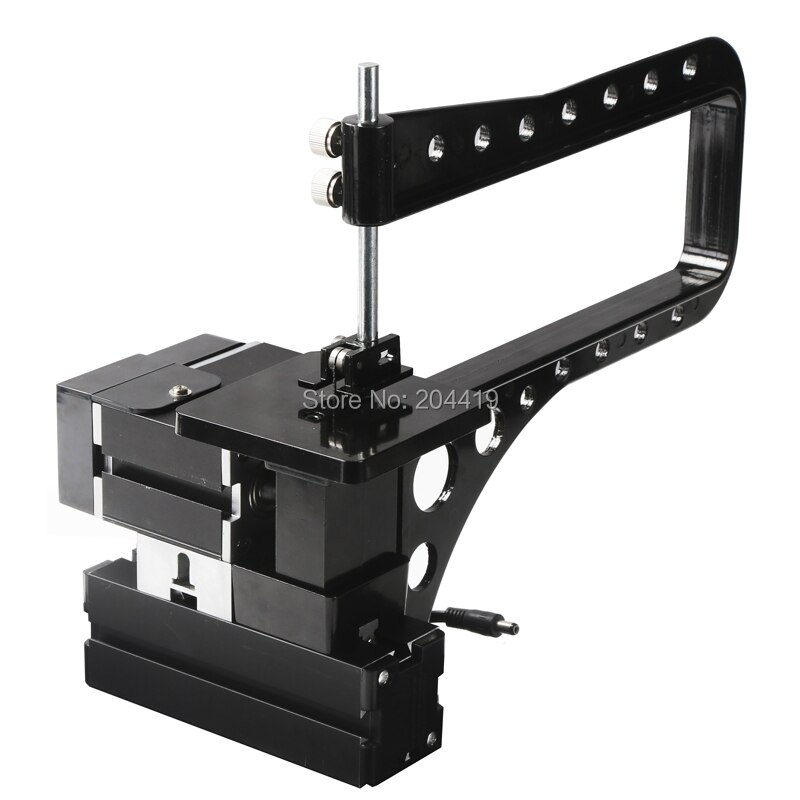

1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor. Some parts are electroplated to make the machine more beautiful and practical.
2. Main parts include headstock, central block, jigsaw base, jig-saw casing, motor blade, gear, jigsaw table, connection piece , drive belt cover etc. All of the parts are made of metal except drive belt cover.
3.With special design, the reciprocating blade is touch safe in case of finger contact -it just causes slight vibration without cuts when skin contacts.
4. Allow straight-line cutting and curve cutting.
Technical parameters:
1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
2.Input voltage/current/power:12VDC/5A/60W
3.Working table size:90mm*90mm
4.Maximum working material thickness: solid wood-4mm, plywood-7mm, soft wood-18mm, aluminium-0.5mm, acrylic-2mm.
5.The transformer has over-current protection, over-voltage protection, over heating protection.
6. With bow-shaped arm. The material of bow-shaped arm with its accessories is metal which increases its durability.
7.Motor power :144W.
Features:
1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor. Some parts are electroplated to make the machine more beautiful and practical.
2. Main parts: headstock, tailstock, long machine bed, big slider, wood-turning chisel base, motor blade, gear, connection piece, drive belt cover etc.
3. Softwood, hardwood can be processed.
4.Workpieces can be clamped by three-jaw chuck or collets(1-6mm),center height-25mm, distance between center- 135mm.
All of the parts are made of metal except drive belt cover.
Technical parameters:
1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
2.Input voltage/current/power:12VDC/5A/60W
3.Maximum working material diameter: 45mm
4.Working material length:135mm
5.Working material: wood, engineering plastic,soft metal( gold, silver, copper, aluminum etc.).
6. The transformer has over-current protection,over-voltage protection,over heating protection.
7.With 0.02mm scale line,the hand wheel increases the precision when processing.
8.Motor power :144W

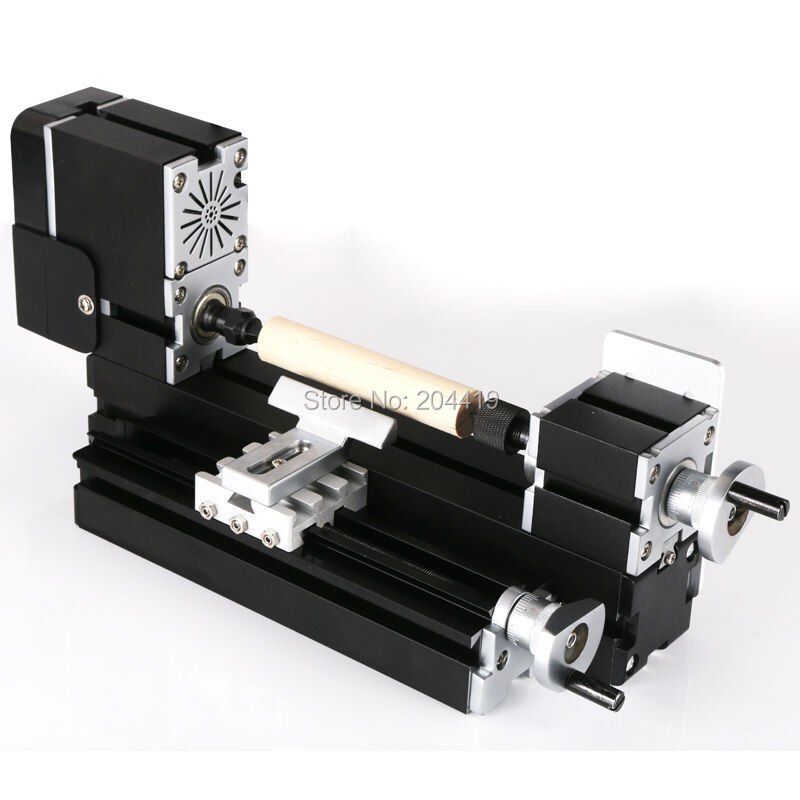

Features:
1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor. Some parts are electroplated to make the machine more beautiful and practical.
2. Main parts:headstock, tailstock, long machine bed,big slider,small slider, motor blade, gear, connection piece, drive belt cover etc.
3.Center height-25mm, distance between centers-135mm, motor speed normally will drop to 2000rpm/min when it machines metal.
4. Lathe tool is made of high speed steel quality material and it can process on soft metal, nonferrous metal and precious metal. By using central block, diameter can be expanded to 100mm.
All of the parts are made of metal except drive belt cover.
Technical parameters:
1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
2.Input voltage/current/power:12VDC/5A/60W
3.Maximum working material diameter:20mm
4.Working material length:135mm
5. Axis Z slider travel:32mm
Axis X slider travel:145mm
6. Working material: lignin plastic, soft metal (gold, silver, copper, aluminum etc.),acrylic, plastic etc.
7. With 0.02mm scale line,the hand wheel increases the precision when processing.
8.Motor power :144W
Features:
1.Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor. Some parts are electroplated to make the machine more beautiful and practical.
2.Main parts: headstock, long machine bed, drilling table, motor blade, connection piece, gear, sanding paper panel etc. (All of the parts above are made of metal),grinding wheel with wheel guard
3. The machine can be used to polish, grind. If needed, we use the machine by hand to grind under any angle.
4.Center height 25mm, sanding paper:100# ( optional),choosing the sanding paper according to different workpiece
Technical parameters:
1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
2.Input voltage/current/power:12VDC/5A/60W
3.Working table size:123*100mm
4. Working material: wood, engineering plastic, soft metal (gold,silver, copper, aluminum etc.)
5. The transformer has over-current protection, over-voltage protection,over heating protection.
6. Motor power:144W.

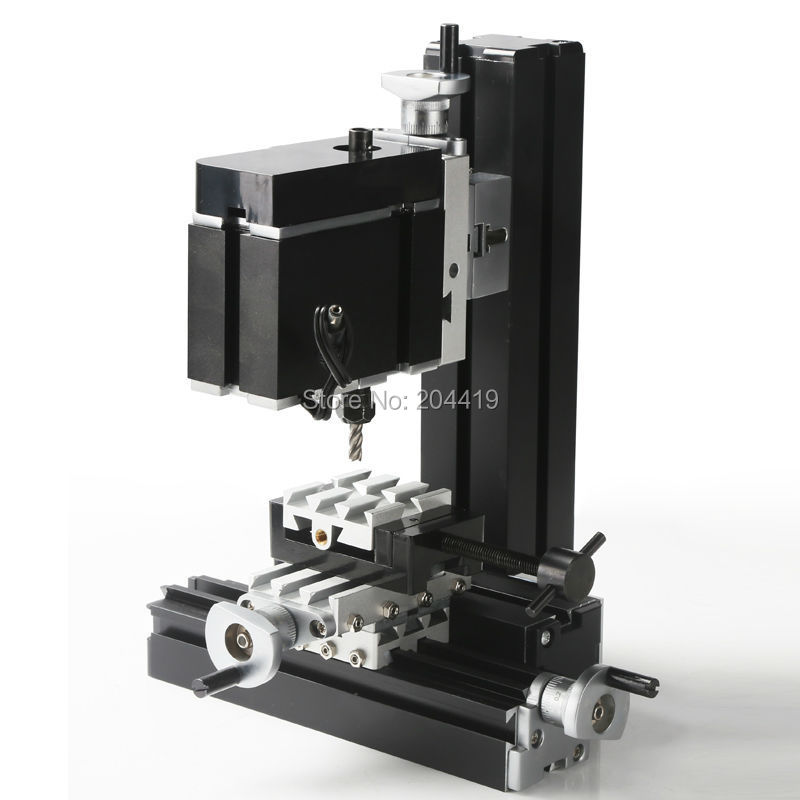

Feature:
1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor. Some parts are electroplated to make the machine more beautiful and practical.
2. Milling cutter, with two edges,is dangerous, so people should be guided by experts when using it.
3.Main parts: headstock, long machine bed, short machine bed, big slider, small slider, motor blade, connection piece, gear etc.
All of the parts are made of metal.
Technical parameters:
1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
2.Input voltage/current/power:12VDC/5A/60W
3.Axis Y,Z travel :32mm Axis X travel:145mm
4.Collets:1-6mm
5.Maximum working material size clamped by machine vice:50mm
6.With 0.02mm scale line,the hand wheel increases the precision when processing.
7. Working material: wood,soft metal (gold, silver, copper, aluminum etc.),acrylic,plastic etc.
8. Motor power :144W

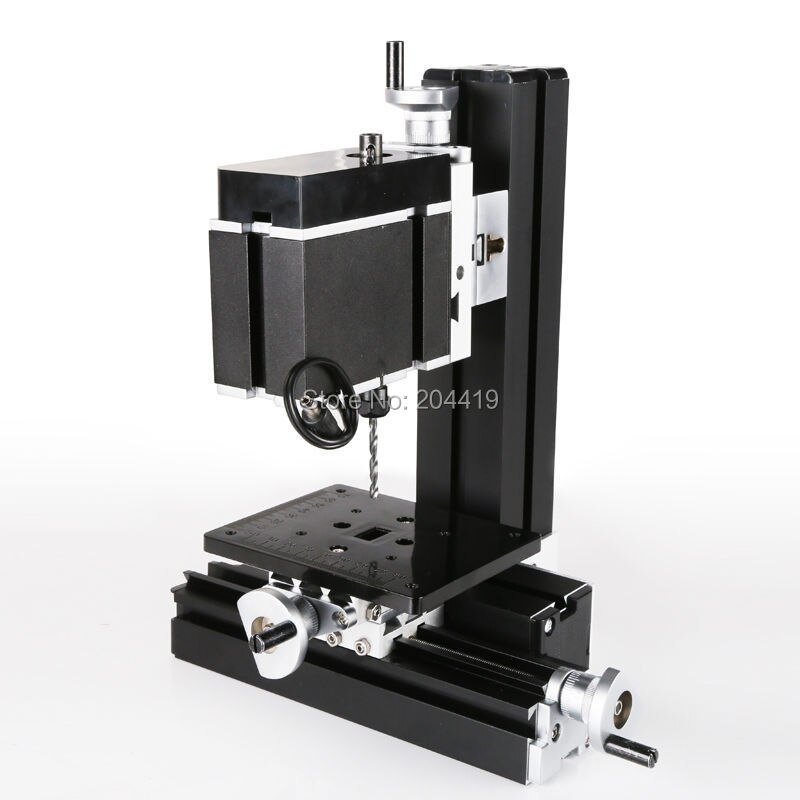

Features:
1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor. Some parts are electroplated to make the machine more beautiful and practical.
2. Main parts: headstock, long machine bed, short machine bed, big slider, small slider, motor blades, connection piece, radial arm, drilling table, gear etc.
3. Working material: wood, soft metal(copper, aluminum etc.),acrylic, plastic etc.
All of the parts are made of metal.
Technical parameters:
1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
2.Input voltage/current/power:12VDC/5A/60W
3.Axis Y /Z travel :32mm
Axis X travel :145mm
4.Collects:1-6mm
5.Working table size:123*100mm
6.Working material: lignin plastic, soft metal(gold, silver, copper, aluminum etc.)
7.With 0.02mm scale line ,the hand wheel increases the precision when processing.
8.Motor power :144W
Feature:
1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor. Some parts are electroplated to make the machine more beautiful and practical.
2. Main parts: headstock, sanding paper panel. All of the parts are made of metal.
3. Equipped with 7 standard grinding tools, widely used, variously used, easily used. With drilling bit, grinding wheel, milling cutter, it can respectively turn into hand-held driller , grinder,miller.
Technical parameters:
1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
2.Input voltage/current/power:12VDC/5A/60W
3.Working material: wood, engineering plastic, soft metal( gold, silver, copper, aluminum etc.)
4.The transformer has over-current protection , over-voltage protection, over-heating protection .
5.Motor power:144W
