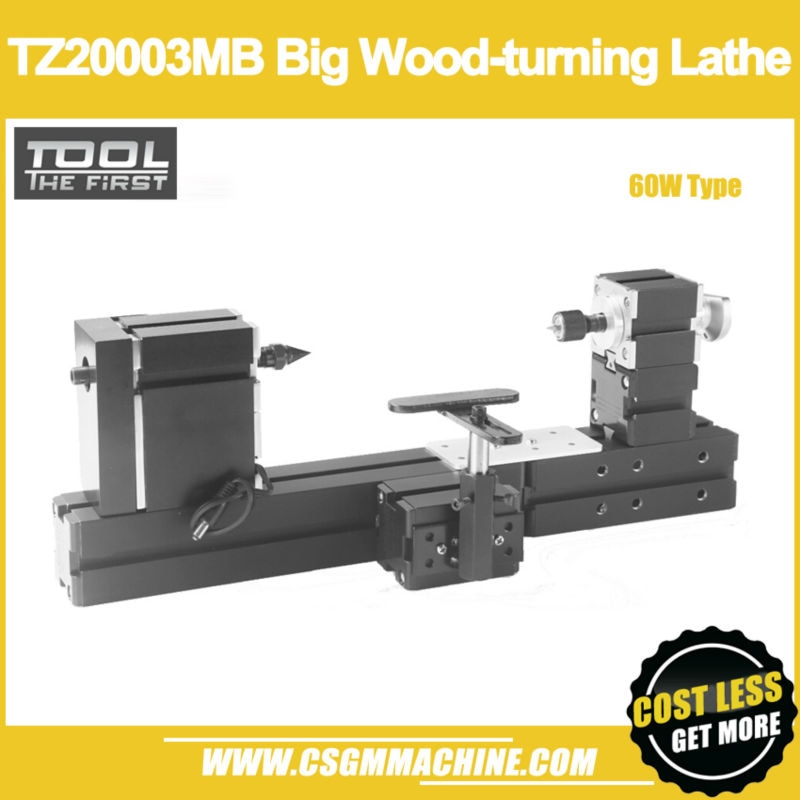

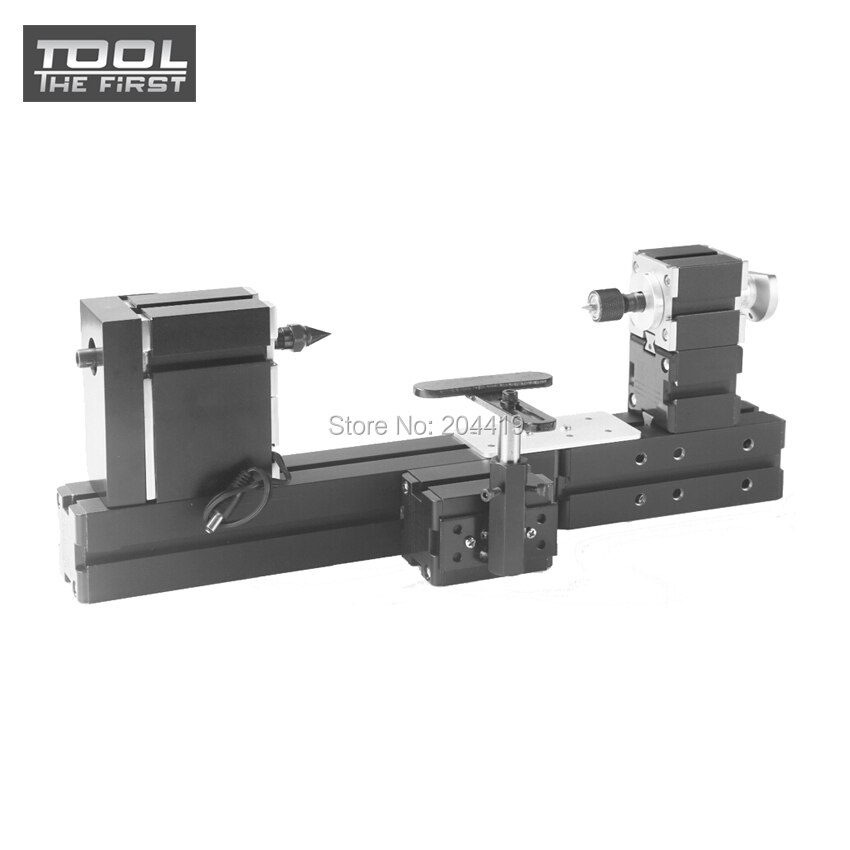

TZ20003MB 60W Powerful Metal Big Wood-turning Lathe
Features:
1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor.
2. Main parts: headstock, tailstock, long machine bed, big slider, wood-turning chisel base, motor blade, gear, connection piece, drive belt cover etc.
3. Softwood, hardwood can be processed.
4.Workpieces can be clamped by three-jaw chuck or collets(1-6mm),center height-75mm, distance between center- 300mm.
All of the parts are made of metal except drive belt cover.
Technical parameters:
1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
2.Input voltage/current/power:12VDC/5A/60W
3.Maximum working material diameter:150mm.
4.Working material length:300mm.
5.Working material: wood, engineering plastic, soft metal( gold, silver, copper, aluminum etc.).
6. The transformer has over-current protection, over-voltage protection, over heating protection.
7.With 0.02mm scale line ,the hand wheel increases the precision when processing.
8.Motor power :144W

Processing Product:










Display Picture:






Operation Picture:
