TZ20005MA 60W Metal Milling Machine/60W,12000rpm Powerful cutting mach/mini vertical milling

0.0 (0 Reviews)
$0.00 $29.66
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • Description

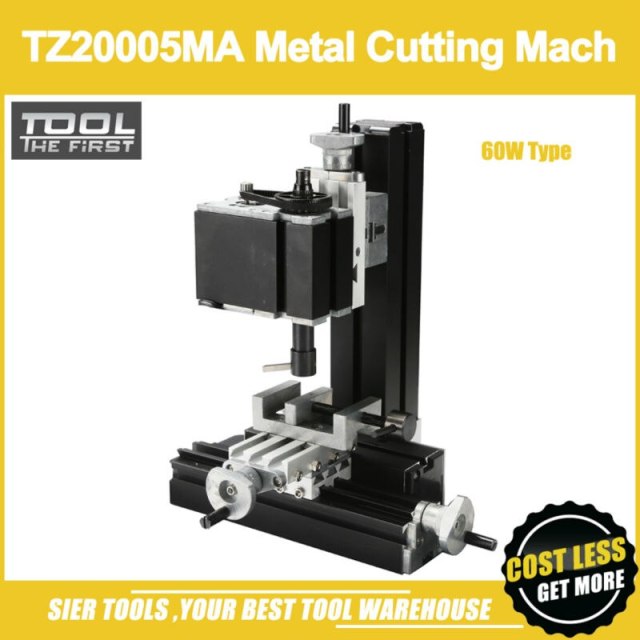

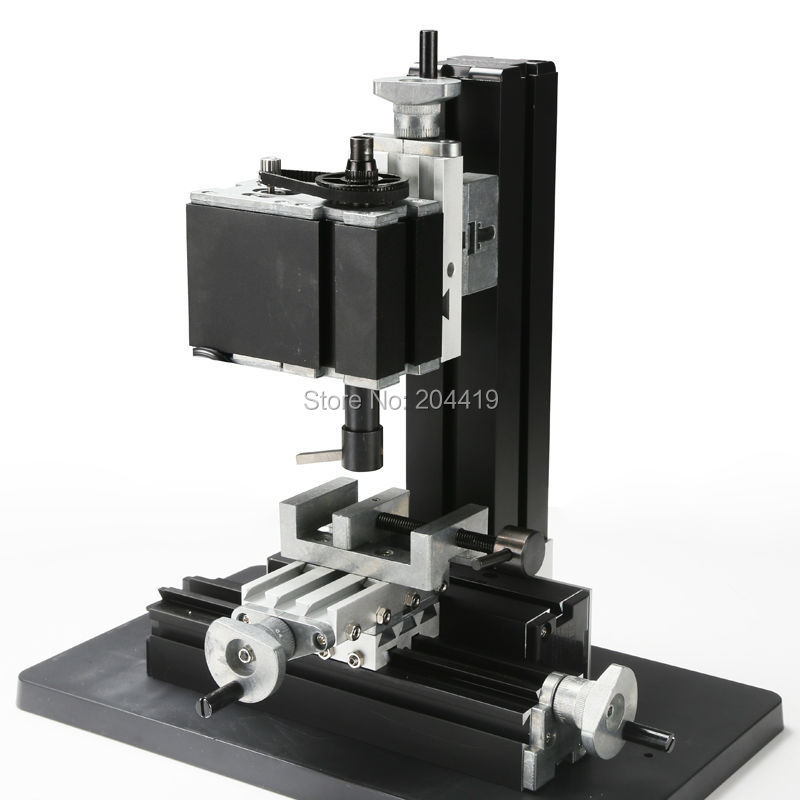

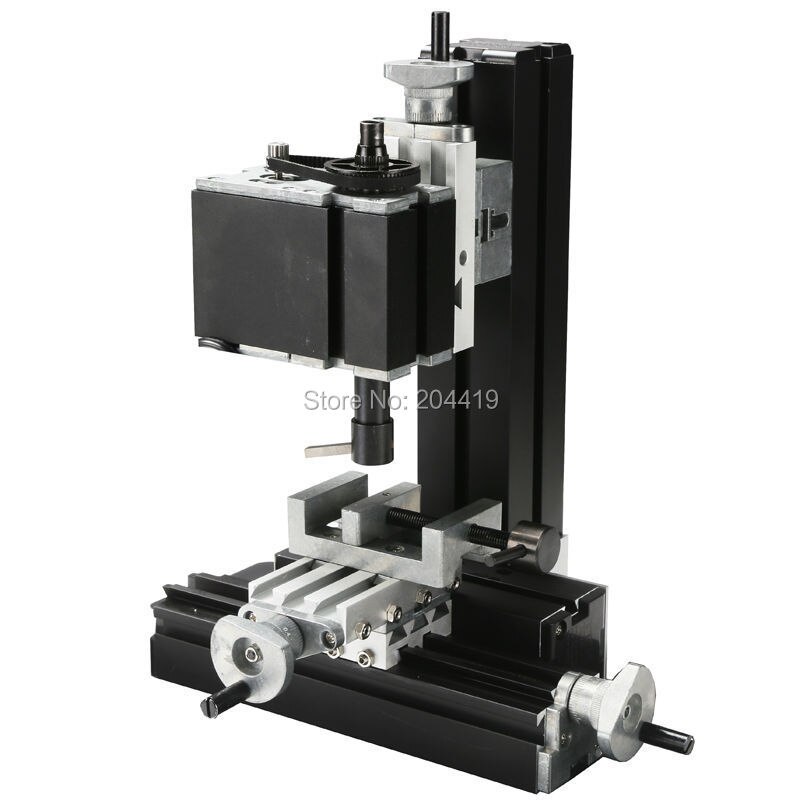

TZ20005MA 60W Big Power Metal Mini Milling Machine



Feature:

1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor.

2.Main parts: headstock, long machine bed, short machine bed ,big slider, small slider, motor blade, connection piece, vice ,gear etc.



All of the parts above are made of metal.



Technical parameters:

1.Motor speed :12,000rpm/min(optional choice 20,000rpm/min)

2.Input voltage/current/power:12VDC/5A/60W

3.Axis Y /Z travel :32mm, Axis X travel:145mm;

4.Blade panel: it can clamp 4mm*4mm blade tools

5.Maximum working material diameter clamped by vice:50mm

6.With 0.02mm scale line ,the handwheel increases the precision when processing.

7.Motor power :144W

8.Between slider space ,there is plastic elastic material to adjust the precision.

9. Working material: wood, plastic, acrylic, soft metal(gold, silver, copper,  aluminum etc.)

10. It is dangerous as the blade tool spin very fast and people have to be guided by the professional when using it .
