Z8000M 24W Metal 8 in 1 Mini Lathe/24W,20000r 8in1 didactical lathe/metal DIY lathe Kit

0.0 (0 Reviews)
$0.00 $42.91
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • Description

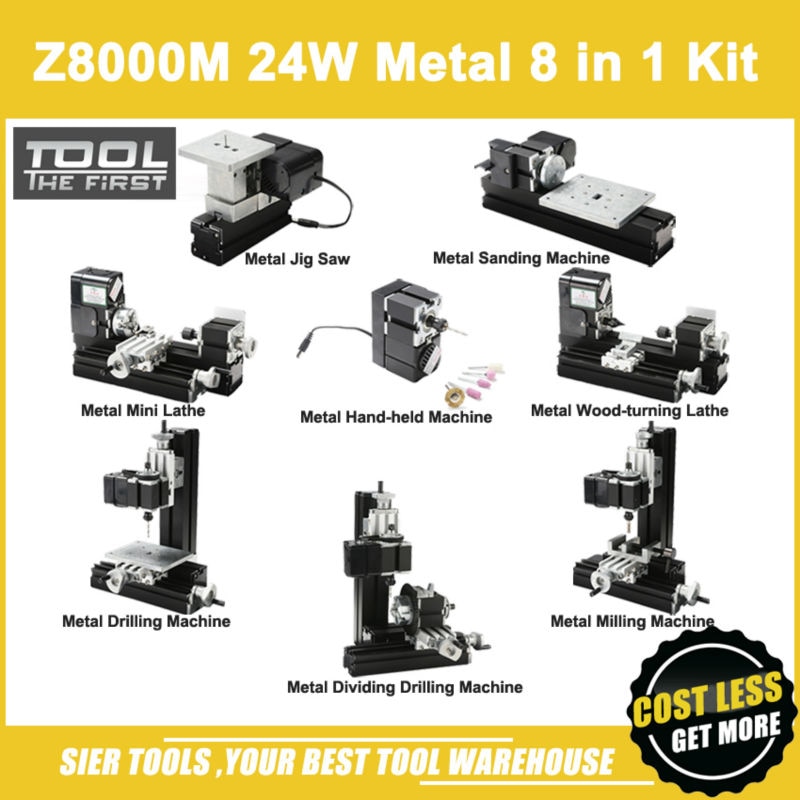

Z8000M Metal 8 in 1 Mini Lathe Kit



Z8000M 1

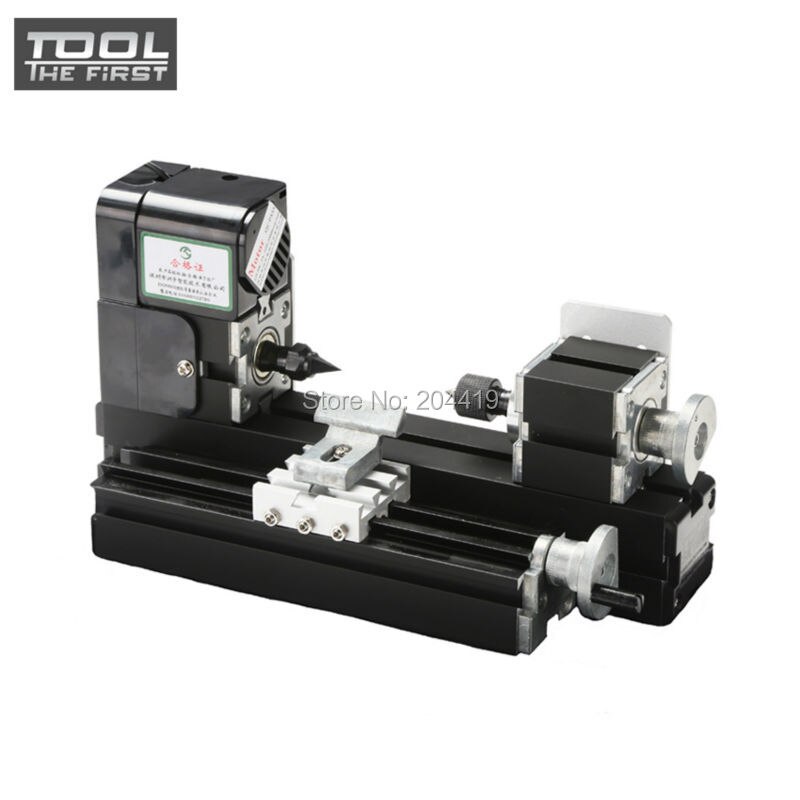

A.Metal Wood-turning Machine



Features:

1. Main parts: headstock, tailstock, long machine bed, big slider, motor blade, gear, connection piece, drive belt cover etc.

2. Softwood, hardwood can be processed.

3. Workpieces can be clamped by three-jaw chuck or collets(1-6mm),center height-25mm, distance between center-135mm.



All of the parts are made of metal except drive belt cover.



Technical parameters:

1.Motor speed:20,000rpm/min(optional choice 12,000rpm/min)

2. Input voltage/current/power:12VDC/2A/24W

3. Maximum working material diameter:45mm

4. Working material length:135mm

5. Working material: wood, engineering plastic, soft metal( gold, silver, copper, aluminum etc.).

6. The transformer has over-current protection, over-voltage protection, over heating protection.

7.  With 0.02mm scale line ,the hand wheel increases the precision when processing.


Z20003M 4

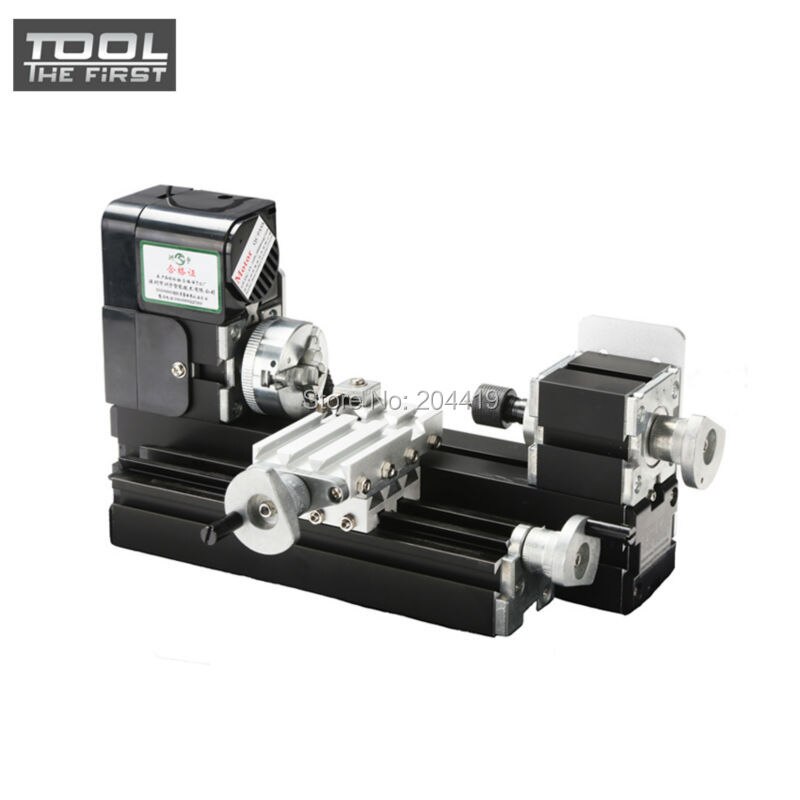

B.All Metal Mini Lathe


Features:

1. Motor case and headstock are jointed.

2. Main parts: headstock, tailstock, long machine bed, big slider, small slider, motor blade, gear, connection piece, drive belt cover etc.

2. Center height-25mm, distance between centers-135mm, motor speed normally will drop to 2000rpm/min when it machines metal.

3. Lathe tool is made of high speed steel quality material and it can process on soft metal, nonferrous metal and precious metal. By using central block, diameter can be expanded to 100mm.



All of the parts are made of metal except drive belt cover.



Technical parameters:

1.Motor speed :20,000rpm/min(optional choice 12,000rpm/min)

2.Input voltage/current/power:12VDC/2A/24W

3.Maximum working material diameter: 20mm

4.Working material length:135mm

5.Axis Z slider travel :30mm  Axis X slider travel:160mm

6.Working material: lignin plastic, soft metal (gold, silver, copper, aluminum etc.), acrylic, plastic etc

7. With 0.02mm scale line ,the hand wheel increases the precision when processing.


Z20002M 4



C.Metal Jig Saw



Features:

1.Motor case and headstock are jointed.

2. Main parts include headstock, central block, jigsaw base, jig-saw casing, motor blade, gear, jigsaw table, connection piece, drive belt cover etc.

3.With special design, the reciprocating blade is touch safe in case of finger contact -it just causes slight vibration without cuts when skin contacts.

4.Allow straight-line cutting and curve cutting.



 All of the parts are made of metal except drive belt cover.



Technical parameters:

1.Motor speed : 20,000rpm/min(optional choice 12,000rpm/min)

2.Input voltage/current/power:12VDC/2A/24W

3.Working table size:90mm*90mm

4. Maximum working material thickness: solid wood-4mm, plywood-7mm, soft wood-18mm, aluminium-0.5mm, acrylic-2mm.

5. The transformer has over-current protection, over-voltage protection, over heating protection.



Z20001M 4




D.Metal Sanding Machine



Features:

1. Main parts: headstock, long machine bed, drilling working table, motor blade, connection piece, gear, sanding paper panel etc.,grinding wheel , wheel guard.

2. The machine can be used to polish, grin. If needed, we use the machine by hand to grind under any angle.

3. Center height 25mm, sanding paper:100# ( optional)



All of the parts above are made of metal



Technical parameters:

1. Motor speed :20,000rpm/min(optional choice 12,000rpm/min)

2. Input voltage/current/power:12VDC/2A/24W

3. Working table size:123*100mm

4. Working material: wood, engineering plastic, soft metal (gold, silver, copper, aluminum etc.)

5. The transformer has over-current protection, over-voltage protection, over heating protection.


Z20006M 4

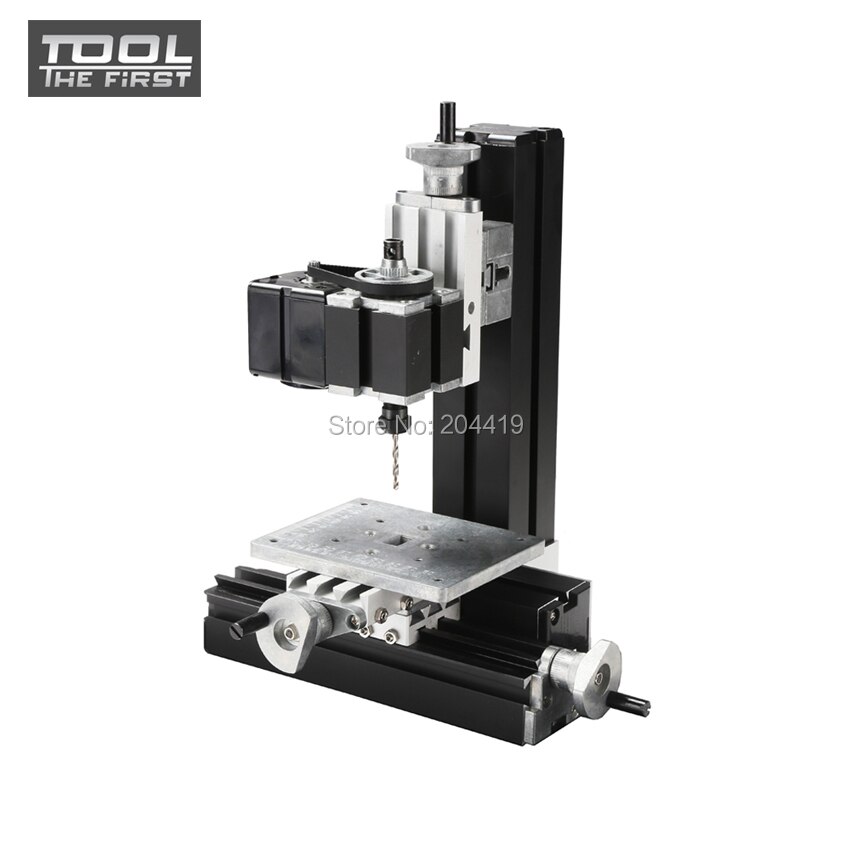

E.Metal Drilling Machine:

Features:

1.Main parts: headstock, long machine bed, short machine bed, big slider, small slider, motor blades, connection piece, radial arm, drilling table, gear etc.

2. Working material: wood, soft metal(copper, aluminum etc.),acrylic, plastic etc.



 All of the parts are made of metal except drive belt cover.



Technical parameters:

1.Motor speed :20,000rpm/min(optional choice 12,000rpm/min)

2.Input voltage/current/power:12VDC/2A/24W

3. Axis Y /Z travel :30mm

4. Axis X travel :160mm

5. Collects: 1-6mm

6. Working table size:123*100mm

7. Working material: wood plastic, soft metal(gold, silver, copper, aluminum etc.)

8. With 0.02mm scale line ,the hand wheel increases the precision when processing.


Z20004M 5

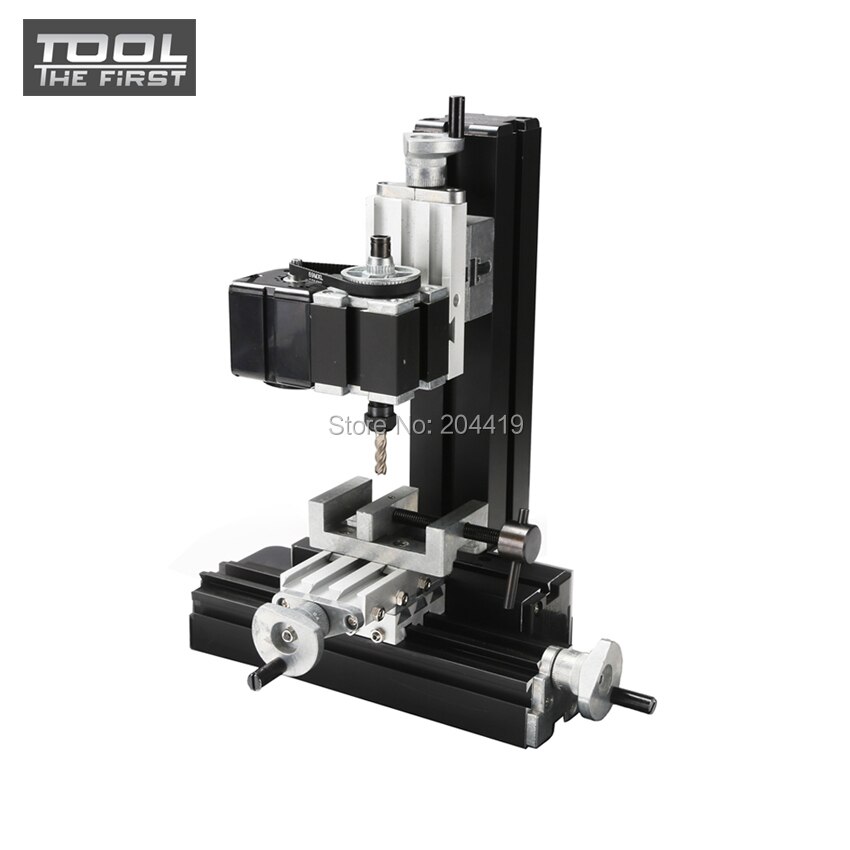

F.Metal Milling Machine:



Feature:

1. Milling cutter, with two edges, is dangerous, so people should be guided by experts when using it.

2. Main parts: headstock, long machine bed, short machine bed, big slider, small slider, motor blade, connection piece, gear etc.



 All of the parts are made of metal except drive belt cover.



Technical parameters:

1. Motor speed :20,000rpm/min(optional choice 12,000rpm/min)

2. Input voltage/current/power:12VDC/2A/24W

3. Axis Y,Z travel :30mm

4.Axis X travel:160mm

5. Collets: 1-6mm

6. Maximum working material size clamped by machine vice:50mm

7. With 0.02mm scale line ,the hand wheel increases the precision when processing.

8. Working material: wood, plastic, soft metal (gold, silver,copper, aluminum etc.), acrylic, plastic etc.



Z20005M 4


G.All Metal Hand-held Machine



Feature:

1. Main parts (made of metal): headstock, sanding paper panel.

2. Equipped with 7 standard grinding tools, widely used, variously used, easily used. With drilling bit, grinding wheel, milling cutter, it can respectively turn into hand-held driller , grinder, miller.



Technical parameters:

1. Motor speed :20,000rpm/min(optional choice 12,000rpm/min)

2. Input voltage/current/power:12VDC/2A/24W

3. Working material: wood, engineering plastic, soft metal( gold, silver, copper, aluminum etc.)

4. The transformer has over-current protection , over-voltage protection, over-heating protection .


Z10001M 2

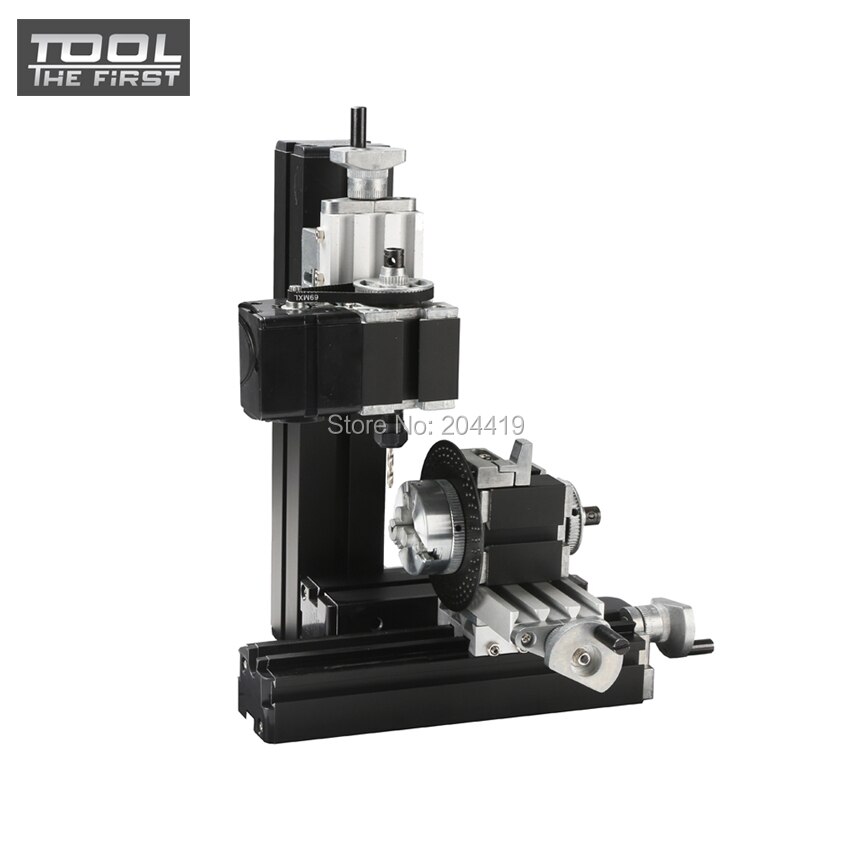

H.Metal Dividing drilling machine:



Feature:

1.Main parts: headstock, radial arm, long machine bed, short machine bed, small slider, big slider, motor blade, connection piece, dividing positioned, gear etc.

2. By using dividing plate, we can drill the round workpiece equally.

3. There are three circles of the holes on the dividing plate and the number of the holes respectively is 36,40,48. We can choose them as needed.



All of the parts are made of metal except drive belt cover.



Technical parameters:

1.Motor speed :20,000rpm/min(optional choice 12,000rpm/min)

2. Input voltage/current/power:12VDC/2A/24W

3. Working material: wood, engineering plastic, soft metal (gold, silver, copper, aluminum etc.)

4. Maximum workpiece diameter clamped by three-jaw chuck:50mm

5. The transformer has over-current protection , over-voltage protection, over-heating protection .

6. With 0.02mm scale line, the hand wheel increases the precision when processing.



Z10002M 4



What is different compare to the ordinary one:

Z20003M 5



Z20002M 5

Z20001M 5

Z20006M 5

Z20004M 7

Z20005M 5

Z10002M 5

Z10001M 3



Contains:


Z8000M 2--

Package:



Z8000M 3

Z8000M 4

Z8000M 5

Z8000M 6
