Z011 48mm 3-Jaw Chuck/Mini Metal Three Jaw Cartridge/1.8~56mm /12~65mm Clamping Diameter

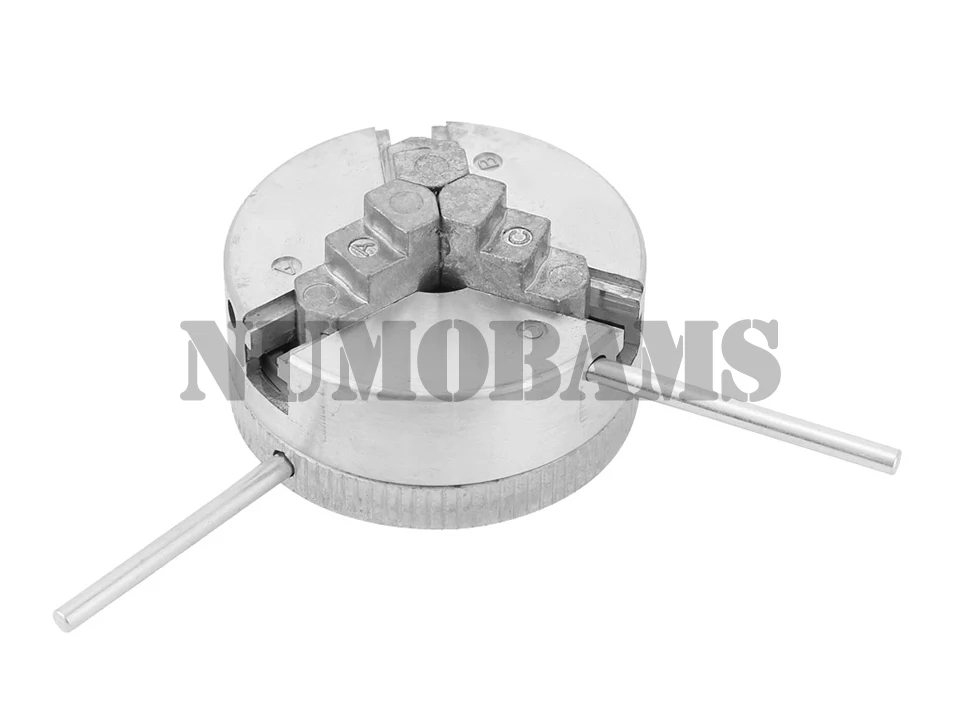

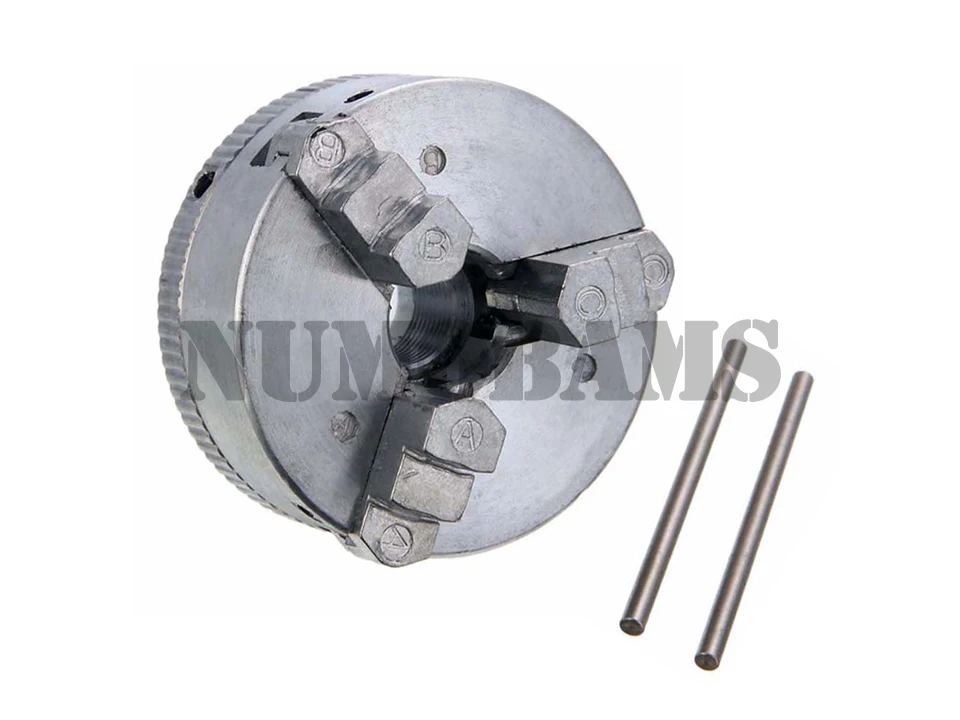

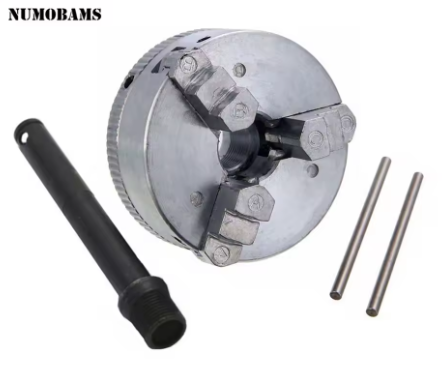

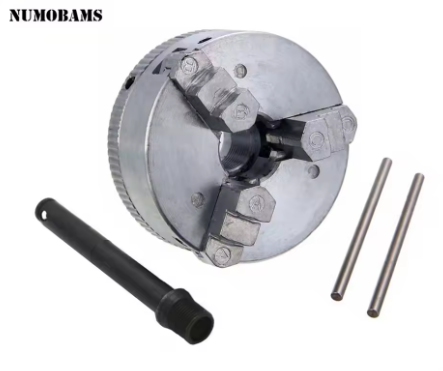

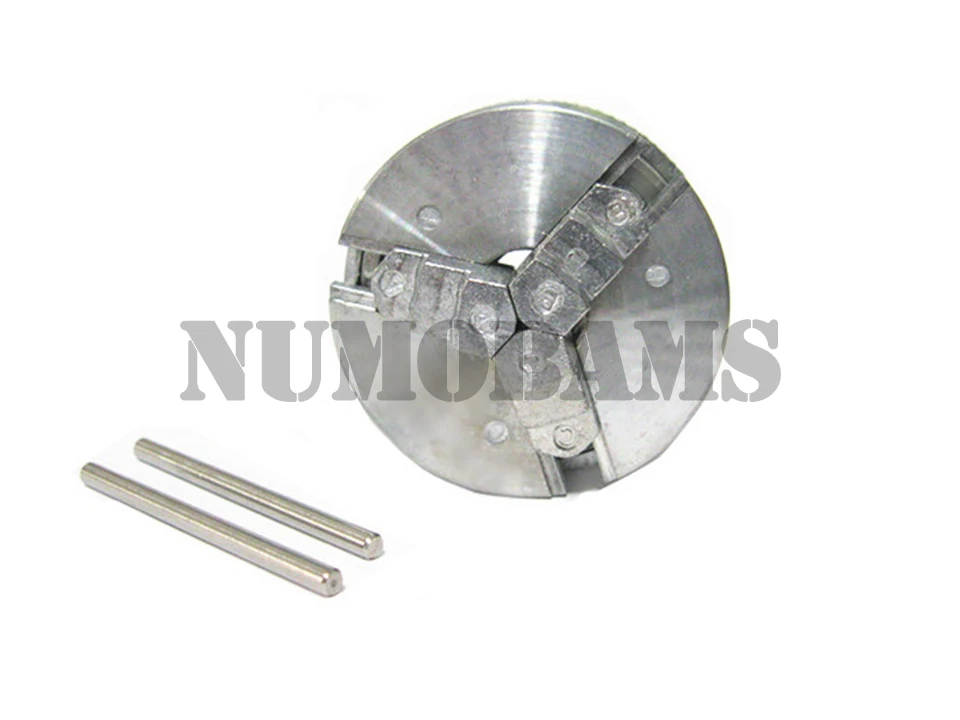

Z011 Mini Metal Three-Jaw Chuck

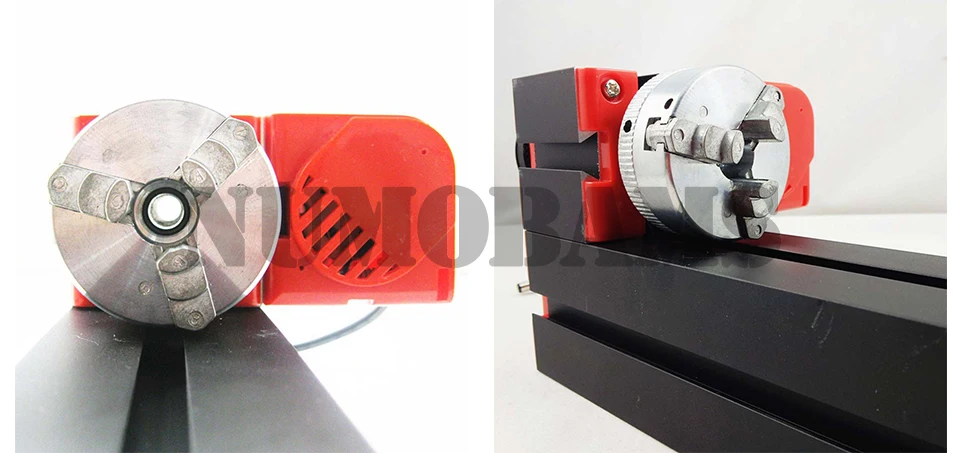

Use for All Type DIY Mini Machine

Item No.:Z011

Clamping Diameter 1.8~56mm / 12~65mm

Chuck Diameter:48mm

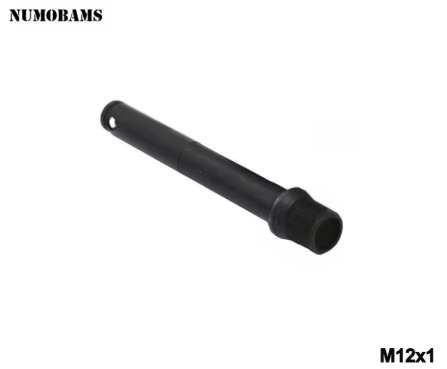

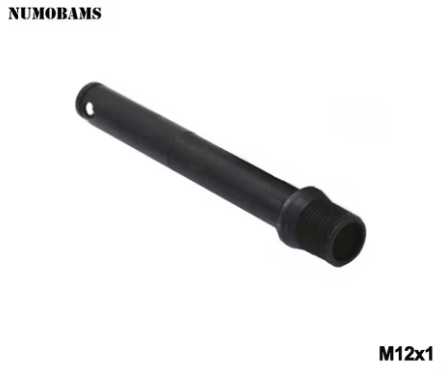

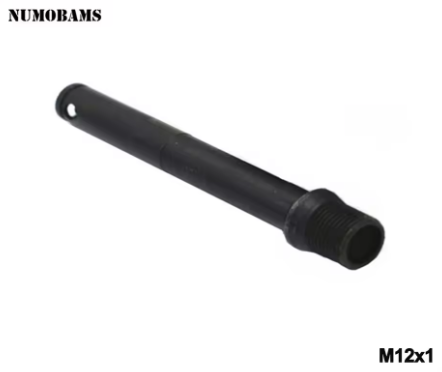

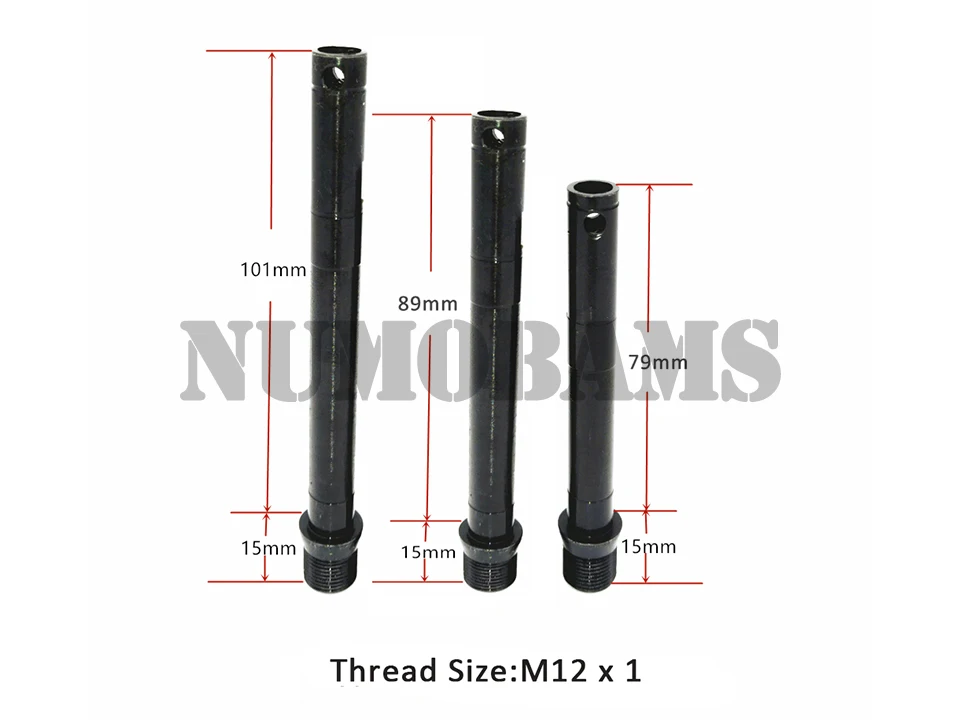

The thread: M12*1

Material:Aluminum

Net weight:0.165kg

Install Detais:

Assemble three-jaw chuck based on order A,B,C to rotate in (1). There is a gap on the thread guide rail in three-jaw chuck,when the gap turns to the side of Ajaw groove assemble A jaw,wthen the gap turns to B jaw assemble B jaw,when the gap turns to C jaw groove assemble C jaw, order of inverse jaw is C,B,A.
Various methods for assembling clamping work pieces(J,K,L)
