Product Overview

The NUMOBAMS precision mini bench drill is a 710 W bench drill press with a 1.5–13 mm keyed chuck, built for people who need accurate vertical holes in small parts rather than heavy material removal. It stands on a slotted metal base, carries its head on a machined column, and feeds on a lever with a ball end, so the bit travels straight down under control instead of being pushed by hand. The drill is built for us by Chinese milling machine manufacturers we have worked with since 2016, and every unit is checked and prepared before it leaves the warehouse.

It is a drill, not a mini milling machine. The head feeds straight down and the table does the holding: there is no sliding table to crank in two axes, no drawbar and no side load on the column. That is the point of it. Everything about the machine is arranged around making one hole at a time land exactly where you marked it, which is what jewellery benches, PCB benches and model workshops actually need.

Set-up is a bench-top job. The base is slotted so it can be bolted to a worktop, the column wipes down in seconds, and the whole machine can stay in place between jobs instead of being packed away. If you have been drilling with a hand tool and a clamp, this is the step that takes the wobble out.

Key Features

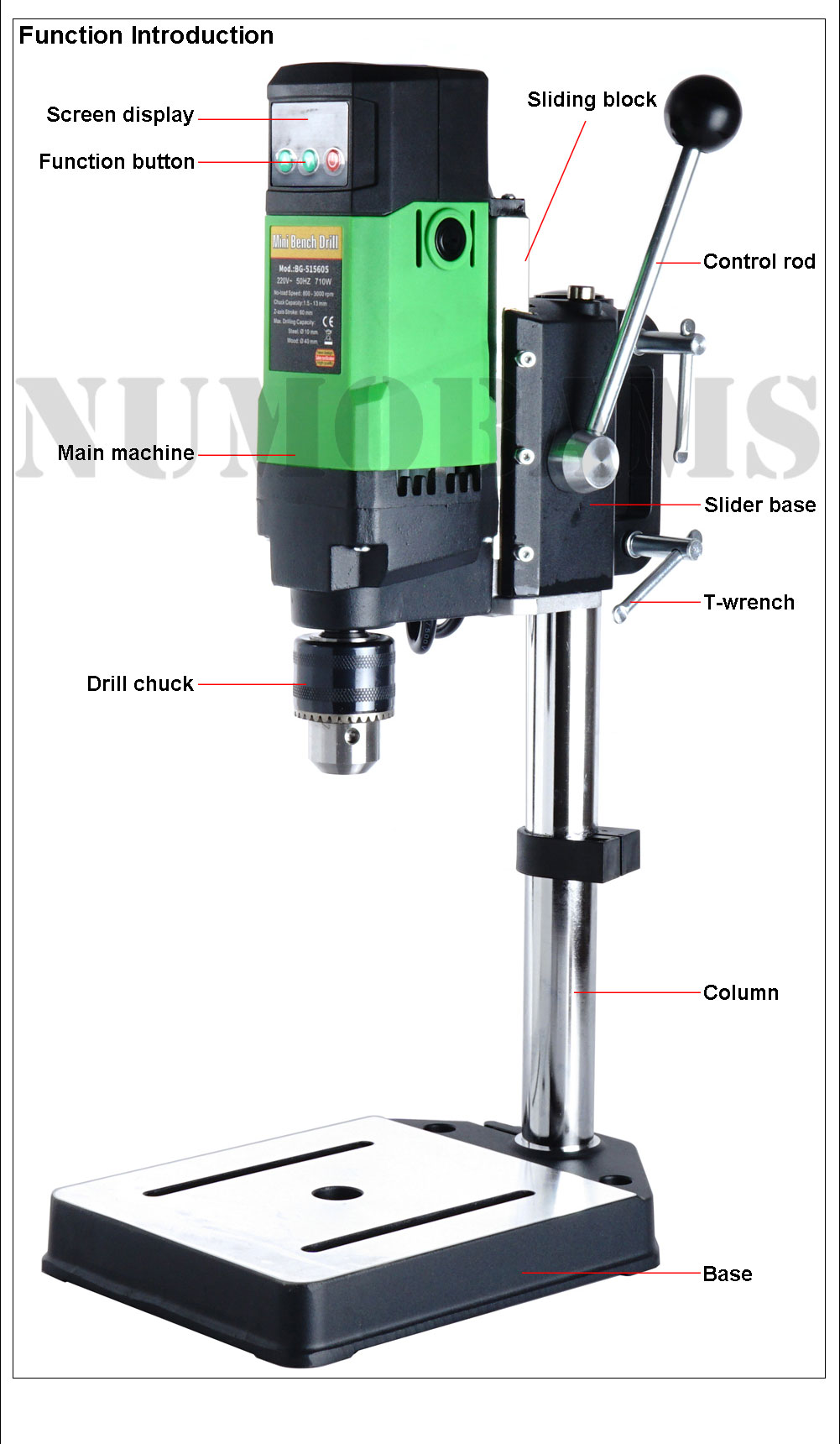

Labeled function-introduction diagram of a mini bench drill.
  • 710 W motor with a stepless 800–3000 r/min range — slow it down for a 13 mm hole in aluminium or brass, open it up for small bits in plastic, PCB or wood. The dial covers both without a belt change.
  • Column-and-base layout, not a hand-drill bracket — the head rides a machined vertical column, the same arrangement you find on a mini milling machine, so the bit stays square to the work as it enters.
  • 60 mm spindle stroke on a lever feed — the ball-end handle gives you a controlled, even feed through the whole stroke, so you feel the cut rather than forcing it.

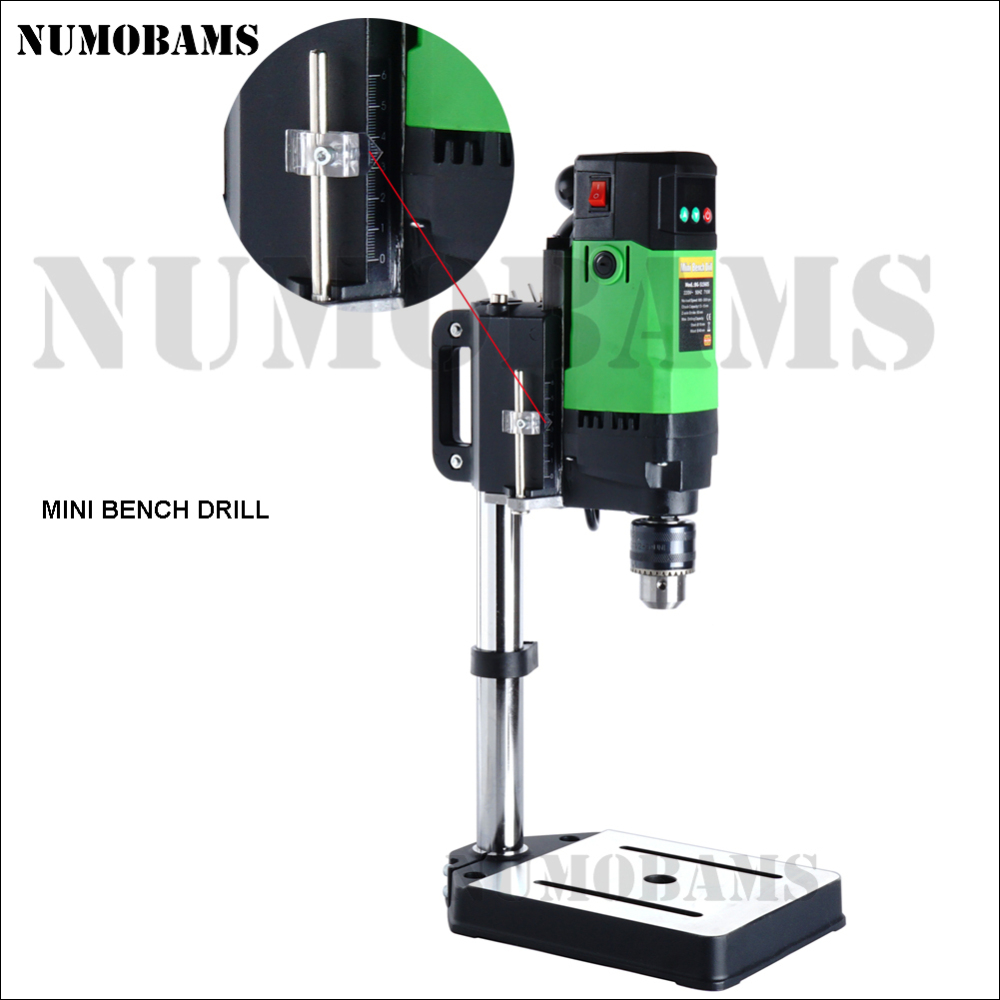

  • Depth stop rod and pointer scale — set a depth once, lock it, and repeat blind holes across a batch without measuring each one.
  • Keyed 1.5–13 mm chuck — a standard keyed chuck, tightened with the supplied chuck key, holding straight-shank bits from 1.5 mm up to 13 mm.
  • Slotted work base — the slots take the optional cross vise or let you clamp a part straight to the table.
  • Honest about its limits — the head only feeds vertically. Facing a plate or cutting a slot is a metal milling machine's job, and no amount of careful setup turns this drill into one.

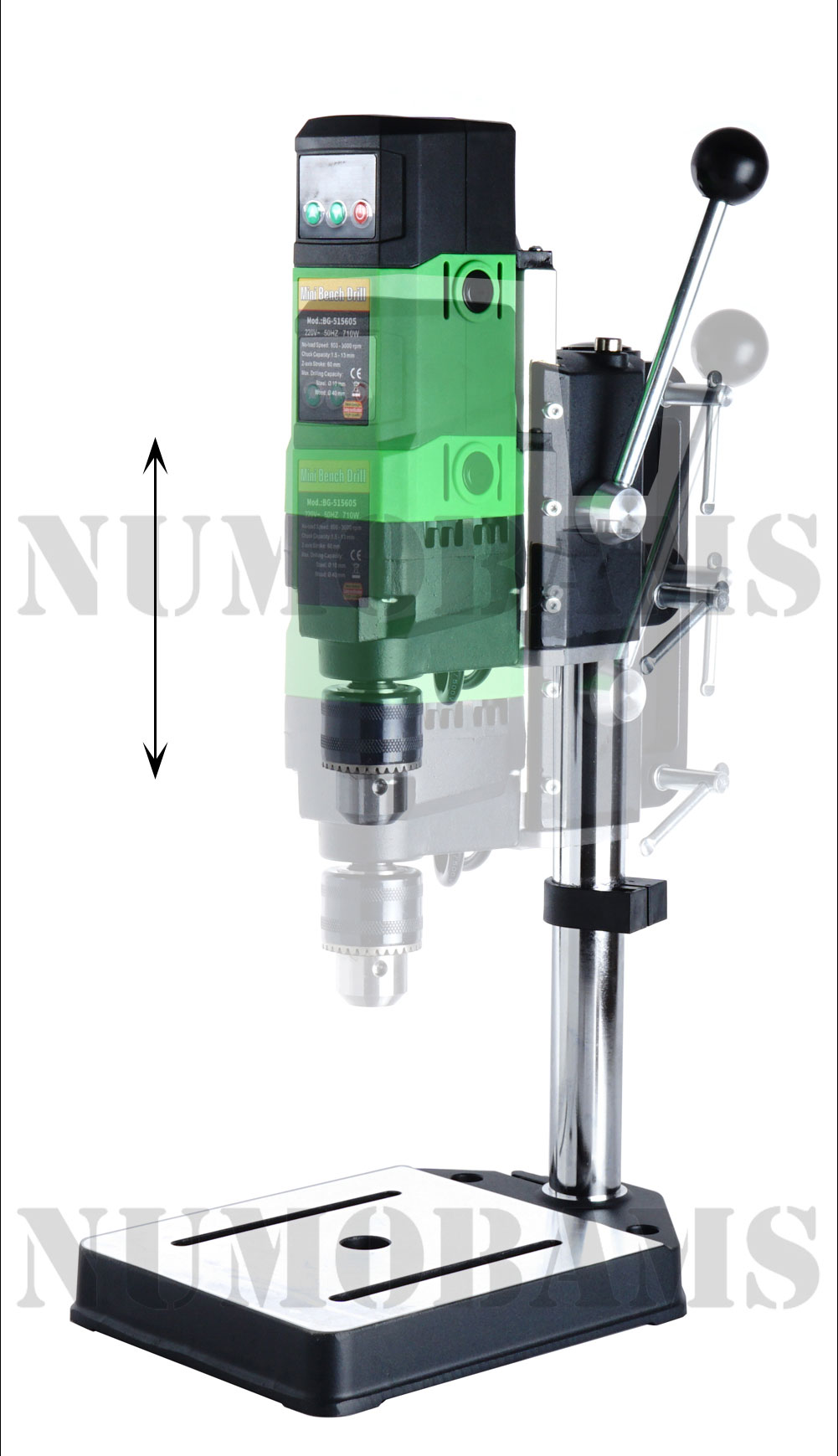

Infographic showing vertical head movement on the drill column.

Specifications

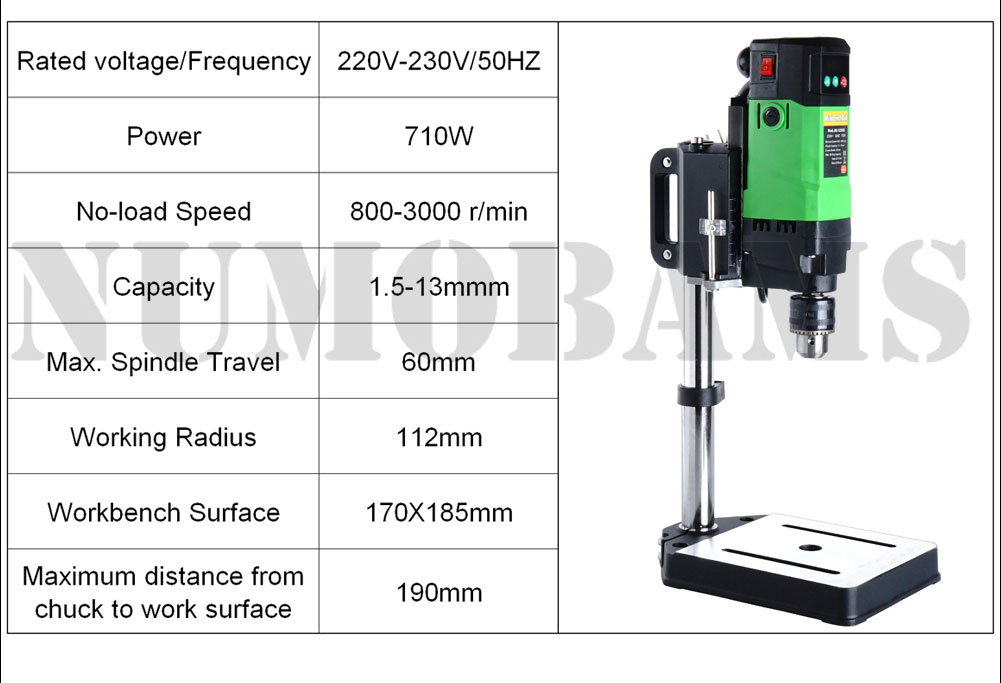

Mini bench drill beside a specifications table.
SpecificationValue
ModelBG-5156E
Rated voltage / frequency220–230 V, 50 Hz
Motor power710 W
No-load speed800–3000 r/min
Chuck capacity1.5–13 mm
Maximum drilling capacity13 mm
Spindle travel60 mm
Workbench surface170 × 185 mm
Maximum chuck-to-worktable distance190 mm
Working radius112 mm
FeedLever with ball-end handle
Work baseSlotted metal base

Workbench Capacity & Reach

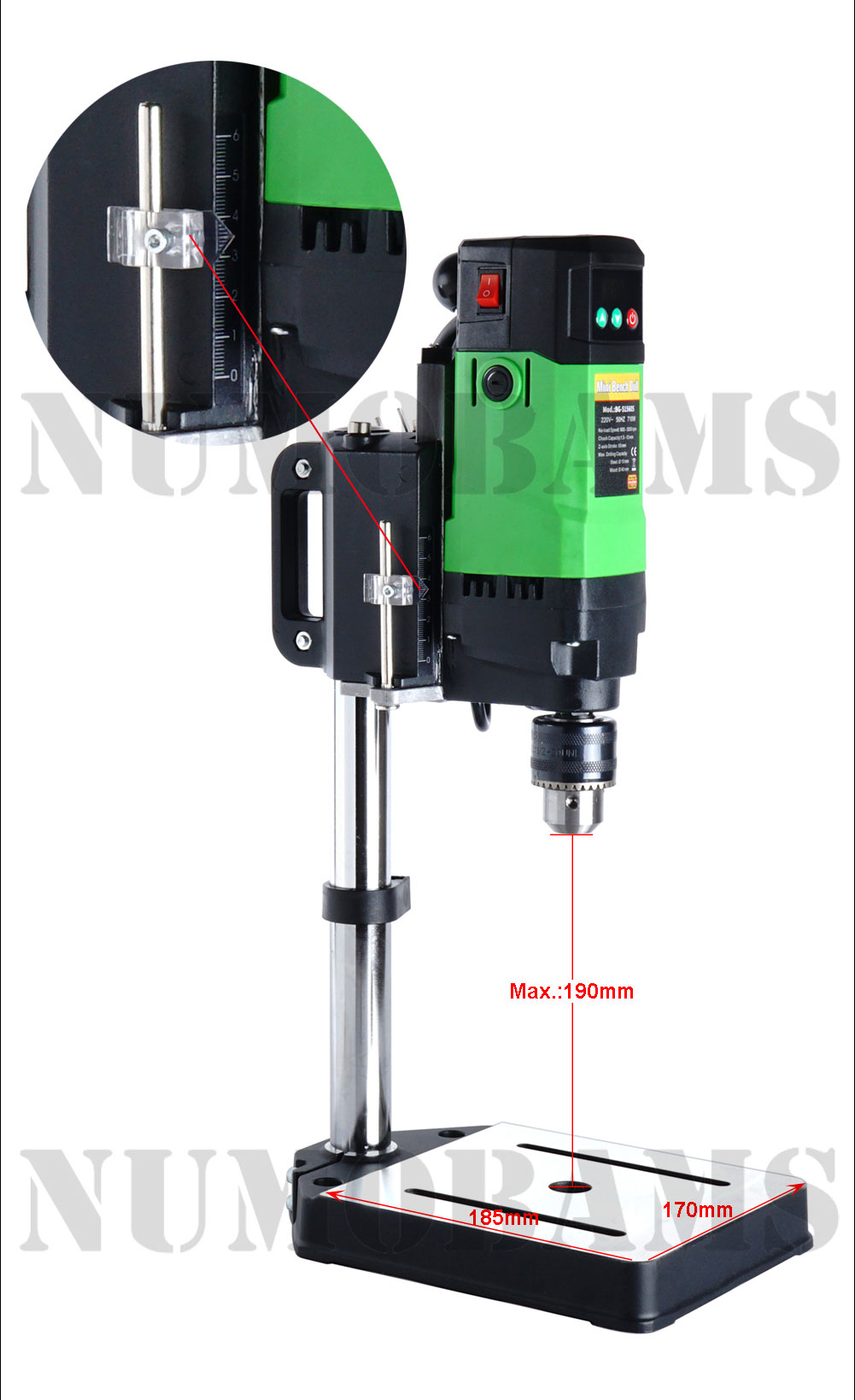

Mini bench drill with red callouts for chuck height and base dimensions.

A 170 × 185 mm table, sized for parts rather than panels

That is the working surface between the slots, and it suits a jewellery blank, a PCB panel, a model frame or a small bracket. Most milling machine suppliers size a bench table around the vise they expect you to bolt to it, and the same logic holds here: once a cross vise is fitted, the useful travel is the vise's, and the table's job is to hold it flat and rigid.

190 mm of height and a 112 mm working radius

The chuck sits up to 190 mm above the table at the top of its adjustment, so a small mould, a stacked fixture or a part held in a tilting vise can sit underneath with a bit still in the chuck. The 112 mm working radius tells you how far the spindle centreline can swing from the column. If you work on plates, measure the widest point of your part against that reach before you order.

Bench space and mounting

If your bench already carries a milling machine, this drill sits beside it rather than replacing it: the two do different jobs and can share the same vise, bit box and bench light. The base is slotted so it can be bolted down, and on thin sheet or small brass parts a fastened base is what removes the last trace of chatter.

Use Scenarios

  • Jewellery and silversmithing — piercing a bezel, drilling a pendant blank or opening a hole for a jump ring. The part sits flat in a vise, the depth stop keeps you from breaking through into the bench, and at this scale a metal milling machine is simply more machine than the job needs.
  • PCB prototyping and small-batch electronics — small bits, high speed and a stable quill. The top of the 800–3000 r/min range suits the smallest bits the chuck accepts, and the depth stop keeps connector holes consistent across a board.
  • Where the job stops and a mill takes over — if the next step is cutting a slot, squaring an edge or facing a plate, a milling machine with a sliding table does it properly. Knowing that line stops anyone forcing a job this drill was never built for.
  • Model making and scale patterns — locomotive frames, architectural models, jig plates and brass detail parts, drilled square and to a set depth.
  • Repair bench and light maintenance — reaming out a sheared screw, opening a bracket hole, drilling a dowel pin in a fixture. A bench drill press earns its space here because it is always set up and always square.
  • Training benches and first machine tools — the controls are readable, there is nothing to program, and the lever feed teaches feel for the material before a student moves on to a mill.

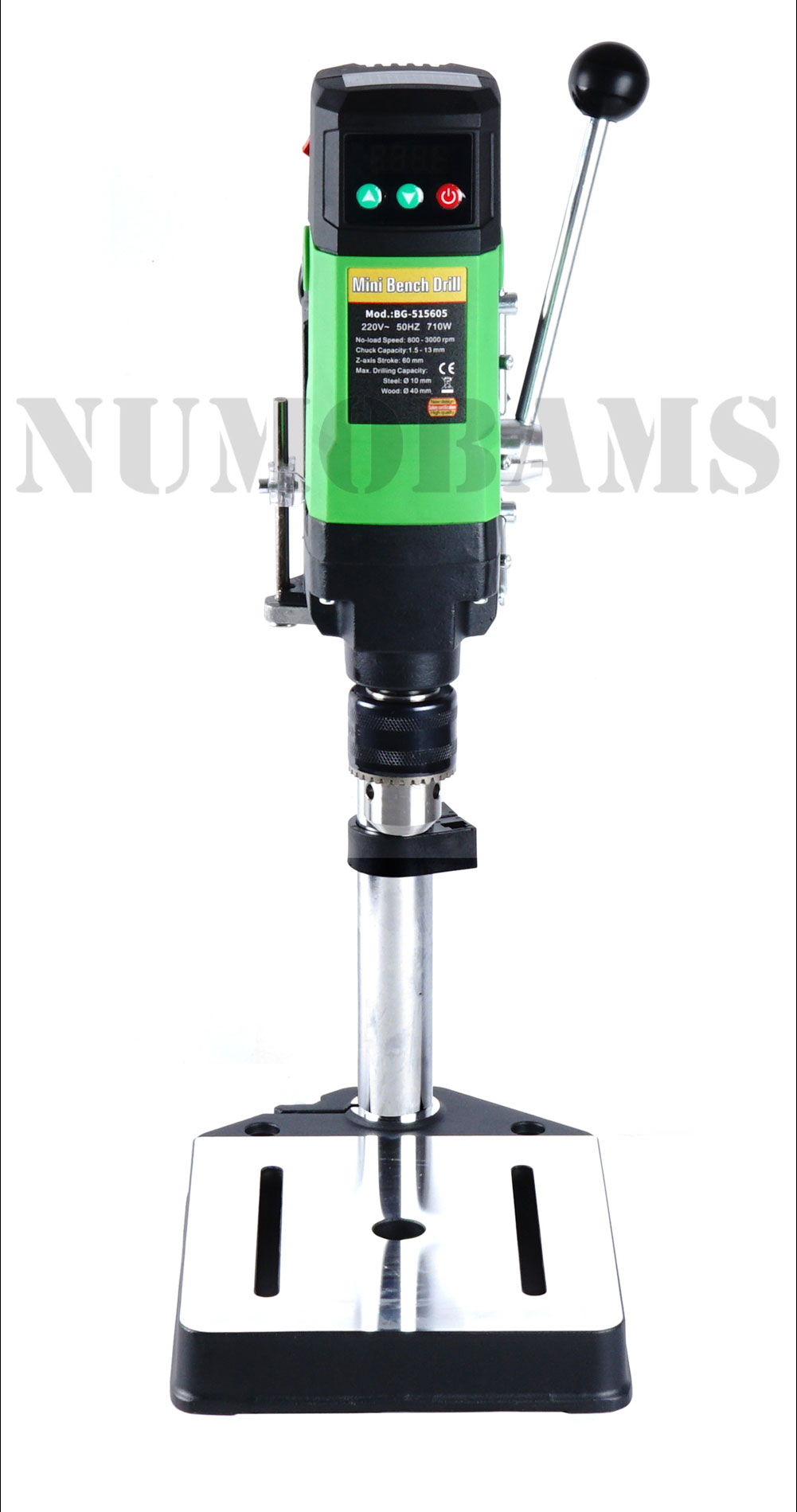

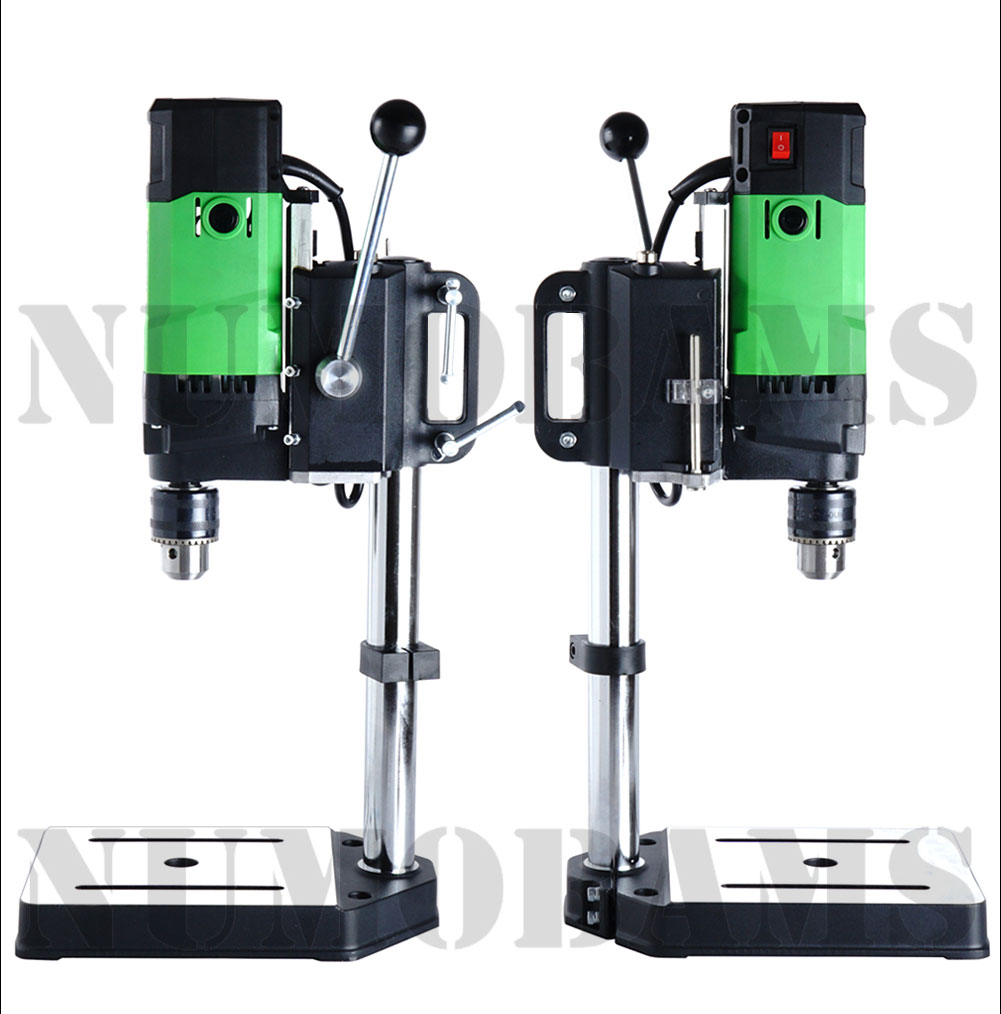

Front and rear views of a green and black mini bench drill.

Product Advantages

It keeps its place on the bench

A drill that lives on the bench gets used; one that has to be unpacked does not. The compact desktop footprint leaves room for the vise, the bit box and the part in progress, which is the same trade milling machine manufacturers make when they scale a mill down to bench size — everything vertical, everything within reach, nothing that needs a floor stand.

Nothing to program

No controller, no CAM file, no belt to move between pulley steps. You pick a speed on the dial, set the depth stop, pull the lever. A first-time user can be drilling accurate holes within an afternoon, which is why this layout turns up on training benches as well as in home workshops.

The feel of a small machine tool, not a hand drill

The head travels on a machined column and the feed comes through a lever, so the bit enters square and the pressure stays even. That shows up in the work: fewer broken bits on small holes, cleaner exit burrs on sheet and plastic, and a hole that stays round because the part is not fighting the tool.

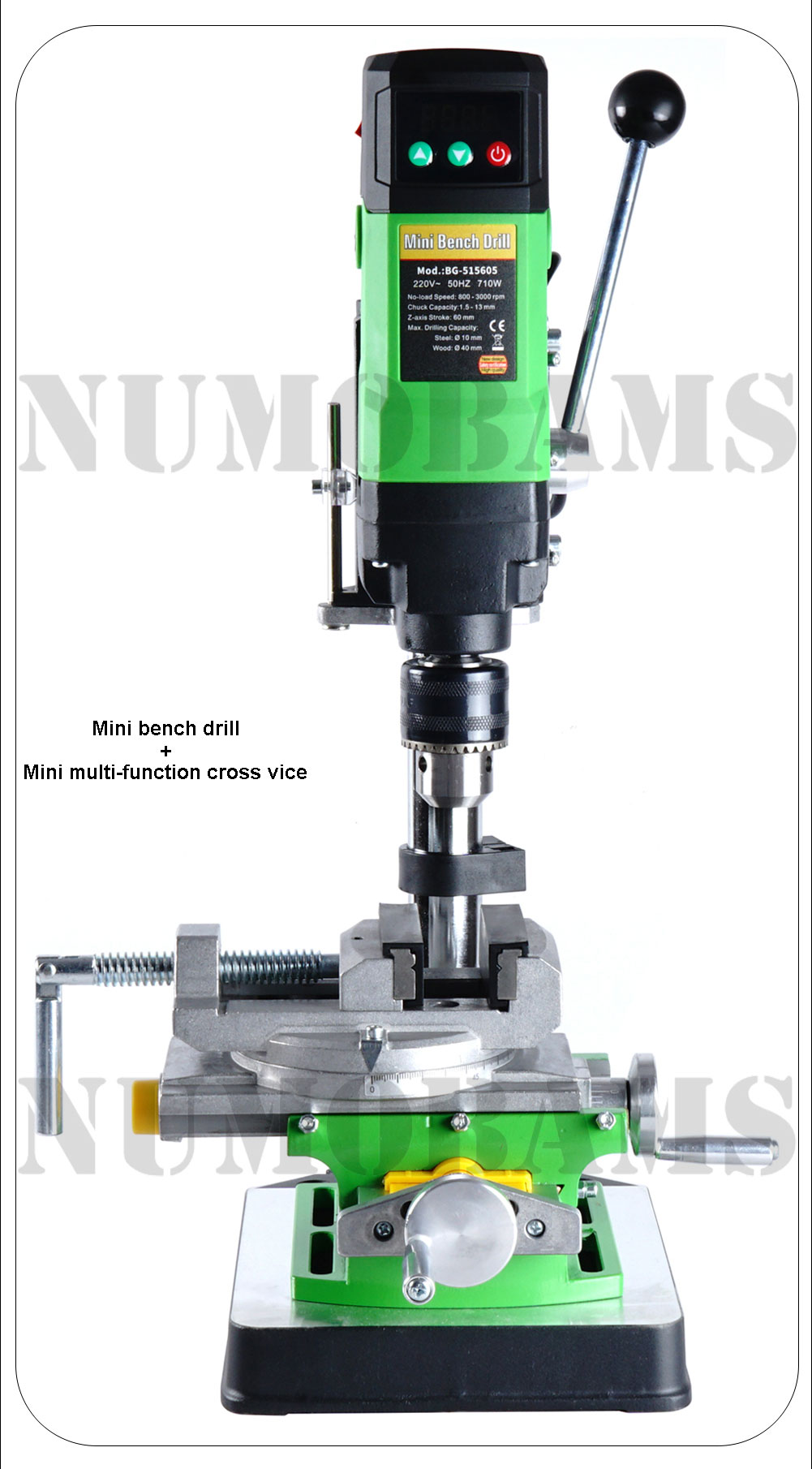

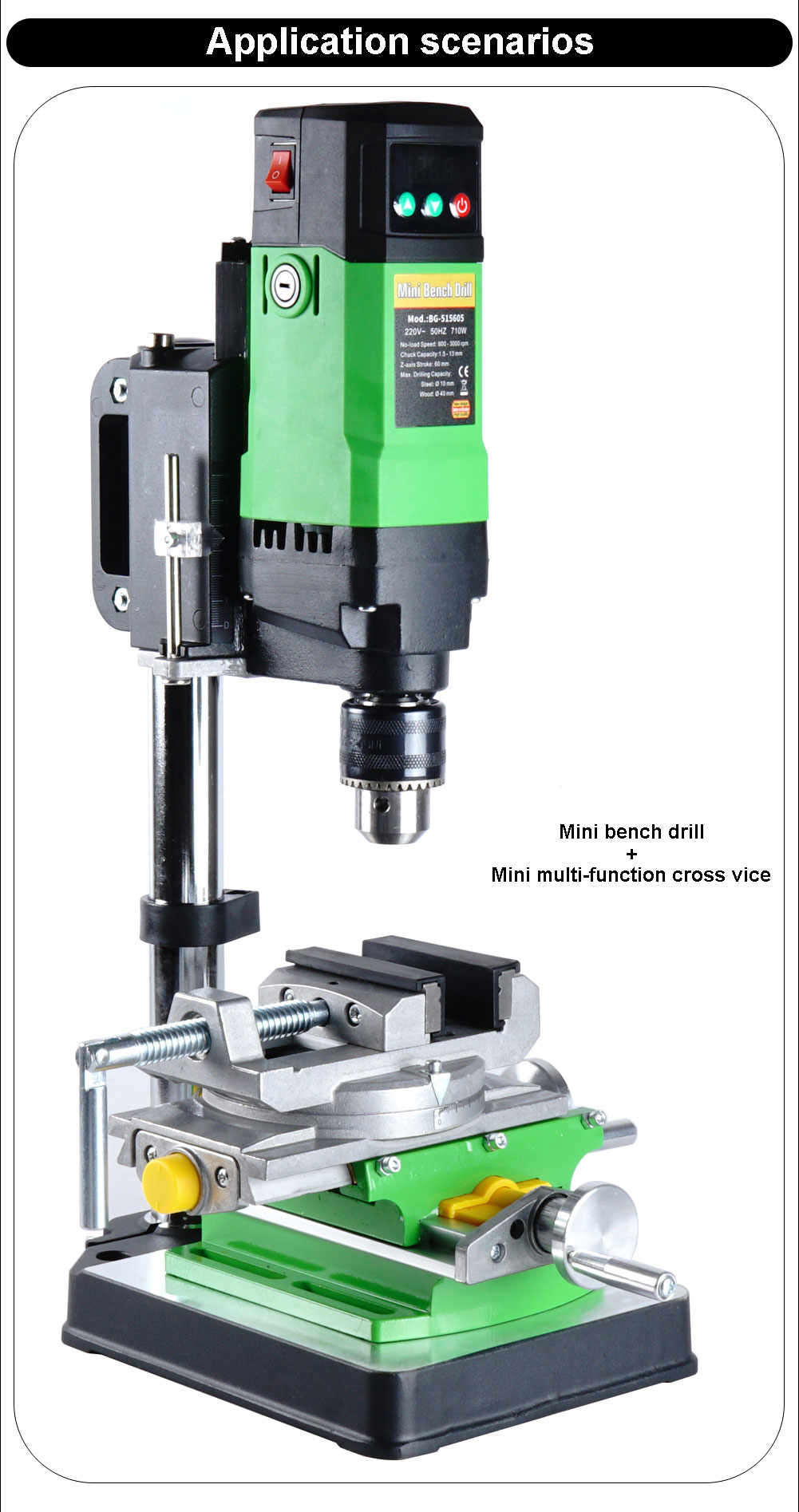

Mini bench drill mounted with a mini multi-function cross vice.
NUMOBAMS Precision Mini Bench Drill machine Small Table Drill for DIY Home Workshop Working

Vise & Configuration Options

Front view of a mini bench drill with a cross vice.
  • Mini bench drill on its own — the right pick if you already own a drill vise or a clamp set. It is also the version most milling machine suppliers keep as a standalone bench machine, because it lets the buyer match workholding to the parts they actually run.

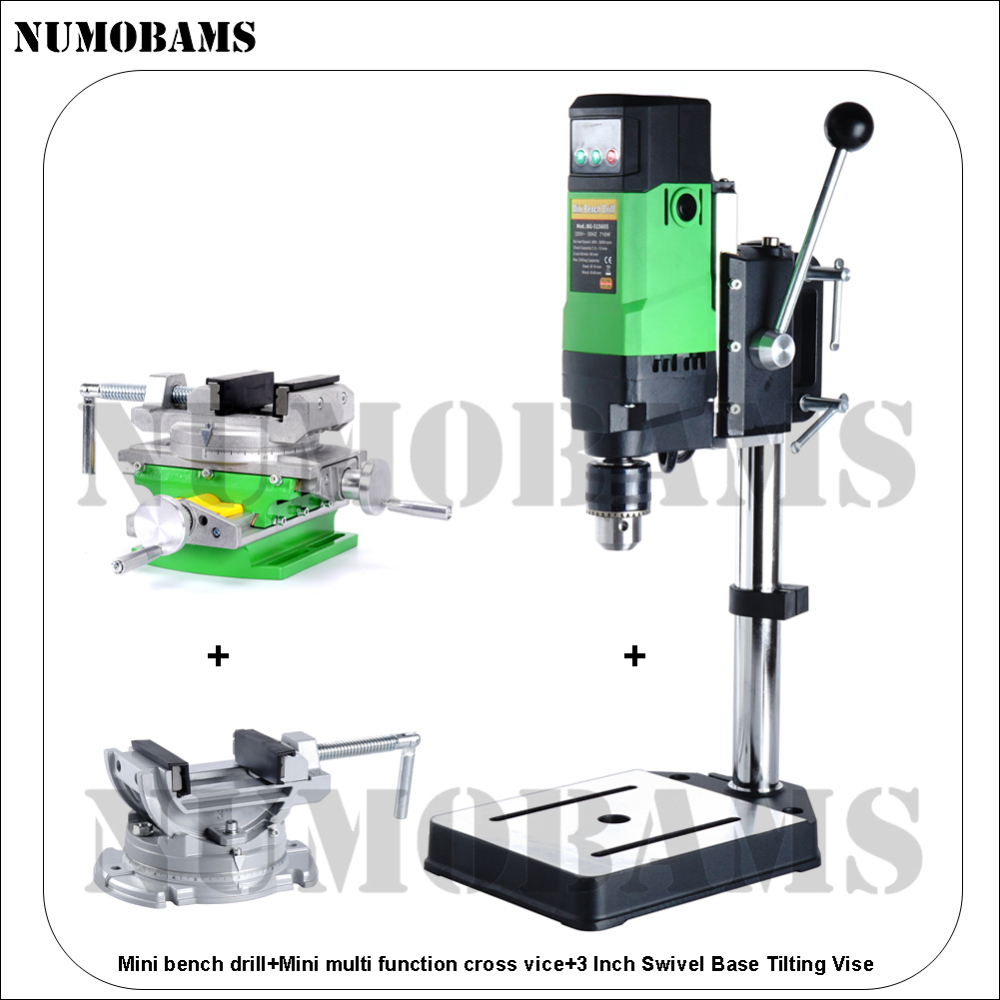

  • With the mini multi-function cross vise — two cranks move the part in X and Y, so you can drill a row or a grid of holes without unclamping between each one. On PCB work, connector rows and heat-sink patterns, that is the difference between a morning and an afternoon.
  • With the 3-inch swivel-base tilting vise — the base swivels and the vise tilts, so angled and compound-angle holes can be set and then repeated. Useful for model frames, brackets and any part that leaves the drill at an angle.
  • With both vises — the practical choice for a mixed bench: the cross vise stays set up for flat plate work, the tilting vise comes out for angled parts, and nothing has to be re-squared every time you switch jobs.
  • Bits are the other half of the setup — the chuck takes straight-shank bits from 1.5 mm to 13 mm. Tell us the sizes you use most and we will check them against the chuck range and the speed you plan to run.

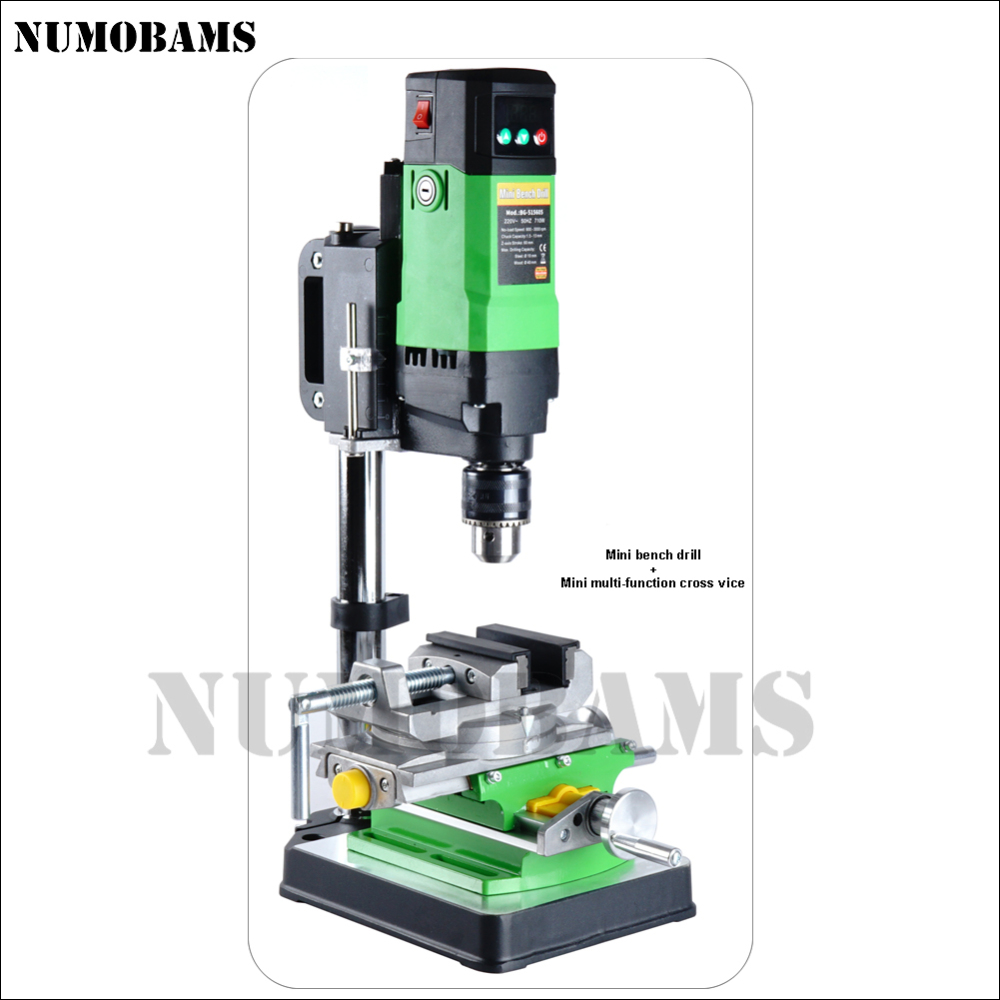

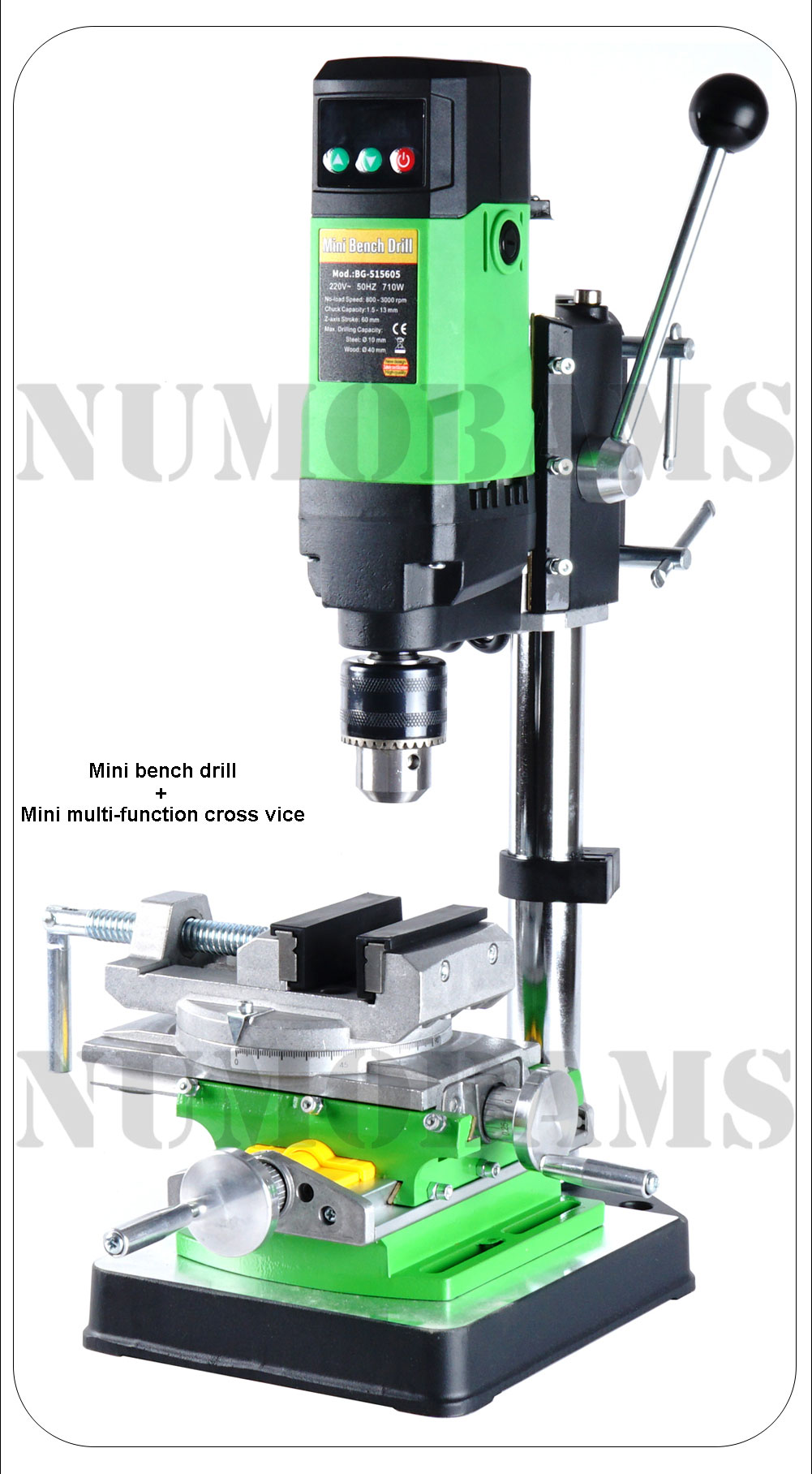

Mini bench drill with a multi-function cross vise.

Setup & First Run

  1. Stand the drill on a solid bench and bolt the base down through its slots. A bench that flexes shows up as chatter on thin sheet, so choose the sturdiest surface you have and fasten it.
  2. Wipe the protective oil off the column, table and chuck, then run the head through its full travel by hand to confirm it moves freely before anything is switched on.
  3. Fit the feed handle and set the depth reference: bring the chuck down to the table, zero the pointer, and you have a starting point for every depth after that.
  4. Open the chuck, seat the bit fully, and tighten with the chuck key in two or three key positions rather than one, so the bit centres more evenly.
  5. Set the speed on the dial before switching on. Large bits and hard material want the low end; small bits in plastic, PCB or wood want the high end.
  6. Drill a test hole in scrap of the same material and thickness, check the depth against the pointer, and adjust the stop before you touch the real part.

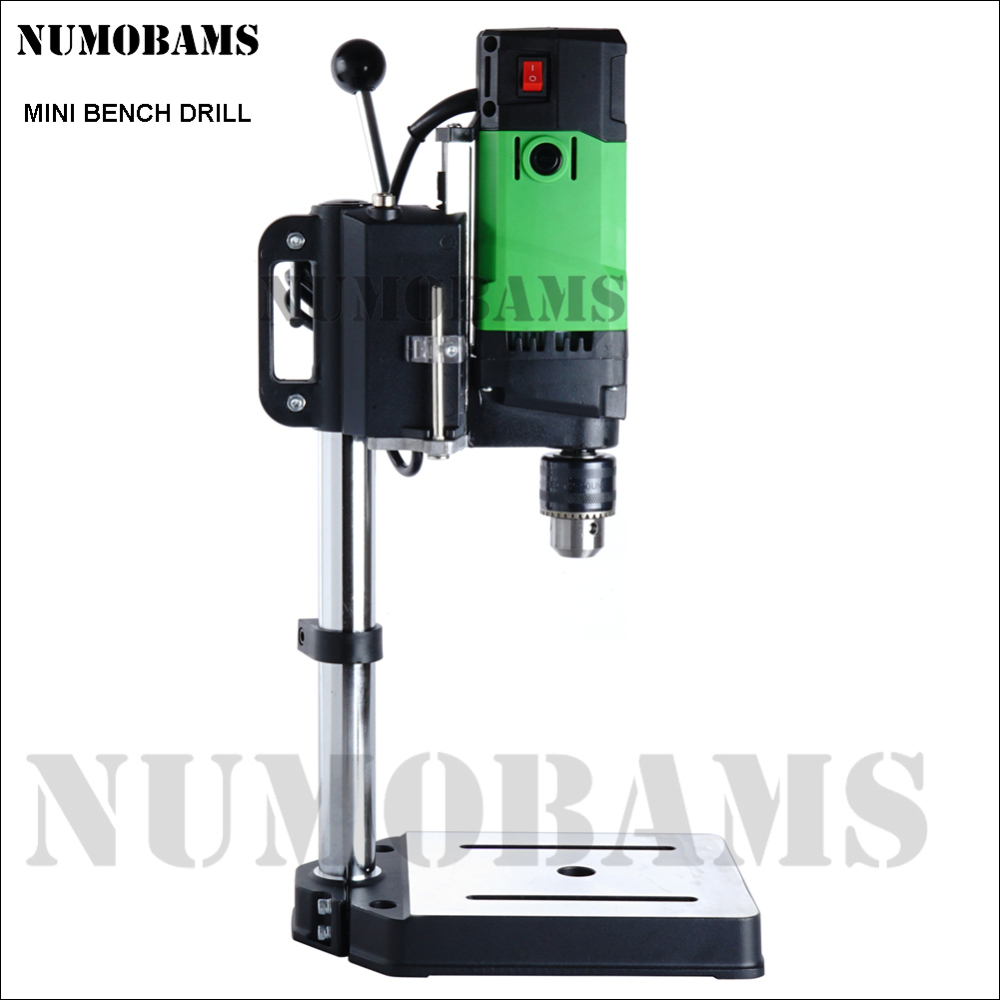

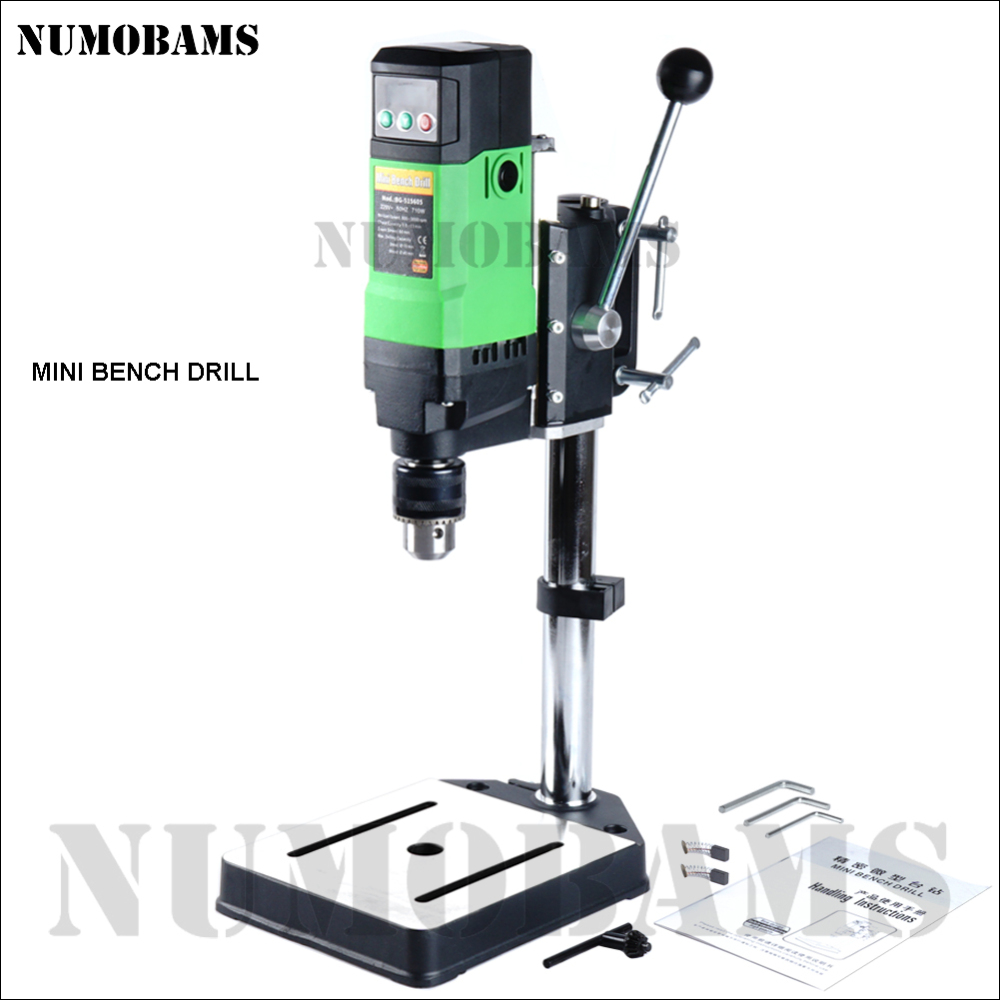

Green and black mini bench drill with keyed chuck and slotted base.

Maintenance & Care

  • Wipe down after every session — chips left on the table and in the chuck jaws are the usual reason a bit stops running true. A brush and a dry cloth take less than a minute.
  • Oil the column, keep the table dry — a light film on the column and quill keeps the head sliding smoothly; leave the table dry so clamps and vises grip.
  • Look after the chuck jaws — brush them out before tightening, and tighten in more than one key position so the bit seats centred.
  • Respect the feed — because the head only feeds straight down, the column carries nothing like the side load of a metal milling machine, but forcing the lever is still the quickest way to break a small bit.
  • Choose speed before pressure — a bit running too slowly for its size will squeal and heat up. Drop the feed and raise the speed rather than leaning on the handle.
  • Store it dry and covered — a cloth over the head keeps dust out of the chuck and stops condensation forming on the column in an unheated workshop.

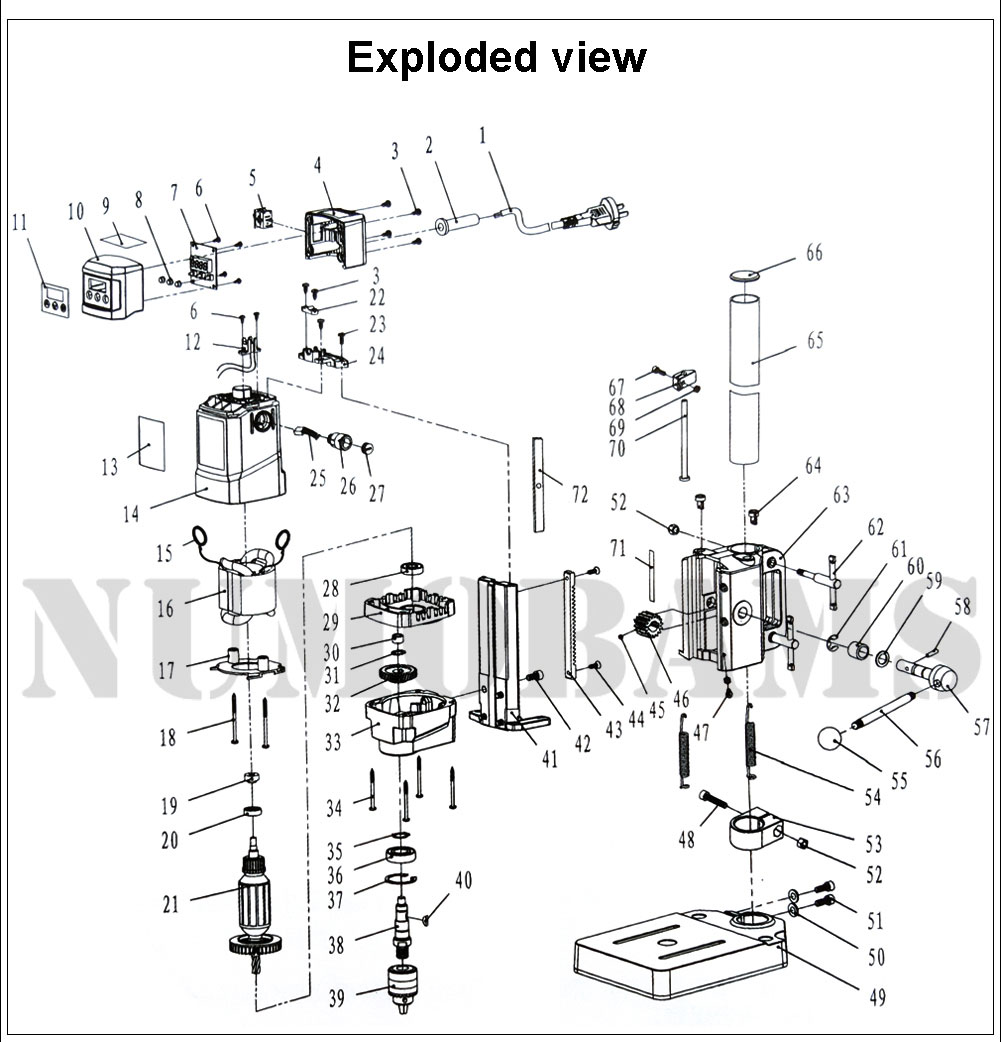

Exploded technical diagram of a mini bench drill with numbered components.

Matching Machines in the Range

If you also need to cut sideways

A bench drill only feeds vertically. For facing a plate, cutting a slot or squaring an edge you want a milling machine, and our range covers that with the Super VM25L Plus and VM25L (1100 W brushless, with an auto feeder and foot switch on the Plus) and the smaller VM18L Plus and VM18L (750 W brushless). Those machines share the same bench logic — compact, vertical, one operator — but they carry a sliding table and a spindle built to take side load.

If your work is round rather than flat

Turning is a different machine again. Our lathe range runs from the compact NU180E up to the long-bed WL800, and the drill stays useful alongside any of them for cross-holes, dowel pins and fixture plates.

What carries over

Bits, vises, clamps and a bench light are shared across all of it, so adding a mill or a lathe later does not mean starting the tool kit again. If you are unsure which machine a job actually needs, describe the part and the operation and we will tell you which one belongs on the bench.

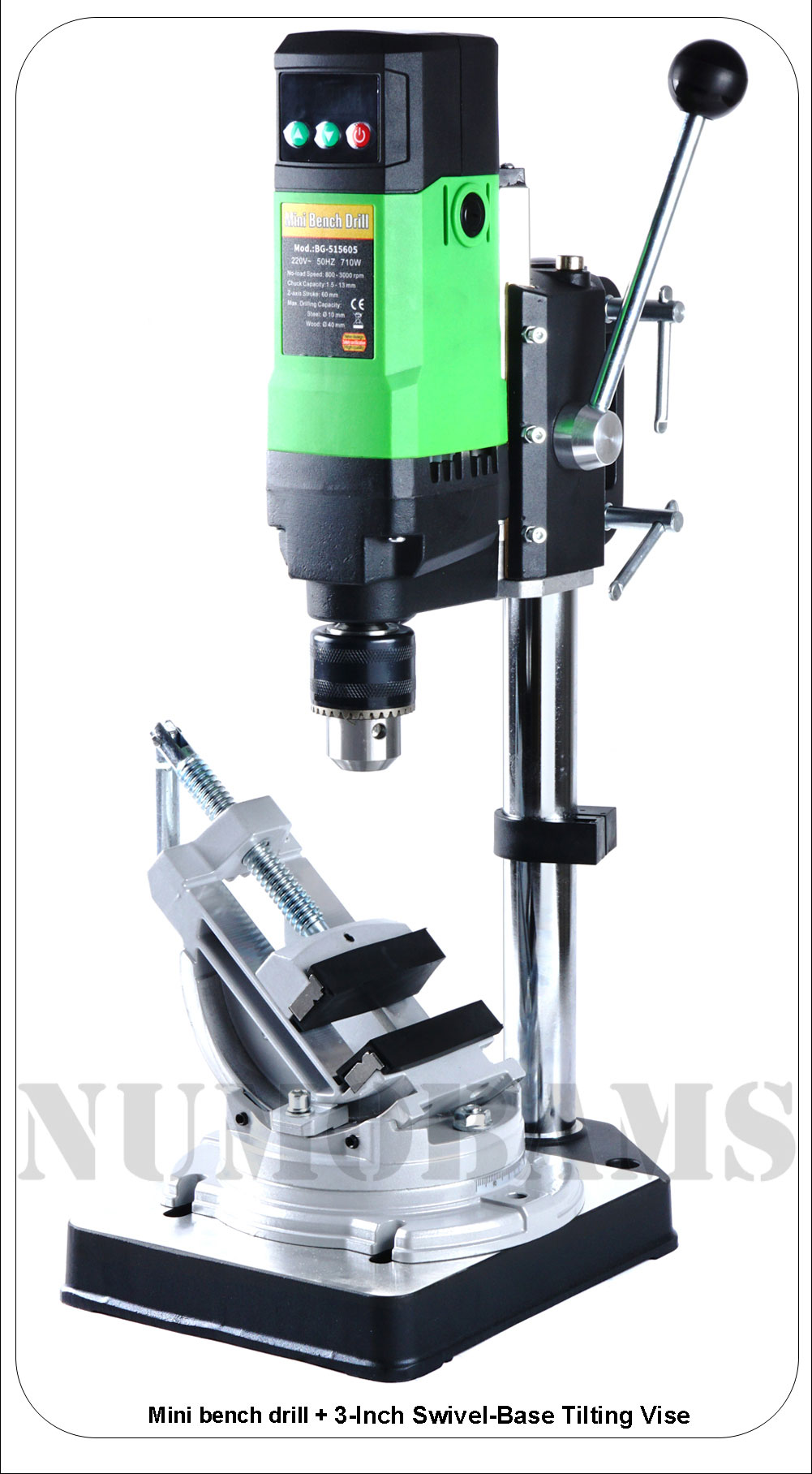

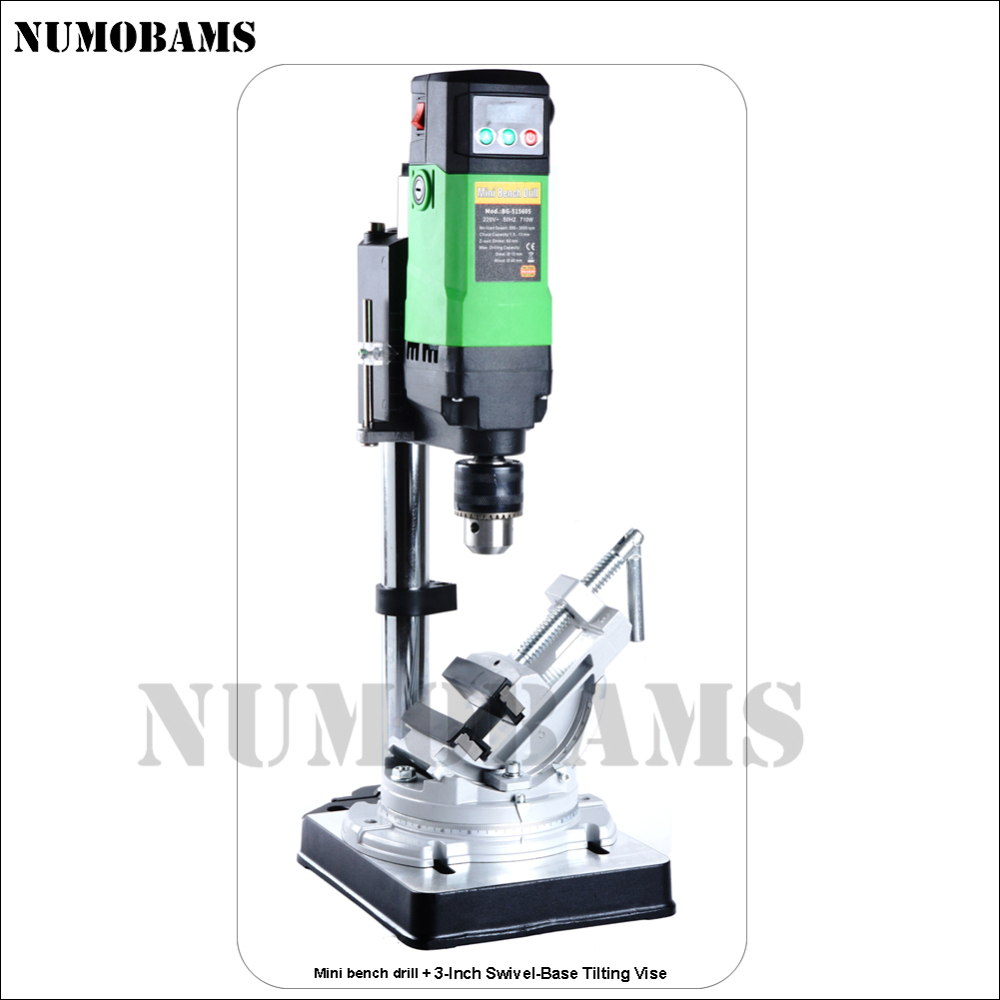

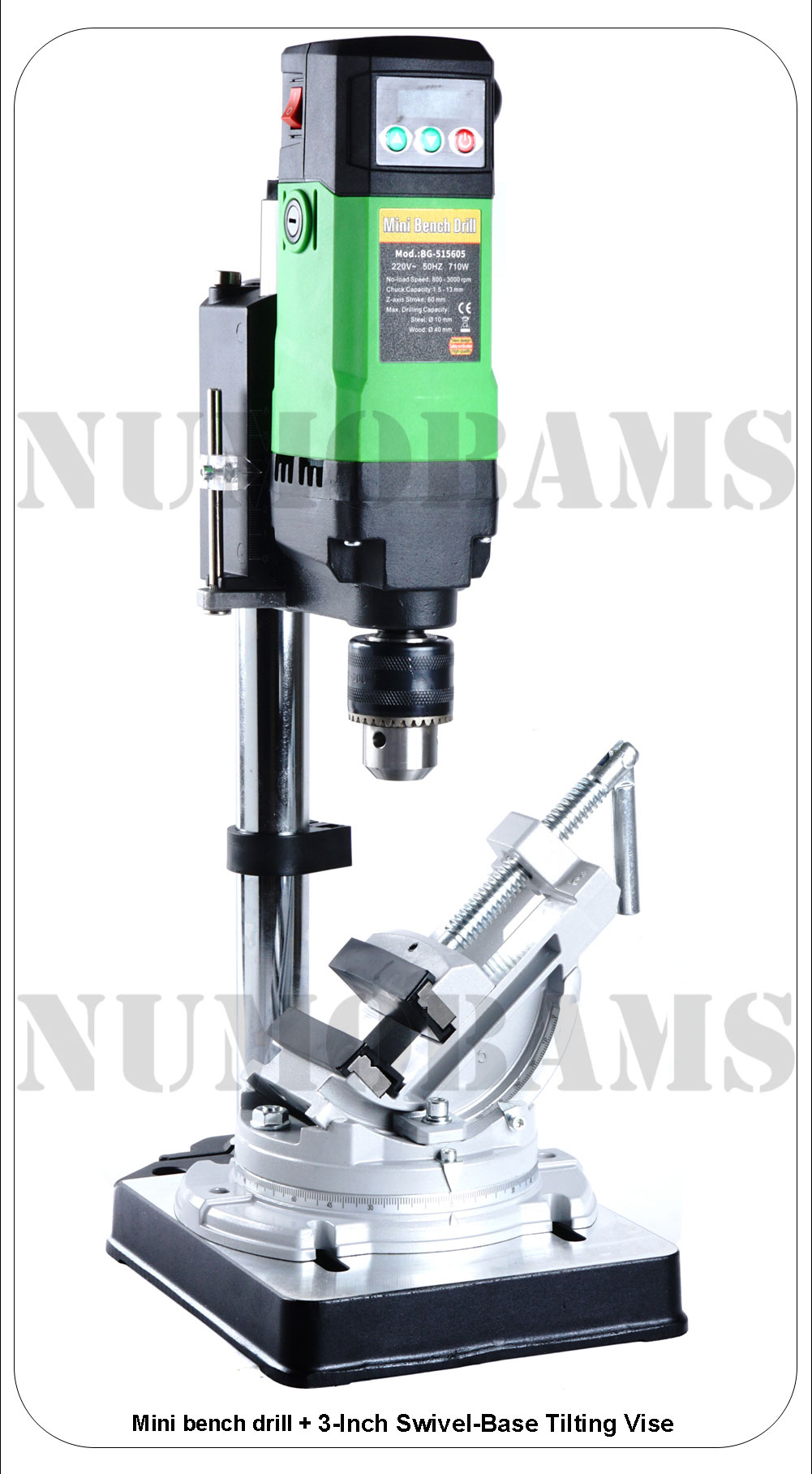

Mini bench drill with a swivel-base tilting vise.

Ordering & Delivery

  • Dispatch — we ship within 90 days of order confirmation.
  • Delivery — orders move on our tax-free, door-to-door delivery service. Established routes serve cities including Tokyo, Melbourne, Madrid, Warsaw and Los Angeles; send us your delivery address and we will confirm the route and timing that applies to it.
  • Payment — credit card or T/T bank transfer.
  • Documentation — a printed handling manual travels in the carton. If you want the exploded parts view or a spare-parts list before you order, ask our team.
  • Choosing a configuration — tell us the material, the hole sizes and whether any holes are angled, and we will confirm which of the four configurations fits the work.
  • Who you are buying from — NUMOBAMS has supplied compact machine tools built by Chinese milling machine manufacturers since 2016, and the team that prepares your drill is the same team that answers questions about it afterwards.
  • Ordering more than one machine — as milling machine suppliers we ship drills alongside mills, lathes and accessories; send the list and we will check the combination and the delivery before you commit.

Supply Chain & Delivery Assurance

NUMOBAMS is a China-based machinery trading company working from Changsha, Hunan, with a selected network of manufacturing partners built up since 2016. That position lets us consolidate a full workshop order — machines, tooling and spare parts — into one shipment, inspect and prepare each unit before dispatch, and keep spare parts available long after delivery. We ship to Europe, the US and Canada on a tax-free, door-to-door basis, and usually dispatch within 90 days of order confirmation.

FAQ

Q1. What materials can the mini bench drill work in?

Wood, plastic, light metals such as aluminium, brass and copper, and circuit board material. Jewellery blanks, model parts, brackets and PCB sampling all sit comfortably inside that list. It is a 710 W bench drill rather than a production machine: hardened steel, thick plate and heavy stock belong on a larger drill or a mill, and the 1.5–13 mm chuck sets the practical limit on bit size.

Q2. What is the difference between this bench drill and a mini milling machine?

A drill feeds straight down; a mill also moves the work sideways under a cutter. This machine has a vertical column, a lever feed and no sliding table, so it produces accurate vertical holes and nothing else. If your job needs slots, faces, shoulders or square edges, you want the mill — the table movement is the whole point of it. Many benches run both: the drill stays set up for holes while the mill handles the cutting.

Q3. Can I use it on a 110 V supply?

The machine is rated 220–230 V, 50 Hz, as marked on its data plate. On a 110 V workshop supply it needs a suitable step-up transformer rated for a 710 W motor, and that is worth confirming with us before you order rather than after the crate arrives. Tell us what your workshop supplies and we will say what is required.

Q4. Do you offer custom builds, different colours or other voltages?

We supply this drill as a standard machine in four configurations: on its own, with the mini multi-function cross vise, with the 3-inch swivel-base tilting vise, or with both. That covers most benches. If your work needs something outside the standard build, tell us the material, the hole sizes and the operation, and our technical team will confirm what is possible before you commit to an order.

Q5. The drill is running hot or sounding rough — what should I check?

Switch off first. Most of the time it is a chip caught in the chuck jaws, a bit that is too large for the speed you set, or feed pressure that is too heavy for the material. Clear the chuck, check the bit is seated in more than one key position, and drill with a lighter feed at a higher speed. If the noise continues with an empty chuck and no load, send us a short video and we will work through it with you.

Q6. What comes in the carton with the drill?

The machine itself, the chuck key, a set of hex keys, fastening screws for the base and a printed handling manual. Bits are chosen to suit your work, so pick them from the 1.5–13 mm straight-shank range the chuck accepts — tell us the sizes you use most and we will check them against the machine's speed range.
