| Specific Parameter | ||
| Specification | M2 Pro | M3 Pro |
| Max drilling dia | 20mm | 13mm |
| Max milling dia | 20mm | 13mm |
| Max tapping dia | M8 | M8 |
| Spindle speed | 3000rpm | 12000rpm |
| Spindle center to column distance | 194mm | 200mm |
| Spindle nose to table distance | 215mm | 215mm |
| Spindle taper | ER25 | ER20 |
| T-slot size (N*X*D | 3/12/40mm | 3/12/40mm |

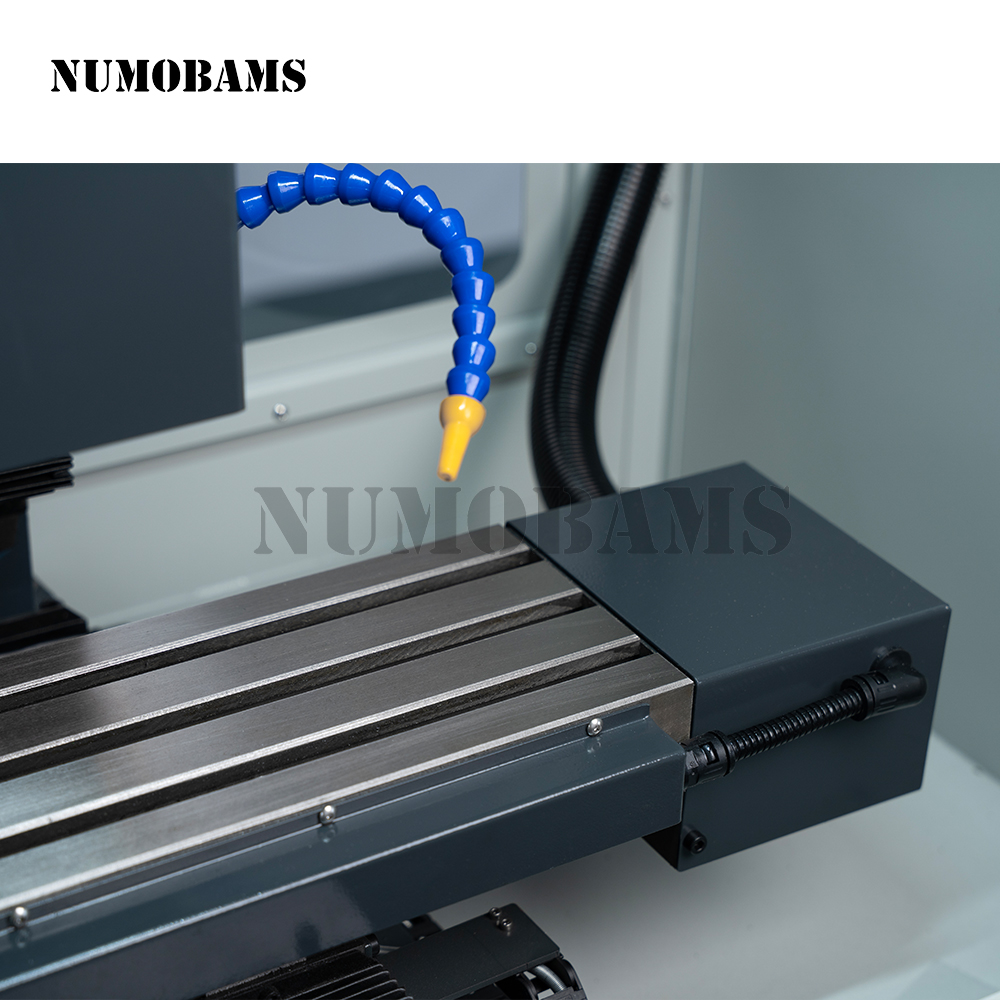

| Worktable size | 400*140mm | 400*140mm |
| X axis travel | 220mm | 220mm |
| Y axis travel | 120mm | 120mm |
| Z axis travel | 200mm | 200mm |
| Main motor power | 1KW | 2.2KW |
| Main motor type | Servo motor | Frequency motor |
| Feeding motor torque | 2.0/2.0/3.0N.m | 2.0/2.0/3.0N.m |
| Feeding motor type | Stepper motor with close loop, Z axis with brake |
Stepper motor with close loop, Z axis with brake |

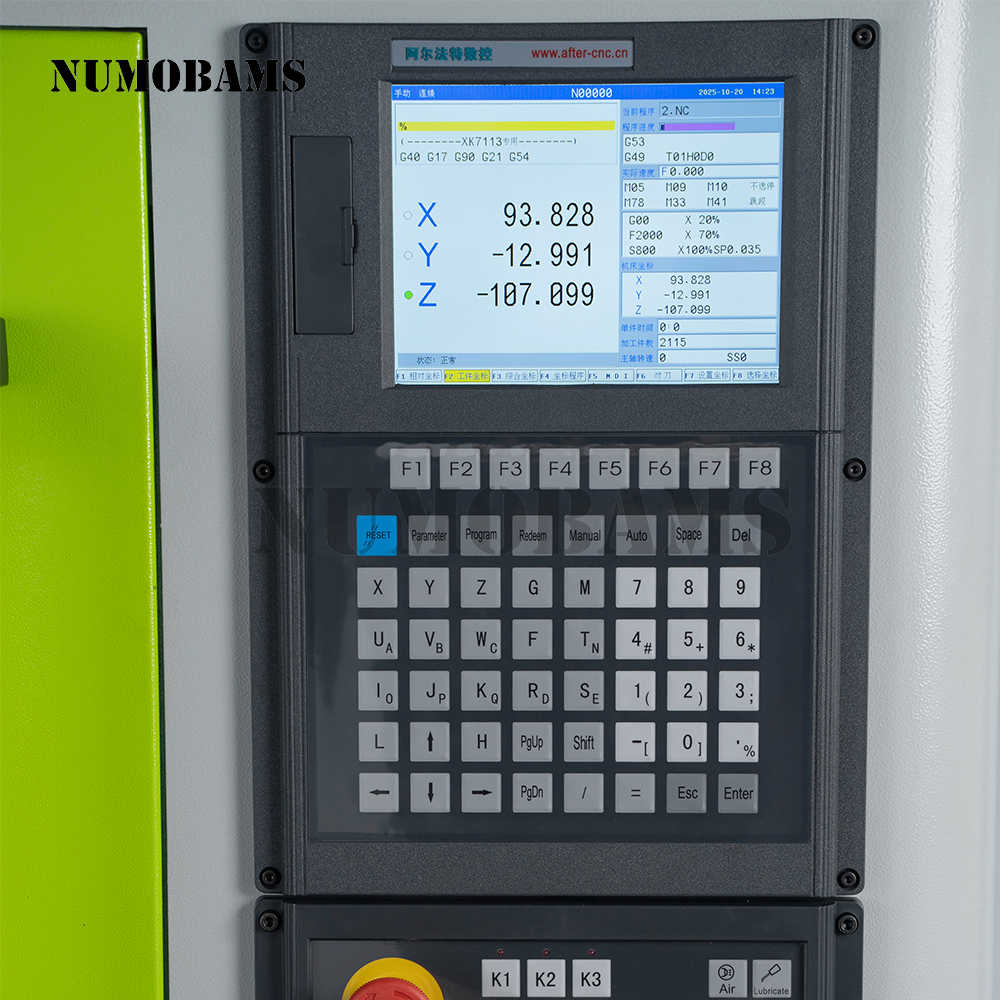

| Controller system | After/GSK/SINUMERIK | After/GSK/SINUMERIK |
| Overall size (L*W*H) | 1100*600*1680mm | 1100*600*1680mm |
| N.W/G.W | 260 KG/290 KG | 260 KG/290 KG |
Features
1) High Accuracy
Assembled from over 1,000 precision components to ensure you get a robust and stable machine.
2)Spindle & Bearings
The direct-drive spindle for turning-milling composite machining is equipped with angular contact bearings
• Ultimate Stability: High-precision angular contact bearings with preload.
• Direct Power: Zero-loss torque delivery for instant response.
3）Silent Motor
• 3000+ RPM Motor with Rigid Tapping
• Quiet 50 dB Operation for a Comfortable Environment
4）Guides & Screws
• Precision Ball Screws: For accurate, efficient motion transfer.
• Dual-Row Linear Guides: For enhanced load capacity and smooth, rigid movement.

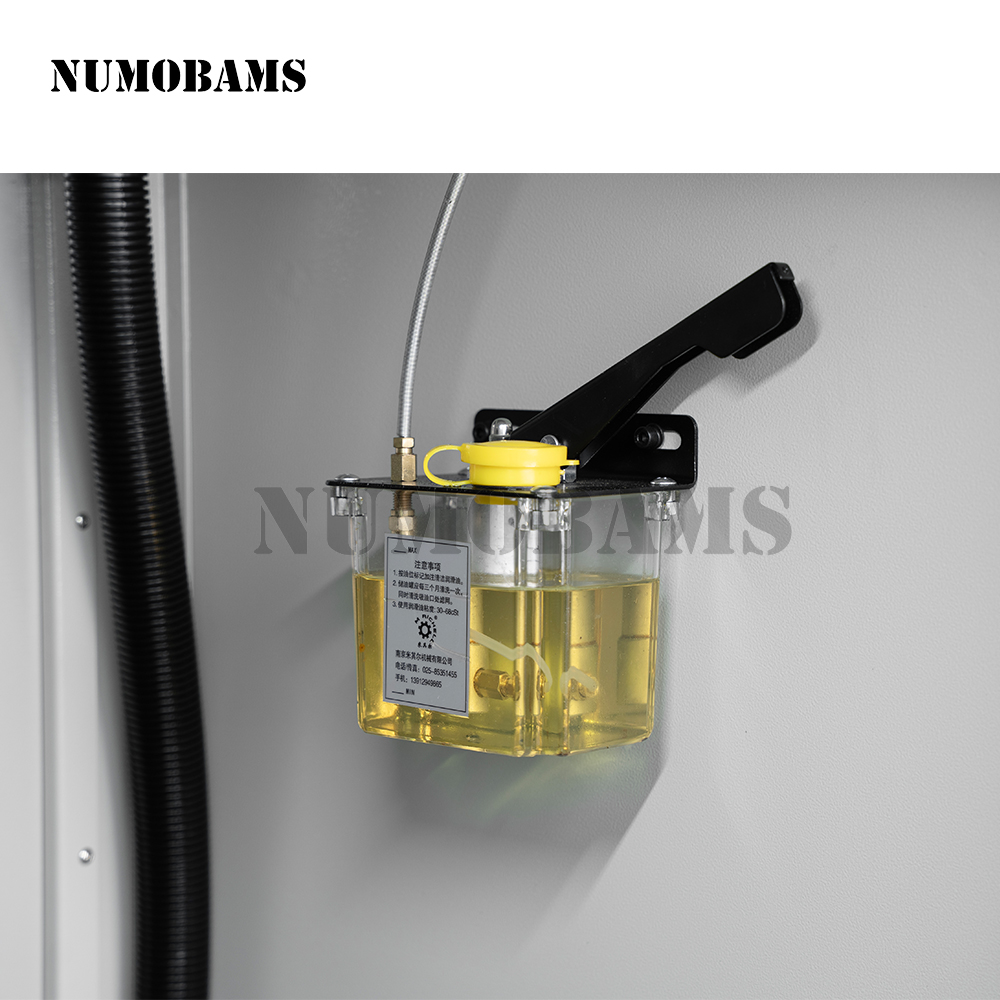

5) Automatic Lubrication System
• Ensures consistent, optimal lubrication
• Extends component lifespan
• Reduces manual maintenance
6）Drag Chain Cable Management
• Protection: Guards cables against wear and impact.
• Organization: Keeps lines tidy and service-friendly.
• Durability: Built for long-term reliability in harsh conditions.
