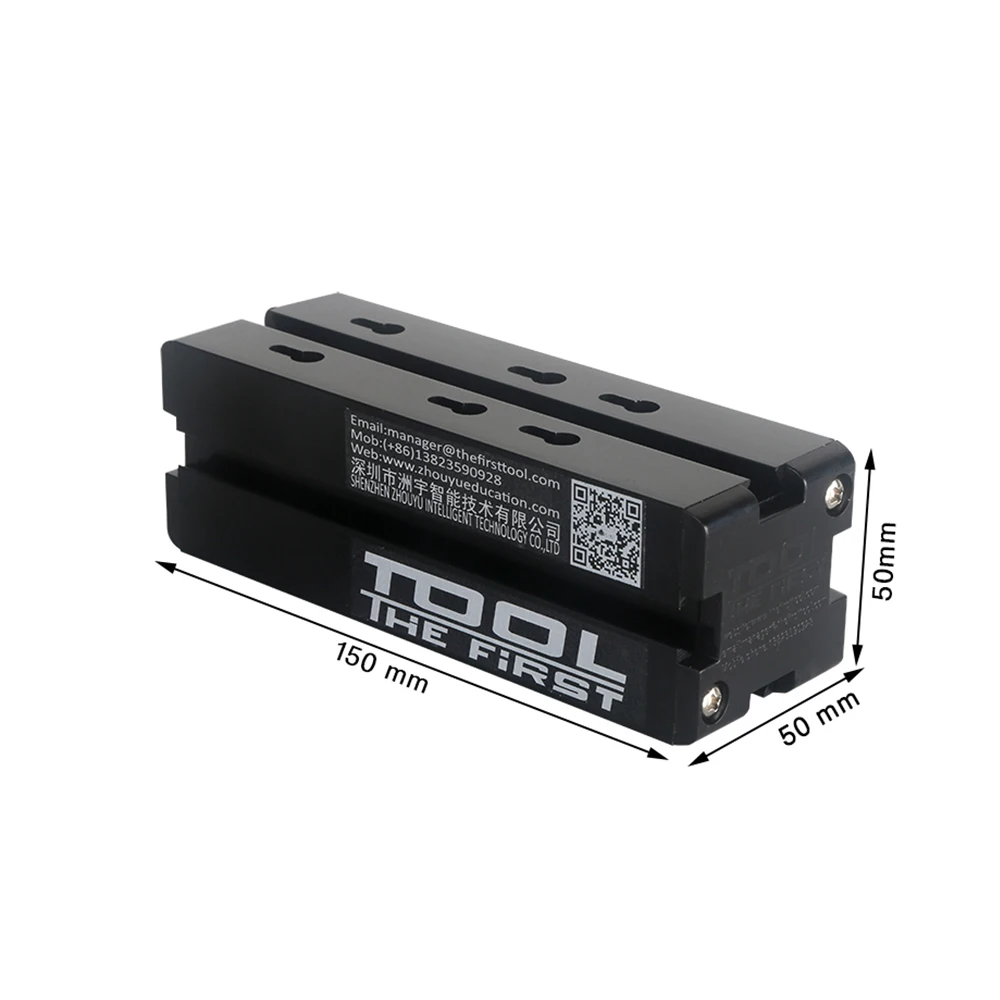

Z003B Short Machine Bed/Small engine base/150x50x50mm short basement/Zhouyu Accessory

Z003B Short Machine Bed

Suitable for All Type DIY Mini Machine

Item No.:Z003B

Size:150x50x50mm

Material:Aluminum alloys

Weight:0.3kgs

Color:Black

Usage:Fixed main shaft, tailstock, large sliders, etc.



Foundational Component for Modular Assemblies
The Z003B Short Machine Bed is the structural backbone designed for hobbyists and educators building a customized diy metal lathe. Measuring 150mm x 50mm x 50mm, this block acts as the critical connection point for various machine modules, such as headstocks, tailstocks, and central blocks. Unlike static, pre-cast tools, this modular component offers the flexibility to configure the machine's length and layout according to specific project requirements. It is specifically engineered to provide a flat, stable platform that ensures the precise alignment of rotational axes. By utilizing this short bed, users can create compact setups or extend existing machines, making it an indispensable part of the Zhouyu ecosystem. Its presence transforms a collection of parts into a functional machine tool, bridging the gap between educational models and light industrial equipment.

Precision Engineering and Material Specifications
Manufactured from high-grade zinc alloy or aluminum (depending on the specific series configuration), the Z003B offers the mass and density required to dampen vibrations during operation. This rigidity is a non-negotiable feature for any metal lathe machine, even at a desktop scale, as it directly influences the surface finish of the machined part. The bed features precision-milled dovetail slots and standardized connection holes that ensure 100% compatibility with "The First Tool" modular system. The surface tolerance is strictly controlled to maintain parallelism, preventing angular errors that could degrade machining accuracy. This level of manufacturing precision reflects the standards of a professional lathe machine manufacturer, ensuring that the component withstands the mechanical stresses of turning, drilling, and milling without deformation.

Educational and Light Industrial Applications
In the realm of technical education and rapid prototyping, the Z003B serves a vital role by simulating industrial assembly processes on a manageable scale. It allows engineering students to understand machine kinematics and structural rigidity without the safety risks associated with full-sized equipment. The component's versatility allows it to be repurposed; a setup used as a benchtop metal lathe today can be reconfigured into a milling base tomorrow using the same Z003B block. This adaptability maximizes the value for institutions and workshops with limited budgets. For lathe machine manufacturers supplying the STEM market, this product represents a durable, reusable building block that empowers users to learn through hands-on construction, fostering a practical understanding of mechanical engineering principles.


Product Advantages

Superior Modularity and Interconnection
The defining advantage of the Z003B is its universal interconnectivity, which is essential for assembling a versatile diy metal lathe. The block features a standardized dovetail locking mechanism that allows it to join seamlessly with the Z003 Long Machine Bed or function as an independent base for smaller sub-assemblies. This design logic is superior to fixed-bed architectures because it grants the user total control over the machine's footprint. Whether extending the Z-axis to accommodate longer shafts or creating a gap-bed configuration for larger diameters, this component provides the necessary structural continuity. It eliminates the limitations found in static kits, empowering users to modify their equipment as their machining skills evolve, a flexibility rarely offered by traditional lathe machine manufacturers.

Enhanced Structural Rigidity and Stability
Stability is paramount when reducing the scale of a metal lathe machine, and the Z003B addresses this through its solid-state construction. Unlike hollow plastic alternatives or lightweight extrusions often found in toy kits, this solid metal block resists the torsional and lateral forces that occur during metal cutting. The geometric design includes reinforced mounting points that prevent thread stripping, ensuring a secure hold even after repeated assembly and disassembly. By lowering the center of gravity when used as a base extension, it significantly enhances the stability of the entire benchtop metal lathe setup. This rigidity translates directly to improved performance, resulting in less chatter and smoother cuts on materials like brass and aluminum, ensuring professional-grade results in a micro-workshop.

Geometric Accuracy and Manufacturing Quality
As a core product from a specialized lathe machine manufacturer, the Z003B undergoes rigorous quality control to ensure high geometric accuracy. The flatness and orthogonality of the block are machined to tight tolerances, ensuring that when multiple blocks are connected, they form a perfectly straight line. This is critical for maintaining the concentricity of the spindle and tailstock, which is the heart of lathe accuracy. A generic block might introduce angular deviations, but this specific accessory guarantees alignment. This precision elevates the capability of the assembled machine, allowing it to hold tighter tolerances on small parts. For the end-user, this means the difference between a wobbly, inaccurate model and a functional tool capable of creating precise mechanical components.


Use Scenarios

STEM Classroom and Vocational Training
In high school or vocational college settings, instructors use the Z003B as a fundamental teaching aid for mechanical assembly and design. Students are tasked with building a benchtop metal lathe from the ground up, starting with the bed alignment using the Z003B. This component allows them to physically manipulate the machine's length and understand how bed rigidity affects cutting performance. In this safe, controlled environment, learners can experiment with different machine configurations—switching from turning to drilling setups—using the same base blocks. This hands-on experience with modular components demystifies complex machinery. The durability of the Z003B ensures it withstands repeated use by hundreds of students, making it a cost-effective investment for educational programs aiming to replicate the workflow of a real metal lathe machine.

Home Workshop and Model Making
For the dedicated model maker creating miniature steam engines or RC vehicle parts, space is often at a premium. The Z003B allows the construction of a custom diy metal lathe that fits perfectly on a small desk while offering the rigidity needed to cut soft metals. A user might use the Short Machine Bed to create a specialized setup for turning tiny bushings or axles where a standard long bed would be cumbersome. This component allows the hobbyist to adapt their tool to the specific size of their project. Unlike mass-market tools with fixed dimensions, utilizing the Z003B enables the creation of a "just-right" machine. This specific application highlights the component's value in enabling precision work in a micro-workshop environment, rivaling the utility of larger equipment from mainstream lathe machine manufacturers.

Engineering Prototyping and Testing
In an engineering prototyping lab, speed and adaptability are crucial for validating designs. Engineers often need to modify fixtures or create temporary machining setups to test a specific part geometry. The Z003B Short Machine Bed serves as a versatile fixture block in this context. It can be quickly deployed to extend a metal lathe machine setup for an unusually long shaft or used as a riser block for a customized milling operation. Its standardized slots allow for the rapid mounting of sensors or custom tooling plates. This flexibility allows the lab to solve unique machining problems without waiting for custom fabrication of heavy tooling. It transforms the modular machine into a rapid-response manufacturing cell, proving that even small-scale components play a vital role in professional engineering workflows.
