Home > 65320 4 Inches Mecanum Wheel Set

1/1

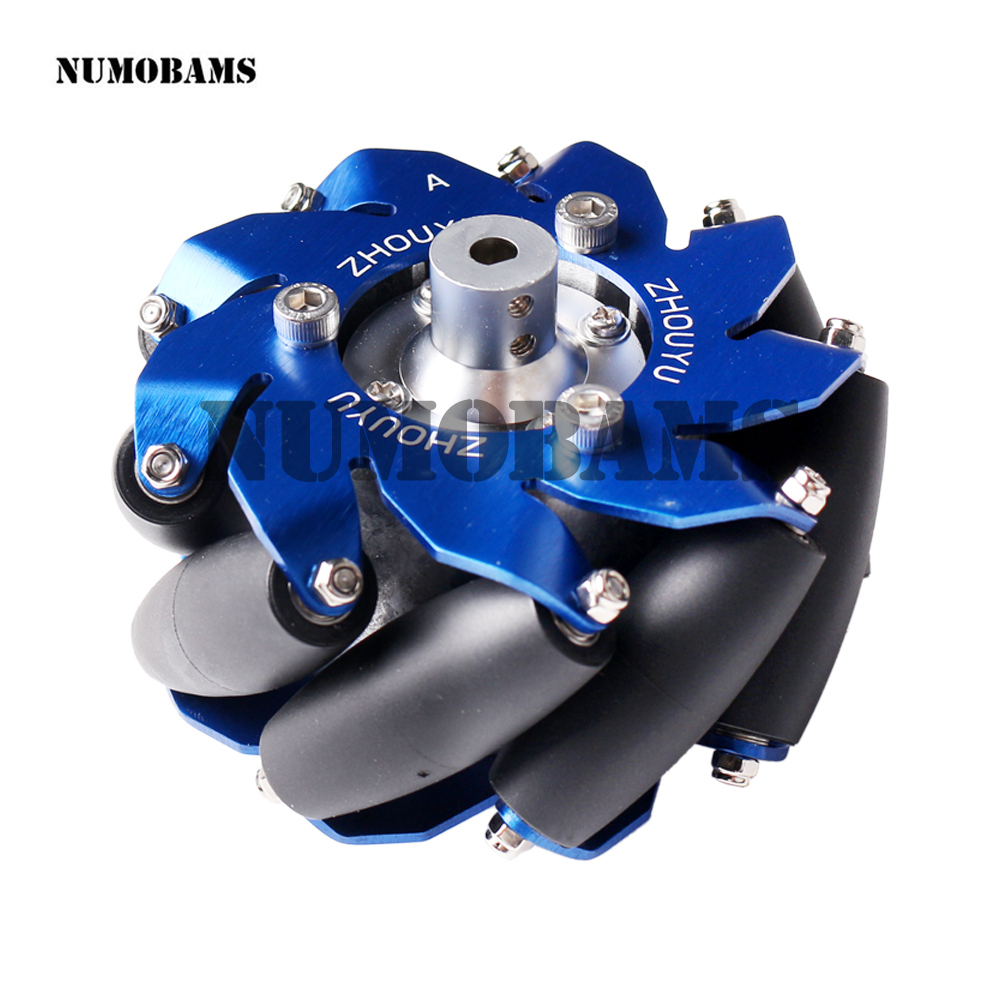

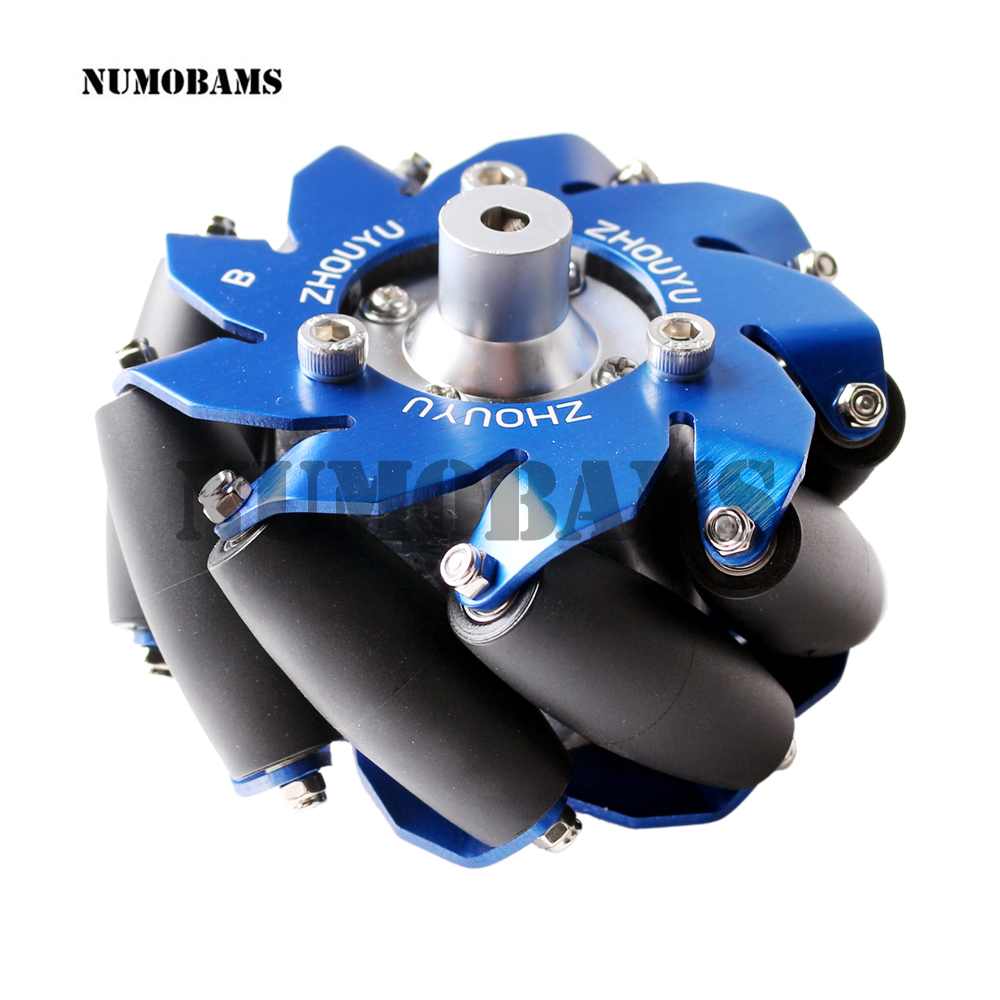

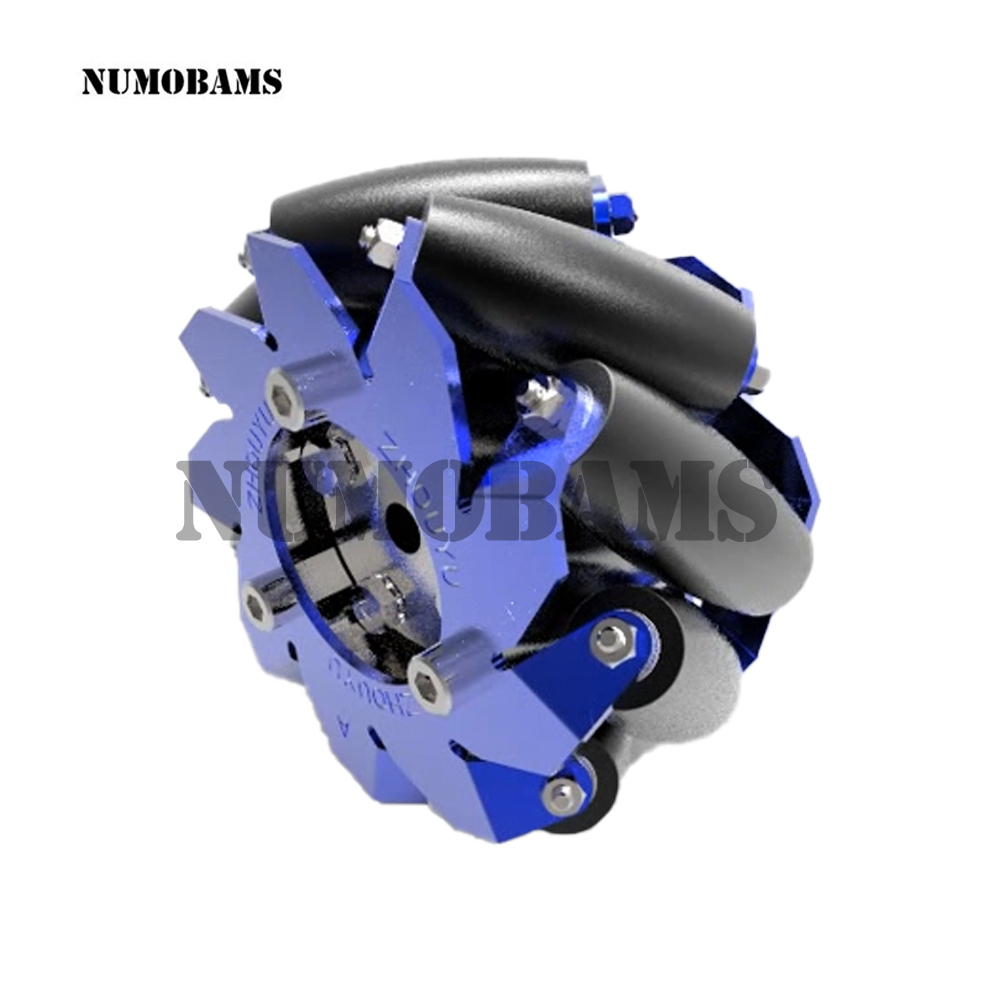

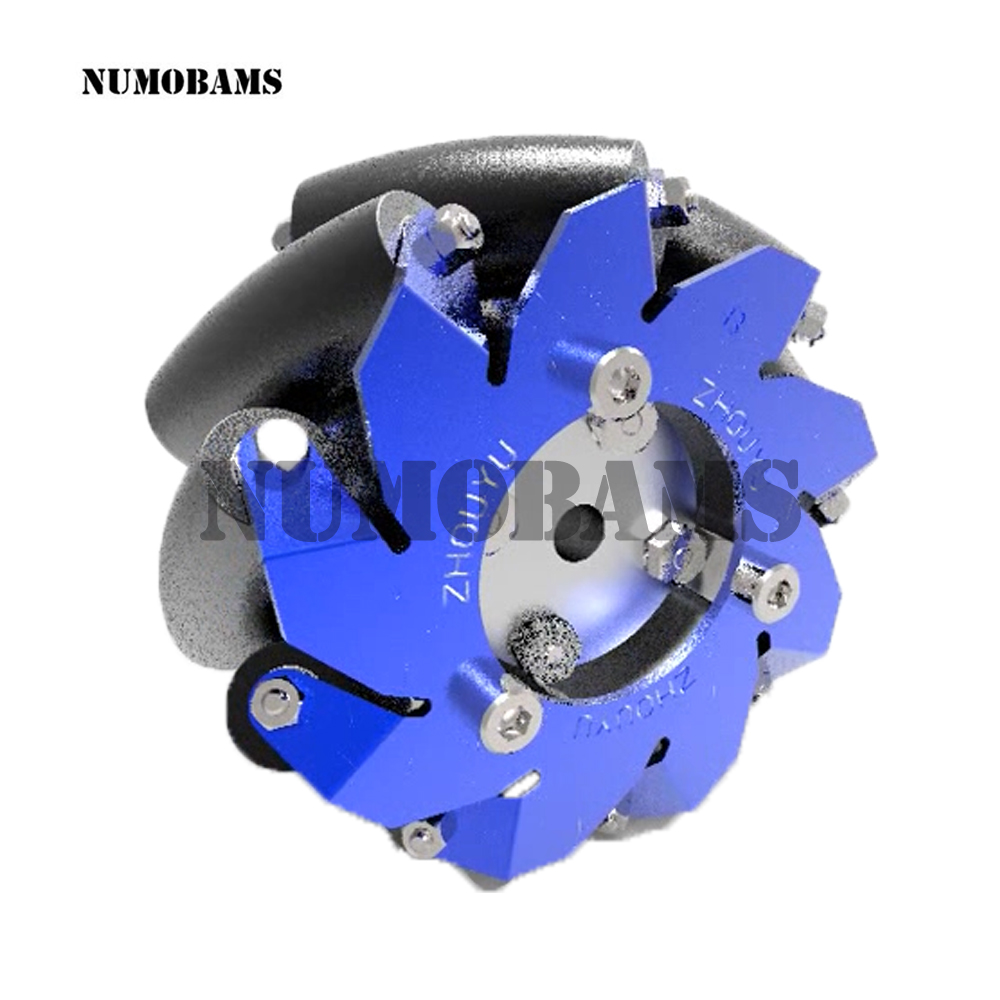

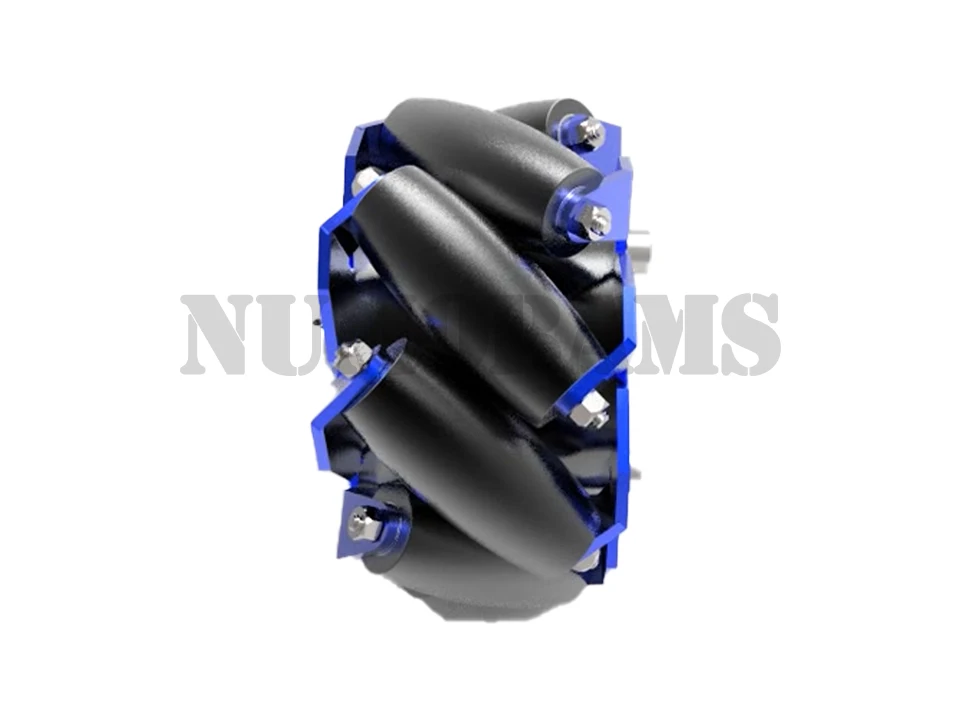

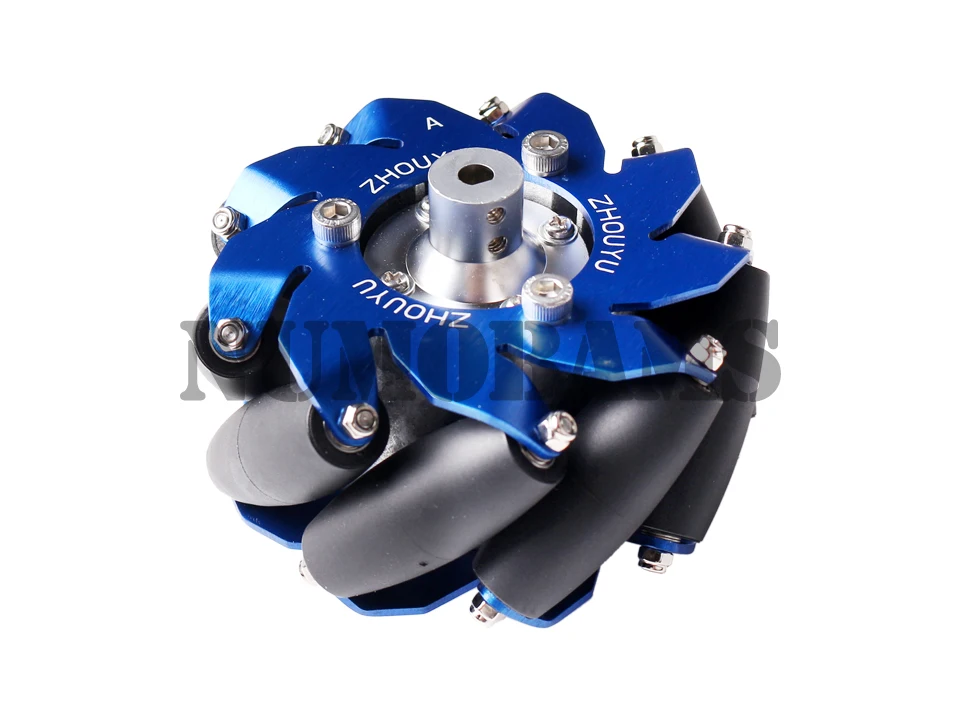

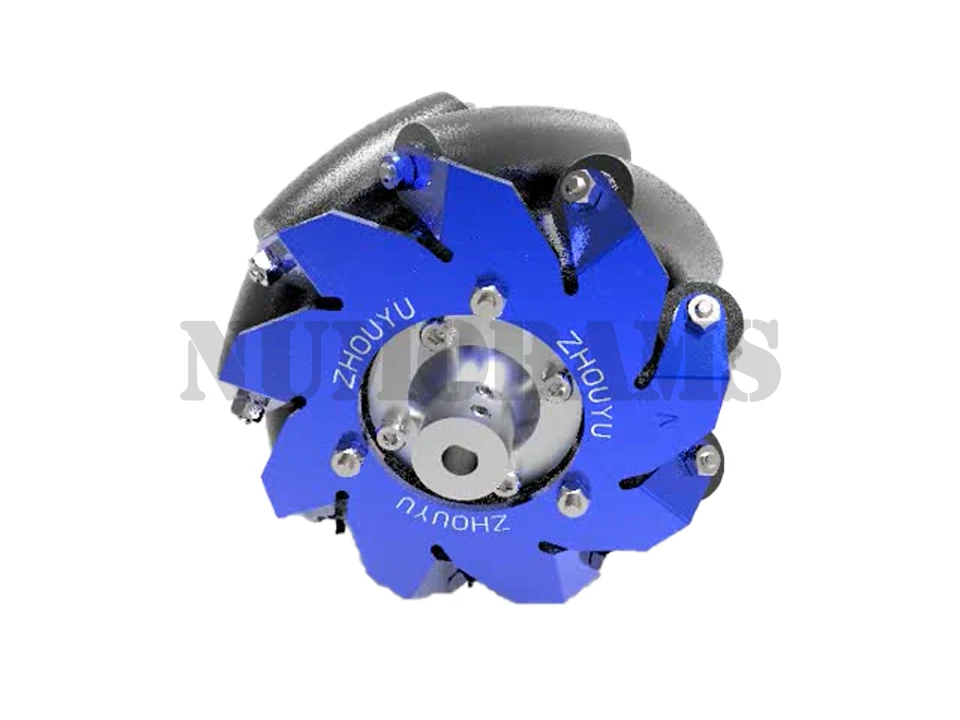

65320 4 Inches Mecanum Wheel Set

Name: 65320 4 Inches Mecanum Wheel Set
Brand: NUMOBAMS
Price: 173.58 USD
Availability: InStock

0.0 (0)

0 Sold

$1,180.00 ~~$1,400.00~~

4" High-strength Aluminum Vehicle Roller for Robot Accessory

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

1/1

Description

Description

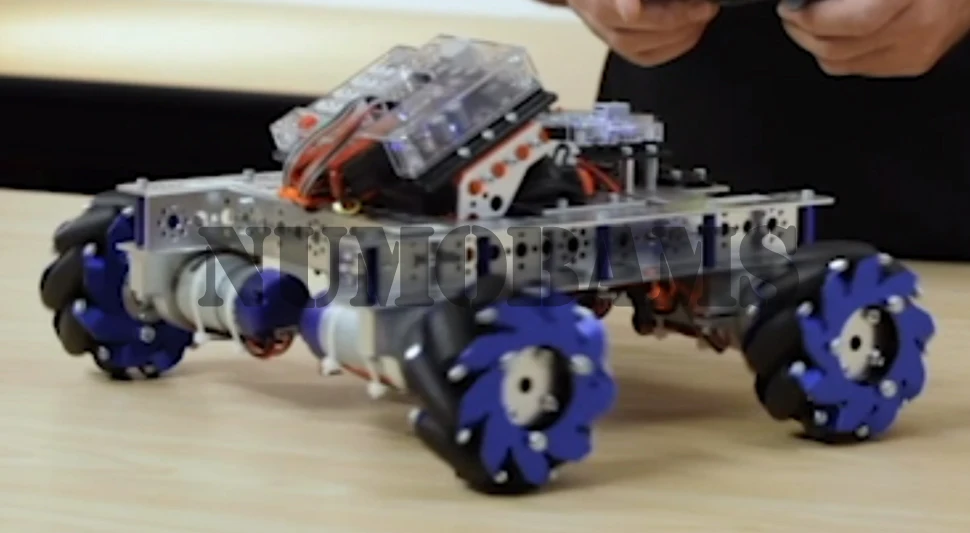

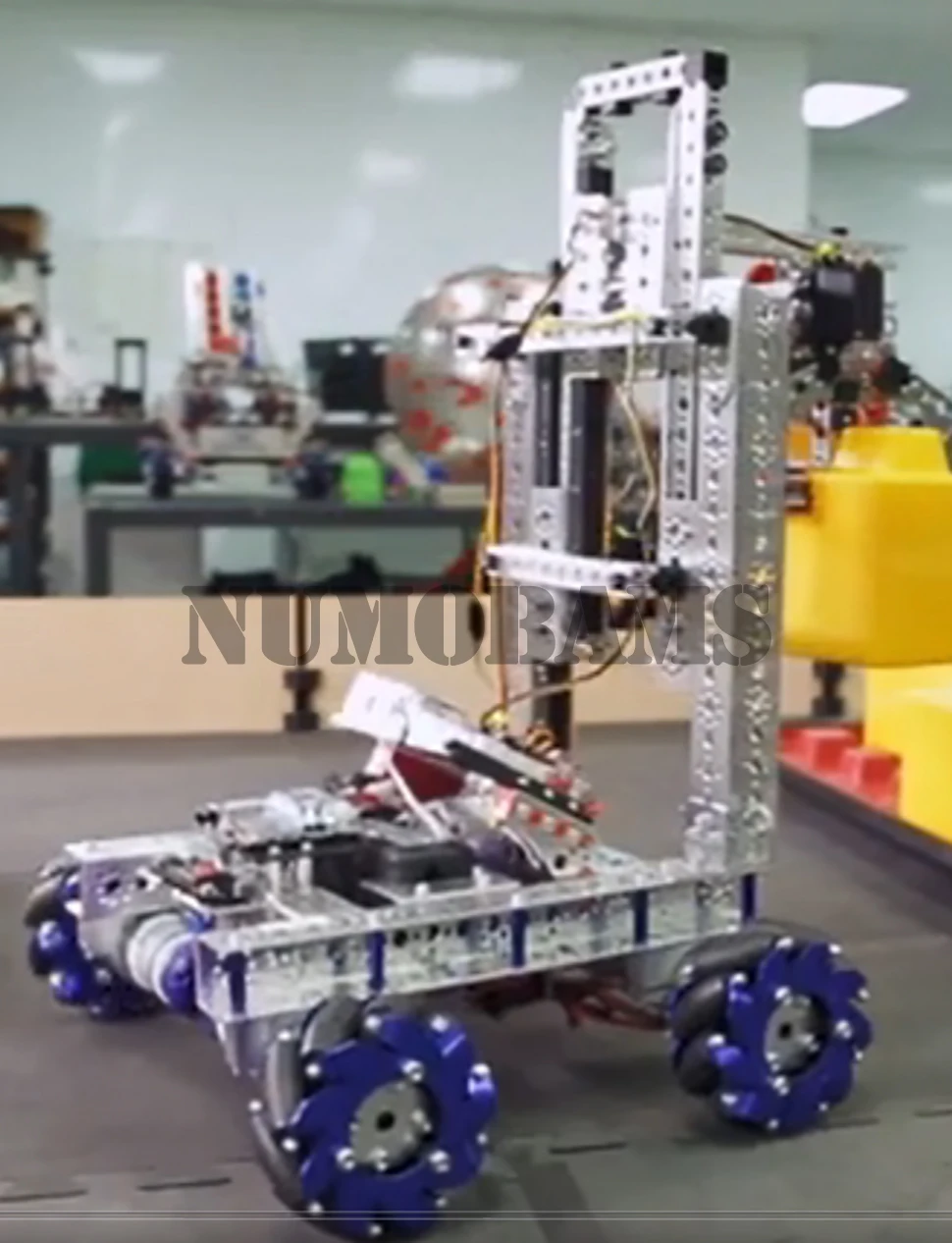

Increase the maneuverability of your zhouyu MAX robot with our Mecanum wheels! These wheels are designed to use four motors each controlling one wheel, so now your robot can move at any angle without turning and with smoother motion using holonomic behavior. Aligning with the zhouyu hole pattern, the wheels come fully assembled, including the hub, and are a breeze to attach to your zhouyu MAX robot.

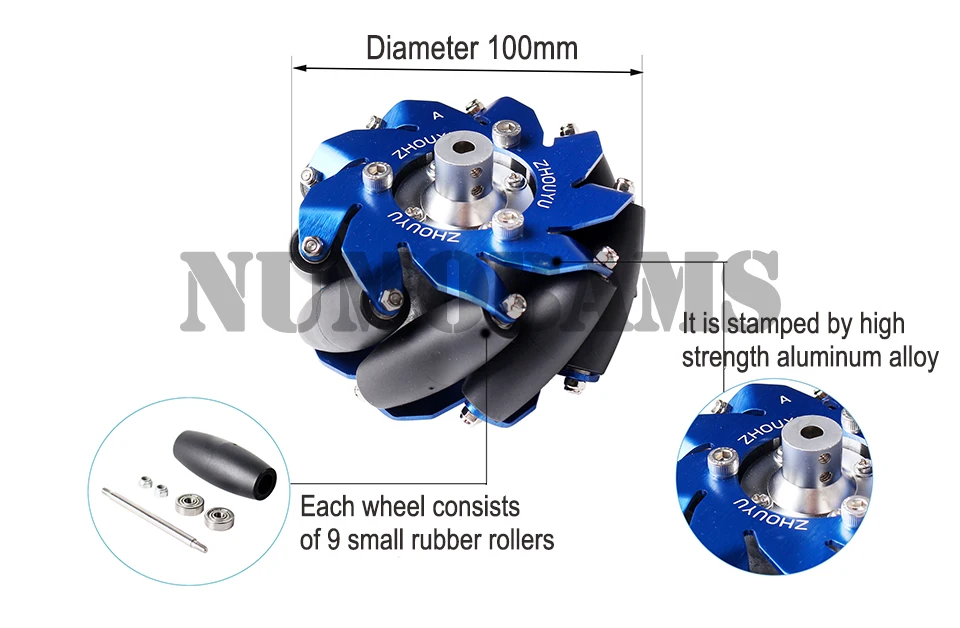

Made of a durable Delrin plastic inner core, high-strength blue anodized aluminum roller plates, a metal inner roller core, and molded-on rubber outer roller, all built on steel roller pins, these Mecanum wheels are made for intense competition. You can confidently support a 65-pound robot when four of the zhouyu Mecanum Wheels are used as drive wheels,Besides, these rollers are mounted with ball bearings, contributing to capable of moving.
Hubs feature a 6 mm D-shaft compatible with the zhouyu MAX TorqueNADO® Motor and zhouyu 6 mm Axles.

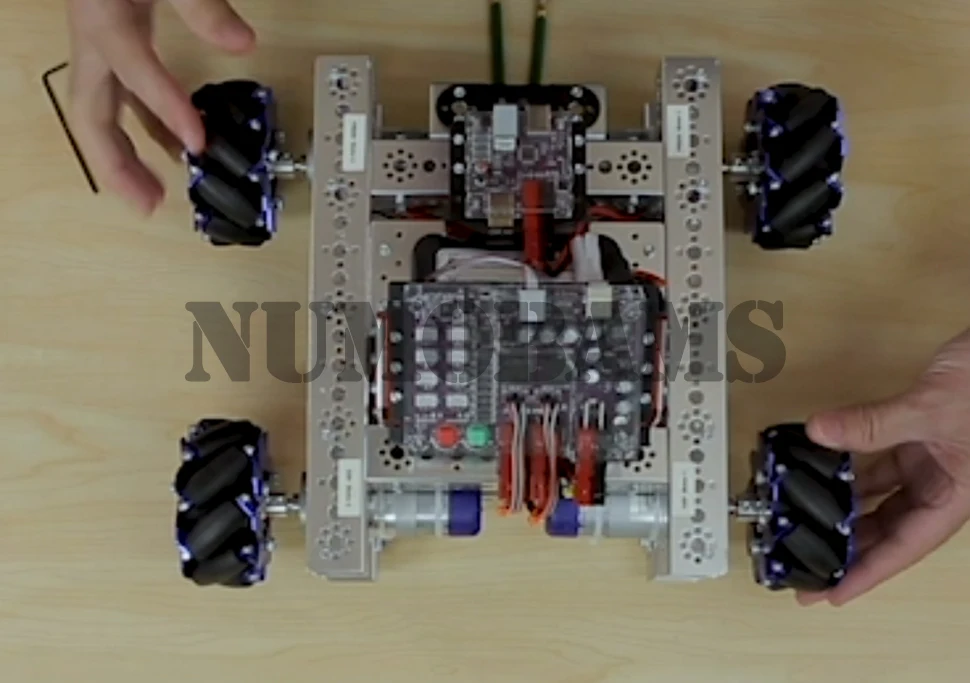

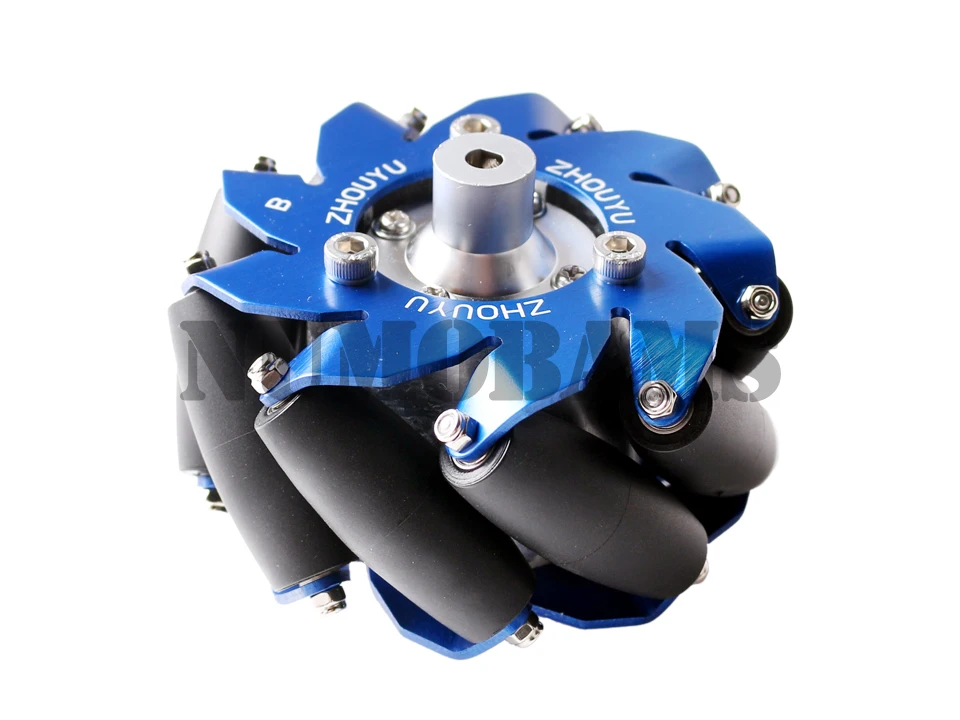

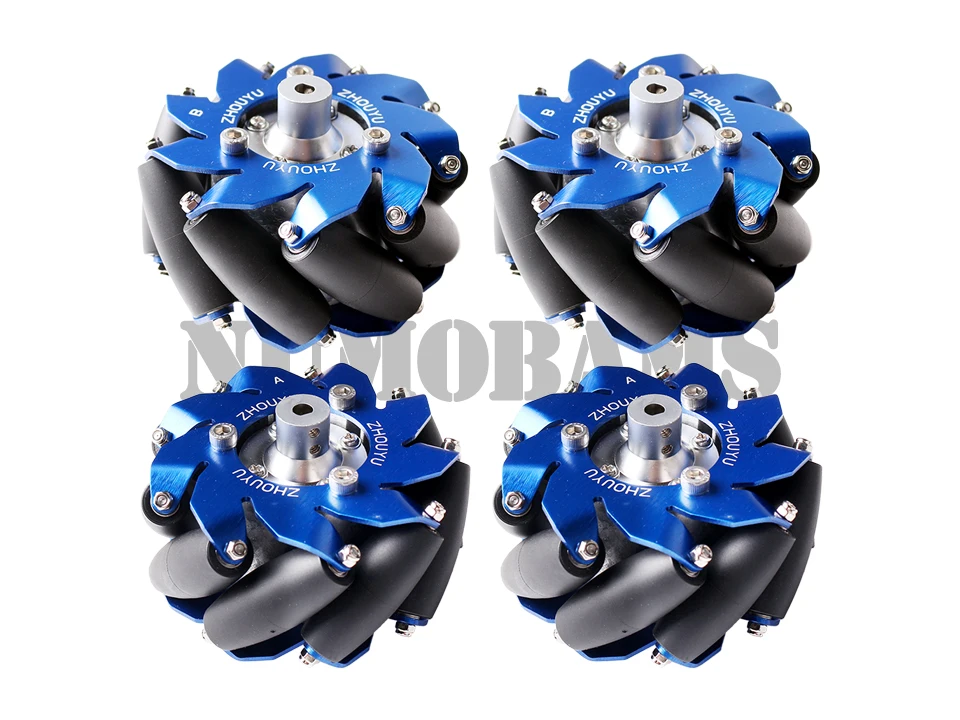

Primarily used as drive wheels, the full set consists of two A wheels and two B wheels and should be configured in an X pattern (A on front left and rear right and B on front right and rear left) when your robot is viewed from above. If you are looking for replacements or alternative uses such as a launcher, the single Mecanum wheels might be the right option for your robot.

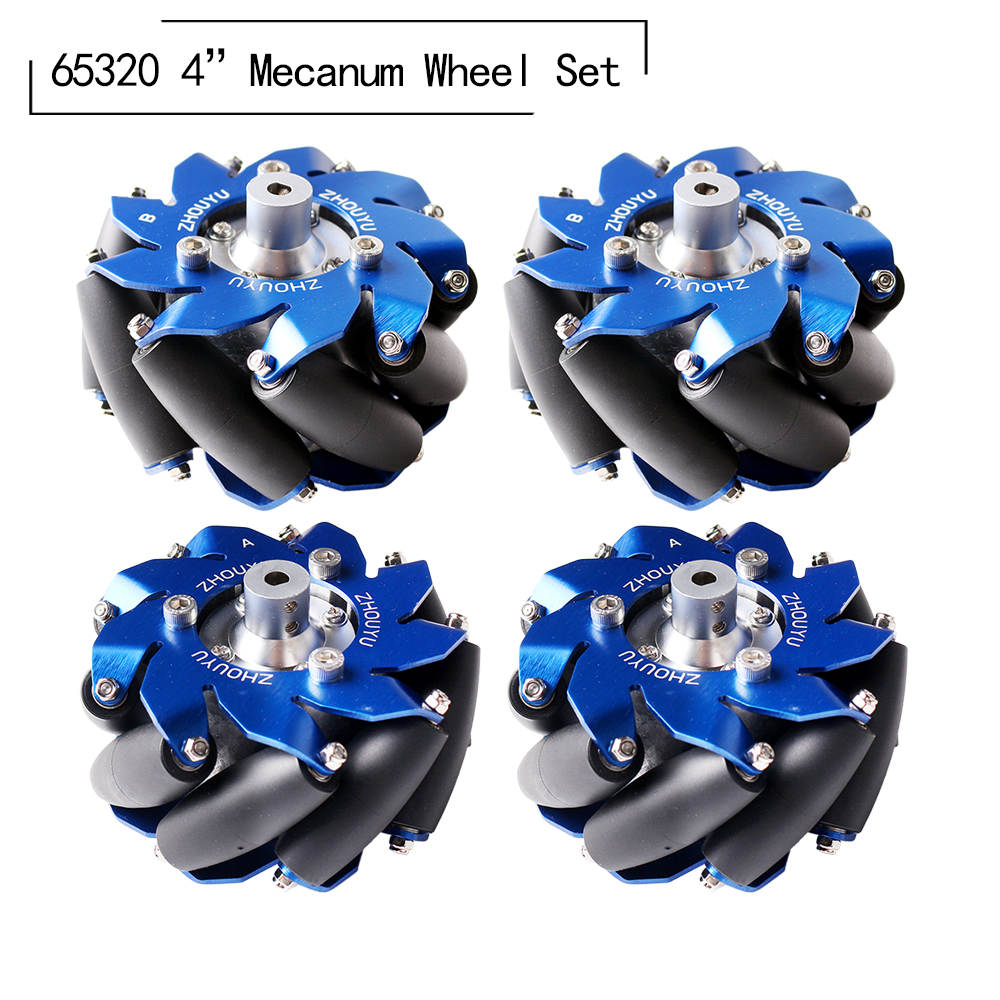

What you will get
Two left mecanum wheel
Two rigth mecanum wheel
Four 6mm Mecanum wheel coupler

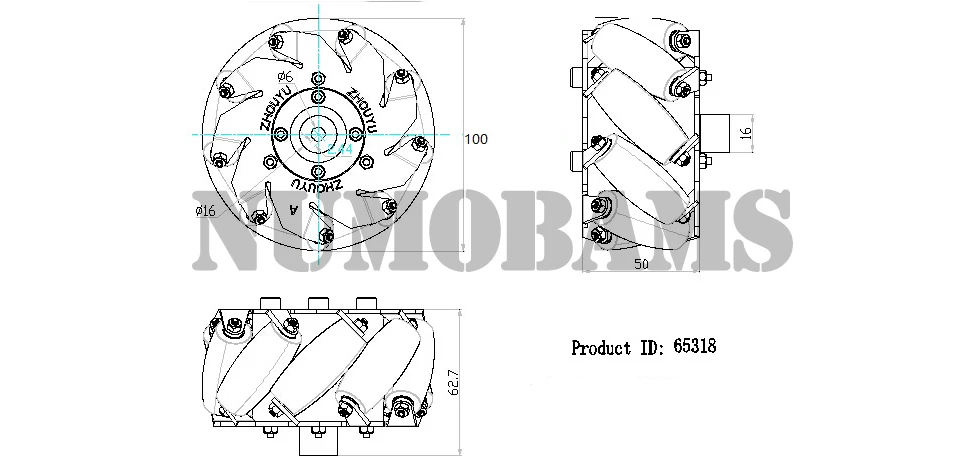

Specifications

Number of Rollers: 9 per wheel
Number of Plates: 2 per wheel
Roller Material: Neoprene rubber
Body Material: High-strength aluminum
Weight: 350 g per wheel and hub
Diameter: 98 mm per wheel
Width: 50 mm per wheel (plate to plate)
Nominal Length of Roller: 48mm
Load Capacity: 65 lb
