  • Description

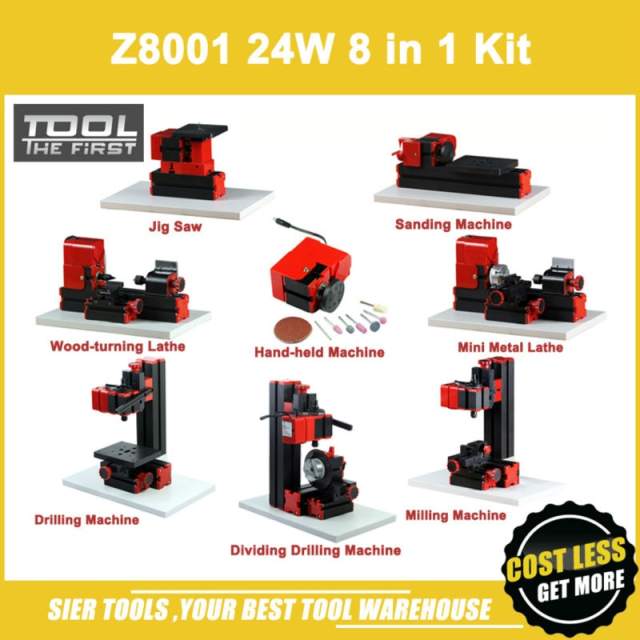

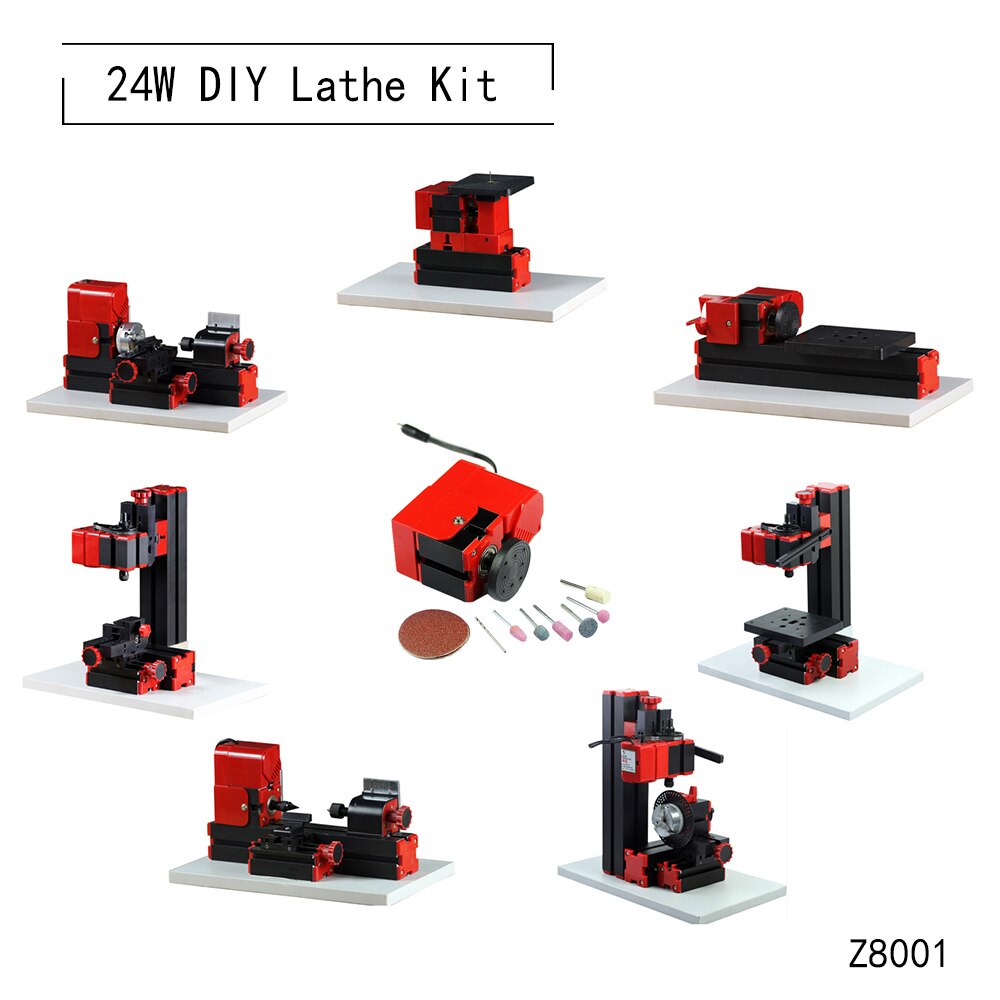

Z8001 8 in 1 Mini Lathe Kit






A.Wood-turning Lathe:



Feature:

1.Softwood,hardwood can be processed.

2.Workpieces can be clamped by three-jaw chuck or collets(1-6mm),center height-25mm, distance between center-135mm.

Motor and gear are made of metal


Technical parameters:

1.Motor speed:20,000rpm

2.Input voltage/current/power:12VDC/2A/24W

3.Maximum working material diameter:45mm

4.Working material length:135mm

5.Working material:wood,engineering plastic,soft metal(copper,aluminum etc.)

6.The transformer has over-current protection,over-voltage protection,over heating protection.

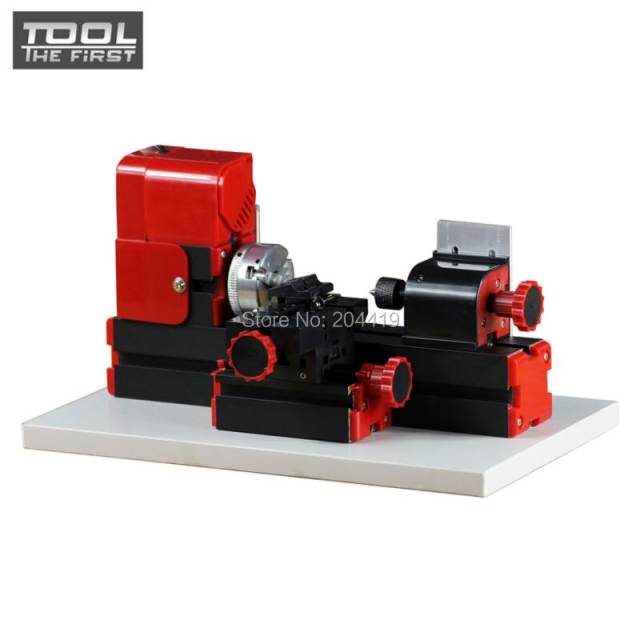

B.Mini lathe:



Feature:

Working material:wood,and engineering plastic,soft metal etc.Machine color is made up of red and black.



Motor blade and gear are made of metal



Technical parameters:

1.Motor speed:20,000rpm

2.Input voltage/current/power:12VDC/2A/24W

3.Maximum working material diameter:20mm

4.Working material length:135mm

5.The transformer has over-current protection, over-voltage protection,over heating protection.

Certificate Transformer passed:CE,UL






C.Jig Saw:



Feature:

1.With special design, the reciprocating blade is touch safe in case of finger contact-it just causes slight vibration without cuts when skin contacts.

2.Allow straight-line cutting and curve cutting.

3.Machine color is made up of red and black.



Motor blade and gear are made of metal.



Technical parameters:

1.Motor speed:20,000rpm/min

2.Input voltage/current/power:12VDC/2A/24W

3.Working table size:90mm*90mm

4.Maximum working material thickness:solid wood-4mm,plywood-7mm,soft wood-18mm,aluminium-0.5mm, acrylic-2mm.

5.The transformer has over-current protection,over-voltage protection,over heating protection.

Certificate Transformer passed:CE,UL







D.Sanding Machine:



Feature:

1.The left side of the machine has a small grinding wheel with a wheel guard.

2.The machine can be used to polish,grin.If needed,we use the machine by hand to grind under any angle.

3.Center height 25mm,sanding paper:100#(optional)choose different sanding paper according different work pieces and workpieces surface.

4.Machine color is made up of red and black.



Motor and gear are made of metal



Technical parameters:

1.Motor speed:20,000rpm/min

2.Input voltage/current/power:12VDC/2A/24W

3.Working table size:123*100mm

4.Working material:wood,engineer plastic,soft metal(aluminum ,copper etc.)

5.The transformer has over-current protection,over-voltage protection,over heating protection.



E.Drilling Machine:



Feature:

1.Working material:wood board,plywood,soft meta(aluminum,copper etc.),engineering plastic. Machine color is made up of red and black.

2.Easy operation,it can be used to drill and grind by hand,and it can drill holes with equal ratio on the workpiece within 180 degrees by using dividing plate.



Motor and gear are made of metal



Technical parameter:

1.Motor speed:20,000rpm

2.Input voltage/current/power:12VDC/2A/24W

3.Slider travel:30mm,50mm

4.Collets:1-6mm

5.Working table size:123*100mm

6.The transformer has over-current protection,over-voltage protection,over heating protection.

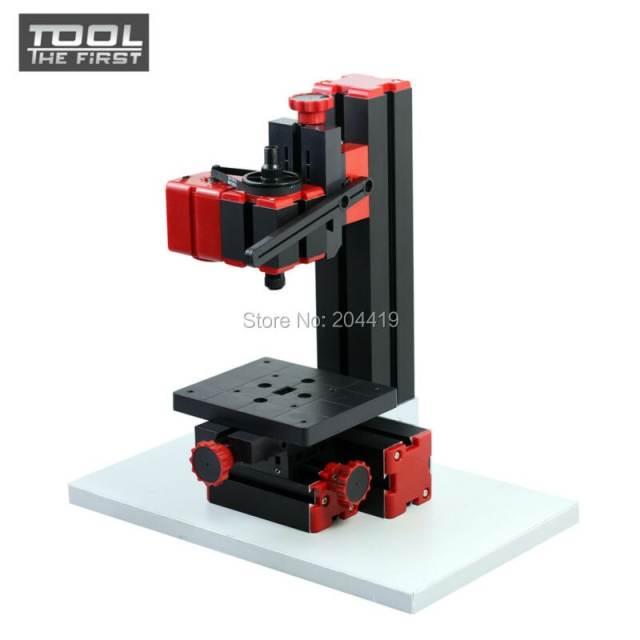

F.Milling Machine:



Feature:

1.The machine can be operated in X,Y,Z three dimensional space, can be assembled into vertical milling machine, horizontal milling machine and hand-held milling machine.

2. Milling cutter, with two edges, is dangerous, so people should be guided by teachers when using it.

3.Machine color is made up of red and black.



Motor and gear are made of metal



Technical parameters:

1.Motor speed:20,000rpm

2.Input voltage/current/power:12VDC/2A/24W

3.Slider travel:30mm,50mm

4.Collets:1-6mm

5.Working material size clamped by machine vice:30mm

6.Working material:wood, engineering plastic, soft metal(aluminum, copper etc.)

7. The transformer has over-current protection, over-voltage protection, over heating protection.






G.Hand-Held Machine



Feature:

1.Equipped with 7 standard grinding tools, widely used,variously used, easily used. With drilling bit, grinding wheel, milling cutter, it can respectively turn into hand-held driller, grinder, miller.

2.Machine color is made up of red and black.



Motor and gear are made of metal



Technical parameters:

1.Motor speed :20,000rpm

2.Input voltage/current/power:12VDC/2A/24W

3.Working material: wood, engineer plastic, soft metal(aluminum ,copper etc.)

4.The transformer has over-current protection, over-voltage protection, over heating protection.




F.Dividing Drilling Machine



Feature:

1.By using dividing plate, we can drill the round workpiece equally.

2.There are three circles of the holes on the dividing plate and the number of the holes respectively is 36,40,48. We can choose them as needed.

3.Machine color is made up of red and black.


Motor blade and gear are made of metal

Technical parameters:

1.Motor speed :20,000rpm

2.Input voltage/current/power:12VDC/2A/24W

3.Working material: wood, engineer plastic, soft metal(aluminum ,copper etc.)

4. Maximum workpiece diameter clamped by three-jaw chuck:50mm

5.The transformer has over-current protection, over-voltage protection, over heating protection.
