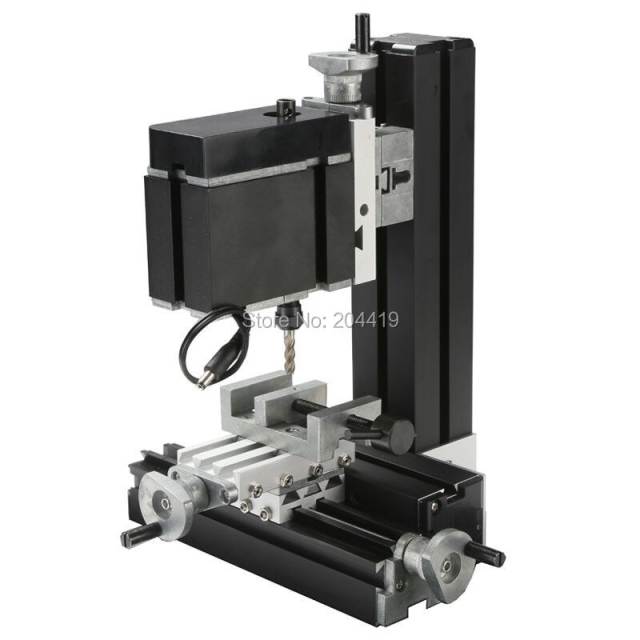

TZ20005M 60W Powerful Metal Milling Machine
Feature:
1. Motor case and headstock are jointed. Maximum motor power is 144W by using more powerful motor.
2. Milling cutter, with two edges, is dangerous, so people should be guided by experts when using it.
3.Main parts:headstock, long machine bed, short machine bed, big slider, small slider, motor blade, connection piece, gear etc.
All of the parts are made of metal except drive belt cover.
Technical parameters:
1.Motor speed:12,000rpm/min(optional choice 20,000rpm/min)
2.Input voltage/current/power:12VDC/5A/60W
3.Axis Y,Z travel:32mm Axis X travel:145mm
4.Collets:1-6mm(The standard collet for this machine is two φ6 size, if need other size collet,please contact us when purchase)
5.Maximum working material size clamped by machine vice:50mm
6.With 0.02mm scale line,the hand wheel increases the precision when processing.
7. Working material: lignin plastic, soft metal (gold, silver, copper, aluminum etc.), acrylic, plastic etc.
8. Motor power :144W
What is different compare to Power 24W one:
Processing Product:
Display Picture:
Operation Picture:
